Cable Connectivity - 80" Scan Distance - Laser - Imager - Bluetooth - USB - Industrial Green - Power Supply Included - IP65, IP68 - USB - Industrial, Warehouse, Manufacturing, Outdoor
MSRP$1,530.67
$1,292.19
Save 16%Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 26 and Nov 30, then process your delivery right after.
Genuine Zebra Technologies through authorized distribution — NDAA §889 screened before checkout.
Unstoppable performance with advanced capture of 1D/2D barcodes plus OCR, photos and documents

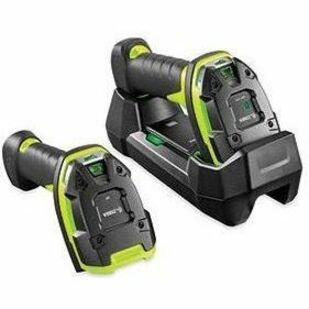

The productivity of your warehouse and manufacturing workers depends on the quality of their scanners. The DS3600-HP Ultra-Rugged scanner enables high-performance capture of 1D and 2D barcodes to nearly 7 ft./2.1 m away. Built for your toughest environments, the DS3600-HP is virtually indestructible, including an enhanced 10 ft./3 m drop spec to concrete and dual IP65/IP68 sealing. With DataCapture DNA, Zebra's exclusive software ecosystem, you can take scanner performance far beyond the basics-simplifying every stage of the scanning experience over the life of your device. And when it comes to cordless technology, the DS3678-HP's Zebra-only features put it in a class of its own. The DS3600-HP-the unstoppable performance you need to maximize workforce productivity and throughput in your operations.
Performs in Your Toughest Environments
Scan it All-at Astonishing Speeds
Workers can capture virtually any 1D or 2D barcode as fast as they can pull the trigger, whether they're in hand or as far as 7 ft./2.1 m away-offering up to 30% more working range than similar models in this class.
Powered by Zebra's exclusive PRZM Intelligent Imaging technology and the highest sensor resolution in its class, the DS3600-HP instantly captures the most problematic barcodes-including barcodes that are dirty, damaged, poorly printed and under shrinkwrap.
Ultra-Rugged-the Most Indestructible Design in its Class
Zebra ultra-rugged scanners earned their name for a reason- you won't find a tougher family of scanners. Ready for the world's harshest environments, the DS3600-HP has the highest drop, tumble and sealing specifications in its class. It can survive 10 ft./3 m drops to concrete and 7,500 tumbles. With dual IP65/IP68 sealing, the DS3600-HP is dust proof, can handle the force of jetting water and be fully submerged in water. Built to withstand extreme heat, cold and humidity, the DS3600-HP can be used anywhere-indoor, outdoor and even in the freezer.
Ultra-Rugged Cradle and Charging Contacts Designed to Last
The DS3600-HP is the first scanner in its class to offer a cradle with IP65 sealing. Its industrial charging contacts withstand 250,000 insertions. And Zebra's exclusive Connect+ Contact technology assures reliable, corrosion-free charging over the life of the scanner.
Capture OCR, Photos and Documents
The DS3600-HP makes it easy to take high quality photos for documentation. With Zebra's Intelligent Document Capture, you can automatically de-skew and brighten document images. And support for multiple OCR fonts enables fast, easy data transfer.
Additional Warranty Information: Subject to the terms of Zebra's hardware warranty statement, the DS3608-HP / DS3678-HP is warranted against defects in workmanship and materials for a period of: Scanner and Cradle: thirty-six (36) months, Battery: twelve (12) months from the date of shipmenta Limited Warranty: 36 Month
| Battery Information | |
|---|---|
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3100 mAh |
| Environmental Conditions | |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 5% to 95% |
| General Information | |
| Manufacturer | Zebra Technologies Corporation |
| Manufacturer Part Number | DS3678-HPU42P-10 |
| Brand Name | Zebra |
| Product Series | 3600 |
| Product Model | DS3678-HP |
| Product Name | 3600 DS3678-HP Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Interfaces/Ports | |
| Host Interface | USB |
| Network & Communication | |
| Bluetooth | Yes |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | Green |
| Product Color | Industrial Green |
| Durability | Dust Proof, Water Proof, Drop Resistant |
| Height | 7.3" |
| Width | 3" |
| Depth | 5.2" |
| Weight (Approximate) | 10.90 oz |
| Power Description | |
| Power Supply Included | Yes |
| Standby Current | 100 mA |
| Technical Information | |
| Connectivity Technology | Cable |
| Light Source | Laser |
| Image Sensor Type | Imager |
| Scan Mode | Trigger |
| Scanning Distance | 80" |
| Cable Type Included | USB |
| Features | Beep, Vibration, Notification LED, Data Formatter |
| Field of View (Horizontal) | 31° |
| Field of View (Vertical) | 23° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 60° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 108000 lux |
| Drop Specification |
|
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 7.5 mil |
| Maximum Element Resolution (DataMatrix) | 10 mil |
| Image Sensor Resolution | 1280 x 960 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 25kV |
| Warranty | |
| Limited Warranty | 36 Month |
| Additional Warranty Information |
|
| Miscellaneous | |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP65, IP68 |
| Application/Usage | Industrial, Warehouse, Manufacturing, Outdoor |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
