Great Lakes Wall Mount

For Equipment - 19U Rack Height28" Rack Depth - Wall Mountable Enclosed Cabinet - Black - Plexiglass - 250 lb Maximum Weight Capacity - 1 Year Warranty

SKU: GL36WMCMP-B-SH-00-CM
Category: Rack Equipment

MSRP$2,124.00

$1,506.62

Save 29%

Back ordered

Back ordered — ships when restocked.

Genuine Vertiv through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: GL36WMCMP-B-SH-00-CM
Category: Rack Equipment

Overview

Warranty

Limited Warranty: 1 Year

Highlights

Two pair of #12-24 tapped mounting rails (depth adjustable)

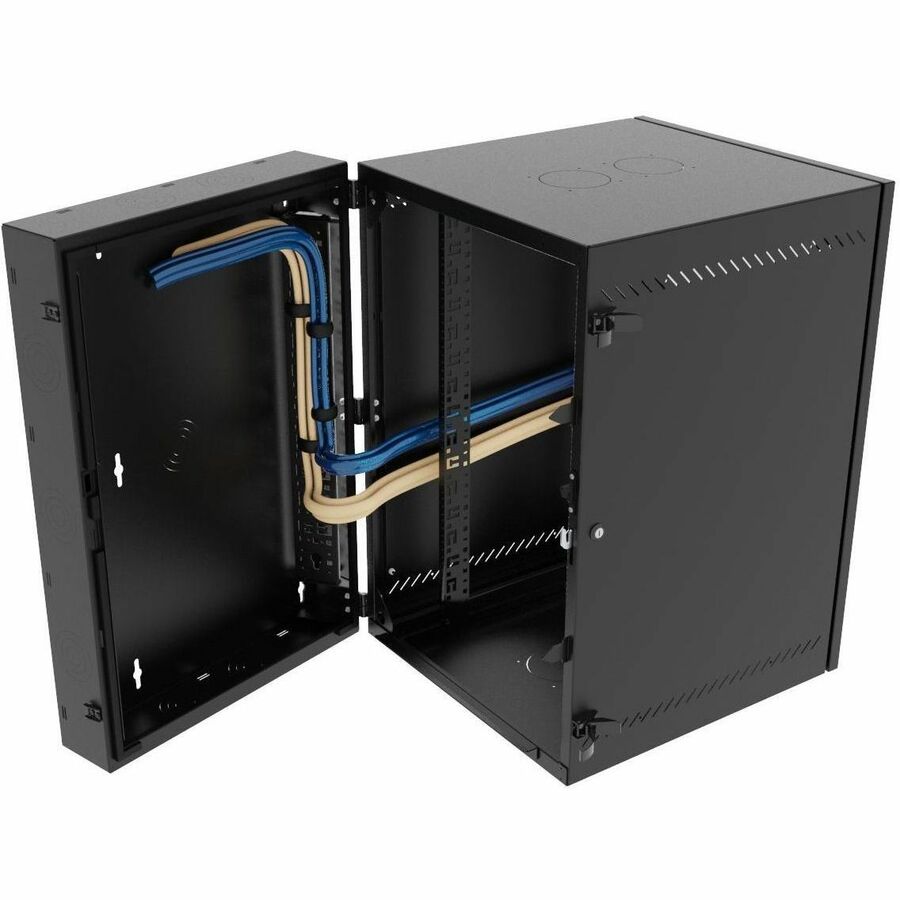

Offset mounting rails create nearly 3.5" of dedicated cable management space between the rail and side
Rails feature a horizontal/vertical cable tie down pattern and provisions for optional cable management "D" rings
Nominal concentric conduit knockouts on top, bottom, and back of rear section
Provisions on top and bottom for fan assembly
Optional dust kit to protect equipment in contaminated areas

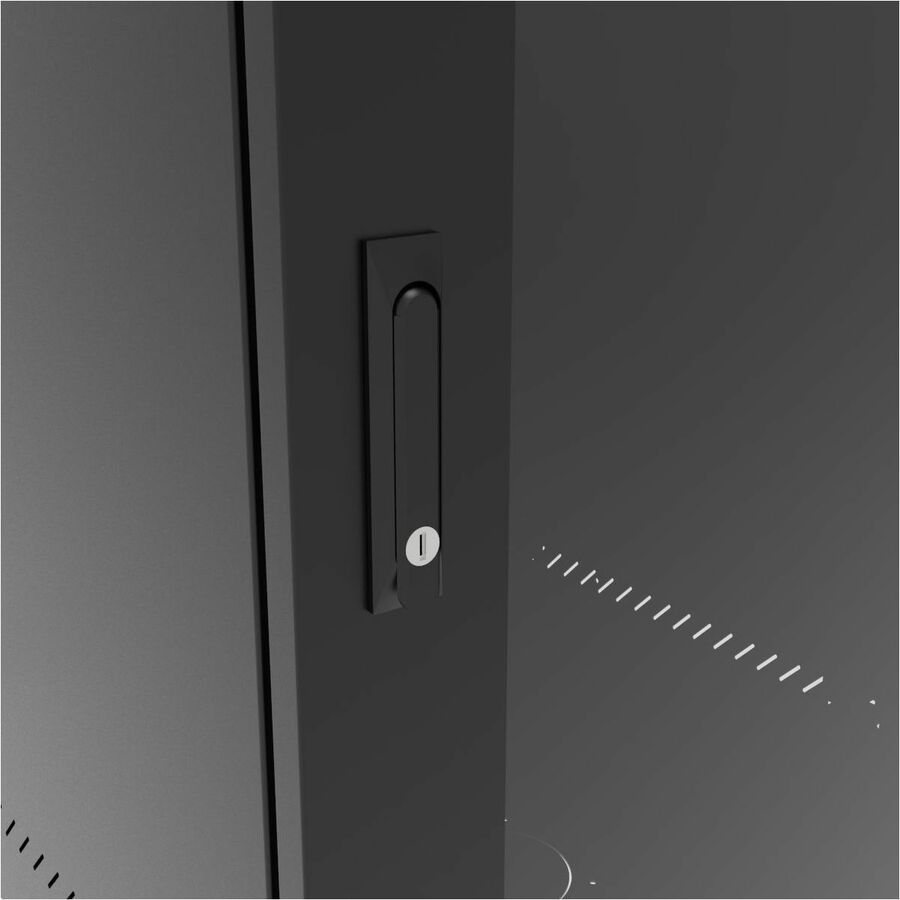

150mm x 25mm Standard door handle cutout
Reversible mounting for left-hand or right-hand opening
Color: Black, Winter White
Standards: UL2416, RoHS II

Specifications

Application/Usage	Equipment
Package Contents	Wall Mount Cable Bar Rack Mount Hardware for #12-24 Tapped Rails
Product Type	Rack Cabinet
Manufacturer Part Number	GL36WMCMP-B-SH-00-CM
Limited Warranty	1 Year
Ventilation	No
Features	Cinch Strap, Heavy Duty Hinge, Lockable Rear Door, Fan Cutout, Adjustable Depth, Adjustable Mounting Rails, Lockable Front Door, Swing Handle, Key Lock, Cable Management
Form Factor	Wall Mountable
Manufacturer	Vertiv
Product Name	Wall Mount
Product Series	WMCM
Rack Height	19U
Brand Name	Great Lakes
Height	36"
Width	24"
Depth	30.5"
Maximum Weight Capacity	250 lb
Rack Depth	28"
Product Color	Black
Color Family	Black
Rack Type	Enclosed Cabinet
Product Material	Plexiglass
Environmental Compliance	Restriction of Hazardous Substances (RoHS) 2
