Genuine Socket Mobile through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
CX4054-3117
Category
Barcode Scanners
Overview

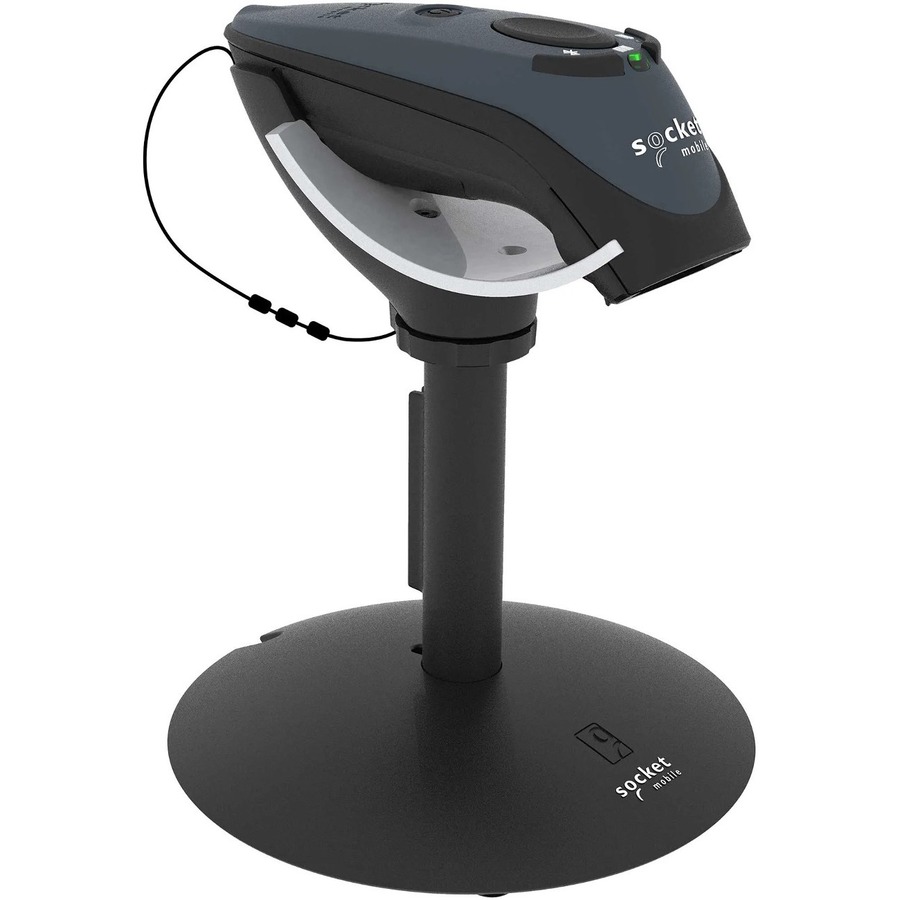

Linear Barcode Plus QR Code Scanner

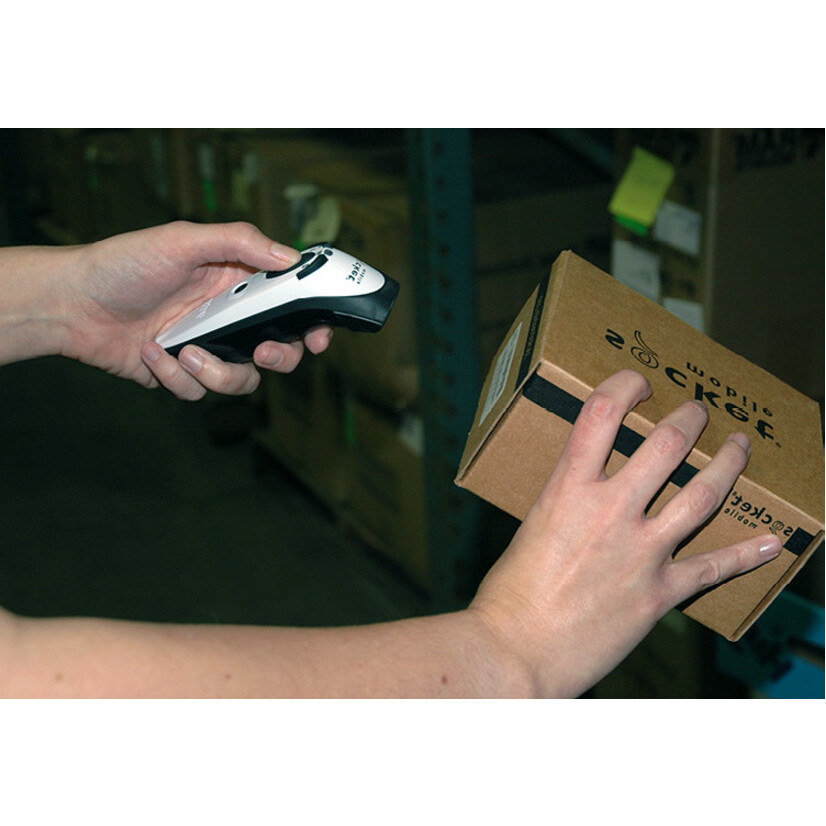

The D720 is a linear barcode & QR Code 1D/2D barcode scanner, able to read 1D and 2D barcodes on paper and screen. The D720 was built for mobility and durability. It is IP54 rated for dust and water, comes with a field-replaceable battery, and withstands multiple drops. Also great for warehousing and manufacturing applications due to the scanning versatility. It is lightweight, ergonomic designed and has a long-lasting battery. The scanner is exceptionally easy to use, with intuitive notifications for battery level, Bluetooth connection, and scanning status. Perfect for inventory, order entry, field service, and other mobile business applications.
To enjoy optimal reliability and performance from the D720, it is recommended that users check with their app provider to ensure they have upgraded to the latest version of Capture SDK.
Highlights
Certified by Apple® for iOS devices (iPad®, iPhone®, iPod Touch®) and compatible with Android, Windows® , Mac and Linux.
Bluetooth Wireless Technology - Connects easily to a wide range of Bluetooth enabled smartphones, tablets,notebooks and desktop computers.
Scanning - 2D and 1D omni-directional ability barcode scanning with visible and safe LED aimer. Scans on paper or screen.
Auto Scan Mode - Presentation Mode (automatic scanning) provides continuous scanning capabilities without pressing the scan button.
Exceptional Ergonomics - Small, light and fits
perfectly in the hand for comfortable use.
Long-Lasting, Replaceable, Rechargeable Battery -Power to last a full workday.
User Indicators - Intuitive LEDs for Bluetooth connection, battery level and scanning status.
User Feedback - Audible tones and pulsation.
Rugged Design - IP54 rating for dust and water splashing; withstands multiple drops to concrete.
Specifications
Application/Usage
Retail, Transportation, Warehouse, Manufacturing, Field Sales/Service, Healthcare, Asset Tracking
Barcode Symbology Supported
1D: Codabar Code 39 Code 93 Code 128 EAN-13 EAN-8 Interleaved 2 of 5 ISBT 128 UPC A UPC E1 Chinese 2 of 5 Codabar Code 11 Code 16KCode 39 Code 93 Code 128 Discrete 2 of 5 EAN-13 EAN-8 GS1 Databar Industrial 2 of 5 Interleaved 2 of 5 Matrix 2 of 5 MSI Plessey UPC A UPC E1 Standard 2 of 5 UK Plessey 2D: Data Matrix Micro QR Code PDF417 QR Code Aztec Data Matrix Han Xin Micro PDF417 Micro QR Code PDF417 QR Code
Product Type
Barcode Scanner
Manufacturer Part Number
CX4054-3117
Packaged Quantity
50
Platform Supported
iOS, Mac, PC, Android
Limited Warranty
1 Year
Weight (Approximate)
3.84 oz
Connectivity Technology
Wireless
Form Factor
Handheld
Manufacturer
Socket Mobile, Inc
Product Model
D720
Product Name
DuraScan D720 - 1D/2D Linear Barcode Plus QR Code Scanner
Package Type
Bulk
Product Line
DuraScan
Brand Name
Socket Mobile
Scanning Distance
19.49"
Light Source
LED
Environmentally Friendly
Yes
Bluetooth
Yes
Drop Specification
6 drops to concrete - 1 on each side at 6.6 ft. (2 m)
Scan Pattern
Omni-directional
Image Sensor Type
Linear
Product Color
Gray
Ingress Protection (IP) Rating
IP54
Rugged
Yes
Scanning Capability
1D, 2D
Field of View (Horizontal)
45°
Field of View (Vertical)
34°
Maximum Ambient Light
100000 lux
Minimum Print Contrast
25%
Maximum Element Resolution (Code 39)
5 mil
Maximum Element Resolution (DataMatrix)
10 mil
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
