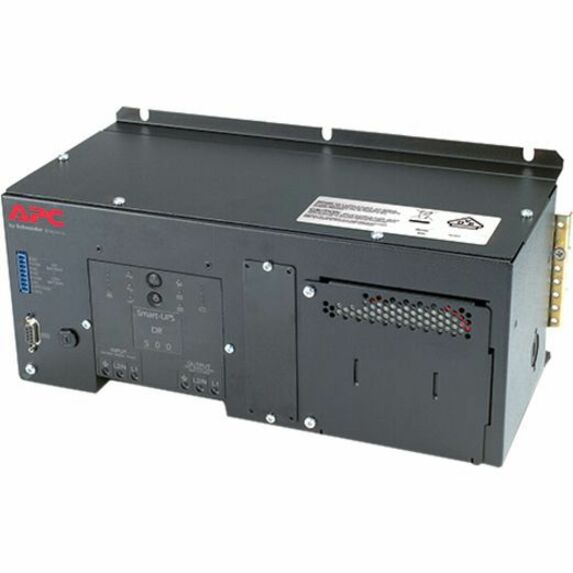

APC by Schneider Electric DIN Rail - Panel Mount UPS with Standard Battery 500VA 230V

Marketing Information from the Manufacturer

Product Overview

SUA500PDRI-S Features

The Industrial Panel and DIN Rail AC UPS from APC by Schneider Electric offers protection from under voltage (sag) and over voltage (swell/surge), transients, spikes and unexpected power outages due to utility interruptions or problems within the facility. The small form-factor is optimized for mounting within control panel enclosures either on a heavy-duty DIN rail or directly to the wall of the enclosure. The UPS battery can be loaded in the internal battery compartment or mounted externally depending on local codes. Frequently used to protect Industrial Process Control equipment, this AC UPS can provide protected AC power to multiple AC/DC power supplies within the cabinet.

Industrial Features & Benefits

Easy Maintenance

User replaceable battery - safely and simply replaceable by end-user with easy front panel access to the battery compartment; technician not required

Hot swappable battery - replaceable by end-user or service personnel while UPS is operating on utility power

Battery replacement - perform as part of preventive maintenance or based on UPS notification when 'UPS Automatic Self-Test' determines battery should be replaced

Flexible Installation

Small form factor - optimized for mounting within control panel enclosure either on heavy duty DIN rail or directly to the wall of the enclosure

Hardwired AC Input/Output - connection easily accessed on front panel of UPS

UPS battery installation - either insert into the internal battery compartment or mount externally depending on local electrical codes

Chassis knockout - choose either right side or bottom knockout for flexible positioning of externally mounted battery

Highly Available and Reliable

Temperature compensated battery charging - prolongs battery life by regulating the charge voltage according to battery temperature

Automatic self-test - runs periodically to ensure early detection of a battery that needs replacing - Default interval for self-test is 14 days

Manageable

LED Indicators - located on front of UPS provide status at a glance indicating On-Line, On-Battery, Battery-disconnected or needs replacement, UPS fault

DB-9 serial communication port - uses RS232 protocol

Integrated Dry Contact I/O - provides simple status information for On-Battery / Low Battery and user configured emergency power off (EPO)

APC SmartSlot - accepts optional accessory cards for Network Management or Serial Modbus/Jbus or additional Relay I/O Dry Contacts - Integrated Dry Contact I/O is disabled when accessory card is installed

Technical Specifications

Output

Output Power Capacity

325 Watts / 500 VA

Max Configurable Power

325 Watts / 500 VA

Nominal Output Voltage

230V

Efficiency at Full Load

94.0%

Output Voltage Distortion

Less than 5%

Output Frequency (sync to mains

47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal

Other Output Voltages

220, 240

Topology

Line Interactive

Waveform Type

Sine Wave

Output Connections

(1) Hard Wire 3-wire (H N + G)

Input

Nominal Input Voltage

230V

Input Frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input Connections

Hard Wire 3 wire (1PH+N+G)

Input voltage range for main operations

160 - 285V

Input voltage adjustable range for mains operation

151 - 302V

Other Input Voltages

220, 240

Batteries & Runtime

Battery Type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Included Battery Modules

Available Battery Module Slots

Typical recharge time

2 hour(s)

Replacement Battery

APCRBC135

RBC™ Quantity

Runtime Graph

Communications & Management

Interface Port(s)

DB-9 RS-232, SmartSlot

Available SmartSlot™ Interface Quantity

Control panel

LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Emergency Power Off (EPO)

Yes

Surge Protection and Filtering

Surge energy rating

540 Joules

Filtering

Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

Maximum Height

5.84 inches (148 mm)

Maximum Width

14.24 inches (362 mm)

Maximum Depth

6.72 inches (171 mm)

Net Weight

28.30 lbs. (12.86 kg)

Environmental

Operating Environment

32 - 104 °F (0 - 40 °C)

Operating Relative Humidity

0 - 95%

Operating Elevation

0-10000 feet (0-3000 meters)

Storage Temperature

5 - 113 °F (-15 - 45 °C)

Storage Relative Humidity

0 - 95%

Storage Elevation

0-50000 feet (0-15000 meters)

Audible noise at 1 meter from surface of unit

55.00 dBA

Online Thermal Dissipation

90.00 BTU/hr

Conformance

Regulatory Approvals

CE, VDE

Standard Warranty

2 years repair or replace

Sustainable Offer Status

RoHS

Compliant

REACH

REACH: Contains No SVHCs
