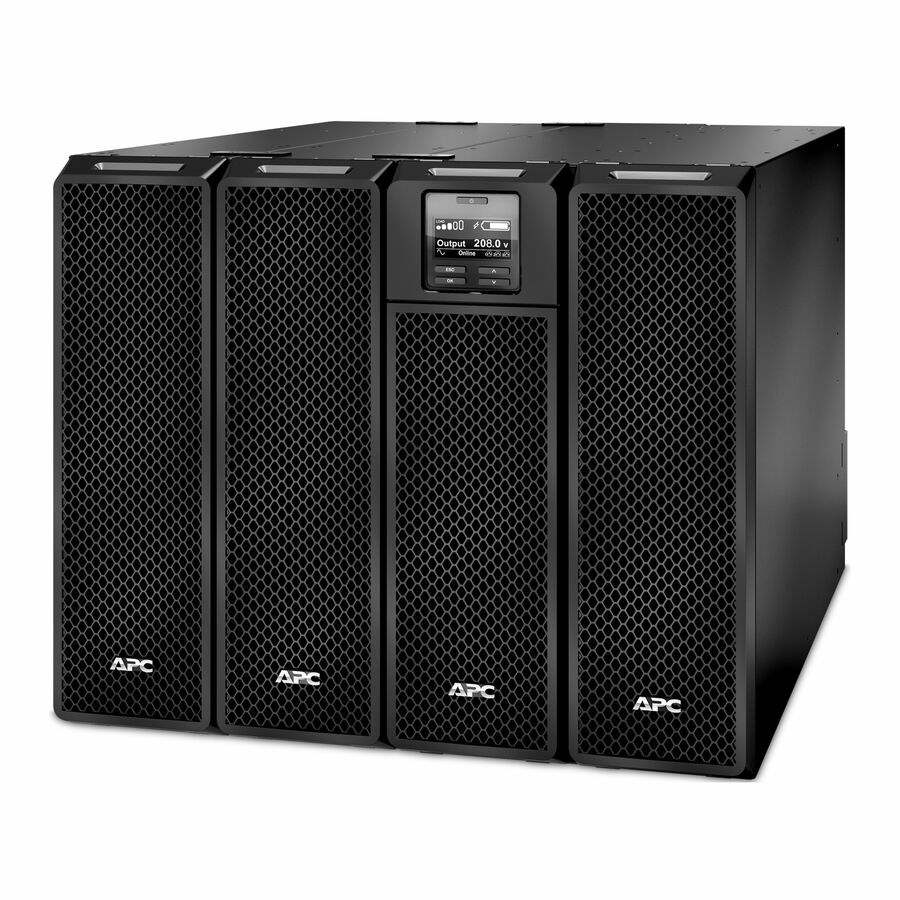

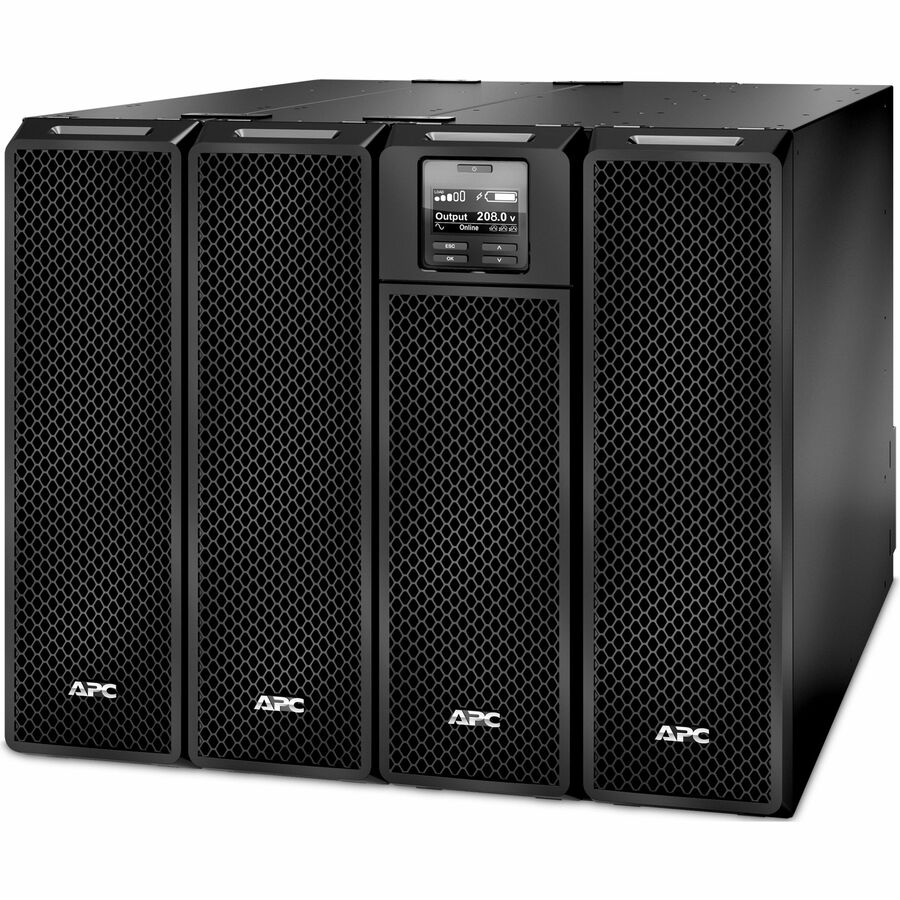

APC Smart-UPS On-Line, 10kVA/10kW, Tower, 208V, 16x 5-20R+4x L6-20R+6x L6-30R+2x L14-30R NEMA, NMC+SmartSlot,W/2 transformer 208V to 120V,W/O rail kit

Rack-mountable - 1.50 Hour Recharge - 208 V AC, 240 V AC Input - 120 V AC, 208 V AC, 240 V AC Output - 1 x Hard Wire 3-wire (2PH + G), 16 x NEMA 5-20R, 4 x NEMA L6-20R, 6 x NEMA L6-30R, 2 x NEMA L14-30R - Sine Wave

SKU: SRT10KXLT-5KTF2
Category: Industrial UPS

Request pricing

Confirmed with stock and TAA status before any payment.

Genuine Schneider Electric through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: SRT10KXLT-5KTF2
Category: Industrial UPS

Overview

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 10kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (2P+E) input, 16x 5-20R, 4x L6-20R, 6x L6-30R, and 2x L14-30R NEMA outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately.

Warranty

Additional Warranty Information: Battery: 24 month(s)|UPS: 36 month(s) Limited Warranty: 3 Year

Highlights

10kVA/10kW double-conversion on-line pure sine wave tower UPS
Ideal for servers, storage, voice/data networks, medical labs, and light industrial applications
Rack/Tower convertible (rail kit SRTRK2 or SRTRK3 sold separately)
1-Year Secure Network Management Card subscription included
Add up to 10 external battery packs (SRT192BP2) for extended runtime
Embedded Network Management Card for network-based UPS monitoring & management
Graceful shutdown of physical servers, virtual machines and HCI Clusters
SmartSlot for additional communication options
Delivers clean power with zero transfer time for critical or sensitive devices

Specifications

Additional Warranty Information	Battery: 24 month(s)\|UPS: 36 month(s)
Battery Chemistry	Lead Acid
Package Contents	Smart-UPS SRT 10kVA with two 208/240V to 120V 5kVA Step-Down Transformers CD with software Documentation CD Installation guide Temperature probe USB cable Warranty card Web/SNMP management card
Product Type	Online UPS
Input Voltage	208 V AC, 240 V AC
Manufacturer Part Number	SRT10KXLT-5KTF2
Limited Warranty	3 Year
Output Voltage	120 V AC, 208 V AC, 240 V AC
Weight (Approximate)	496 lb
Form Factor	Rack-mountable
Manufacturer	Schneider Electric SA
Product Name	Smart-UPS SRT 10kVA with two 208/240V to 120V 5kVA Step-Down Transformers
Product Line	Smart-UPS
Surge Energy Rating	480 J
Waveform Type	Sine Wave
Brand Name	APC
Plug/Connector Type	Hard Wire 3-wire (2PH + G)
Country of Origin	Philippines
Height	17"
Width	20.6"
Depth	28.1"
Phase	Single Phase

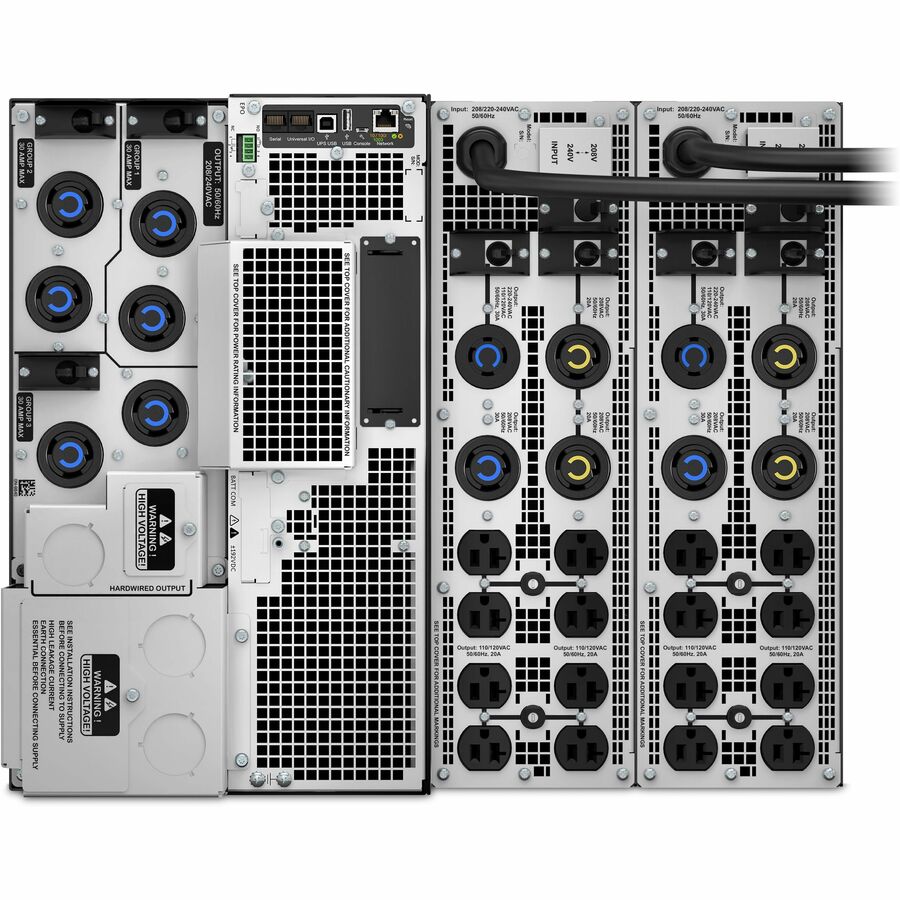

Receptacle Type	Hard Wire 3-wire (2PH + G), NEMA 5-20R, NEMA L6-20R, NEMA L6-30R, NEMA L14-30R
Environmentally Friendly	Yes
Load Capacity (VA)	10000 VA
Energy Star	Yes
Number of Battery & Surge Outlets	28
Typical Battery Recharge Time	1.50 Hour
Product Color	Black
Receptacle Detail	1 x Hard Wire 3-wire (2PH + G), 16 x NEMA 5-20R, 4 x NEMA L6-20R, 6 x NEMA L6-30R, 2 x NEMA L14-30R
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Single-use Plastic (SUP) Free Shipping Packaging	No
