Sangoma Dialogic D120JCTLSEW Voice Board
Sangoma Technologies

Sangoma Dialogic D120JCTLSEW Voice Board

PCI Express - TAA Compliant

SKU
884-594
Category
Voice Boards

MSRP$5,500.00

$4,469.42

Save 19%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Sangoma Technologies through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
884-594
Category
Voice Boards

Overview

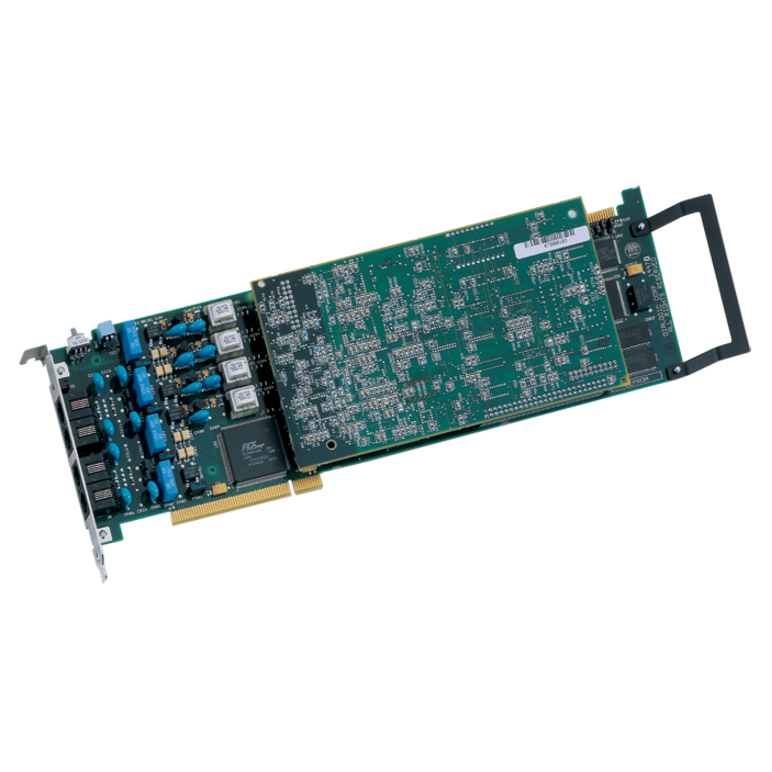

The Dialogic® D/120JCT-LS Media Board is a 12-port analog PCI or PCI Express board well-suited for developing advanced communications applications that require multimedia resources. This high performance, scalable product supports voice, fax, and software-based speech recognition processing in a single PCI or PCI Express slot, providing 12 analog telephone interface circuits for direct connection to analog loop start lines.

Highlights

  • A variety of country-specific approvals
  • Telcordia CLASS, UK CLI, Japanese Caller ID, and other international protocols.
  • Separate models available with Universal PCI or PCI Express edge connector
  • Enables implementation of unified messaging applications that meet VPIM standards
  • A-law or µ-law voice coding at dynamically selectable data rates, 24 kbit/s to 64 kbit/s, selectable on a channel-by-channel basis
  • Provides a flexible speech processing technology, which, when coupled with efficient drivers, off-loads critical real-time signal processing in speech-enabled applications to on-board DSPs. Reduces system latency, increases recognition accuracy, and improves overall system response time for high-density speech solutions.
  • Reduces the number of boards per system
  • Expands an application's ability to serve several global market segments at no extra cost
  • Allows for a beneficial tradeoff between disk storage and voice quality
  • Supports an international Caller ID capability via on-hook audio path

Specifications

Host InterfacePCI Express
Product TypeVoice Board
Manufacturer Part Number884-594
Limited Warranty3 Year
Voice CodecG.726, GSM
ManufacturerSangoma Technologies Corporation
Product ModelD120JCTLSEW
Product NameDialogic D120JCTLSEW Voice Board
Processor Speed32.77 MHz
Product LineDialogic
Product SeriesJCT
Brand NameSangoma
Processor Model80486
Height4.2"
Processor ManufacturerIntel
Number of Processors2
TAA CompliantYes
