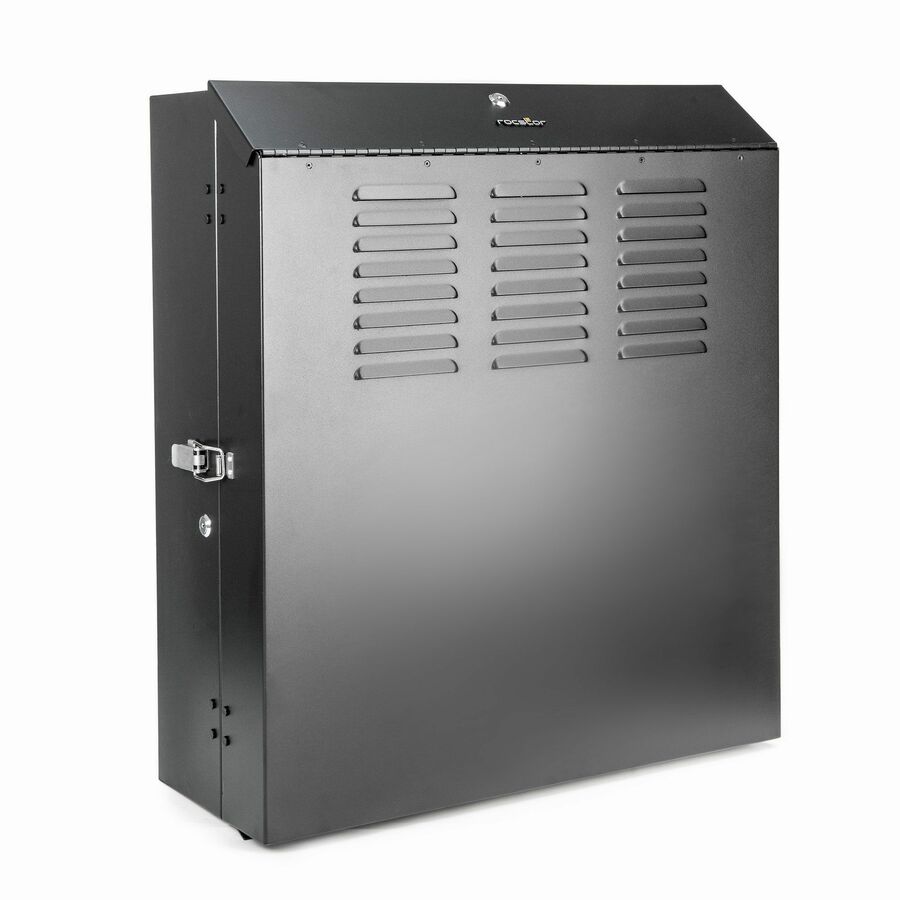

Rocstor SolidRack Enclosure Rack Cabinet
For Server, Data Center, Patch Panel, Switch - 5U Rack Height x 19" Rack Width - Wall Mountable - Black - Cold-rolled Steel (CRS) - 150 lb Static/Stationary Weight Capacity - 5 Year Warranty
- SKU
- Y10E047-B1
- Category
- Rack Equipment
MSRP$419.95
$344.97
Save 18%In stock: 18
Genuine Rocstor through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- Y10E047-B1
- Category
- Rack Equipment
Overview
Rocstor's Premium SolidRack 5U Low Profile Vertical Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet is all you need to safely and securely house your 19-inch rack equipment including patch panels, network switches, batteries, and routers. It is a perfect solution for areas with limited floor space such as network wiring closets, server rooms, data centers, and back offices to keep your equipment organized and accessible for configuration or maintenance.

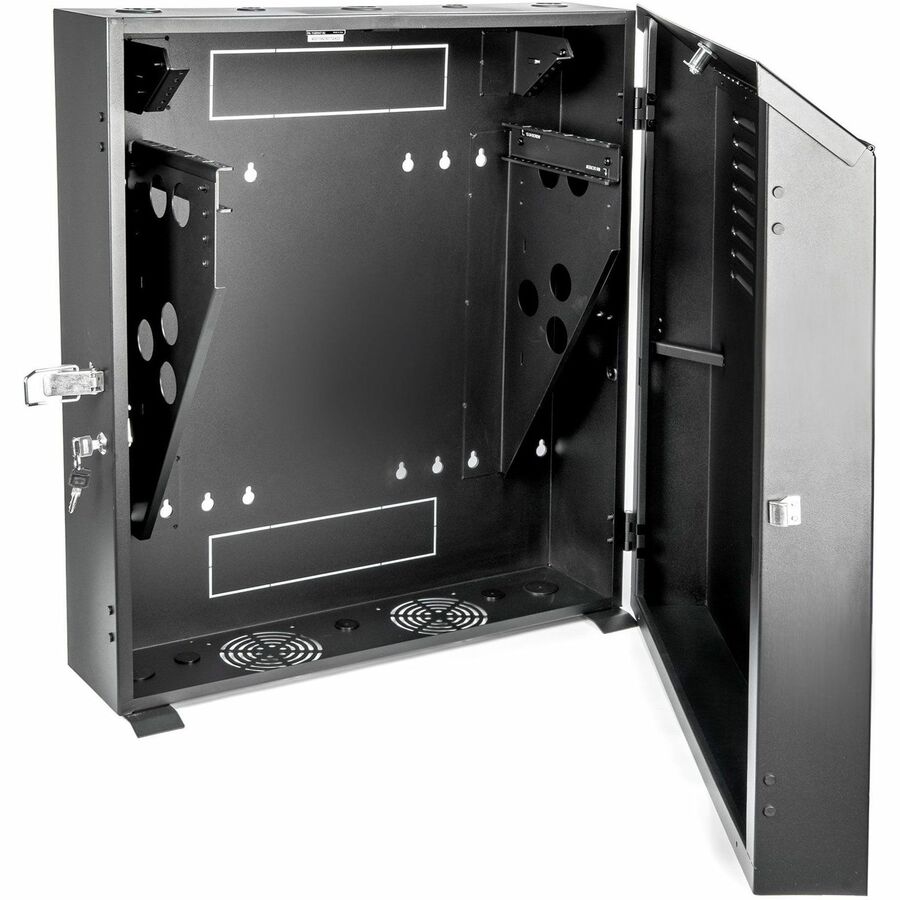

This Cold Rolled Steel (CRS) slim and sleek wall mount enclosure cabinet can mount devices up to 20-inches deep, despite its low-profile design, while extending less than 10-inches from the wall. In addition, apart from the main 5U mounting space, it also contains 2U mounting bracket located at the top of the enclosure that can be slid out to accommodate patch panels up to 2.5 inches deep. The enclosure safely conceals all the equipment stored inside with its secure top panel and front door to prevent damage or theft. With its vented design, it ensures proper airflow across the cabinet to maintain cool temperature and prevent devices from heating up and getting damaged. In addition, you can also install Rocstor's high-quality fan set (including two pre-assembled fans) in the rack's ceiling to enhance the cooling performance inside wall cabinet. This enclosure cabinet features reversible front door which can be opened from either left or right side to provide greater flexibility for installation and accessibility. With top and bottom ports, the cables can be routed easily and strain-free.
This sturdy Cold Rolled Steel (CRS) wall mount enclosure is made of heavy-duty steel with black-powder coat finishing to make it corrosion-resistant and durable in harsh environments. It supports maximum static load capacity of 150 lbs and is shipped fully assembled to be easily installed on the wall in no time. The premium SolidRack 5U Low Profile Vertical Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet is backed by Rocstor's 5-year warranty and lifetime phone support.
Attributes
• 5U Low Profile Vertical Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet
• Durability and longevity
• 150 lbs. static weight capacity
• Slim and sleek design
• Cold Rolled Steel (CRS)
• Black finishing
• 5-year warranty
Highlights
- Ideal equipment-mounting solution for limited-space environments such as network closets, server rooms, and data centers.
- Supports numerous networking and IT equipment including patch panel, servers, and switches
- Accommodates standard 19-inch rack equipment up to 20-inch deep
- Safely holds stationary weight capacity of up to 150 lbs.
- Supports additional 2U slide-out mounting space for housing patch panels
- Maintains device temperature by allowing airflow within the enclosure
- Built with high-quality steel for increased strength, durability, and longevity
- Features reversible front door that can open left or right
- Arrives fully assembled for quick installation
- Cold Rolled Steel (CRS)
- Numbered rack units (U)
Specifications
| Application/Usage | Server, Data Center, Patch Panel, Switch |
|---|---|
| Product Type | Rack Cabinet |
| Manufacturer Part Number | Y10E047-B1 |
| Limited Warranty | 5 Year |
| Weight (Approximate) | 52.91 lb |
| Features | Adjustable Depth, Vented, Reversible Door |
| Form Factor | Wall Mountable |
| Manufacturer | Rocstor |
| Product Name | SolidRack Enclosure Rack Cabinet |
| Product Line | SolidRack |
| Rack Width | 19" |
| Rack Height | 5U |
| Brand Name | Rocstor |
| Country of Origin | China |
| Assembly Required | No |
| Height | 29.7" |
| Width | 25.3" |
| Depth | 9.8" |
| Environmentally Friendly | Yes |
| Static/Stationary Weight Capacity | 150 lb |
| Product Color | Black |
| Product Material | Cold-rolled Steel (CRS) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
