SKU
06005324
Category
Hubs & Repeaters
Overview

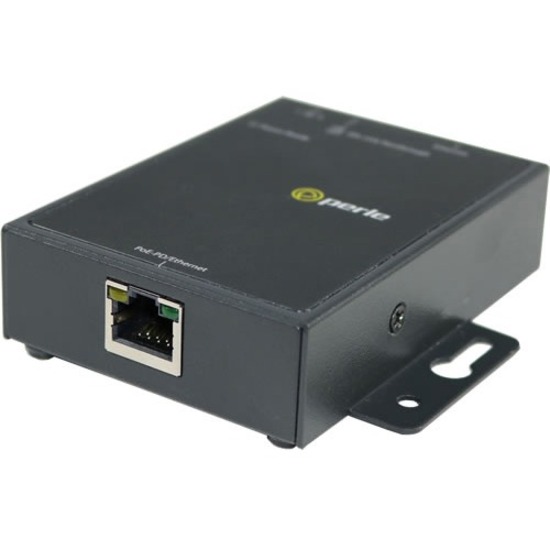

eR-S1110 Ethernet Repeater and Rate Converter: 2 x 10/100/1000Base-T (RJ45) ports. Auto-sensing and rate converting. Extend existing Ethernet cable length by 100m (300ft). 802.3af Power over Ethernet (PoE) compliant PD. AC power adapter included.
The eR-S1110 Ethernet Repeater extends network distances an additional 100m / 328ft over 4-wire twisted pair (CAT5/6/7). You can also perform rate conversion between 10/100/1000 Mbps network links.
The eR-S1110 Repeater can also operate as a Powered Device (PD) under IEEE 802.3af supporting end-span and mid-span power sources (PSE). This makes it ideal for organizations that need to deploy equipment in locations that are difficult or too costly to have separate AC power installed such as ceilings, walls and kiosks.
Warranty
Limited Warranty: Lifetime
Highlights
Extend network distances an additional 100m / 328ft over 4-wire twisted pair
Rate conversion between 10/100/1000 Mbps network links
Transparent operation for all Ethernet protocols including 802.1Q VLAN packets and IP video compression schemes
Advanced features: Link Pass-Through, Interlink Fault Feedback, Plug and Play, Auto-MDIX and Loopback
Operates as a Powered Device (PD) under IEEE 802.3af so it can be used with a PoE Injector or Switch to eliminate the need to install AC power wiring
Specifications
General Information
Manufacturer
Perle Systems, Inc
Manufacturer Part Number
06005324
Brand Name
Perle
Product Series
eR-S1110
Product Name
eR-S1110 Ethernet Repeater
Product Type
Network Repeater
Interfaces/Ports
Total Number of Network Ports
2
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
2
Media & Performance
Media Type Supported
Twisted Pair
Network & Communication
Ethernet Technology
Gigabit Ethernet
Network Technology
10/100/1000Base-T
Physical Characteristics
Form Factor
Wall Mountable, Rail-mountable, Panel Mount
Height
0.9"
Width
3.5"
Depth
2.5"
Weight (Approximate)
8.11 oz
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
eR-S1110 Ethernet Repeater
AC Power Adapter
Wall/Panel Mount
Country of Origin
Canada
Environmentally Friendly
Yes
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
