SKU
PAN-ION-3200H-C5G-WW-HW
Category
Network Security & Firewalls
Overview

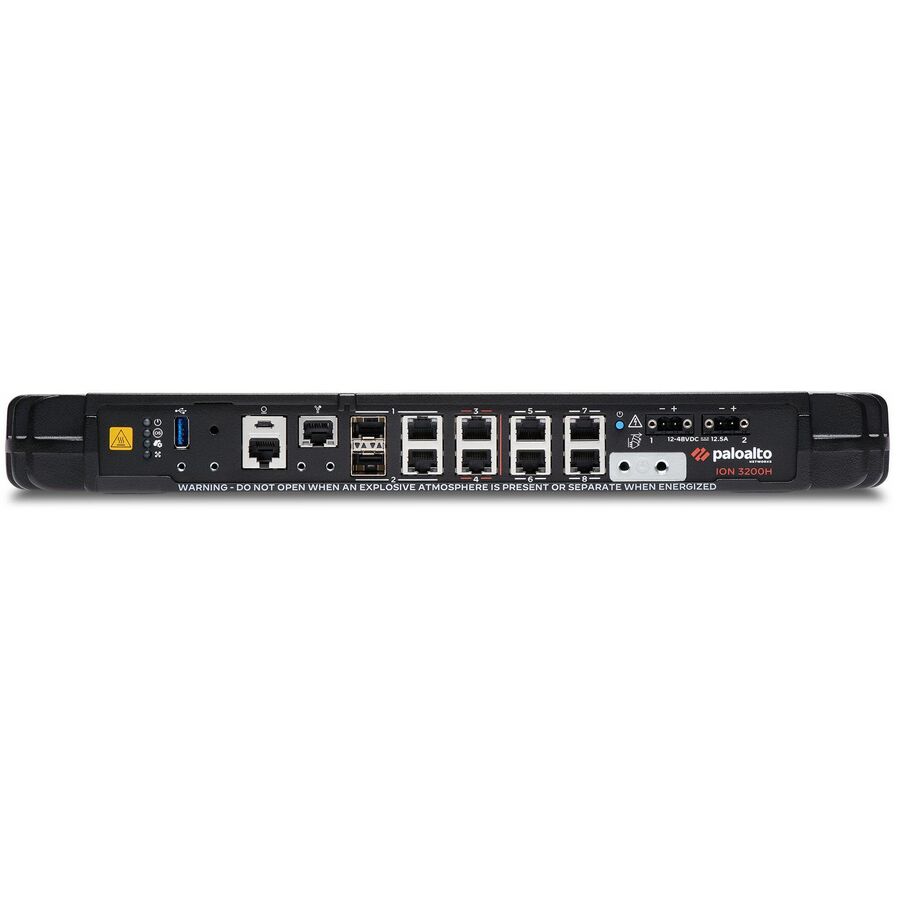

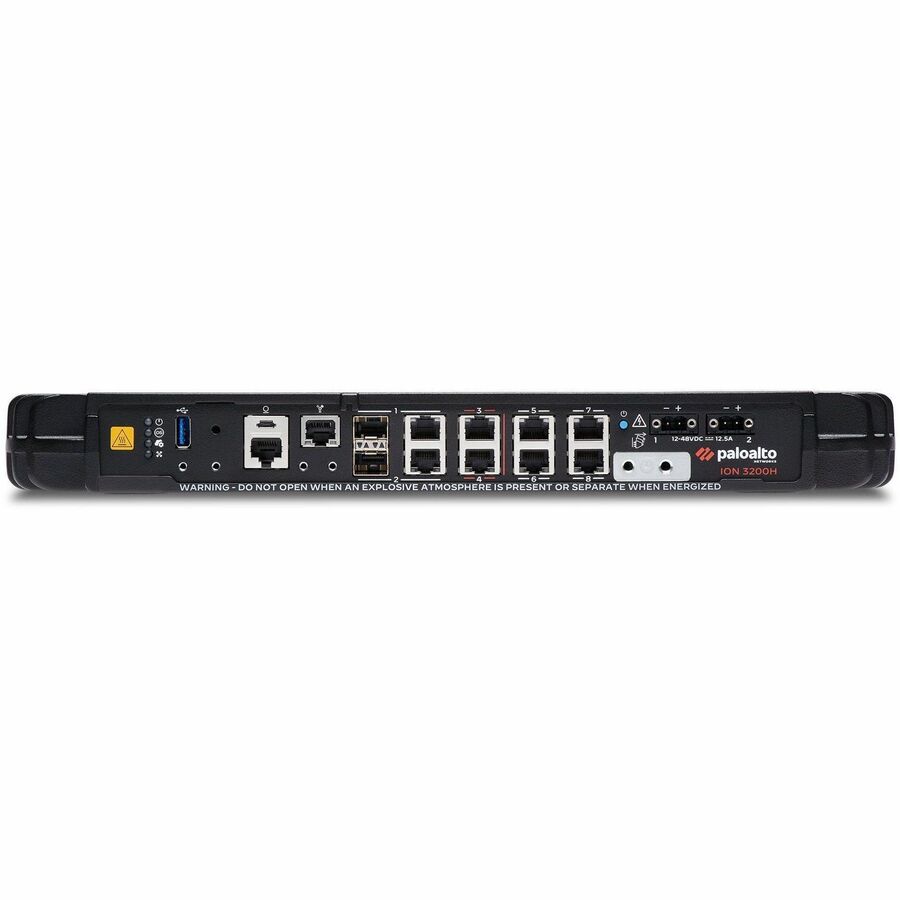

Prisma SD-WAN ION 3200 is a next generation software-defined device that can be deployed in a branch or a data center. With the introduction of ION 3200, accelerate your SASE deployment to a branch or a DC by applying WAN connectivity without installing additional hardware to enable rapid deployments.
The new high-performance ION 3200 device comes with fiber optic ports offering RJ-45/SFP Combo WAN ports, higher power SFP ports to support smart SFPs, wired LAN switching, wireless LAN Access points, PoE to power external cellular gateways, and other PoE powered devices such as Internet Protocol phones or cameras or Wireless Access Points.
Warranty
Limited Warranty: 12 Month
Highlights
Offers robust security mechanism for your devices and network with maximum efficiency
Gigabit Ethernet port for ultra-fast network speeds
Form a secured network by attaching multiple devices together or expand the amount of devices connected to your existing network by using 10 ports Firewall
Rackmountable feature for convenient and safe installation of Firewall
USB offers a more refined structure and safer to use connectivity
Specifications
Package Contents
ION-3200H Network Security Appliance
1 x 270W Power Adapter
2 x Euroblock Connector and Terminal Block
1 x #10 Ground lug
1 x USB to Micro USB Cable
1 x Power Cord, AC, which varies depending on the country or region
1 x AC/DC Power Adapter Wall-mount kit (includes one power adapter bracket, a Velcro strap, and a plastic cable tie)
1 x Shielded RJ-45 CAT6 Ethernet cable
1 x Sheet, Limited Warranty.
1 x China RoHS declaration.
1 x ION 3200H short antenna cable measuring 17"
1 x ION 3200H long antenna cable measuring 27"
Product Type
Network Security Appliance
Manufacturer Part Number
PAN-ION-3200H-C5G-WW-HW
Packaged Quantity
1
Limited Warranty
12 Month
Weight (Approximate)
9.85 lb
Connectivity Technology
Wired
Form Factor
Rack-mountable, Desktop, Wall Mountable
Frequency
50 Hz, 60 Hz
Manufacturer
Palo Alto Networks
Product Name
ION 3200H Network Security Appliance
Product Line
ION
Product Series
3200H
Brand Name
Palo Alto
Expansion Slot Type
SFP (mini-GBIC)
Height
1.7"
Width
9"
Depth
13"
Manageable
Yes
Network Standard
10/100/1000Base-T, 1000Base-X
Compatible Rack Unit
1U
Ethernet Technology
Gigabit Ethernet
USB
Yes
Number of Network (RJ-45) Ports
10
Number of SFP Slots
2
Cellular Generation
5G
Total Number of Ports
10
Total Number of Expansion Slots
2
Environmental Compliance
China Restriction of Hazardous Substances (China RoHS)
