Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Dec 4, 2026 and Jan 8, 2027, then process your delivery right after.
Genuine Palo Alto Networks through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Network Security & Firewalls
Overview

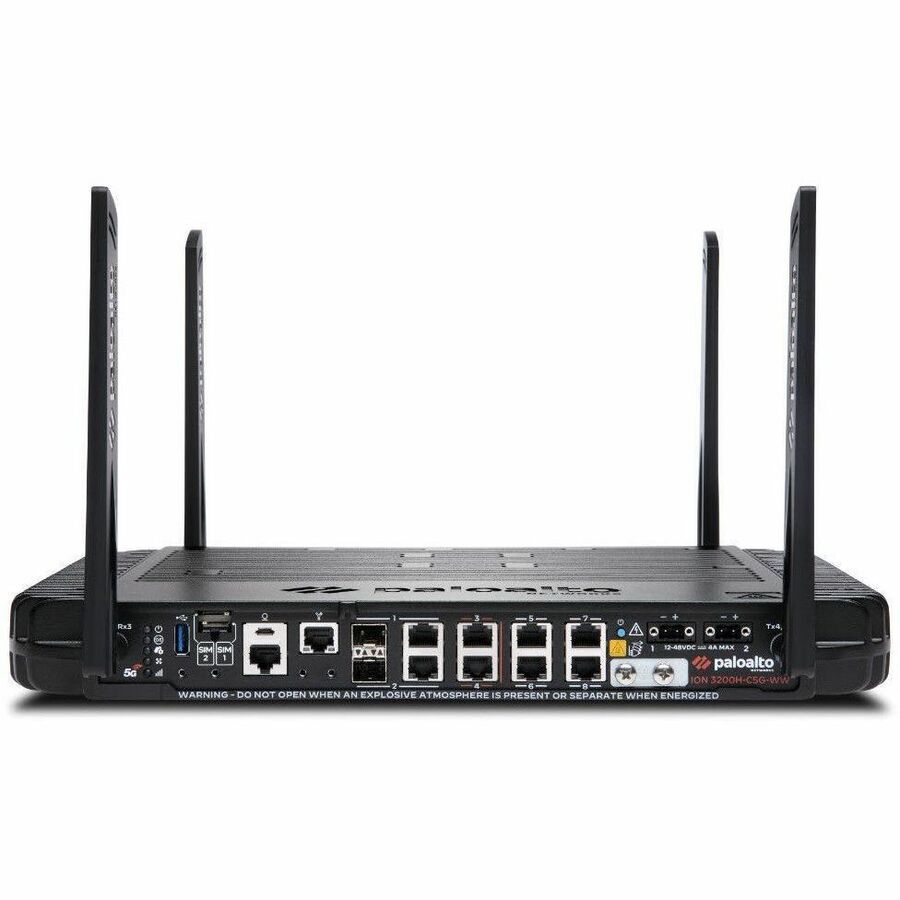

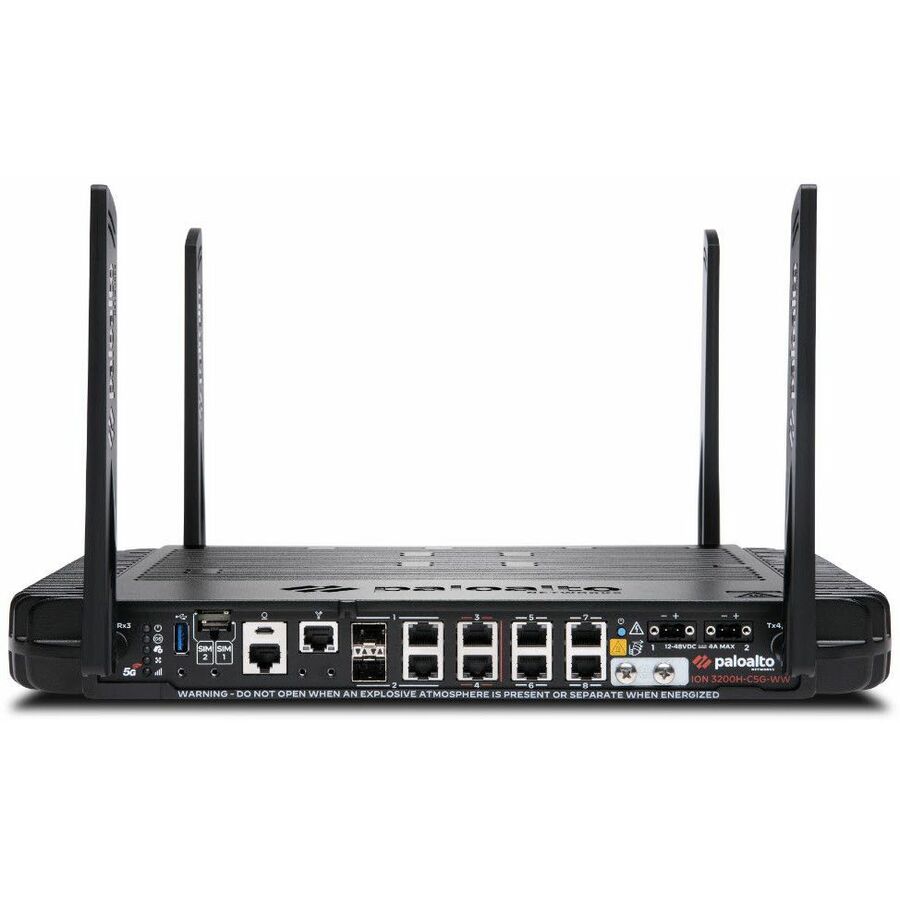

Prisma SD-WAN ION 3200 is a next generation software-defined device that can be deployed in a branch or a data center. With the introduction of ION 3200, accelerate your SASE deployment to a branch or a DC by applying WAN connectivity without installing additional hardware to enable rapid deployments.
The new high-performance ION 3200 device comes with fiber optic ports offering RJ-45/SFP Combo WAN ports, higher power SFP ports to support smart SFPs, wired LAN switching, wireless LAN Access points, PoE to power external cellular gateways, and other PoE powered devices such as Internet Protocol phones or cameras or Wireless Access Points.
Warranty
Limited Warranty: 12 Month
Highlights
Supports network security appliance deployment by providing integrated traffic inspection and access control capabilities
10 ports firewall supports connecting multiple devices to expand or segment the existing network infrastructure
Supports Gigabit Ethernet to enable increased data transfer capacity compared to earlier Ethernet standards
Rack?mountable form factor allows secure and space?efficient installation within standard rack environments
Supports USB interface to allow peripheral connectivity and data transfer for supported management or storage functions
Specifications
General Information
Manufacturer
Palo Alto Networks
Manufacturer Part Number
PAN-ION-3200H-C5G-WW
Brand Name
Palo Alto
Product Line
ION
Product Series
3200H
Product Name
ION 3200H Network Security Appliance
Packaged Quantity
1
Product Type
Network Security Appliance
I/O Expansions
Total Number of Expansion Slots
2
Expansion Slot Type
SFP (mini-GBIC)
Number of SFP Slots
2
Interfaces/Ports
Total Number of Ports
10
USB
Yes
Number of Network (RJ-45) Ports
10
Management & Protocols
Manageable
Yes
Network & Communication
Cellular Generation
5G
Ethernet Technology
Gigabit Ethernet
Network Standard
10/100/1000Base-T, 1000Base-X
Physical Characteristics
Compatible Rack Unit
1U
Form Factor
Rack-mountable, Desktop, Wall Mountable
Height
1.7"
Width
9"
Depth
13"
Weight (Approximate)
9.85 lb
Power Description
Frequency
50 Hz, 60 Hz
Technical Information
Connectivity Technology
Wired
Warranty
Limited Warranty
12 Month
Miscellaneous
Package Contents
ION-3200H Network Security Appliance
1 x 270W Power Adapter
2 x Euroblock Connector and Terminal Block
1 x #10 Ground lug
1 x USB to Micro USB Cable
1 x Power Cord, AC, which varies depending on the country or region
1 x AC/DC Power Adapter Wall-mount kit (includes one power adapter bracket, a Velcro strap, and a plastic cable tie)
1 x Shielded RJ-45 CAT6 Ethernet cable
1 x Sheet, Limited Warranty.
1 x China RoHS declaration.
1 x ION 3200H short antenna cable measuring 17"
1 x ION 3200H long antenna cable measuring 27"
Environmental Compliance
China Restriction of Hazardous Substances (China RoHS)
