SKU
RAM-HOL-GE5PDKLU
Category
Cradles
Overview

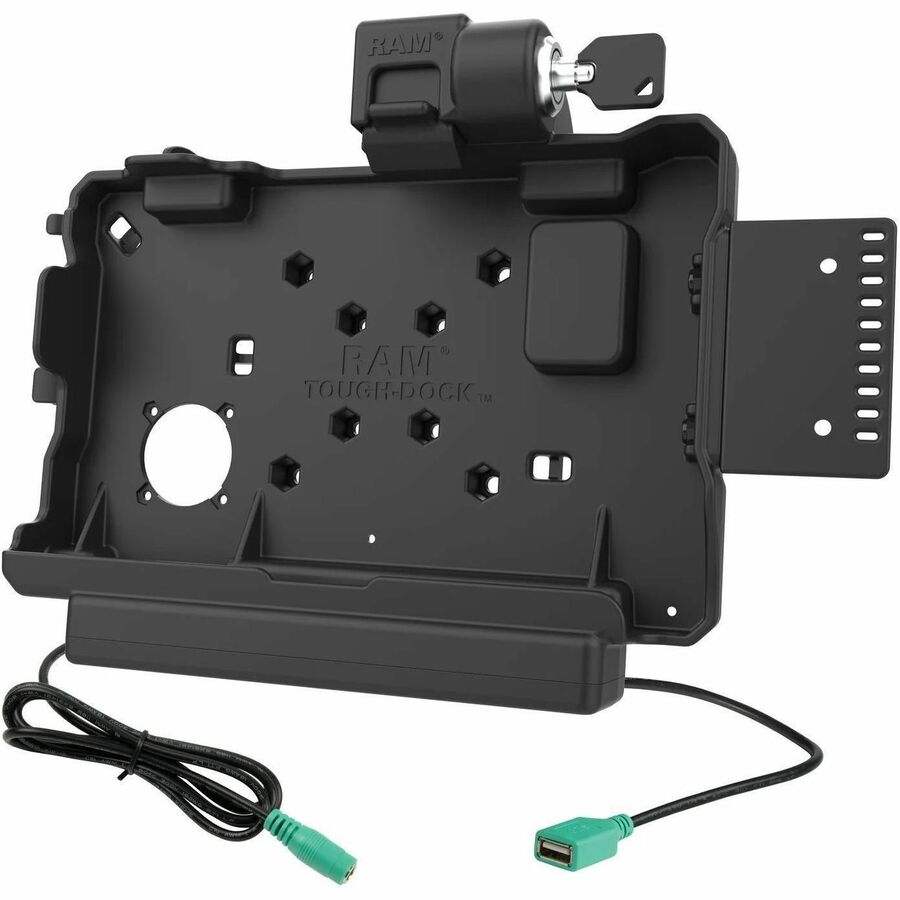

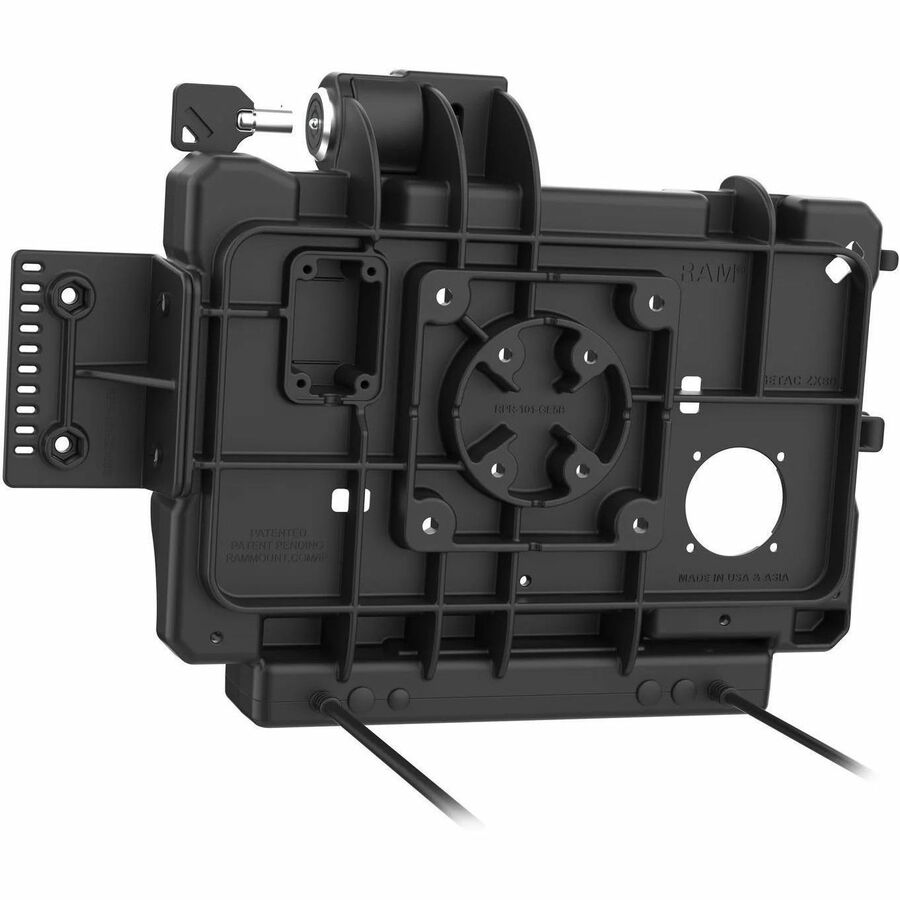

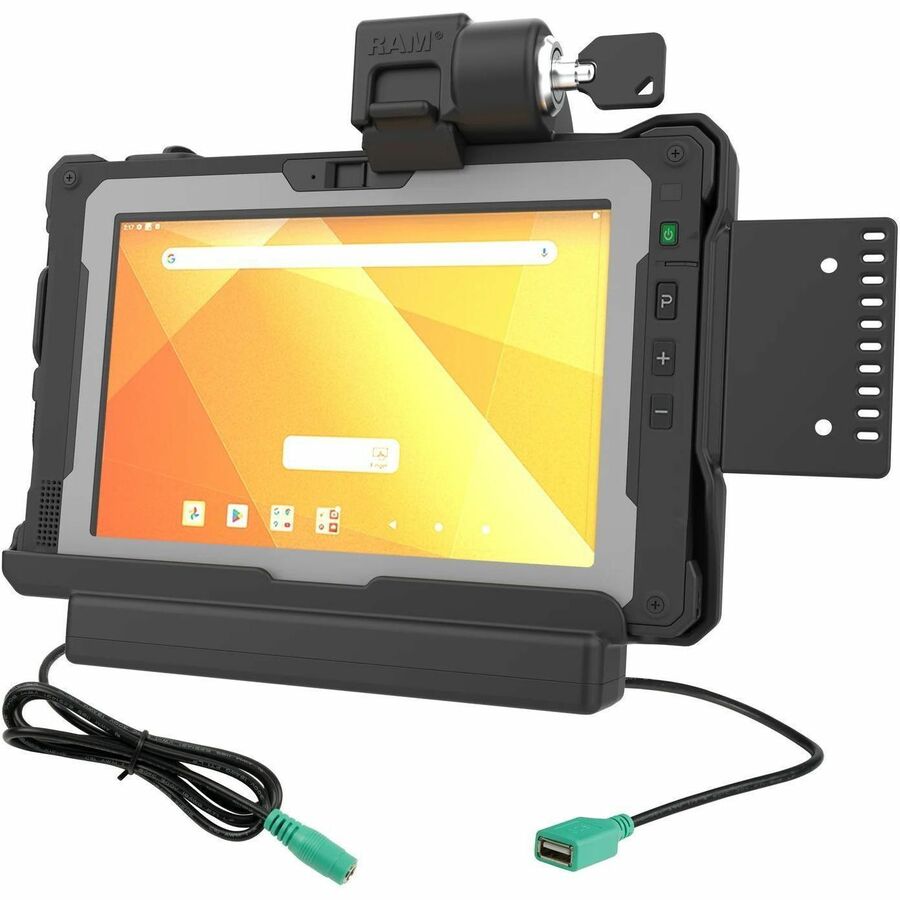

The RAM ® Locking Power + Data Dock for Getac ZX80 (RAM-HOL-GE5PDKLU) allows you to secure the device and keep it charged through the pogo pin contacts while docked-power is provided by connecting to the dock's 5.5mm DC power jack. Add a peripheral with the built-in USB Type-A cord and connect a keyboard, barcode scanner, printer, and more. Upgrade with any combination of compatible accessories including the RAM ® Temp-Right ? , Vent-Temp ? , RAM ® NFC Extender, and D size VESA base. Additional compatibility for Getac accessories include the Standard & High capacity batteries as well as the 2-Point Shoulder Strap. Take the solution a step further by taking advantage of the included 2-hole side bracket, compatible with RAM ® 2-hole diamond bases for additional device mounting such as a phone or other handheld device.
Warranty
Limited Warranty: 3 Year
Highlights
Key-locking, form-fit power + data sync dock designed specifically for Getac ZX80 rugged tablet
Dock features compatibility with RAM<sup>®</sup>Vent-Temp<sup>?</sup>, Temp-Right<sup>?</sup>, RAM<sup>®</sup>NFC Extender, and D size RAM<sup>®</sup>VESA pattern base

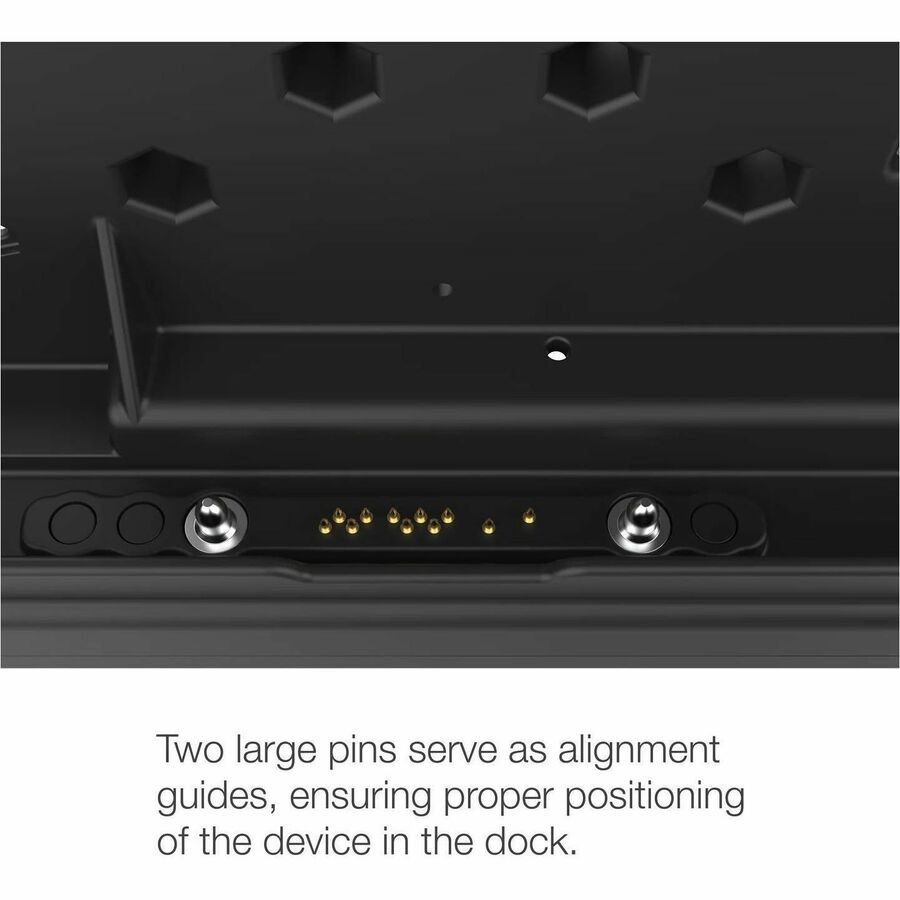

Power delivered through integrated pogo pin technology via 5.5mm DC Connector; connect 1 input device via USB-A connector
Includes 2-hole side bracket for mounting additional devices such as a phone; compatible with RAM<sup>®</sup>2-hole diamond bases and accessory side bracket
Backed by a 3-year warranty
Specifications
General Information
Manufacturer
National Products, Inc
Manufacturer Part Number
RAM-HOL-GE5PDKLU
Brand Name
RAM Mounts
Product Line
Form-Fit
Product Name
Locking Power + Data Dock for Getac ZX80
Product Type
Cradle
Interfaces/Ports
Host Interface
USB 2.0 Type A, Pogo Pin
Physical Characteristics
Product Material
High Strength Composite
Weight (Approximate)
1.95 lb
Power Description
Input Voltage
12 V DC, 19 V DC
Technical Information
Connectivity Technology
Docking/Wired
Charging Capability
Yes
Synchronizing Capability
Yes
Device Supported
Handheld Device, Phone
Features
VESA Mount Compatible, Key Locking
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
Locking Power + Data Dock for Getac ZX80
2 x Keys
1 x Side bracket for accessory mounting and strain relief
4 x 8-32 x 5/8" Machine Screws
2 x 8-32 x 1/2" Machine Screws
6 x 8-32 Nylock Nuts
4 x 10-32 x 5/8" Machine Screws
4 x 10-24 Nylock Nuts
2 x Cable Clamp Kits
2 x Small Cable Ties
Compatibility
Getac ZX80 Rugged Tablet
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
