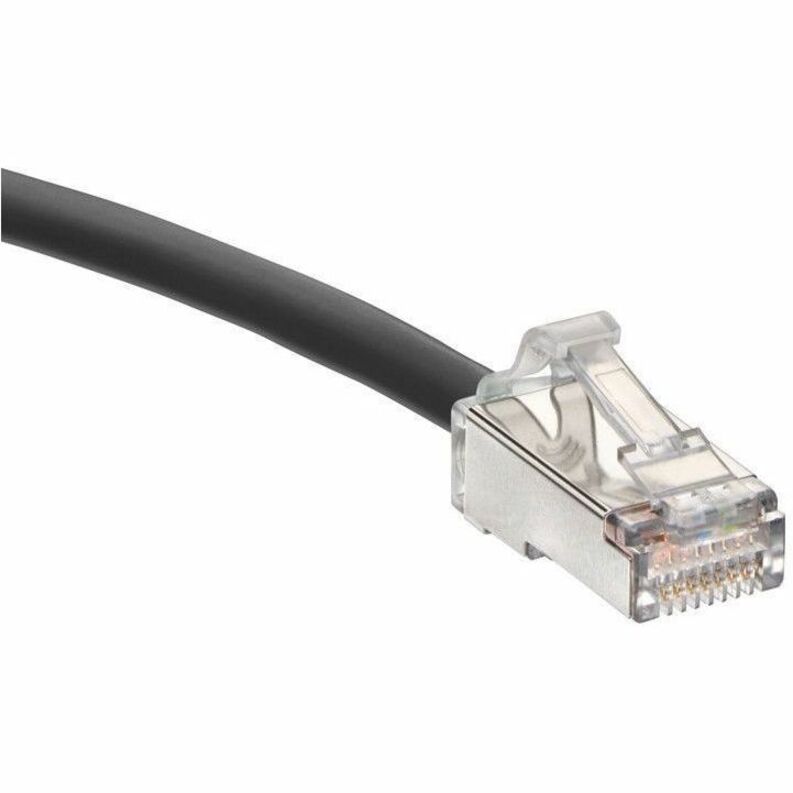

Leviton Cat 6A Small Diameter High-Flex Patch Cord, 3 ft (0.91 m), Black
3 ft Category 6a Network Cable for Network Device, Switch, Router - First End: 1 x RJ-45 Network - Male - Second End: 1 x RJ-45 Network - Male - 10 Gbit/s - Patch Cable - Shielding - Gold Plated Contact - CM - 28 AWG - Black
SKU
H6A10-03E
Category
Connector Cables
$24.71
Back-ordered
Special order — estimated available by September 10, 2026.
Genuine Leviton Mfg through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
H6A10-03E
Category
Connector Cables
Overview
Patch cords shall meet or exceed electrical transmission performance requirements of links and channels as described in ANSI/TIA-568.2-D (Cat 6A), ISO/IEC 11801-1 (Class EA), and EN 50173-1 (Class EA). The patch cords shall be 28 AWG, shielded, twisted pair, stranded conductor construction with a standard 8-position modular plug on both ends. Plug contacts shall be plated with minimum of 50 micro inches of gold. Patch cords shall have an outer diameter of 0.185" (4.7 mm) and shall be available in white, yellow, gray, black, red, green, and blue. FEATURES & BENEFITS
Highlights

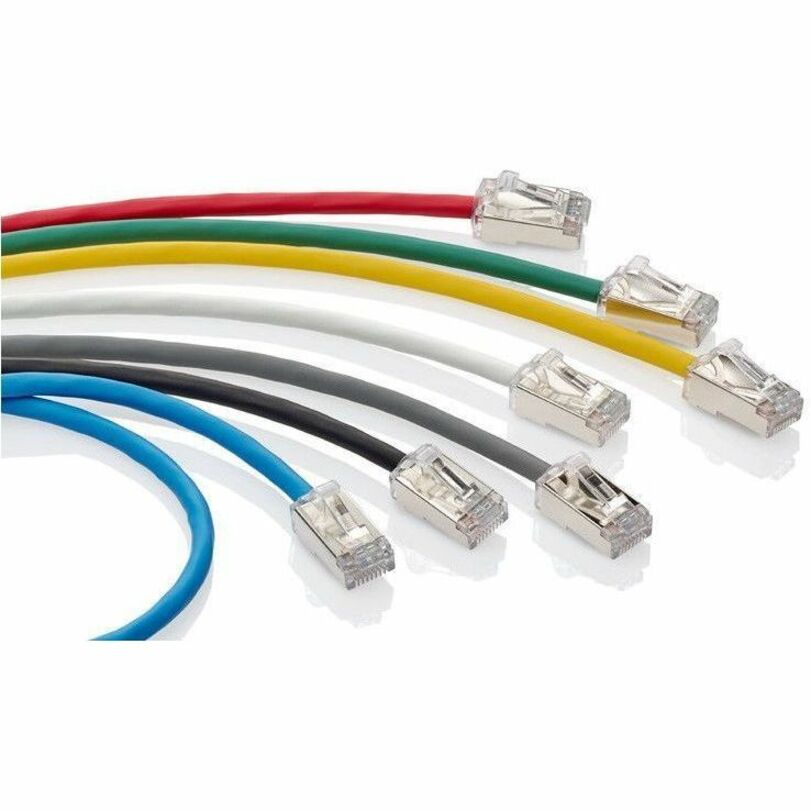

Available in white, yellow, gray, black, red, green and blue
Available in lengths from 1-50 feet
Power over Ethernet compatible
Accommodate use in high-density switches, routers, and other electronics
Bend radius is a narrow 0.74 inches, versus 1.0 inch for typical Cat 6A patch cords
Under PoE at 90 watts, maximum bundle size is 12 cables with a separation of 1.5 inches from outer edge to outer edge of cable bundles for 28 AWG cables installed in air and a maximum ambient temperature of 45 ºC (113 ºF), as defined in TIA TSB-184-A
Specifications
General Information
Manufacturer
Leviton Mfg. Company, Inc
Manufacturer Part Number
H6A10-03E
Brand Name
Leviton
Product Name
Cat 6A Small Diameter High-Flex Patch Cord, 3 ft (0.91 m), Black
