SKU
7D5JA002WW
Category
SAN Switches
Overview

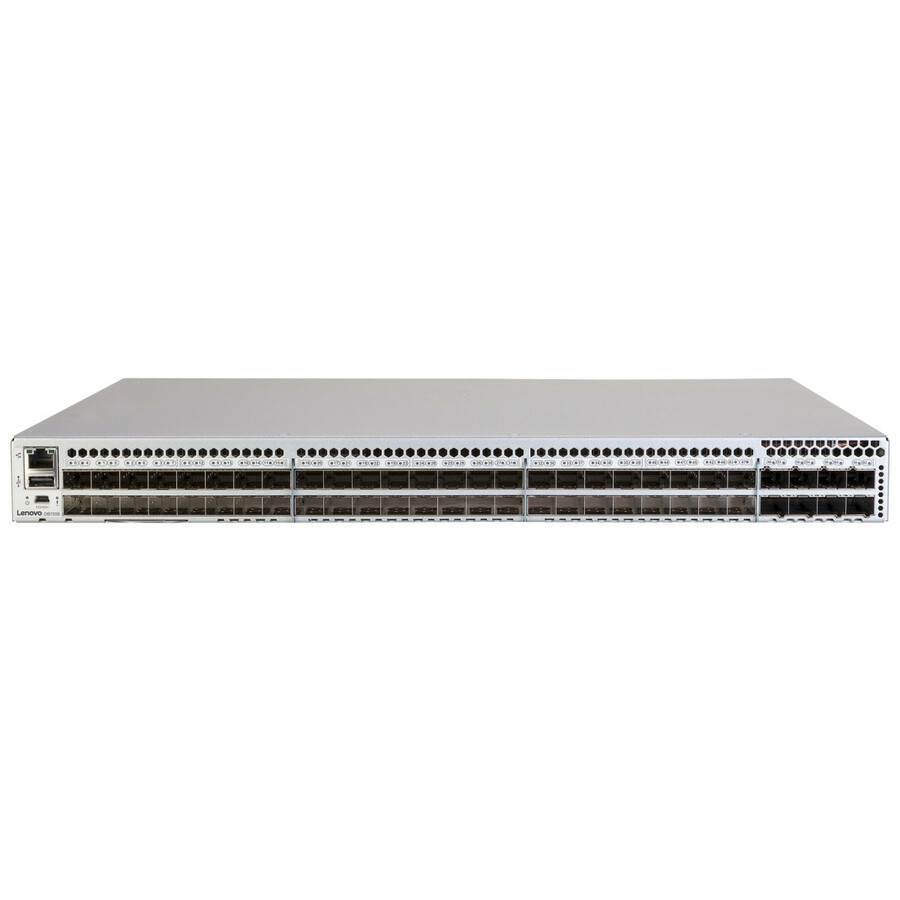

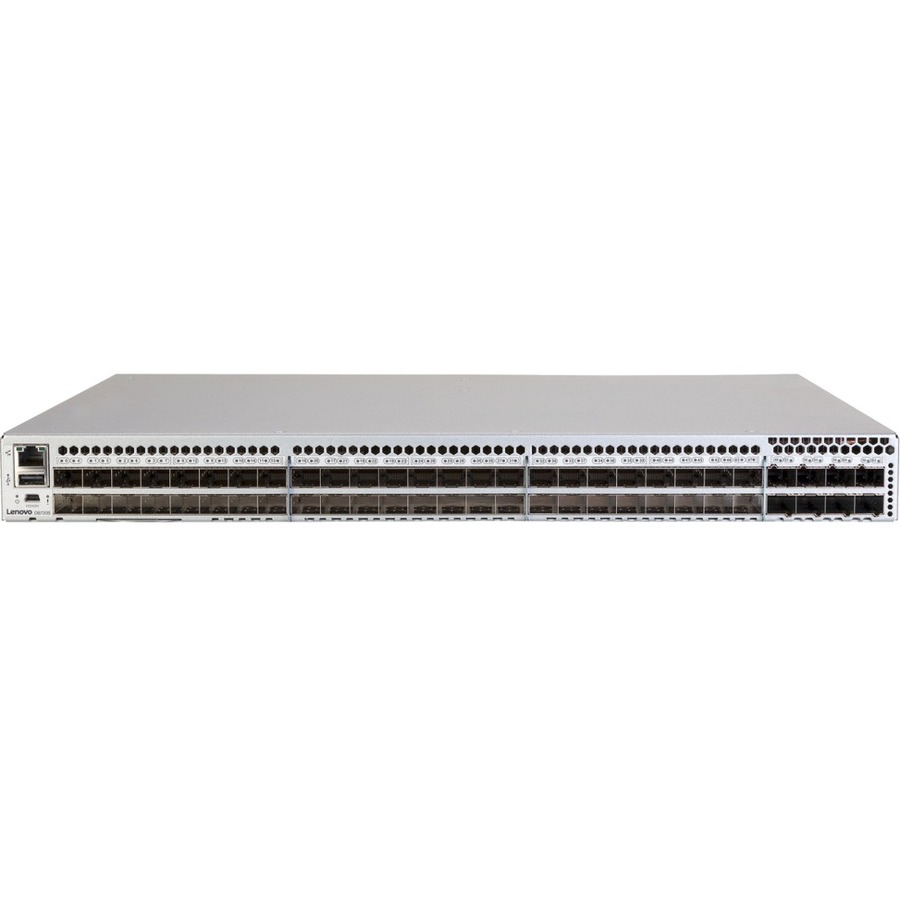

The Lenovo ThinkSystem DB720S Gen 7 FC SAN Switch, with its unmatched 64Gbps performance and industry-leading port density, provides a building block that supports data growth, demanding workloads, and data-center consolidation. With a 50% latency reduction compared to the previous generation, the DB720S Switch enables the maximum performance of NVMe storage.
Warranty
Additional Warranty Information: Three-year customer-replaceable unit limited warranty with 9x5 next business day parts delivered. Three-year software/firmware entitlement. Limited Warranty: 3 Year
About Lenovo
Join Lenovo Transformation is a Team Sport When you work at Lenovo, you make powerful things happen here — for you, for Lenovo, and for the world.
Highlights
Provides high scalability in an ultra-dense, 1U switch with up to 56 ports, providing up to 64 connections with the use of SFP-DD transceivers, to support high-density server virtualization, cloud architectures, and flash-based storage environments.
Increases scalability by using SFP-DD transceivers that provide dual SN connections that allow organizations to connect more servers, storage, or switches in a small footprint. Each transceiver supports two independent connections of 64G Fibre Channel via a two-lane electrical interface.
Accelerates critical workloads with 64Gb/s links
Maximizes performance of NVMe storage with 50% lower switching latency than Gen 6
Enables pay-as-you-grow scalability from 24 to 64 ports-for on-demand flexibility
Safeguards mission-critical workloads from vulnerabilities with Gen 7 integrated security.
Provides cyber-resiliency with integrated security technology that protects mission-critical operations by validating the integrity of Gen 7 hardware and software.
Guarantees critical application performance by automatically prioritizing traffic and avoiding congestion with Brocade Traffic optimizer.
Simplifies troubleshooting by identifying and isolating issues
Collects comprehensive telemetry data across the fabric to enable powerful analytics
Specifications
General Information
Manufacturer
Lenovo Group Limited
Manufacturer Part Number
7D5JA002WW
Brand Name
Lenovo
Product Model
DB720S Gen7
Product Name
ThinkSystem DB720S Gen7 FC SAN Switch
Product Type
Fibre Channel Switch
I/O Expansions
Total Number of Expansion Slots
24
Expansion Slot Type
SFP+
Number of SFP+ Slots
24
Interfaces/Ports
Total Number of Ports
24
Number of Active Ports
24
Number of Fibre Channel Ports
24
Number of Network (RJ-45) Ports
1
Management & Protocols
Manageable
Yes
Media & Performance
Data Transfer Rate
32 Gbit/s
Ethernet Technology
Gigabit Ethernet
Physical Characteristics
Compatible Rack Unit
1U
Form Factor
Rack-mountable
Height
1.7"
Width
17.3"
Depth
14"
Weight (Approximate)
15.81 lb
Power Description
Plug/Connector Type
IEC 309 C14
Maximum Power Supply Wattage
350 W
Redundant Power Supply
Yes
Warranty
Limited Warranty
3 Year
Additional Warranty Information
Three-year customer-replaceable unit limited warranty with 9x5 next business day parts delivered. Three-year software/firmware entitlement.
Miscellaneous
Package Contents
ThinkSystem DB720S Gen7 FC SAN Switch
Rail Kit
Serial Cable (Mini-USB console cable to DB-9/RJ-45)
Rubber Feet for Setting up the Switch as a Standalone Unit
Universal Rack Mount Kit, 4-post & installation Guide
Web Pointer Document (Downloading FOS, SANnav and Docs)
Firmware Download Instructions Flyer (Instructions for downloading publicly-available Brcd docs + docs behind CSP + access to open source code.)
