GeoVision 2MP H.264 IP Camera Reader

2 Megapixel - CMOS - 180° Horizontal0 lux - Gate Entrance, Access Control, Door Entry

SKU: GV-CR1320
Category: Video Door Phones

MSRP$463.00

$326.33

Save 30%

Back ordered

Back ordered — ships when restocked.

Genuine GeoVision through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: GV-CR1320
Category: Video Door Phones

Overview

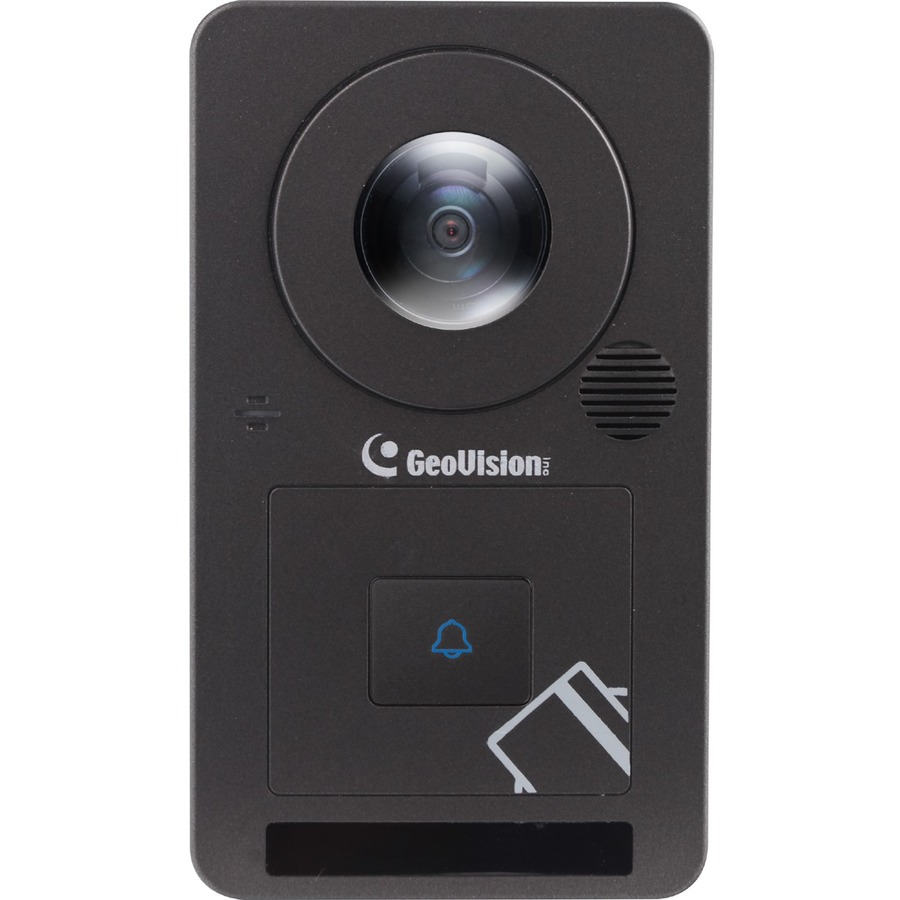

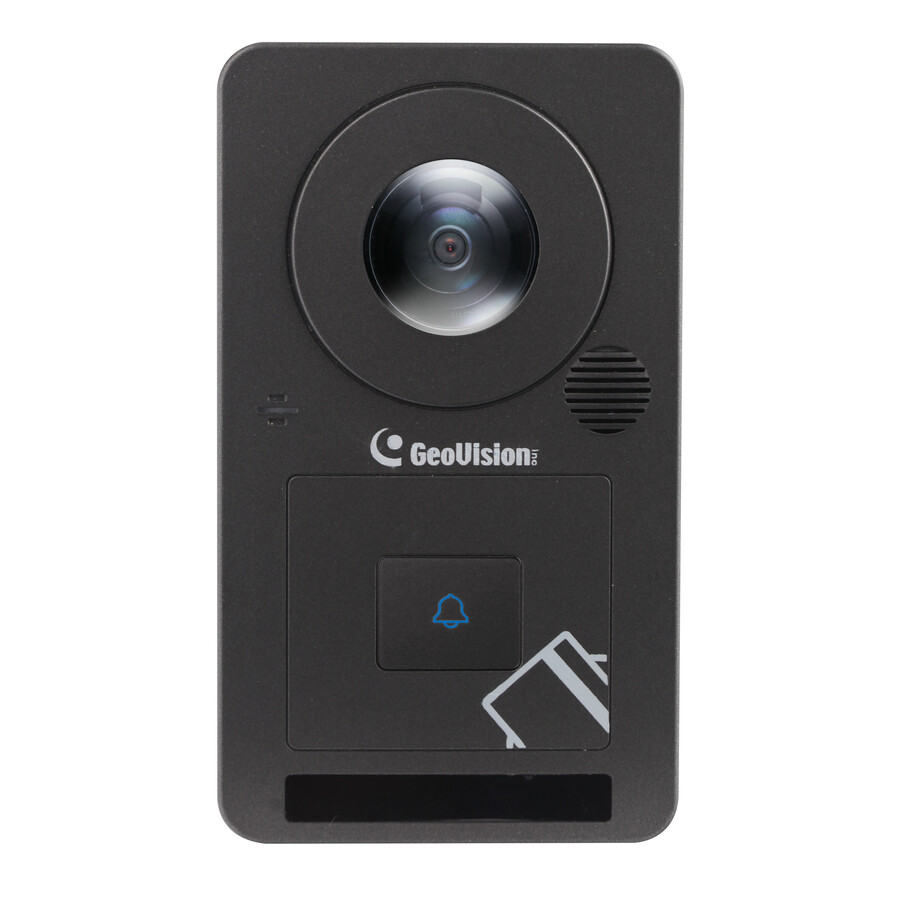

GV-CR1320 is a 13.56 MHz card reader with a built-in 2 MP camera. GV-CR1320 recognizes access control cards and grants access as regulated by the connected controller. Its camera captures the live view of entrance and transmits it to the access control system GV-ASManager through network connection, without the need of installing and maintaining a separate camera in addition to the card reader.

VoIP Calls:

When the touchpad is activated, GV-CR1320 will place a call to the operator through VoIP. The operator can then communicate with the visitor and enter an access code to open the door.

Card Swiping plus Face Detection:

The Card and Face mode enables GV-CR1320 to perform face detection together with card verification before access can be granted.

Highlights

2MP progressive scan super low lux CMOS
Minimum illumination at 0.02 lux
Dual streams from H.264 and MJPEG
Up to 15 fps at 1920 x 1080
Day and night function (with removable IR-cut filter)
Built-in IR with effective distance up to 3 m (10 ft)
Ingress protection (IP66)
DC 12V, 2.5A / PoE+ (IEEE 802.3at)
Built-in microphone and speaker
Wide Dynamic Range (WDR)

Specifications

Application/Usage	Gate Entrance, Access Control, Door Entry
Package Contents	2MP H.264 IP Camera Reader Mounting Plate 2 x Standard Screws 2 x Plastic Screw Anchors Security Screw Torx Wrench Silica Gel Bag Micro SD Card 2 GB (Inserted and Formatted) Download Guide Warranty Card
Product Type	Video Door Phone Sub Station
Input Voltage	12 V DC
Manufacturer Part Number	GV-CR1320
Weight (Approximate)	11.11 oz
Manufacturer	GeoVision, Inc
Product Model	GV-CR1320
Product Name	2MP H.264 IP Camera Reader
Minimum Illumination	0 lux
Brand Name	GeoVision
Height	5.4"
Width	3.1"
Depth	1.4"
Horizontal Viewing Angle	180°
Environmentally Friendly	Yes
Image Sensor Type	CMOS
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
