CradlePoint S400-C6-NA Wi-Fi 5 IEEE 802.11ac/k/v 2 SIM Ethernet, Cellular Modem/Wireless Router
ERICSSON

CradlePoint S400-C6-NA Wi-Fi 5 IEEE 802.11ac/k/v 2 SIM Ethernet, Cellular Modem/Wireless Router

4G - LTE 850, LTE 2600, LTE 700, LTE 2300, LTE 2500, LTE 3500, LTE 1900, LTE 1700, LTE 600 - LTE, LTE Cat 6 - Dual Band - 2.40 GHz ISM Band - 5 GHz UNII Band - 54.13 MB/s Wireless Speed - 1 x Broadband Port - USB - Gigabit Ethernet - VPN Supported - DIN Rail Mountable, Ceiling Mountable

SKU
TBM5-0400-C6-NA-N
Category
Wireless Routers

MSRP$1,045.00

$914.38

Save 12%

In stock: 9,888

Get a quote

Genuine ERICSSON through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
TBM5-0400-C6-NA-N
Category
Wireless Routers

Overview

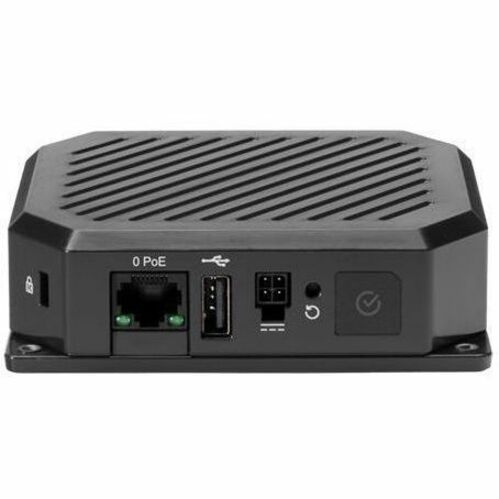

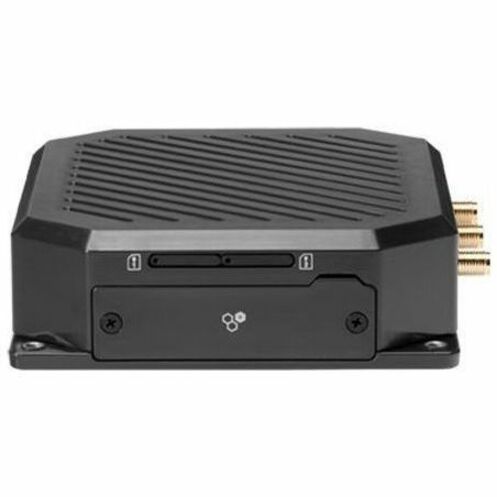

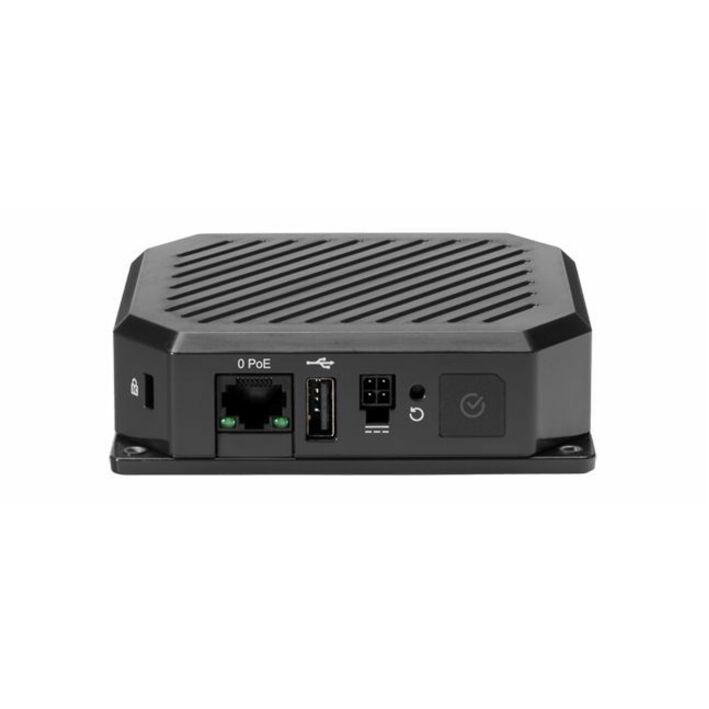

The Ericsson Cradlepoint S400 is a cloud managed, semi-ruggedized secure appliance and router for IoT networks. Offering connectivity through LTE plus wired and Wi-Fi options, the S400 is designed for light industrial, digital signage, and kiosk use cases. The S400 includes an Ericsson NetCloud Service Plan Secure IoT license, which provides management at scale, group policies, configurations and troubleshooting, plus connect and go zero trust security.

Semi-Ruggedized IoT Solution

When coupled with the Ericsson NetCloud Secure IoT service plan, the S400 provides a compact, semi-ruggedized Cat 6 4G LTE router and security solution for connecting IoT devices at scale. With an IP30-rated housing built to withstand vibration and temperature extremes and designed for mounting on DIN rails, the S400 is ideal for use in light industrial applications such as SCADA, remote monitoring, smart city intelligent traffic control or in applications such as surveillance cameras, digital signs, and control sensors. With an extensive list of features, it can be confidently deployed in the field, in buildings, or in embedded systems to deliver complete visibility, security, and control of connected devices anywhere.

Cloud-Managed IoT Solution - with Secure Connect Included

For organizations requiring robust connectivity for IoT networks - with installed networking endpoints numbering from a handful to many thousands - Ericsson's NetCloud Secure Services for IoT with the S400 provides a comprehensive cloud managed network solution with NetCloud SASE Secure Connect included. With this zero-trust security, any IoT device connected to the S400 is immediately hidden from public scans and from devices connected to other routers. Access policies are easily defined so IoT devices communicate only with their authorized resources on a least-privilege basis. Ericsson's NetCloud-managed IoT endpoints can be rapidly deployed and easily scaled to accommodate the diverse requirements of organizations.

Highlights

  • Build protected connections with zero trust, connect and go security, included as part of the subscription.
  • Define policies through centralized, cloud-based management for easy deployment at scale.
  • Gain fast, reliable connectivity with an embedded Cat 6 modem with dual SIM support.
  • Expand working radius and IoT connectivity with 2.4GHz or 5GHz Wi-Fi 5, Wi-Fi 5.
  • Provide a semi-ruggedized solution capable of wide temperature ranges and vibration.
  • Utilize configurable GPIO ports and NetCloud integrations for IoT applications.
  • Customize and extend NetCloud Service functionality with NetCloud SDK and API.
  • Provide GNSS/GPS for asset tracking and portable IoT use cases.

Specifications

Package Contents
  • S400-C6-NA Modem/Wireless Router
  • Power Supply 12 VDC, 2x2, 1.5 meters
  • 2 x Cellular Antenna, Black, 600 MHz - 6 GHz, SMA, 180 mm
  • 1 x Wi-Fi Antenna, 2.4/5 GHz RPSMA GRA 184 mm
Product TypeModem/Wireless Router
Manufacturer Part NumberTBM5-0400-C6-NA-N
Limited WarrantyLifetime
VPN SupportedYes
Weight (Approximate)7.80 oz
Network BandDual Band
Form FactorDIN Rail Mountable, Ceiling Mountable
ManufacturerERICSSON
Product ModelS400-C6-NA
Product NameS400-C6-NA Modem/Wireless Router
Product SeriesS400
Brand NameCradlePoint
Expansion Slot TypeExpansion Slot
Height1.2"
Width4.1"
Depth3.9"
Broadband Transmission TechnologyEthernet, Cellular
Wireless LAN StandardIEEE 802.11ac/k/v
ISM BandYes
UNII BandYes
ISM Maximum Frequency2.40 GHz
UNII Maximum Frequency5 GHz
Ethernet TechnologyGigabit Ethernet
USBYes
Cellular Data Connectivity TechnologyLTE, LTE Cat 6
Multi-SIM SupportedYes
Cellular Generation4G
Cellular Network SupportedLTE 850, LTE 2600, LTE 700, LTE 2300, LTE 2500, LTE 3500, LTE 1900, LTE 1700, LTE 600
Number of Broadband (RJ-45) Ports1
Total Number of Network Ports1
Number of SIM Card Supported2
Total Number of Expansion Slots1
SIM Size SupportedNano
Charger IncludedYes
Total Wireless Transmission Speed54.13 MB/s
Wi-Fi GenerationWi-Fi 5
Product MaterialPlastic
Environmental ComplianceWaste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
