Overview

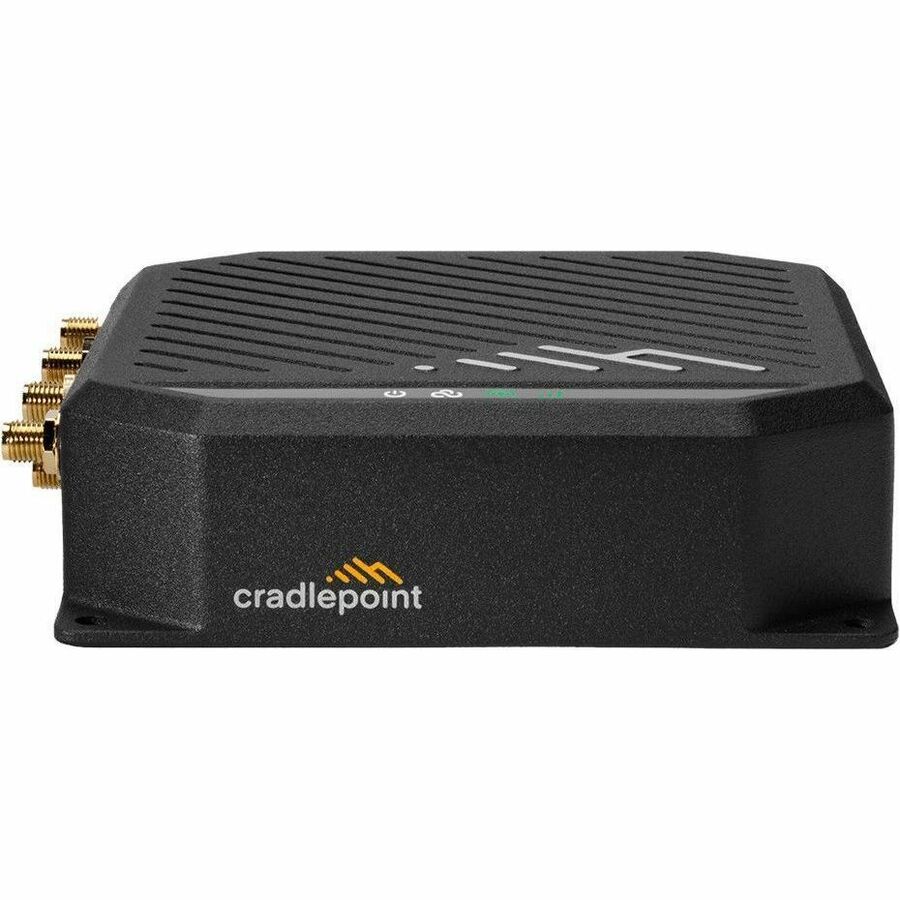

The Cradlepoint S700 Series Semi-Ruggedized Router for IoT networks is a semi-ruggedized, cloud-managed LTE router, built for light industrial, IoT, and portable applications where security is a foundational requirement. Offering connectivity through LTE plus wired and Wi-Fi options, the S700 accommodates a variety of use cases in high-availability, portable, or fixed uses. The S700 Series is available with IoT NetCloud Service Plans, which provide features optimized for each unique deployment.
Semi-Ruggedized IoT Solution
When coupled with the NetCloud IoT service plan, the S700 router provides a compact, semi-ruggedized 4G LTE router solution for connecting and protecting IoT devices at scale. With an IP30-rated aluminum housing built to withstand vibration and temperature extremes and designed for DIN rail mounting, the S700 is ideal for use in light industrial applications such as oil and gas monitoring or in portable or fixed applications such as surveillance cameras, digital signs, and parallel networking. With an extensive list of features, it can be confidently deployed in the field, in buildings, or in embedded systems to deliver complete visibility, security, and control of connected devices anywhere.
Advanced, Cloud-Managed IoT Solution
? For organizations requiring robust connectivity for IoT networks - with installed routers numbering from hundreds to many thousands - Cradlepoint's NetCloud Service for IoT with the S700 router provides a comprehensive cloud managed network solution. When coupled with advanced IoT features, it provides troubleshooting and diagnostics with in-band and Out-of-Band Management, extensive analytics and insights, and extensibility and integrations such as Microsoft Azure IoT Central. Cradlepoint's NetCloud-managed IoT endpoints can be rapidly deployed and easily scaled to accommodate the diverse requirements of organizations.
Highlights
Define policies through centralized, cloud-based management for easy deployment at scale
Gain fast, reliable connectivity with an embedded Cat 4 modem with dual SIM suppor.t
Expand working radius and IoT connectivity with dual-band, concurrent Wi-Fi 6
Provide a semi-ruggedized, portable solution capable of enduring harsh temperatures and vibration
Utilize Configurable GPIO ports and NetCloud Integrations for IoT applications
Customize and extend NetCloud Service functionality with NetCloud SDK and API
Provide Active GNSS/GPS for asset tracking and mobile IoT use cases
Specifications
General Information
Manufacturer
ERICSSON
Manufacturer Part Number
TB05-0700C4D-NA
Brand Name
CradlePoint
Product Series
S700
Product Name
S700 Wireless Router
Product Type
Modem/Wireless Router
Interfaces/Ports
Total Number of Network Ports
2
USB
Yes
Number of Broadband (RJ-45) Ports
2
Network & Communication
Ethernet Technology
Gigabit Ethernet
Multi-SIM Supported
Yes
Number of SIM Card Supported
2
SIM Size Supported
Nano
Physical Characteristics
Product Material
Aluminum
Form Factor
Desktop
Height
1.3"
Width
4.8"
Depth
4.6"
Weight (Approximate)
1.14 lb
Storage
Flash Memory Capacity
8 GB
Technical Information
Wi-Fi Generation
Wi-Fi 6
Network Band
Dual Band
Processor Core
Dual-core (2 Core)
Standard Memory
512 MB
MU-MIMO Technology
Yes
Wireless Specifications
Broadband Transmission Technology
Ethernet, Cellular
Wireless LAN Standard
IEEE 802.11ax
ISM Band
Yes
UNII Band
Yes
ISM Maximum Frequency
2.40 GHz
UNII Maximum Frequency
5 GHz
Cellular Generation
4G
Cellular Network Supported
LTE 600, LTE 700, LTE 850, LTE 1700, LTE 1900
Cellular Data Connectivity Technology
DC-HSPA+, HSPA+, LTE, UMTS, WCDMA
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
