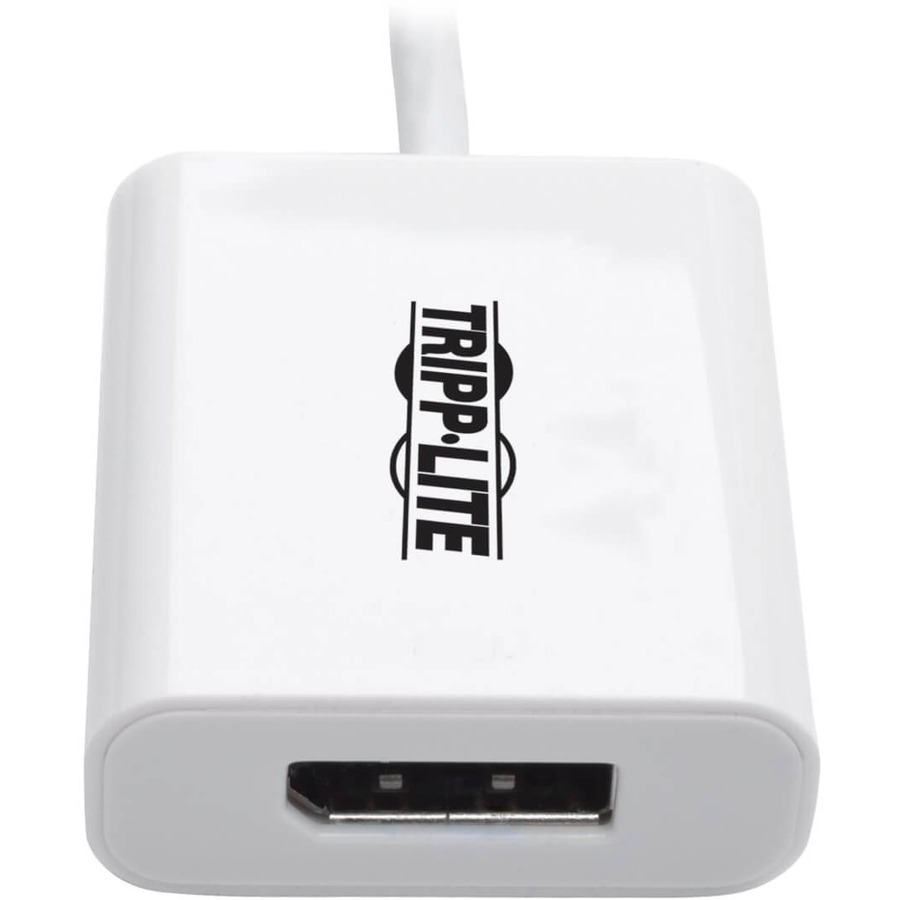

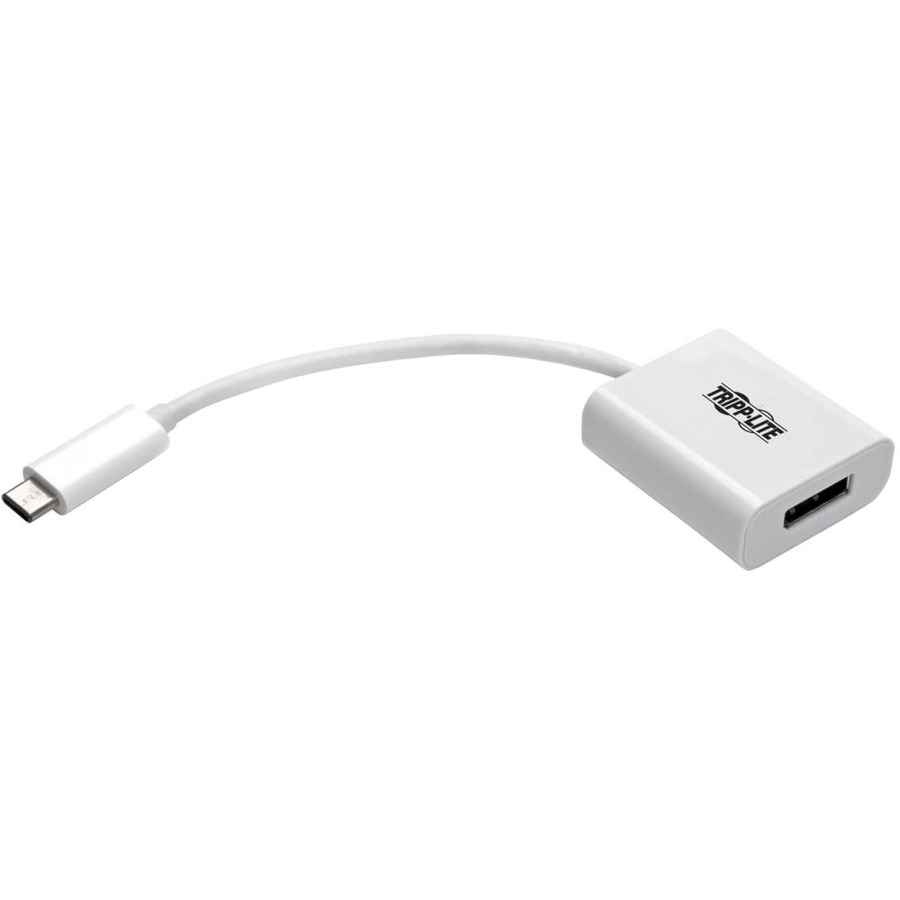

Eaton Tripp Lite Series USB-C to Displayport Adapter with Alternate Mode - DP 1.2, 4K60

The U444-06N-DP-AM USB 3.1 Gen 1 USB-C to DisplayPort 4K Adapter (M/F) helps you transmit digital audio and 4K video from your tablet, laptop, Chromebook, MacBook, smartphone or PC to a DisplayPort-enabled television, monitor or projector. It's an ideal tool for giving video presentations in conference rooms and classrooms, editing multiple documents on a larger screen, or streaming video for digital signage in crystal-clear 4K.

With a source device that also supports USB DisplayPort Alternate Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary.

The plug-and-play U444-06N-DP-AM requires no software, drivers or external power. Connect the reversible USB-C plug to your source device's USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time. Then, connect the DisplayPort to your display using a DisplayPort cable (sold separately).

The U444-06N-DP-AM supports UHD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, 36-bit Deep Color (12 bits per channel) and per-lane transfer rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR).

Connects a DisplayPort Display to Your USB-C or Thunderbolt 3 Device

• Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode

• Ideal for giving video presentations, editing multiple documents or streaming video for digital signage

Common Applications

• Extends video from your primary display to another

• Duplicates the same video on 2 displays

• Converts a secondary display to your primary display

Crystal-Clear 4K Video and Digital Audio

• Supports UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 60 Hz

• Supports 36-bit Deep Color (12 bits per channel)

• Supports per-lane transfer rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR)

Built-In Cable with Reversible USB-C Connector

• Fumble-free reversible USB-C plug connects in either direction for quick connection every time

Ready for Instant Use

• Plug-and-play operation with no software, drivers or external power required

• Half the footprint of a credit card for easy carrying in a pocket, purse or laptop bag

• Backward compatible with non-4K displays

System Requirements

• Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode

• Display device with DisplayPort input

More from the Manufacturer

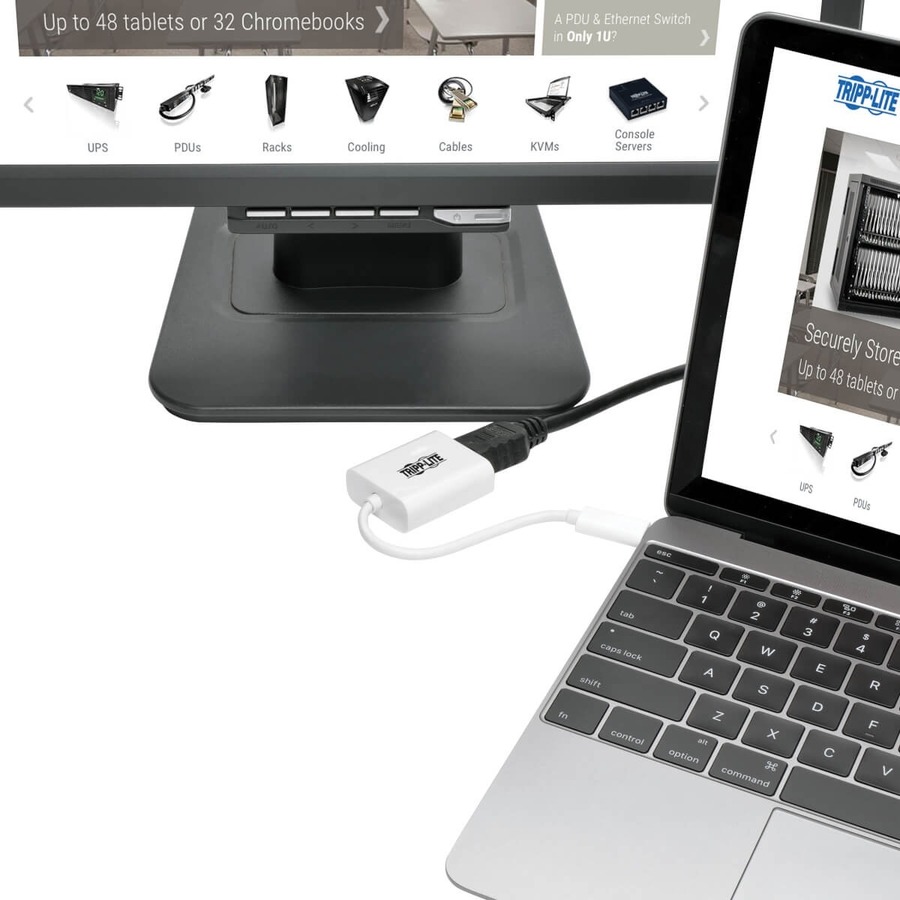

Display 4K UHD Video on a DisplayPort Monitor

Connect your DisplayPort cable to the adapter and you’re ready to enjoy digital audio and ultra high-definition video. This adapter supports USB DisplayPort Alternate Mode and the following:

- Video resolutions up to 3840 x 2160 (4K x 2K) at 24/25/30 Hz.

- Video resolutions up to 3840 x 2600 at 60 Hz in Single Stream Transport (SST) mode only.

- 36-bit Deep Color (12 bits per channel).

- Per-lane transfer rates of 5.4 Gbps (HBR2), 2.7 Gbps (HBR) and 1.62 Gbps (RBR).

Take Advantage of Easy USB-C Connection

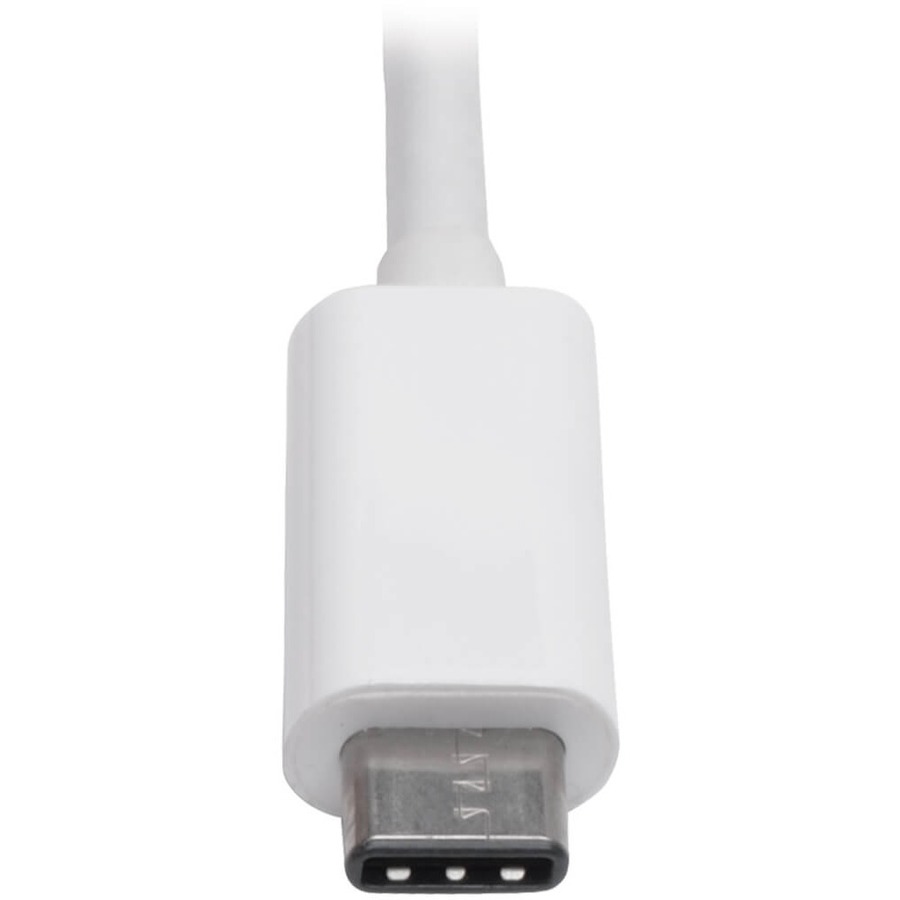

Unlike traditional USB connectors that can be attached only one way, USB-C connectors are reversible by design. The adapter’s built-in USB-C cable provides a fast and easy connection to a USB-C port the first time, every time.

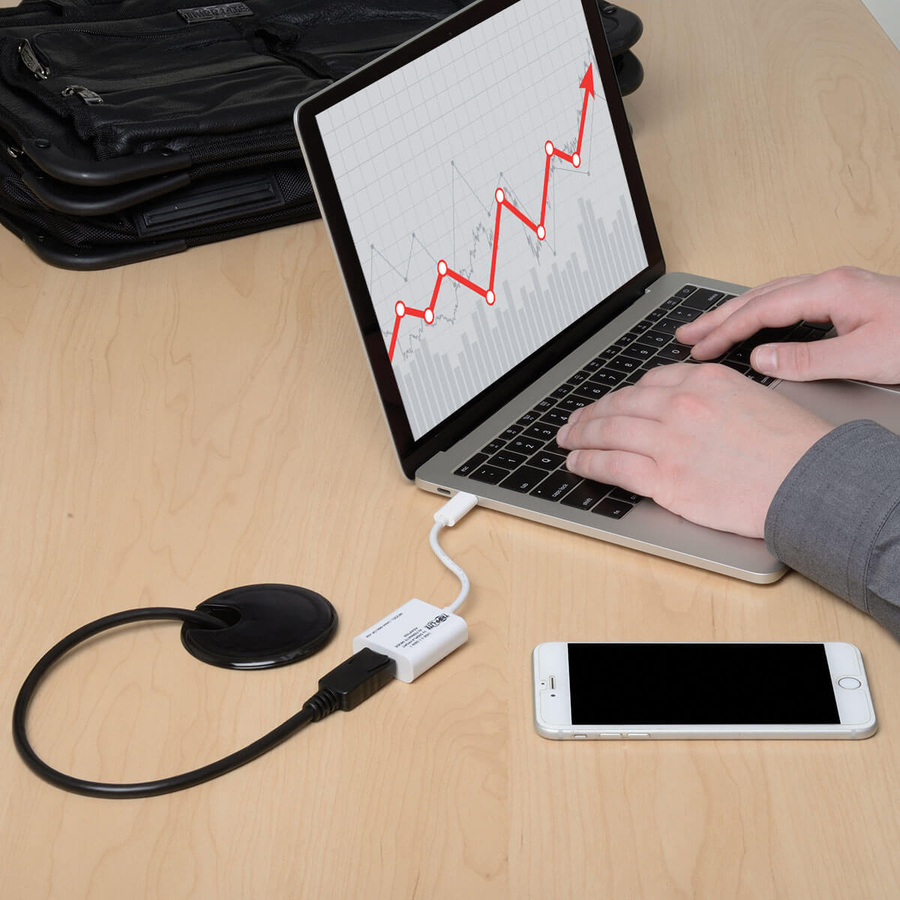

Simplify Travel with a Bus-Powered DisplayPort Adapter

This adapter is bus-powered, so you don’t have to travel with the weight of a separate external power supply.

- With a footprint similar in size to a credit card, this adapter fits almost anywhere.

- Lightweight, streamlined design doesn’t add weight to your load.

- Built-in cable eliminates the chance of losing or forgetting the USB-C cord.

- Plug-and-play operation means you don’t need software or drivers.
