Tripp Lite by Eaton Portable AC Unit for Server Rooms - 12,000 BTU (3.5 kW) 230V

The SRXCOOL12K SmartRack 12,000 BTU 230V Portable Server Rack Cooling System pumps 12,000 BTU of cooling power into your IT environment to prevent shutdowns, malfunctions and failures caused by overheating or fluctuating temperatures. Part of the SRCOOL® line, this compact, portable unit is perfect for server rooms and other IT environments with heat-sensitive equipment in areas that facility air conditioning can't reach.

The self-contained SRXCOOL12K is capable of cooling a small room using its louvered vent. A built-in evaporator expels the condensed water through the directional exhaust duct, eliminating the need for a drain tube, drain pan or water collection tank.

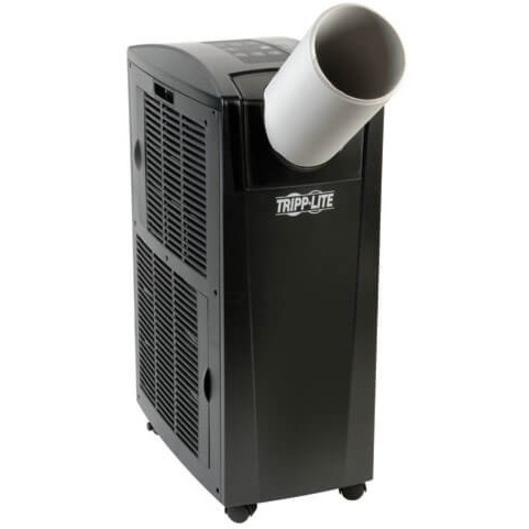

You can also use the included flexible tube to aim the cold air precisely where it's needed most, such as an overheated rack enclosure or an equipment hot spot. The SRXCOOL12K Portable Rack Air Conditioner also dehumidifies and filters the air, providing better air quality that can enhance equipment performance with little power consumption.

Designed for quick, simple installation, the SRXCOOL12K rolls on durable built-in casters and plugs into a standard Schuko CEE7 outlet. It's programmed to restart automatically after power failures, and you can set the built-in timer for unattended shutdown and startup.

By installing the optional SRCOOLNETLX remote management accessory (sold separately), you can also monitor temperatures, receive alerts, review logs and control settings from anywhere via SNMP, web browser, SSH or telnet.

More from the Manufacturer

12,000 BTU Portable AC Unit (230V) for Enterprise Hot Spots

Don't let excessive heat compromise the performance and reliability of your mission-critical systems! Tripp Lite's SRXCOOL12K Self-Contained Portable Air Conditioning Unit lets you bring cold air to every nook and cranny of your facility: overheating racks, hot spots inside racks or isolated areas where facility air conditioning can't reach. With 12,000 BTU of cooling power, it's ideal for use in data centers, wiring closets, industrial facilities, warehouses, offices or any place where portable cooling is needed.

This product is for use in regions with 230V mains power. Check your regional power source for compatibility.

Compact, Portable and Flexible Cooling Solution

The SRXCOOL12K is designed for portability and ease of use. Its compact size (less than 0.8 m in height) makes it a perfect cooling solution for wiring closets and similar space-critical locations. It can be configured with a standard louvered vent for general room cooling or a ducted vent to direct cold air into a rack or an area that needs it most. An included window/drop ceiling installation kit provides multiple installation options.

Easy-to-Use Controls

The SRXCOOL12K features a convenient, top-mounted control panel, including diagnostic LEDs and an LCD screen to display the temperature. The touch of a button allows users to power the unit on and off, control the mode of operation (Cool, Dehumidify or Fan), set the automatic timer, and lock settings to prevent an accidental interruption of operation.

Optional Remote Control Management and True Spot Cooling Capabilities

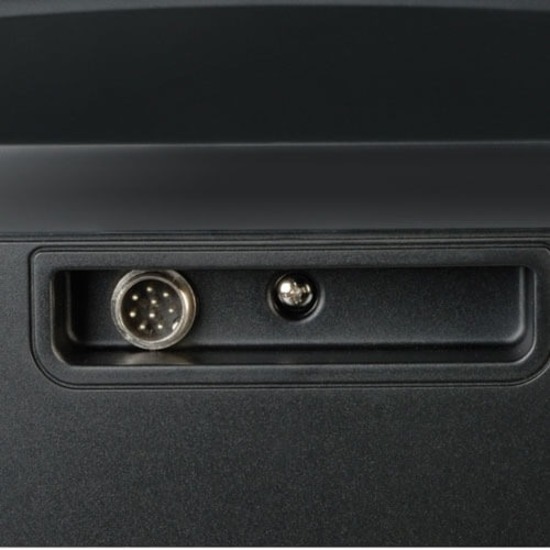

With an optional SRCOOLNET Web Management Accessory (sold separately) plugged into the side of the unit, the SRXCOOL12K can be managed and controlled from anywhere in the world via SNMP. The free PowerAlert® software download provides on/off cycling, fan speed adjustment, target set point temperature and dehumidification mode from a single interface. The SRCOOLNET also includes an ENVIROSENSE Temperature and Humidity Module that monitors ambient conditions and controls the temperature set point for true spot cooling in back offices, small server rooms and wiring closets.

No Water Collection Tank to Empty

The SRXCOOL12K's unique zero-maintenance design incorporates a built-in evaporator that expels condensate directly into the exhaust air stream. This eliminates the need for a floor drain, drain tube, drain pan or water collection tank—saving you time and money.

12,000 BTU of Cooling Power

The SRXCOOL12K's high BTU rating—nearly twice the competition's—makes it ideal for a wide range of IT, industrial and commercial applications that require a portable cooling solution.

Improves Air Quality

The SRXCOOL12K not only adjusts ambient room temperatures, but it also improves air quality by dehumidifying and filtering the air. Better air quality promotes more efficient equipment performance with minimal noise and less power consumption.

Uses Ozone-Friendly, Energy-Efficient Refrigerant

The SRXCOOL12K uses an ozone-friendly, energy-efficient R410a that is of low toxicity and non-flammable. R410a contains no ozone-depleting R22 refrigerant, which has been banned by the EU for new equipment after January 1, 2010 and illegal to service as of January 1, 2015.

Tripp Lite SRXCOOL12K Product Summary

12,000 BTU Portable AC Unit for use in regions with 230V mains power

Ideal for supplemental, emergency and off-hour cooling in IT and other applications

Compact and portable—ideal for wiring closets and other space-critical locations

Requires no floor drain or water collection tank and offers 12,000 BTU of cooling power

Optional SRCOOLNET accessory card enables remote monitoring and control with true spot-cooling capabilities

Standard louvered vent for general room cooling and ducted vent to direct cold air where needed

Features top-mounted control panel with LCD temperature readout and LEDs

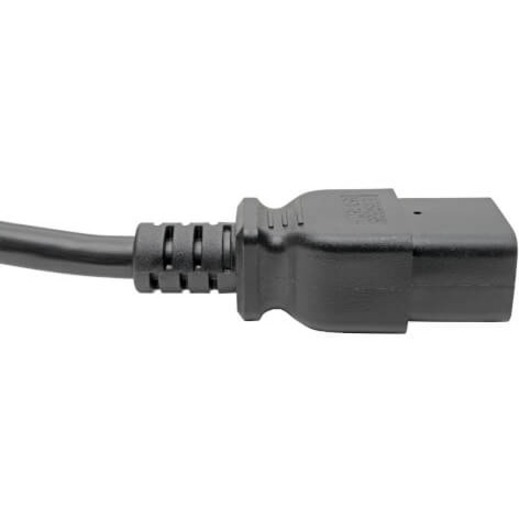

CEE7 Schuko plug connects to all standard European wall outlets (check for compatibility)

What’s in the Box

SRXCOOL12K Portable Cooling Unit

Louvered Front Vent

Directional Front Vent

Cold Air Directional Delivery Tube

Hot Exhaust Air Removal Tube

Dropped Ceiling/Window Heat Ventilation Kit

Owner's Manual
