Eaton Tripp Lite Series SmartRack 48U Deep Extra-Wide Rack Enclosure Cabinet, Doors and Side Panels Included
For Server, PDU, Network Equipment, Patch Panel, UPS, Equipment, IT Equipment, LAN Switch - 48U Rack Height37" Rack Depth Enclosed Cabinet - Black - Cold Rolled Steel - 2250 lb Dynamic/Rolling Weight Capacity - 3500 lb Static/Stationary Weight Capacity
- SKU
- SR48UBDPWD8
- Category
- Rack Equipment
MSRP$5,653.86
$3,581.84
Save 37%In stock: 8
Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SR48UBDPWD8
- Category
- Rack Equipment
Overview

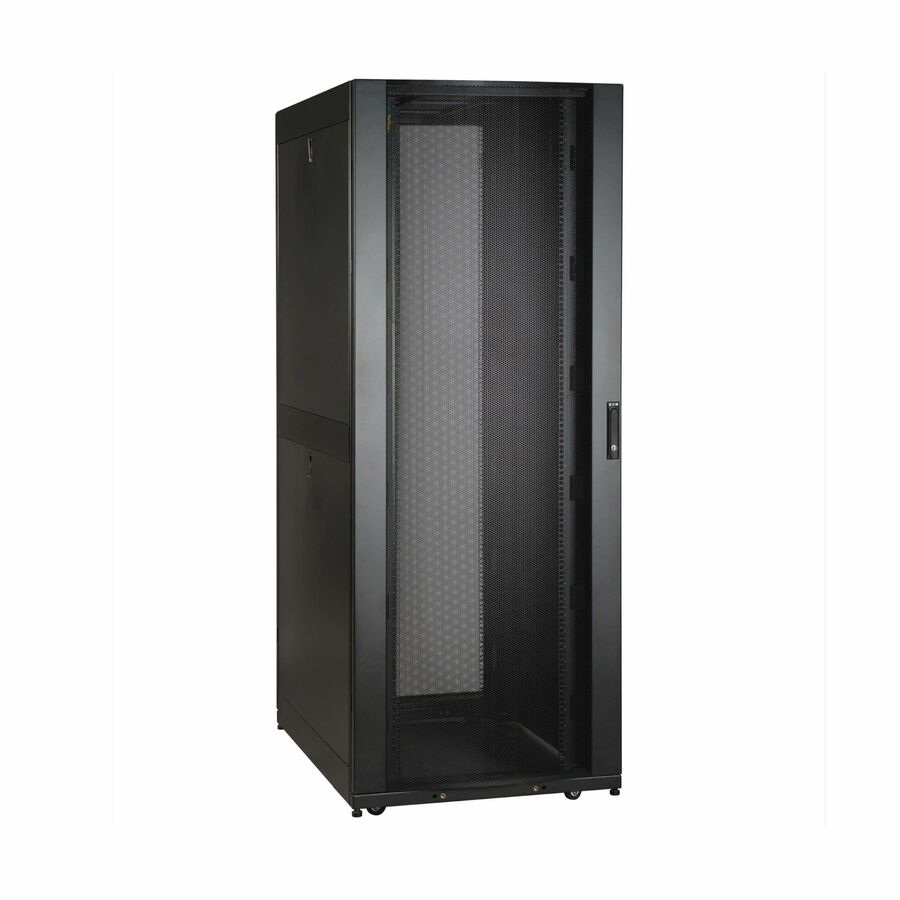

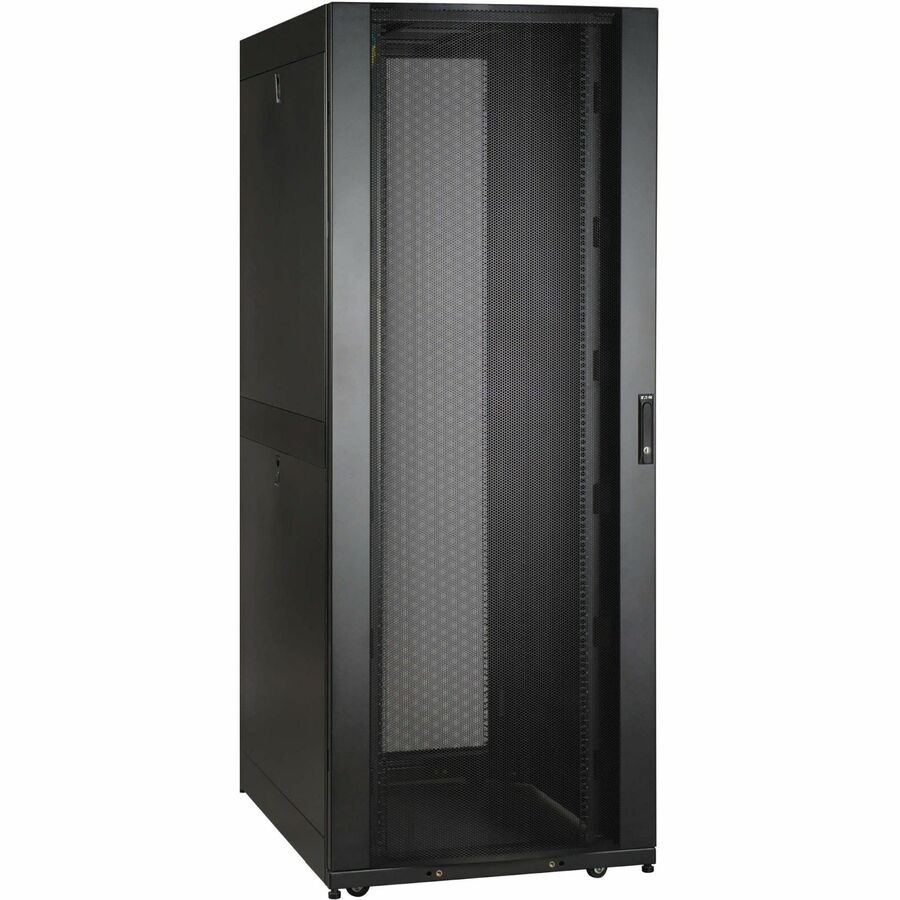

Wide Server Rack Accommodates 48U of Equipment with Side Cable Management
This SmartRack® 48U enclosure is designed for network wiring closets, retail locations, classrooms, back offices and other areas with essential rack-mount IT equipment. Constructed from heavy-duty steel with a durable black powder-coated finish, the SR48UBWD8 has a maximum stationary load capacity of 3500 pounds (1588 kilograms) and a maximum rolling load capacity of 2250 pounds (1021 kilograms).
Keeps Important Equipment Secure

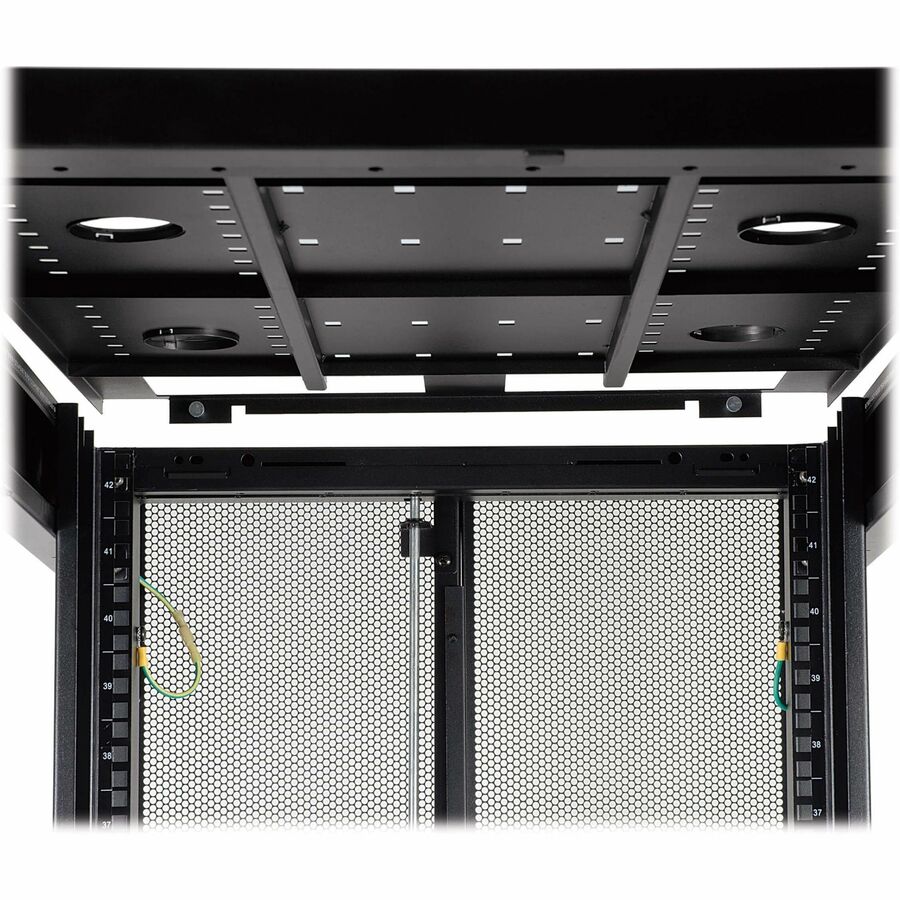

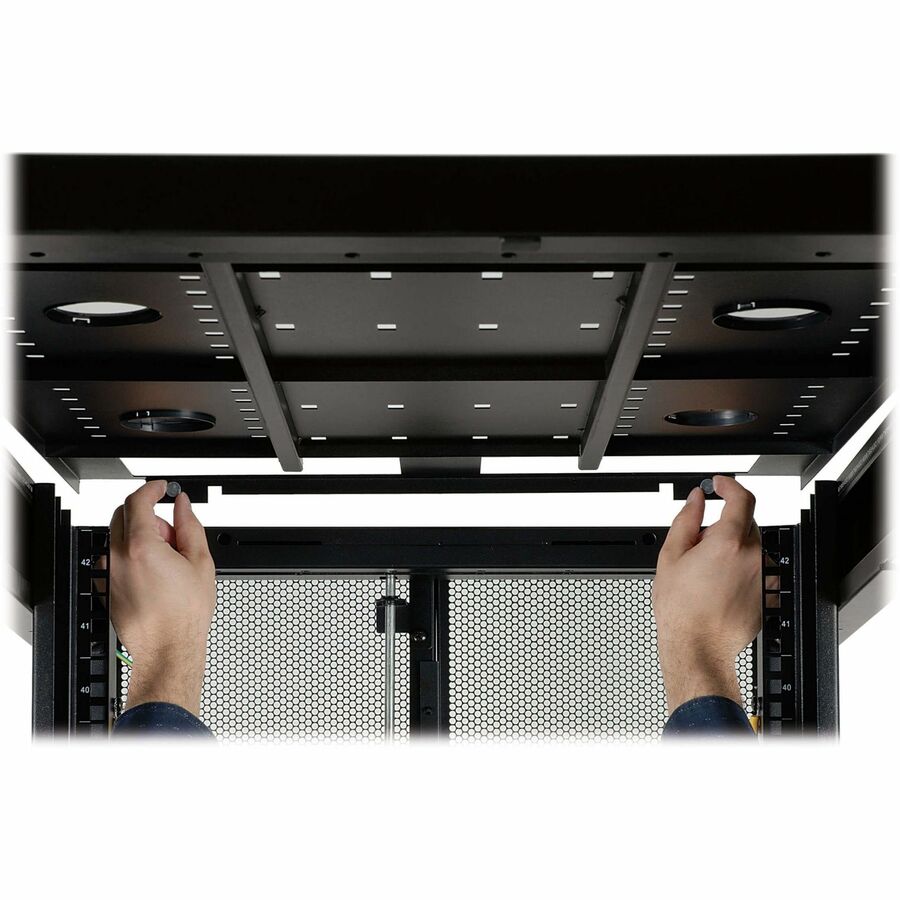

The reversible front door, split rear doors and half-size side panels lock securely with the included keys to help prevent damage, tampering or theft. The doors, side panels and roof panel are designed for quick release, making it simple to access connected equipment and cabling with little effort. The roof panel has strategically placed pass-throughs to accommodate cables from vertical 0U PDUs and other connected equipment. The perforated doors allow generous airflow from front to rear to keep your equipment cool and functioning at their peak.
Easy Enclosure and Equipment Installation

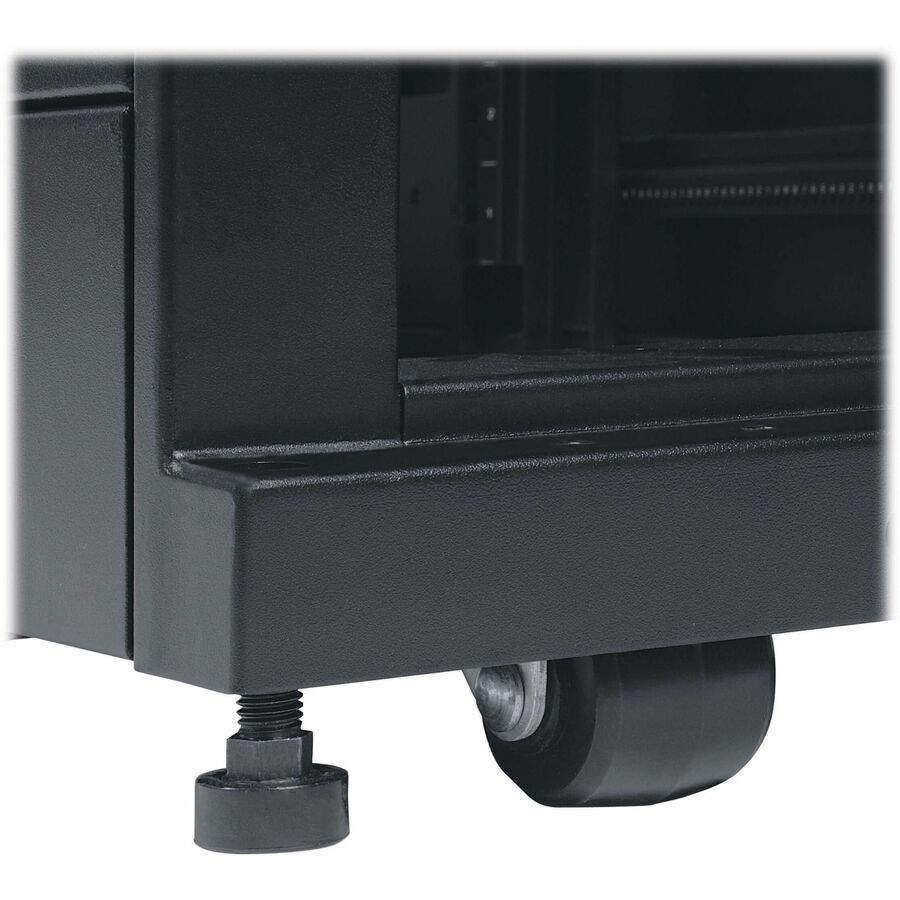

This 48U server rack comes fully assembled for quick deployment with pre-installed removable casters that let you maneuver it over a level surface and through a standard doorway into position, where it can be stabilized by adjusting the removable levelers. Toolless 0U mounting rails allow quick installation of compatible PDUs and vertical cable managers. Built-in baying brackets allow the combination of two or more rack cabinets in a row.
Extra Width Offers More Installation Options
The SR48UBWD8 is 800 millimeters (31.5 inches) wide to allow more room for cable management and PDU mounting along the sides of the rack, which permits free front-to-rear airflow.
Meets Payment Card Industry Standards
The SR48UBWD8 provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance. This is essential for companies that process, store and/or transmit credit card information.
Warranty
Limited Warranty: 5 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
- Maximum capacity: 3500 lb. (1588 kg) stationary, 2250 lb. (1021 kg) rolling load
- Extra wide to allow side channels for accessory mounting, cable routing and airflow
- Doors and side panels lock securely to help prevent damage, tampering or theft
- Ships fully assembled for quick deployment on pre-installed casters and levelers
- Provides physical equipment and media security needed for PCI DSS compliance
Specifications
| Application/Usage | Server, PDU, Network Equipment, Patch Panel, UPS, Equipment, IT Equipment, LAN Switch |
|---|---|
| Package Contents |
|
| Product Type | Rack Cabinet |
| Manufacturer Part Number | SR48UBDPWD8 |
| Limited Warranty | 5 Year |
| Weight (Approximate) | 393.70 lb |
| Features | Lockable Side Panel, Lockable Door, Damage Resistant, Tamper Resistant, Anti-theft, Casters, Leveling System, Cable Management, Heavy Duty, Reversible Front Door, Key Lock, Perforated Door, Powder Coated |
| Manufacturer | Eaton Corporation |
| Product Model | SR48UBWD8 |
| Product Name | SmartRack SR48UBWD8 Rack Cabinet |
| Product Line | SmartRack |
| Rack Height | 48U |
| Brand Name | Tripp Lite series |
| Country of Origin | China |
| Assembly Required | No |
| Height | 89" |
| Width | 31.5" |
| Depth | 43" |
| Static/Stationary Weight Capacity | 3500 lb |
| Dynamic/Rolling Weight Capacity | 2250 lb |
| Rack Depth | 37" |
| Product Color | Black |
| Color Family | Black |
| Rack Type | Enclosed Cabinet |
| Product Material | Cold Rolled Steel |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
