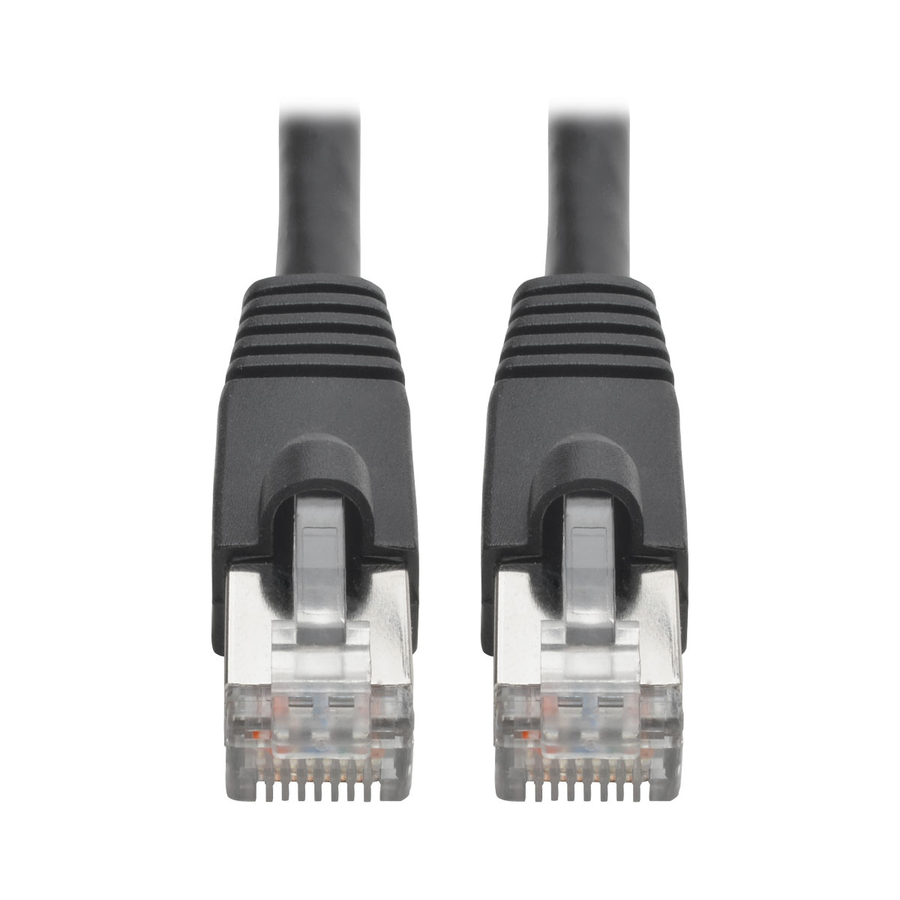

Eaton Tripp Lite Series Cat6a 10G Snagless Shielded STP Ethernet Cable (RJ45 M/M), PoE, Black, 3 ft. (0.91 m)

The N262-003-BK Cat6a 10G-Certified Snagless Shielded STP Network Patch Cable (RJ45 M/M) is recommended for transmitting 10 Gbps data, voice and video through high-speed 10G equipment, including network switches, modems, routers, adapters, hubs and patch panels. It also connects PoE devices, such as VoIP phones, security cameras and point-of-sale kiosks.

Designed for fast transmission and excellent signal quality, this three-foot black cable ensures peak performance throughout your local area network (LAN). It reduces impedance and structural return loss compared to standard 100 MHz wire. Premium shielding protects your Ethernet network from disruptive EMI/RFI line noise that can distort or destroy data.

Manufactured from 26 AWG copper wire and protected by a rugged PVC jacket, the four-pair stranded N262-003-BK minimizes near-end crosstalk (NeXT) levels. The RJ45 connectors' snagless design protects the locking tabs from being damaged or broken off during installation. Integral strain relief with ridges on each end gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking.

Each N262-003-BK cable has been tested and certified using Fluke® test equipment. The test results are available upon request. It supports IEEE 802.3af, is DTE power compliant, is ETL/UL certified, and is compatible with T568A/T568B wiring.

Features

Recommended for Making Cat6a 10G Ethernet Network Connections

• Ideal for connecting network switches, modems, routers, adapters, hubs and patch panels in high-density data centers

• Compatible with PoE devices, such as VoIP phones, security cameras and point-of-sale kiosks

• Ensures peak performance throughout your LAN

• Reduces impedance and structural return loss compared to standard 100 MHz wire

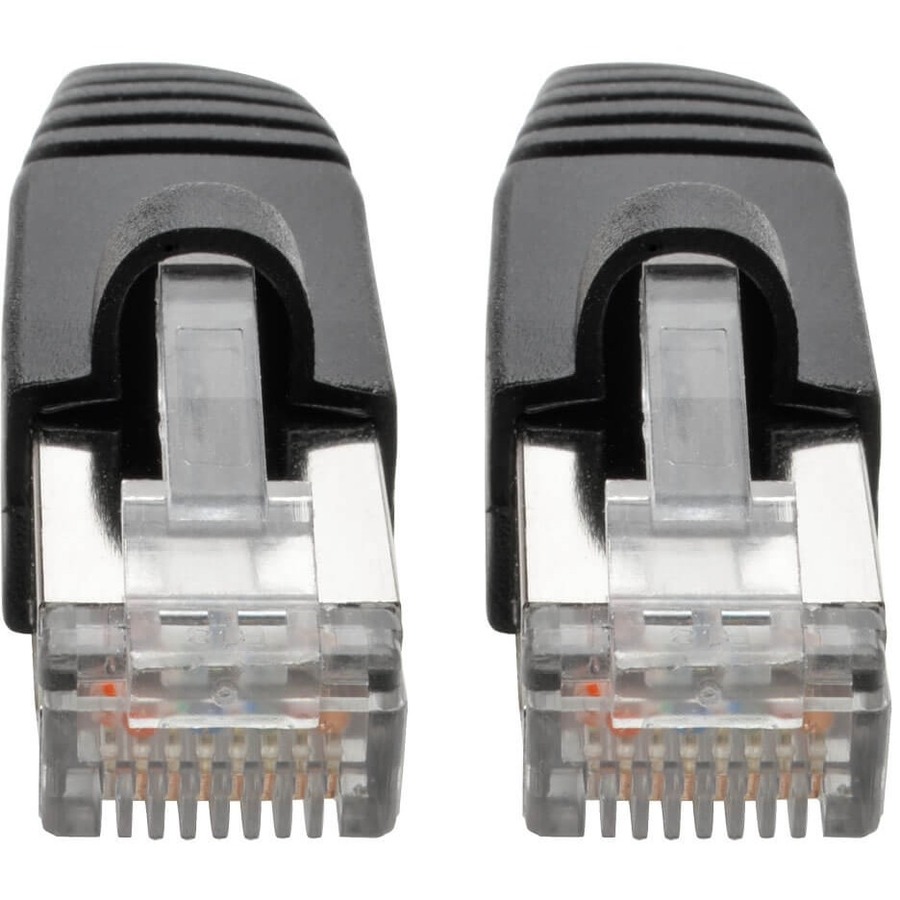

Snagless RJ45 Male Connectors

• Molded snagless boots prevent locking tabs from damage during installation

• Integral strain relief protects cable and connectors from stress and cracking

Premium Construction for Superior Performance

• High-quality 26 AWG 4-pair stranded copper wire

• Minimal near-end crosstalk ensures a strong signal

• Rugged PVC jacket stands up to long-term use

• EMI/RFI shielding protects network from disruptive line noise

Tested and Certified Using Trusted Fluke Equipment

• Supports IEEE 802.3af

• DTE power compliant

• ETL/UL certified

• Compatible with T568A/T568B wiring

• Test results available upon request

More from the Manufacturer

Transmits Data, Voice and Video Signals in High-Density 10GBaseT Networks

Designed for 10GBaseT data centers and Ethernet networks, Tripp Lite’s N262-003-BK Cat6a 10G-Certified Snagless Shielded STP Network Patch Cable ensures peak performance throughout your local area network (LAN). You can use it to connect 10G equipment, like switches, modems, routers and adapters, as well over Power Over Ethernet (PoE) equipment, like VoIP phones and security systems.

Typical Applications

Connecting 10G data center and PoE equipment in 10GBaseT data centers and Ethernet networks

Replacing an old or missing RJ45 cable

Providing universal connectivity for LAN network components, such as switches, servers, modems, routers, adapters, VoIP phones, security cameras and point-of-sale kiosks

Delivers Superior Signal Quality with Top-of-the-Line Construction

Made from 26 AWG 4-pair shielded copper, the N262-003-BK protects against line noise and EMI/RFI interference. Shielded RJ45 connectors minimize Near-End Crosstalk (NEXT) levels, and molded, snagless boots prevent the locking connectors from breaking off during installation. A rugged PVC jacket provides protection, and integral strain relief allows the cable and connectors to move freely without cracking.

Tested and Certified to Meet the Latest Industry Standards

This premium 3 ft. cable has been tested and certified on Fluke

equipment (test results available upon request). It is compatible with T568A/T568B wiring standards, ETL- and UL-verified to meet national safety standards, and meets IEEE 802.3af and DTE power standards

What’s in the Box

N262-003-BK Cat6a 10G-Certified Snagless Shielded STP Network Patch Cable (RJ45 M/M), Black, 3 ft.

Tripp Lite N262-003-BK Product Summary

Connects a router, modem, network adapter or computer to an Ethernet network

Connects VoIP phones, security systems and other PoE equipment

Provides 10 Gbps data transmission over 26 AWG 4-pair shielded copper wires

100% Fluke-tested and certified

ETL/UL-verified to meet national safety standards

Snagless hoods protect locking tabs from damage during installation

Shielded cable and connectors

RJ45 connectors improve NEXT performance

Compatible with T568A and T568B wiring standards

Supports IEEE 802.3af and DTE power standards
