Eaton Tripp Lite Series 8-Port HDMI Splitter - 4K @ 60 Hz, HDCP 2.2, EDID Management

Splitter with EDID management transmits 4K x 2K video and audio from an HDMI source to eight HDMI displays at the same time.

HDMI Splitter Transmits 4K Video + Audio to 8 HDMI Displays at the Same Time

Recommended for home theaters or short-distance digital signage applications in classrooms, showrooms, offices, churches, restaurants, bars, hotels and trade shows, this Ultra High Definition (UHD) HDMI splitter is quick and easy to install. It connects to an HDMI source device, such as a computer or Blu-ray player, and transmits a 4K audio/video signal to eight HDMI monitors, projectors or televisions simultaneously. You can cascade up to three levels of splitters, which expands the total number of connected displays to 512.Note: The B118-008E-UHD-2 is an HDMI Splitter, it sends the same image to all connected displays. If you would like to extend an image over multiple displays you will need an MST hub, like the B156-002-HD-V2.

Supports UHD 4K x 2K Signals up to 15 ft. via HDMI Cabling

Using standard 28 AWG HDMI cable, the B118-008E-UHD-2 distributes a 4K x 2K audio/video signal (at 60 Hz) up to 15 feet (4 meters). Be sure the HDMI cables connecting the splitter to the source and displays are no longer than 15 feet. For best performance, we recommend using Tripp Lite's P569-Series Premium High-Speed HDMI cables.

Supports Up-To-Date Features and Formats

The B118-008E-UHD-2 supports a wide range of audio formats, including DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1-channel surround sound. It also features lip sync pass-through, 36-bit Deep Color, xvYCC and x.vColor, while receiving and transmitting up to 18 Gbps of bandwidth with no data loss. To ensure compatibility with the latest hardware, this splitter is compliant with HDCP 2.2, 3D and HDMI 2.0 standards.

User-Adjustable EDID Settings Gives You Control over A/V Resolutions

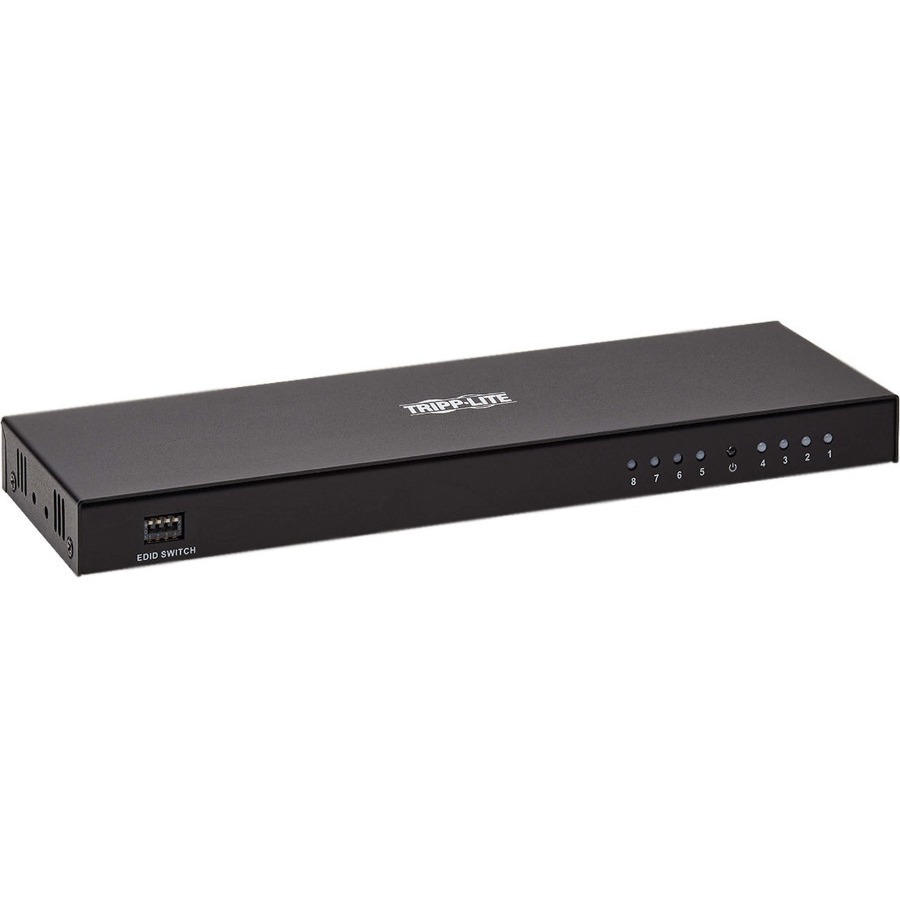

EDID (Extended Display Identification Data) allows the source device to identify the capabilities of each connected display and transmit to the highest video and audio resolutions shared by all displays. The B118-008E-UHD-2's default EDID setting uses the lowest level of video format shared by the displays (for instance, if two monitors support 4K video and one supports 1080p, all three monitors will show 1080p). In the event you want to override the automatic detection setting and control the audio/video output yourself, you may do so by adjusting the built-in DIP switches.

Ready to Use Right Out of the Package

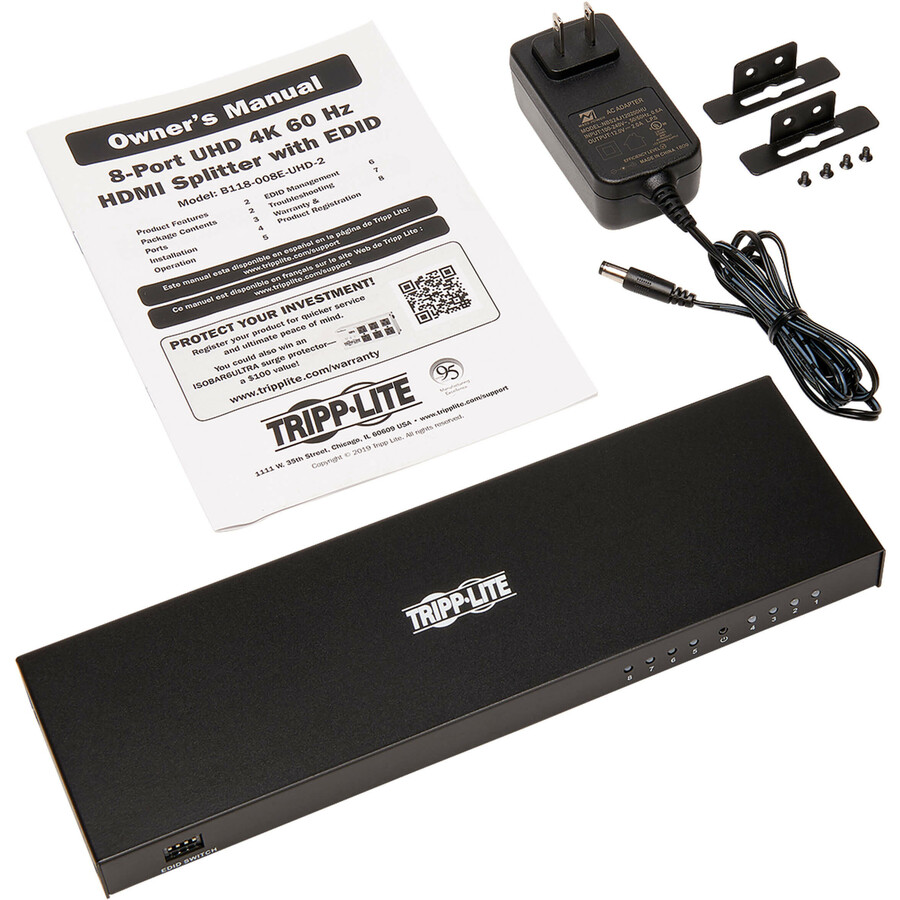

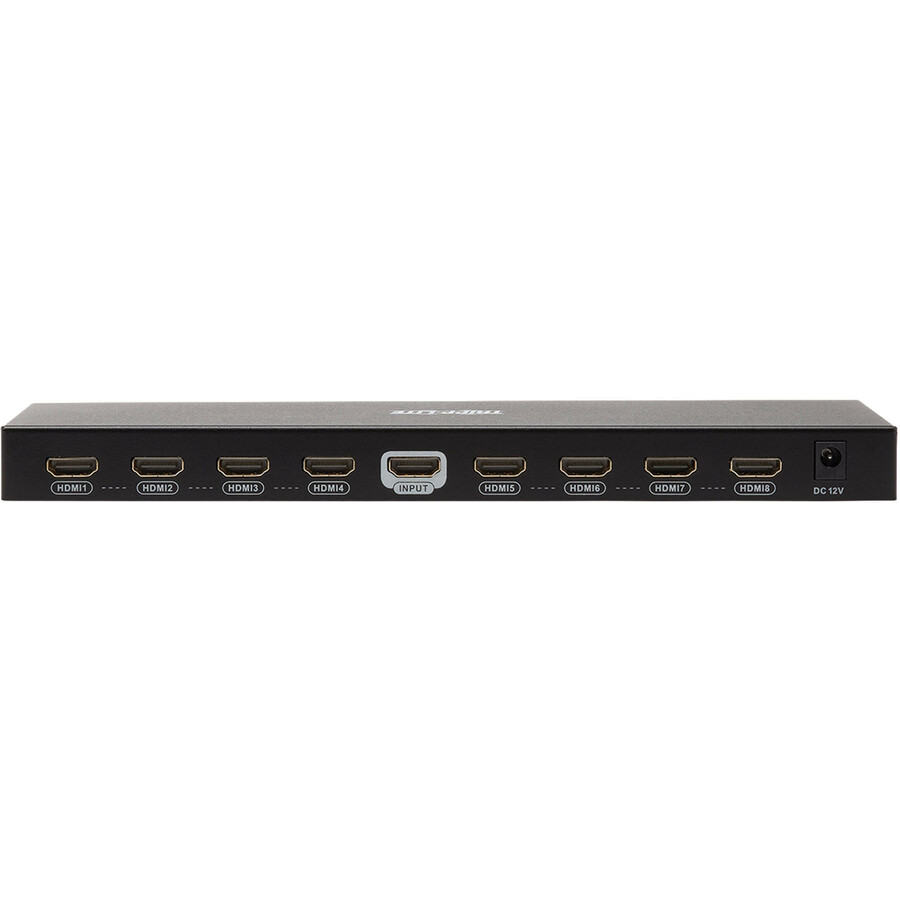

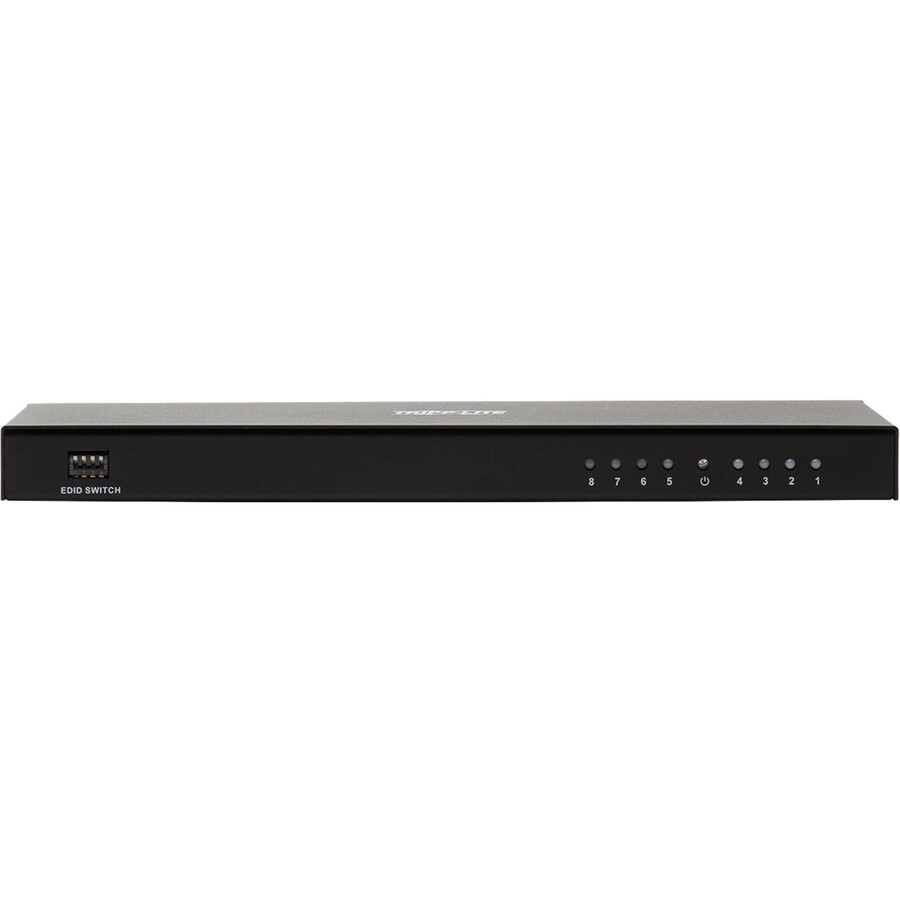

The plug-and-play B118-008E-UHD-2 requires no additional software or drivers. Connect your devices to the HDMI ports with user-supplied HDMI cables (such as Tripp Lite's P569-Series), and plug the included external power supply into an AC power source to get started. An amber LED indicates the unit is receiving power, and blue LEDs indicate connected HDMI inputs. Use the included hardware to install the unit on a desktop or mount it to a wall.

More from the Manufacturer

HDMI Splitter Sends 4K Video and High-Quality Audio to 8 Displays Simultaneously

Tripp Lite’s B118-008E-UHD-2 splitter takes an audio/video signal from a single HDMI source, like a Blu-ray player, media console or laptop, and sends it to eight separate HDMI monitors. It supports true 4K resolutions (4096 x 2160 at 60 Hz), so the picture quality will never be compromised.

Typical Applications

Give a video presentation on multiple screens in a boardroom or conference room

Connect a security camera to eight separate displays

Transmit content to multiple monitors in a retail environment

Supports the Latest Standards in Video and Audio

Not only does this splitter support true 4K resolutions, but it also supports the latest audio formats, including DTS-HD, Dolby TrueHD, Dolby Digital Plus and LPCM 7.1-channel surround sound. It features 36-bit Deep Color, xvYCC and x.vColor and is capable of transmitting up to 18 Gbps of bandwidth with no loss of data. For compatibility with the latest hardware, it’s compliant with HDMI 2.0, HDCP 2.2 and 3D standards.

Supports DTS-HD, 7.1-channel surround sound and a variety of other audio formats

Features 36-Bit Deep Color

Transmits up to 18 Gbps of bandwidth with no data loss

HDMI 2.0-, HDCP 2.2 and 3D-compliant

Adjustable EDID Settings Give You Complete Control Over Your Displays

EDID (Extended Display Identification Data) is a metadata format that allows monitors, projectors and TVs to automatically send information about their capabilities to a video source. This, in turn, allows the source to transmit the highest quality video and audio signal. The B118-008E-UHD-2 features a built-in DIP switch that lets you override the automatic detection to set and control the A/V output yourself.

User-adjustable EDID settings

Allows you to override automatically detected display settings

Ready to Use Right Out of the Package

With no software or drivers required, the B118-008E-UHD-2 is completely plug and play. Simply connect your source and displays to the splitter using HDMI cables (such as Tripp Lite’s P568-Series, sold separately), then plug the included power supply into an AC outlet. An array of LEDs will illuminate to let you know the splitter is receiving power and your displays are connected. Use the included hardware to mount the unit to a desktop or wall.

Plug-and-play installation

No additional software or drivers required

Included hardware enables desktop or wall mounting
