Eaton Tripp Lite Series 3200W 48VDC 230V Sine Wave Solar Inverter/Charger - 90A MPPT Solar Charge Controller, Parallel Operation, Hardwire Input/Output

Input Voltage: 230 V AC, 48 V DC - Output Voltage: 230 V AC

SKU: APSWX4KP48VMPPT
Category: Power Inverters

Request pricing

Confirmed with stock and TAA status before any payment.

Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU: APSWX4KP48VMPPT
Category: Power Inverters

Overview

Warranty

Limited Warranty: 2 Year

About Eaton

Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.

Highlights

Delivers pure sine wave 230V AC power from AC or DC sources.
Ideal for installation in rural or remote sites including residential, leisure, gas/oil and forestry
Priority source selection alternates to deliver whichever power is optimal at the time
Built-in Maximum Power Point Tracking (MPPT) solar charge controller that optimizes power generation from the solar panels
Auto-transfer switching option allows the unit to function as an extended-run UPS

Specifications

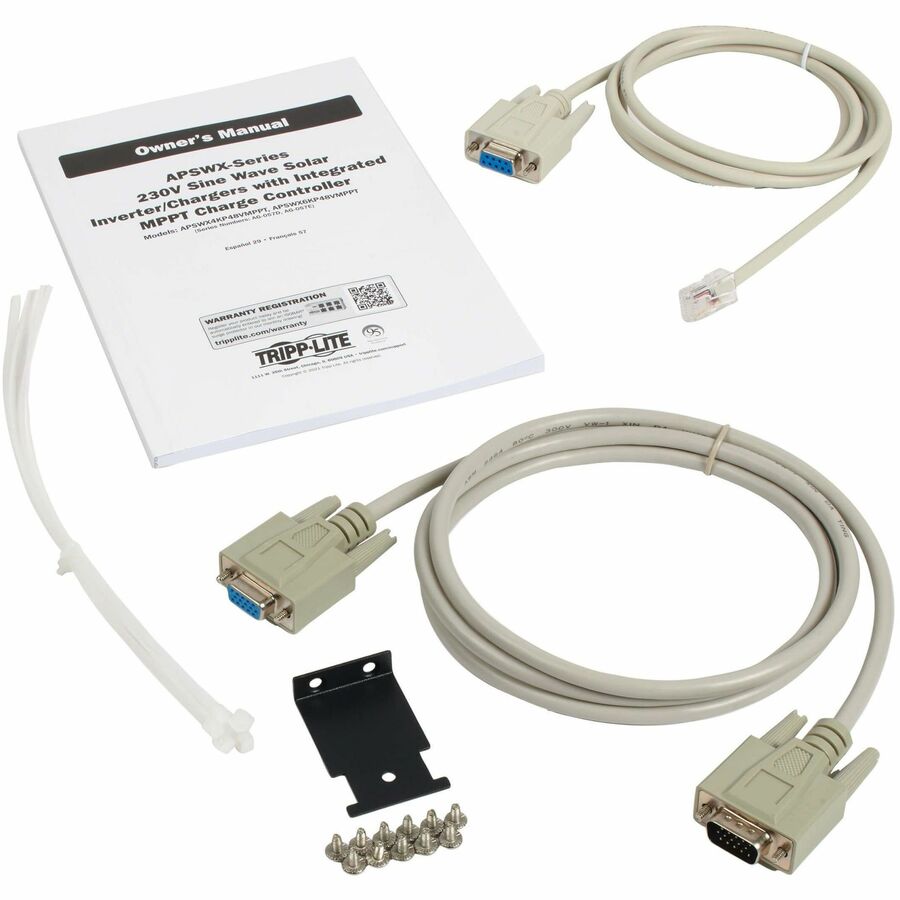

Package Contents	APSWX4KP48VMPPT Sine Wave Solar Inverter/Charger DB15 Parallel Cable DB9-to-RJ45 RS-232 Cable AC Wire Retention Kit (Bracket & Hardware) Owner's Manual
Product Type	Solar Inverter
Input Voltage	230 V AC, 48 V DC
Manufacturer Part Number	APSWX4KP48VMPPT
Limited Warranty	2 Year
Output Voltage	230 V AC
Weight (Approximate)	21.10 lb
Manufacturer	Eaton Corporation
Product Model	APSWX4KP48VMPPT
Product Name	APSWX4KP48VMPPT Sine Wave Solar Inverter/Charger
Waveform Type	Sine Wave
Receptacles	Hardwired
Brand Name	Tripp Lite series
Plug/Connector Type	Hardwired
Country of Origin	China
Height	18.5"
Width	11.6"
Depth	4.7"
Maximum Frequency	65 Hz
Minimum Frequency	47 Hz
Environmentally Friendly	Yes
Peak Power Load	6400 W
Continuous Power Load	3200 W
Environmental Compliance	Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS)
