Cable/Wireless Connectivity - 68.90" Scan Distance - LED - Imager - Omni-directional - Bluetooth, Radio Frequency - Serial - Power Supply Included - IP65, IP67 - Serial - Industrial, Warehouse, Manufacturing, Logistics, Retail, Inventory, Assembly Line, Component Tracking, Picking, Sorting
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Datalogic S.p.A through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS

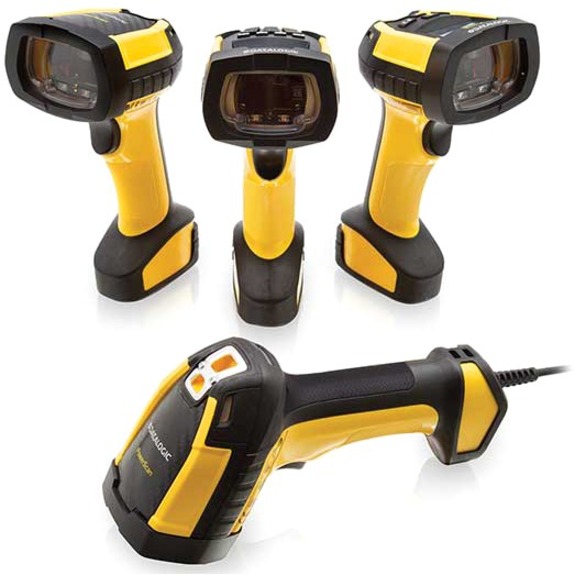

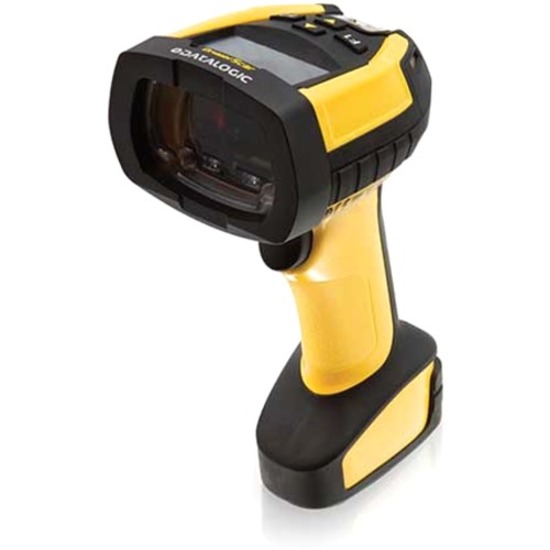

The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.
MOBILITY ENHANCES PRODUCTIVITY
The PowerScan 9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System?. Accurate power management allows long lasting battery life to always guarantee more than one shift of intensive scanning. The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.
MODULARITY WITH THE BEST FLEXIBILITY

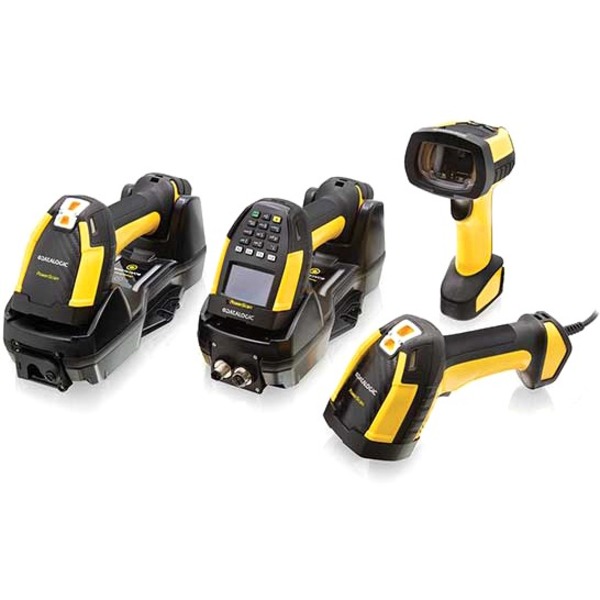

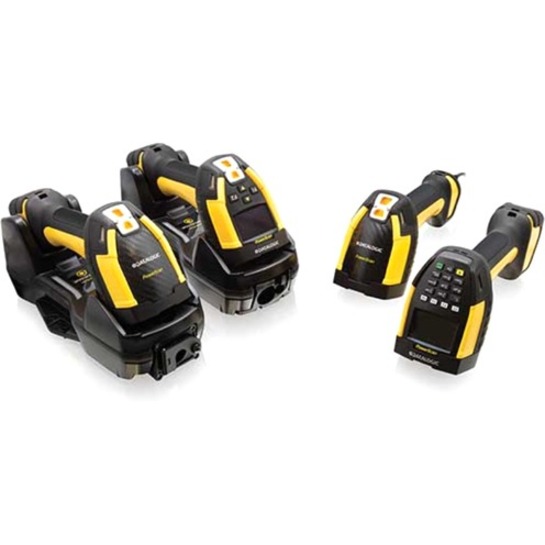

The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.
Limited Warranty: 3 Year
| Battery Information | |
|---|---|
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3350 mAh |
| Maximum Battery Recharge Time | 3.20 Hour |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| General Information | |
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | PM9600-SR910RBK20 |
| Brand Name | Datalogic |
| Product Line | PowerScan |
| Product Series | 9600 |
| Product Model | PM9600 |
| Product Name | PowerScan PM9600 Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Interfaces/Ports | |
| Host Interface | Serial |
| Network & Communication | |
| Bluetooth | Yes |
| Radio Frequency | Yes |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Durability | Water Resistant, Dust Resistant |
| Height | 7.8" |
| Width | 3.1" |
| Length | 5.5" |
| Weight (Approximate) | 14.99 oz |
| Power Description | |
| Power Supply Included | Yes |
| Technical Information | |
| Connectivity Technology | Cable/Wireless |
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Mode | Trigger |
| Scan Pattern | Omni-directional |
| Scanner Range | Standard Range |
| Scanning Distance | 68.90" |
| Cable Type Included | Serial |
| Features | Beep, 3GL, Vibration, Notification LED, Ergonomic Design |
| Field of View (Horizontal) | 38° |
| Field of View (Vertical) | 24° |
| Reading Angle (Skew) | 52° |
| Reading Angle (Pitch) | 52° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification |
|
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 10 mil |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 20kV |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP65, IP67 |
| Application/Usage | Industrial, Warehouse, Manufacturing, Logistics, Retail, Inventory, Assembly Line, Component Tracking, Picking, Sorting |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS), Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
