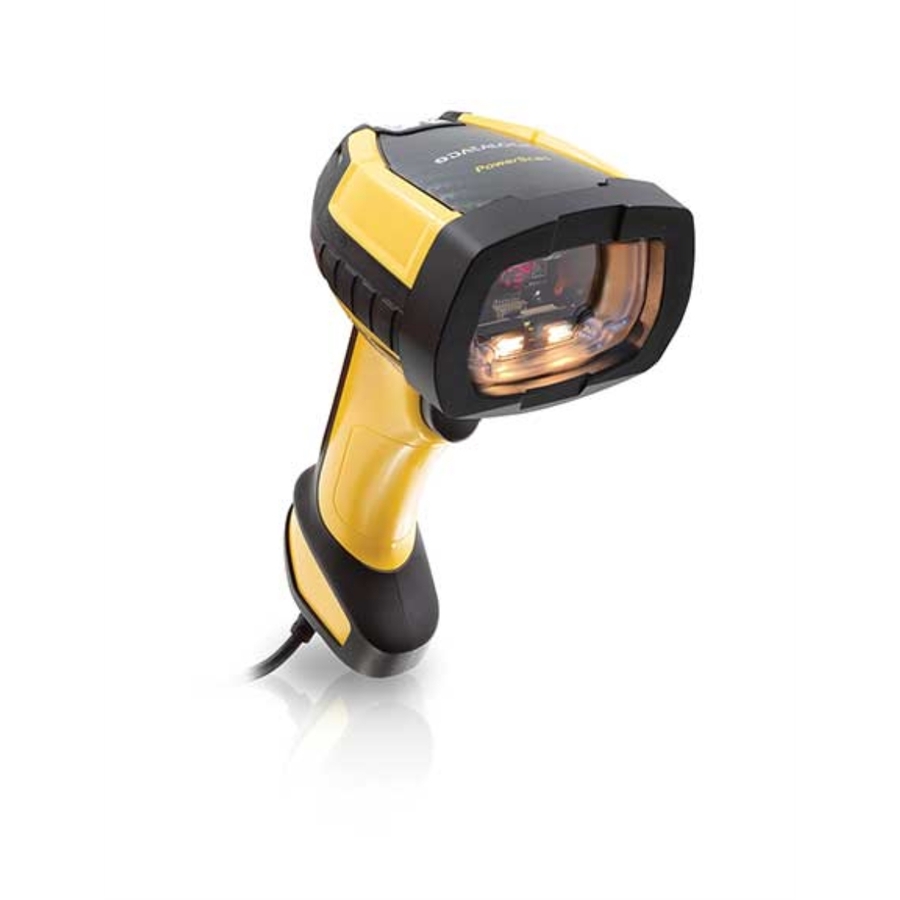

Datalogic PowerScan 9600 PM9600-SR Barcode Scanner Kit
Wireless Connectivity - 68.90" Scan Distance - 1D, 2D - LED - Imager - Omni-directional, Area - , Radio Frequency - USB - Black, Yellow - Power Supply Included - IP65, IP67 - USB - Industrial, Warehouse, Logistics, Manufacturing, Inventory, Picking, Component Tracking, Sorting, Packing
- SKU
- PM9600-SR910RBK10
- Category
- Barcode Scanners
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Datalogic S.p.A through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PM9600-SR910RBK10
- Category
- Barcode Scanners
Overview
ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS!
The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.
MOBILITY ENHANCES PRODUCTIVITY
The PowerScan 9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System. Accurate power management allows long lasting battery life to always guarantee more than one shift of intensive scanning. The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.
MODULARITY WITH THE BEST FLEXIBILITY
? The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.
Highlights
- Allows productive and precise reading of 1D barcodes
- Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
- LED aimer is a perfect choice for patient-facing applications
- Increases productivity by giving the opportunity to wander, without the tangle of cables
Specifications
| Application/Usage | Industrial, Warehouse, Logistics, Manufacturing, Inventory, Picking, Component Tracking, Sorting, Packing |
|---|---|
| Barcode Symbology Supported | 1D: Auto discriminates all standard 1D codes including GS1 DataBar linear codes. 2D: Aztec Code China Han Xin Code Data Matrix MaxiCode Micro QR Code QR Code Dot Code Postal Codes: Australian Post China Post IMB Japanese Post KIX Post Planet Code Portuguese Post Postnet Royal Mail Code (RM4SCC) Swedish Post. Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF MicroPDF417 PDF417 UPC A/E Composites Digital Watermarking: Digimarc Barcodes |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Package Contents |
|
| Host Interface | USB |
| Product Type | Barcode Scanner Kit |
| Manufacturer Part Number | PM9600-SR910RBK10 |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 14.99 oz |
| Connectivity Technology | Wireless |
| Durability | Water Resistant, Dust Resistant |
| Features | Vibration, Beep, Notification LED, Ergonomic Design, 3GL |
| Form Factor | Handheld |
| Length | 5.5" |
| Manufacturer | Datalogic S.p.A |
| Product Model | PM9600-SR |
| Product Name | PowerScan 9600 PM9600-SR Barcode Scanner Kit |
| Product Line | PowerScan |
| Product Series | 9600 |
| Brand Name | Datalogic |
| Scanning Distance | 68.90" |
| Light Source | LED |
| Height | 7.8" |
| Width | 3.1" |
| Environmentally Friendly | Yes |
| Battery Capacity | 3350 mAh |
| Scanner Range | Standard Range |
| Drop Specification |
|
| Scan Pattern | Omni-directional, Area |
| Maximum Battery Recharge Time | 3.20 Hour |
| Image Sensor Type | Imager |
| Radio Frequency | Yes |
| Illumination Type | LED |
| Scan Mode | Trigger |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Product Color | Black, Yellow |
| Power Supply Included | Yes |
| Color Family | Dual Color |
| Illumination Color | White |
| Ingress Protection (IP) Rating | IP65, IP67 |
| Rugged | Yes |
| Cable Type Included | USB |
| Scanning Capability | 1D, 2D |
| Field of View (Horizontal) | 38° |
| Field of View (Vertical) | 24° |
| Reading Angle (Skew) | 52° |
| Reading Angle (Pitch) | 52° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 10 mil |
| Air Electrostatic Discharge (+/-) | 20kV |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Image Sensor Resolution | 1280 x 800 |
| Humidity (Non-condensing) | 0% to 95% |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), China Restriction of Hazardous Substances (China RoHS) |
