Datalogic PowerScan 9600 PM9600 Barcode Scanner Kit
Wireless Connectivity - 95.60" Scan Distance - 1D, 2D - LED - Imager - Omni-directional - , Radio Frequency - Serial - Yellow, Black - Power Supply Included - IP65, IP67 - Serial - Manufacturing, Warehouse, Logistics, Picking, Inventory, Sorting, Packing, Assembly Line, Component Tracking, Industrial
- SKU
- PM9600-HP910RBK20
- Category
- Barcode Scanners
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Datalogic S.p.A through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PM9600-HP910RBK20
- Category
- Barcode Scanners
Overview
ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS!
The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultrarugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities.
MOBILITY ENHANCES PRODUCTIVITY

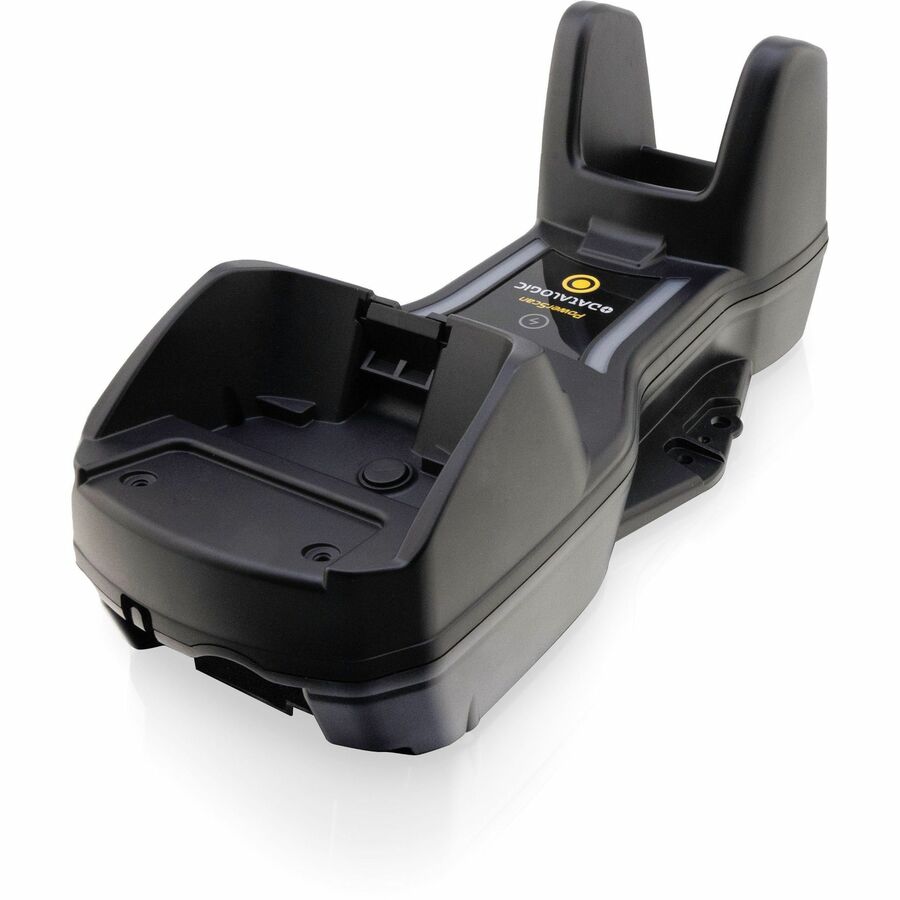

The PowerScan PM9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System?. Bidirectional radio communication and display allow users to receive immediate feedback avoiding any risk of mistakes. The PowerScan PBT9600 cordless model is enriched with Bluetooth® 5.0 that can be paired to any device supporting Bluetooth connections, or to the Bluetooth base station. The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.
WIRELESS CHARGING
The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.
THREE OPTIC OPTIONS TO FULFILL ANY CUSTOMER NEED
The PowerScan 9600 area imagers are available in three different optics, to satisfy any customer need. The Standard Range optic is ideal for most of the applications requiring barcode reading at intuitive distance; the High Performance optic adds the capability to decode high density barcodes together with an increased depth of field on standard 1D/2D codes; the Document Capture model is thought for Wide Angle code reading and Document Capture applications.
Highlights
- Snappy omnidirectional reading on 1D, stacked and 2D codes, postal codes
- Standard Range and High Performance models
- Water and Particulate Sealing Rating: IP65 and IP67; Cradle IP65; 10 million hits trigger
- Center of gravity design Modular cradle design allowing interface expansion
- White light illumination High visibility OLED Display with 4-Keys /16-Keys keypad options
- Standard Range, High Performance and Document capture optics
- Datalogic's 3GL (3 Green Lights) technology and loud beeper for good-read feedback
- Datalogic's Motionix motion-sensing technology
- Wireless Charging reducing total cost of ownership
- EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI.
Specifications
| Application/Usage | Manufacturing, Warehouse, Logistics, Picking, Inventory, Sorting, Packing, Assembly Line, Component Tracking, Industrial |
|---|---|
| Barcode Symbology Supported | 1D: Auto discriminates all standard 1D codes including GS1 DataBar linear codes 2D: Aztec Code China Han Xin Code Data Matrix MaxiCode Micro QR Code QR Code Dot Code Postal Codes: Australian Post British Post China Post IMB Japanese Post KIX Post Planet Code Postnet Royal Mail Code (RM4SCC) Stacked Codes: EAN/JAN Composites GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional MacroPDF MicroPDF417 PDF417 UPC A/E Composites Digital Watermarking: Digimarc Barcodes (HP and DC models) |
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Package Contents |
|
| Host Interface | Serial |
| Product Type | Barcode Scanner Kit |
| Manufacturer Part Number | PM9600-HP910RBK20 |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 14.99 oz |
| Connectivity Technology | Wireless |
| Durability | Water Resistant, Dust Resistant |
| Features | Beep, Notification LED, Ergonomic Design, Vibration, 3GL |
| Form Factor | Handheld |
| Length | 5.5" |
| Manufacturer | Datalogic S.p.A |
| Product Model | PM9600 |
| Product Name | PowerScan 9600 PM9600 Barcode Scanner Kit |
| Product Line | PowerScan |
| Product Series | 9600 |
| Brand Name | Datalogic |
| Scanning Distance | 95.60" |
| Light Source | LED |
| Height | 7.8" |
| Width | 3.1" |
| Environmentally Friendly | Yes |
| Battery Capacity | 3350 mAh |
| Drop Specification |
|
| Scan Pattern | Omni-directional |
| Maximum Battery Recharge Time | 3.20 Hour |
| Image Sensor Type | Imager |
| Radio Frequency | Yes |
| Illumination Type | LED |
| Scan Mode | Trigger |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Product Color | Yellow, Black |
| Power Supply Included | Yes |
| Color Family | Dual Color |
| Illumination Color | White |
| Ingress Protection (IP) Rating | IP65, IP67 |
| Rugged | Yes |
| Cable Type Included | Serial |
| Scanning Capability | 1D, 2D |
| Field of View (Horizontal) | 38° |
| Field of View (Vertical) | 24° |
| Reading Angle (Skew) | 52° |
| Reading Angle (Pitch) | 52° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 10 mil |
| Minimum Element Resolution (PDF417) | 10 mil |
| Air Electrostatic Discharge (+/-) | 20kV |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Image Sensor Resolution | 1280 x 800 |
| Humidity (Non-condensing) | 0% to 95% |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), China Restriction of Hazardous Substances (China RoHS), Restriction of Hazardous Substances (RoHS) |
