Wireless Connectivity - 95.60" Scan Distance - 1D, 2D - LED - Imager - Area, Omni-directional - , Radio Frequency - USB, Serial, Keyboard Wedge, Multi-interface - Black, Yellow - Power Supply Included - IP65, IP67 - USB - Industrial, Warehouse, Logistics, Manufacturing, Inventory, Picking, Component Tracking, Sorting, Packing
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Datalogic S.p.A through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS!

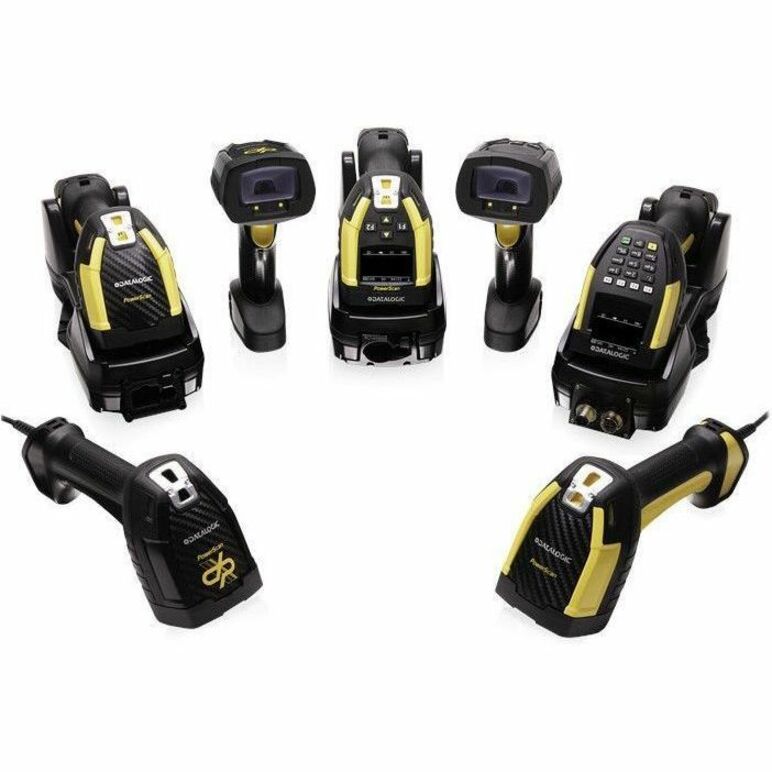

The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.
MOBILITY ENHANCES PRODUCTIVITY
The PowerScan 9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System. Accurate power management allows long lasting battery life to always guarantee more than one shift of intensive scanning. The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.
MODULARITY WITH THE BEST FLEXIBILITY

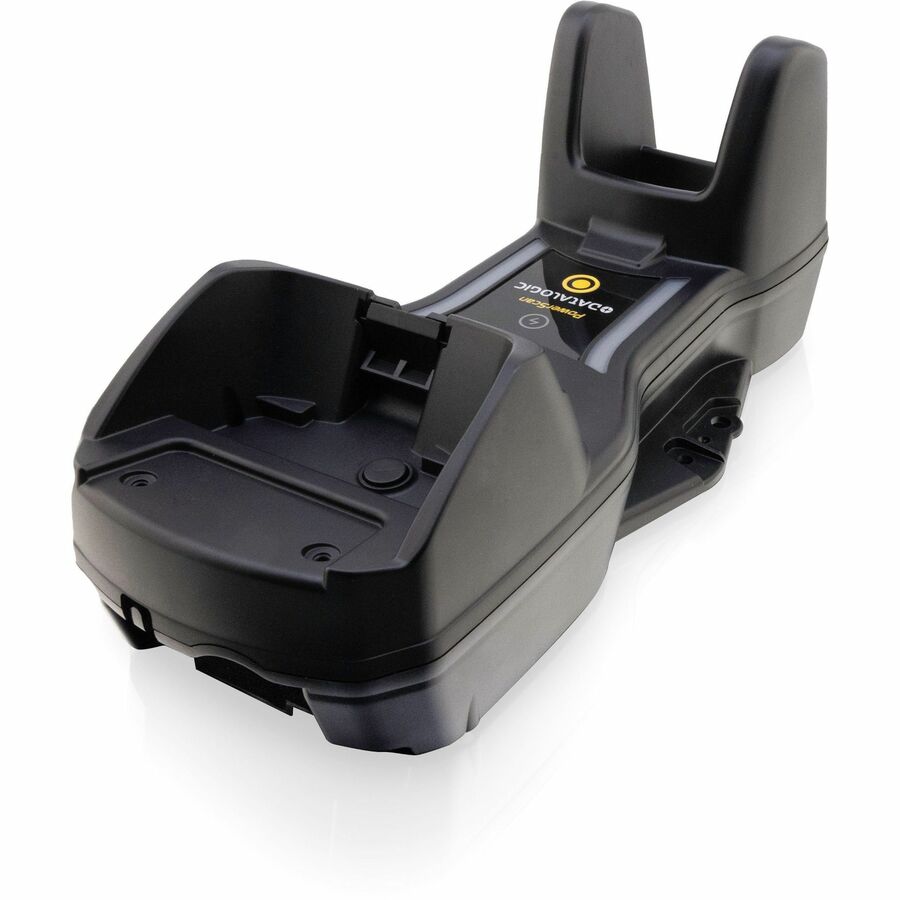

? The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.
| Battery Information | |
|---|---|
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3350 mAh |
| Maximum Battery Recharge Time | 3.20 Hour |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 0% to 95% |
| General Information | |
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | PM9600-HP910RBK10 |
| Brand Name | Datalogic |
| Product Line | PowerScan |
| Product Series | 9600 |
| Product Model | PM9600-HP |

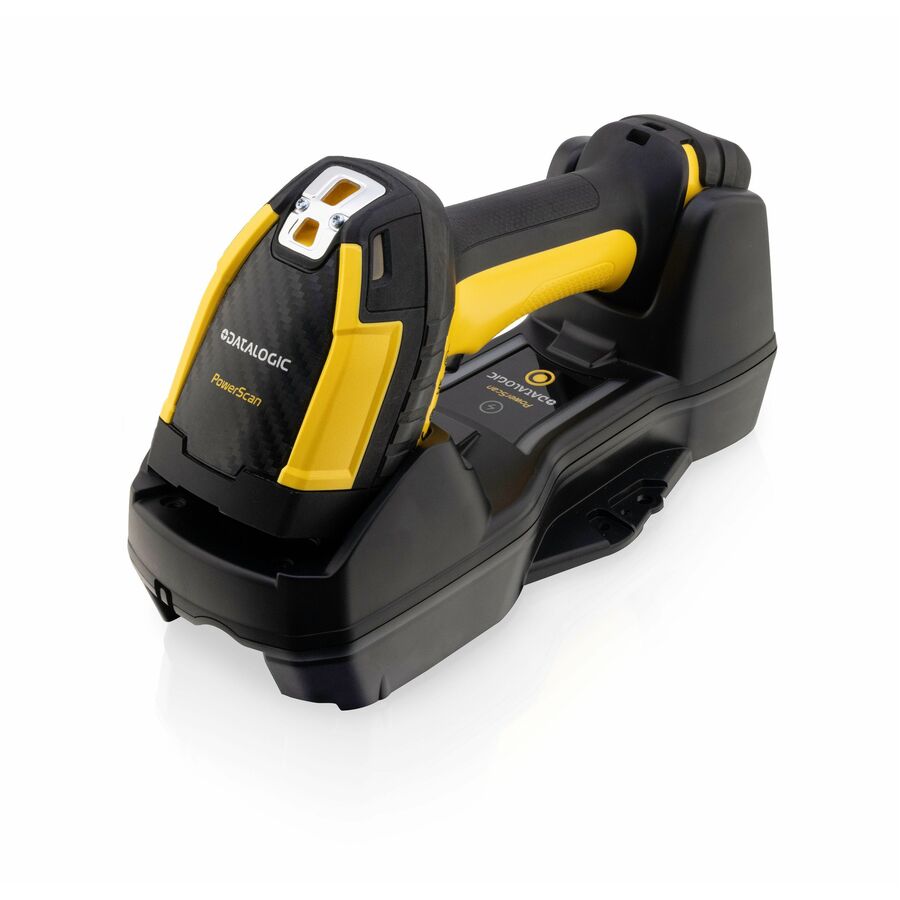

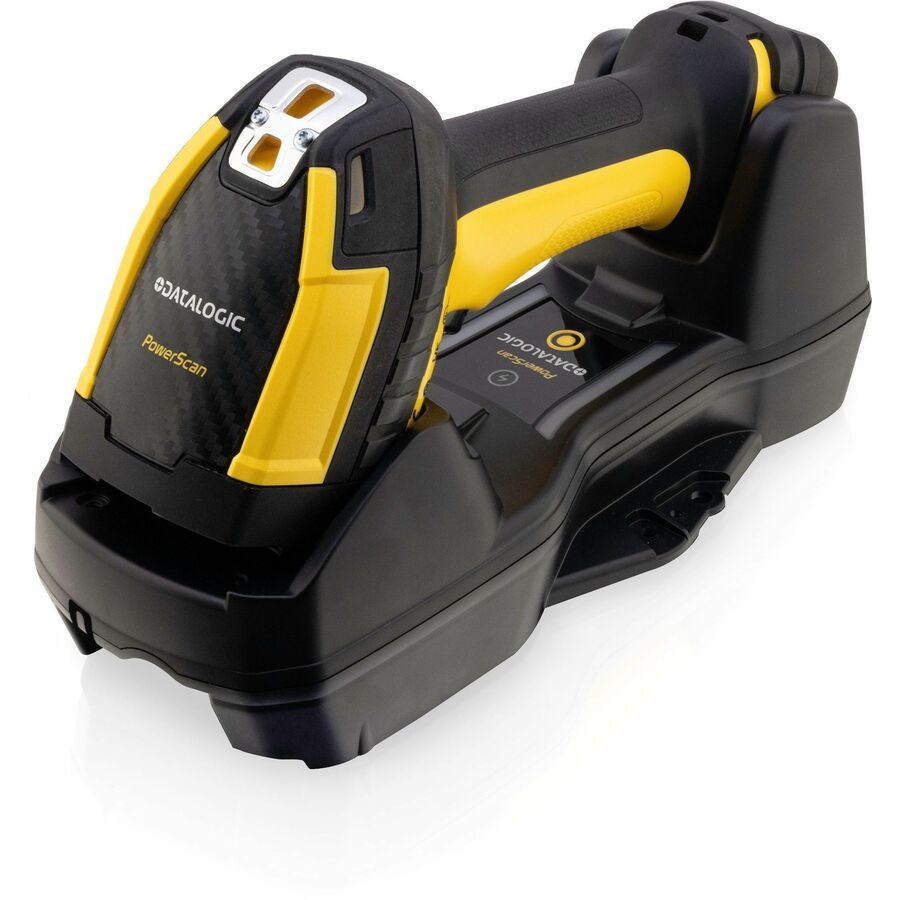

| Product Name | PowerScan 9600 PM9600-HP Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Interfaces/Ports | |
| Host Interface | USB, Serial, Keyboard Wedge, Multi-interface |
| Network & Communication | |
| Radio Frequency | Yes |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | Dual Color |
| Product Color | Black, Yellow |
| Durability | Water Resistant, Dust Resistant |
| Height | 7.8" |
| Width | 3.1" |
| Length | 5.5" |
| Power Description | |
| Power Supply Included | Yes |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D, 2D |
| Barcode Symbology Supported | 1D: Auto discriminates all standard 1D codes including GS1 DataBar linear codes. 2D: Aztec Code China Han Xin Code Data Matrix MaxiCode Micro QR Code QR Code Dot Code Postal Codes: Australian Post China Post IMB Japanese Post KIX Post Planet Code Portuguese Post Postnet Royal Mail Code (RM4SCC) Swedish Post. Stacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF MicroPDF417 PDF417 UPC A/E Composites Digital Watermarking: Digimarc Barcodes |
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Mode | Trigger |
| Scan Pattern | Area, Omni-directional |
| Scanner Range | Short Range |
| Scanning Distance | 95.60" |
| Cable Type Included | USB |
| Features | Vibration, Beep, Notification LED |
| Field of View (Horizontal) | 38° |
| Field of View (Vertical) | 24° |
| Reading Angle (Skew) | 52° |
| Reading Angle (Pitch) | 52° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification |
|
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 10 mil |
| Minimum Element Resolution (PDF417) | 10 mil |
| Image Sensor Resolution | 1280 x 800 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 20kV |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP65, IP67 |
| Application/Usage | Industrial, Warehouse, Logistics, Manufacturing, Inventory, Picking, Component Tracking, Sorting, Packing |
