Wireless Connectivity - 39.60" Scan Distance - 1D, 2D - LED - Imager - Area, Omni-directional - , Radio Frequency - Keyboard Wedge, Serial, USB, Ethernet - Yellow, Black - Power Supply Included - Stand Included - IP65 - USB - Industrial, Sorting, Picking, Entertainment, Manufacturing, Warehouse, Logistics
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Datalogic S.p.A through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
AIM, TRIGGER, DECODE: IT'S THAT SIMPLE!

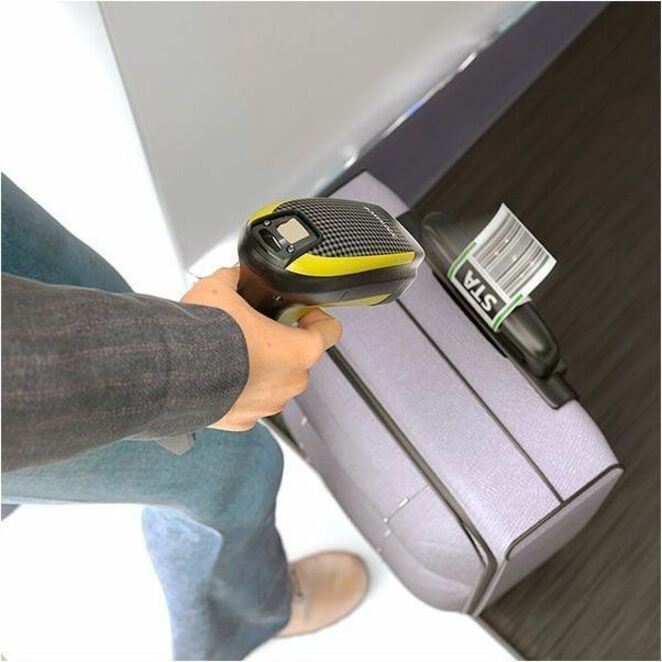

An intuitive and effortless scanning experience is the target of the PowerScan 9500 series. They combine omnidirectional reading capabilities with outstanding optical characteristics. The result is a scanner that is able to read any kind of bar code, regardless of the orientation, from contact to over 1.0 m / 3.3 ft, depending on the bar code resolution. In addition, Datalogic's latest decoding software guarantees snappy reading in any type of environment.
MOBILITY ENHANCES PRODUCTIVITY

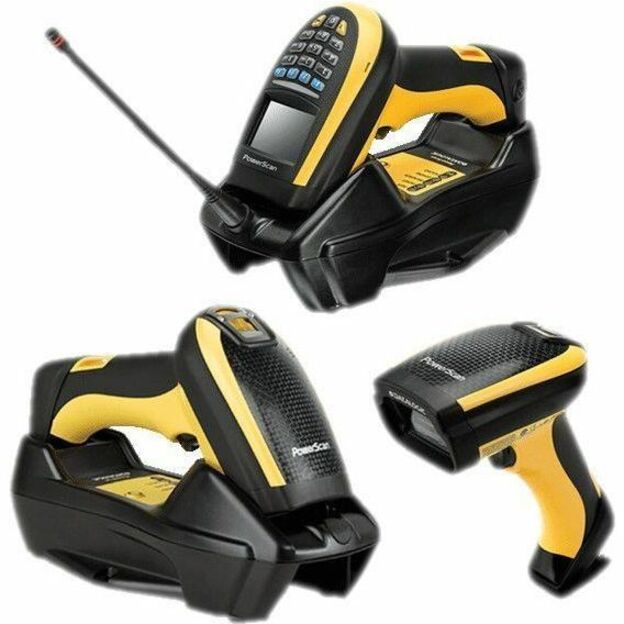

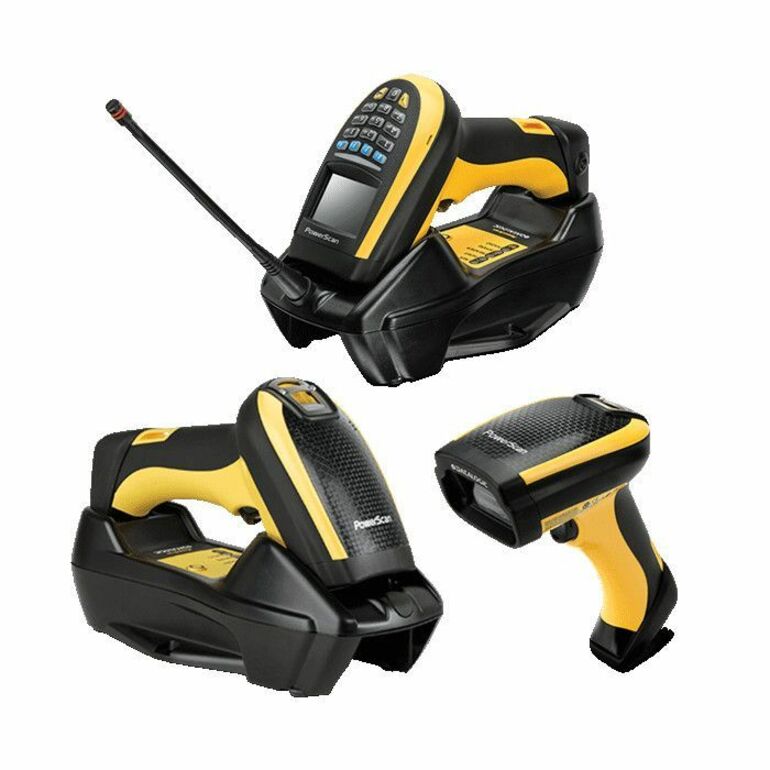

The Datalogic STAR Cordless System for narrow-band radio communications was developed specifically to maximize efficiency and reliability for handheld scanner data collection applications. The PowerScan PM9500 models are equipped with a new generation of the STAR-System that further improves the already outstanding features of versatility, ease of use and radio range.
The PM9500 series offers two display options: 4 configurable keys and a full 16-key keyboard. This increases interaction between the host and the user allowing a two-way exchange of information for more reliable and effective communications.
The BC9180 base/charger also includes in one model two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus.
DEVELOPED WITH THE USER IN MIND
Handle shape, well-balanced weight and an intuitive aiming system allows high first-pass reading rates while reducing unnatural wrist movements for improved ergonomics and user comfort.
The PowerScan 9500 area imagers use a soft-pulsed white illumination light that is very gentle on the eyes and less troublesome to the operator during scan-intensive applications.
Limited Warranty: 3 Year
| Battery Information | |
|---|---|
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 2150 mAh |
| Maximum Battery Recharge Time | 4 Hour |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 95% |
| General Information | |
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | PM9501-HP910RBK10 |
| Brand Name | Datalogic |
| Product Line | PowerScan |
| Product Series | 9500 |
| Product Model | PM9501 |
| Product Name | PowerScan 9500 PM9501 Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Interfaces/Ports | |
| Host Interface | Keyboard Wedge, Serial, USB, Ethernet |
| Network & Communication | |
| Radio Frequency | Yes |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | Dual Color |
| Product Color | Yellow, Black |
| Durability | Water Proof |
| Weight (Approximate) | 14.60 oz |
| Power Description | |
| Power Supply Included | Yes |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D, 2D |
| Barcode Symbology Supported | 1D/ LINEAR CODES: Autodiscriminates all standard 1D codes including GS1 DataBar linear codes. 2D CODES: Aztec Code China Han Xin Code Data Matrix MaxiCode Micro QR Code QR Code STACKED CODES: EAN/JAN Composites GS1 DataBar Composites; GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional MacroPDF MicroPDF417 PDF417 UPC A/E Composites |
| Light Source | LED |
| Image Sensor Type | Imager |
| Scan Pattern | Area, Omni-directional |
| Scanner Range | Standard Range |
| Scanning Distance | 39.60" |
| Display Screen | Yes |
| Number of Keys | 16 |
| Cable Type Included | USB |
| Features | Beep, LCD Display |
| Stand Included | Yes |
| Reading Angle (Skew) | 40° |
| Reading Angle (Pitch) | 40° |
| Reading Angle (Roll) | 360° |
| Maximum Ambient Light | 100000 lux |
| Drop Specification |
|
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (DataMatrix) | 4 mil |
| Maximum Element Resolution (DataMatrix) | 10 mil |
| Minimum Element Resolution (PDF417) | 10 mil |
| Image Sensor Resolution | 1280 x 1024 |
| Illumination Type | LED |
| Illumination Color | White |
| Air Electrostatic Discharge (+/-) | 20kV |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Ingress Protection (IP) Rating | IP65 |
| Application/Usage | Industrial, Sorting, Picking, Entertainment, Manufacturing, Warehouse, Logistics |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
