Overview
AIM, TRIGGER, DECODE: IT'S THAT SIMPLE!
An intuitive and effortless scanning experience is the target of the PowerScan 9501 series. They combine omnidirectional reading capabilities with outstanding optical characteristics. The result is a scanner that is able to read any kind of bar code, regardless of the orientation, from contact to over 1.0 m / 3.3 ft, depending on the bar code resolution. In addition, Datalogic's latest decoding software guarantees snappy reading in any type of environment.
MOBILITY ENHANCES PRODUCTIVITY
The Datalogic STAR Cordless System for narrow-band radio communications was developed specifically to maximize efficiency and reliability for handheld scanner data collection applications. The PowerScan PM9501 models are equipped with a new generation of the STAR-System that further improves the already outstanding features of versatility, ease of use and radio range.
The PM9501 series offers two display options: 4 configurable keys and a full 16-key keyboard. This increases interaction between the host and the user allowing a two-way exchange of information for more reliable and effective communications.
The BC9180 base/charger also includes in one model two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus.
DEVELOPED WITH THE USER IN MIND
Handle shape, well-balanced weight and an intuitive aiming system allows high first-pass reading rates while reducing unnatural wrist movements for improved ergonomics and user comfort.
The PowerScan 9501 area imagers use a soft-pulsed white illumination light that is very gentle on the eyes and less troublesome to the operator during scan-intensive applications.
Highlights
Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
Wireless connectivity gives you the adaptability to transmit barcode data to your smart devices
Specifications
General Information
Manufacturer
Datalogic S.p.A
Manufacturer Part Number
PM9501-HP433RBK10
Brand Name
Datalogic
Product Line
PowerScan
Product Series
9501
Product Model
PM9501
Product Name

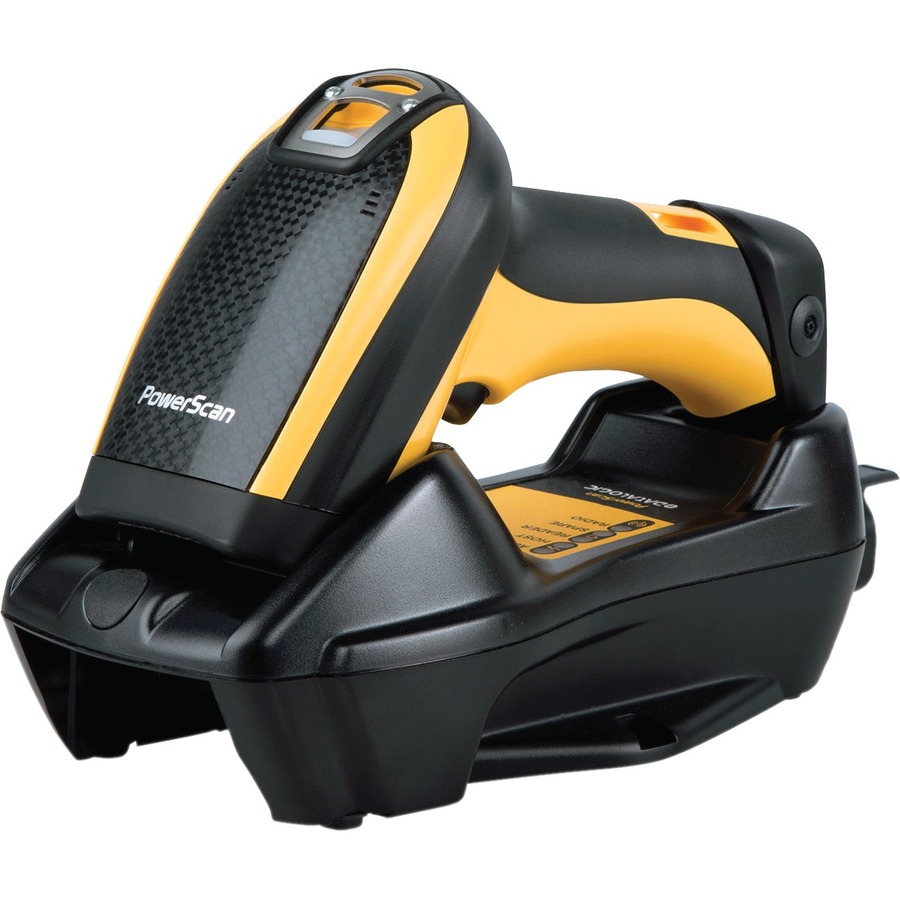

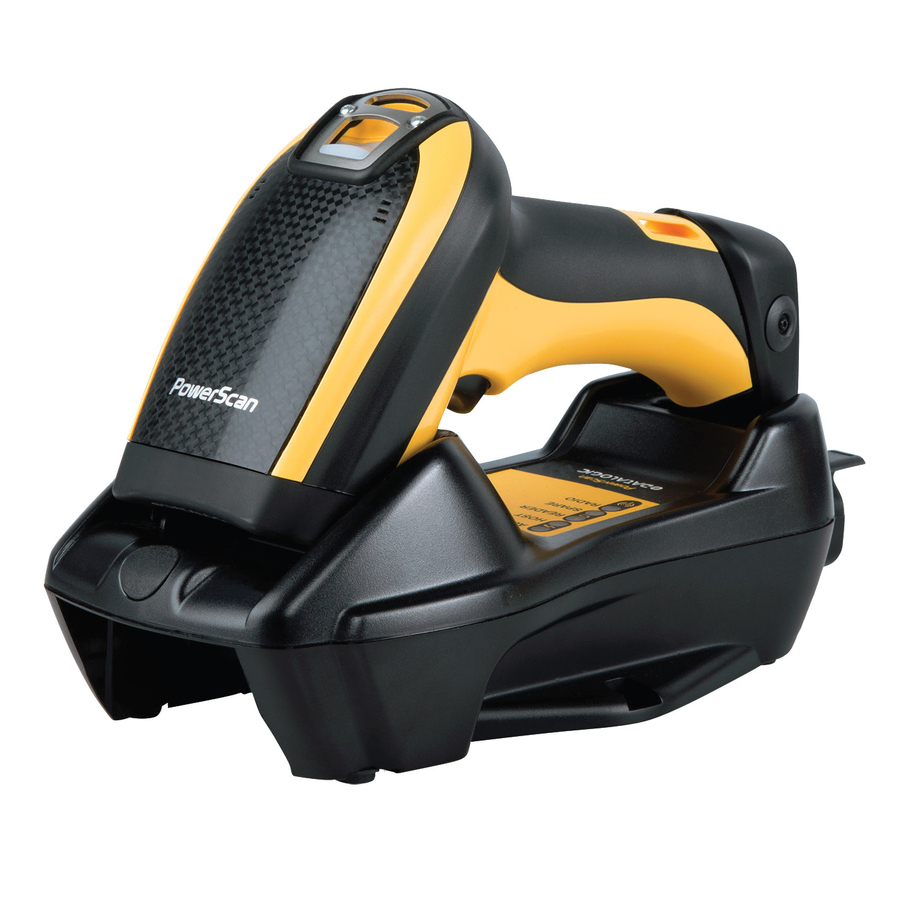

PowerScan PM9501 Handheld Barcode Scanner
Product Type
Barcode Scanner Kit
Interfaces/Ports
Host Interface
Serial, USB, Keyboard Wedge
Physical Characteristics
Form Factor
Handheld
Product Color
Yellow, Black
Weight (Approximate)
15.52 oz
Technical Information
Connectivity Technology
Wireless
Scanning Capability
1D, 2D
Barcode Symbology Supported
1D / Linear Codes: Autodiscriminates all standard 1D codes including GS1 DataBar linear codes. 2D Codes: Aztec Code China Han Xin Code Data Matrix MaxiCode Micro QR Code QR Code Postal Codes: Australian Post China Post IMB Japanese Post KIX Post Planet Code Portuguese Post Postnet Royal Mail Code (RM4SCC) Swedish Post Stacked Codes: EAN/JAN Composites GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional MacroPDF MicroPDF417 PDF417 UPC A/E Composites
