Wireless Connectivity - 1D, 2D - LED - Imager - , Radio Frequency - USB - Yellow, Black - IP65 - Manufacturing, Asset Tracking, Warehouse, Logistics
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Datalogic S.p.A through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
TECHNOLOGY DRIVEN

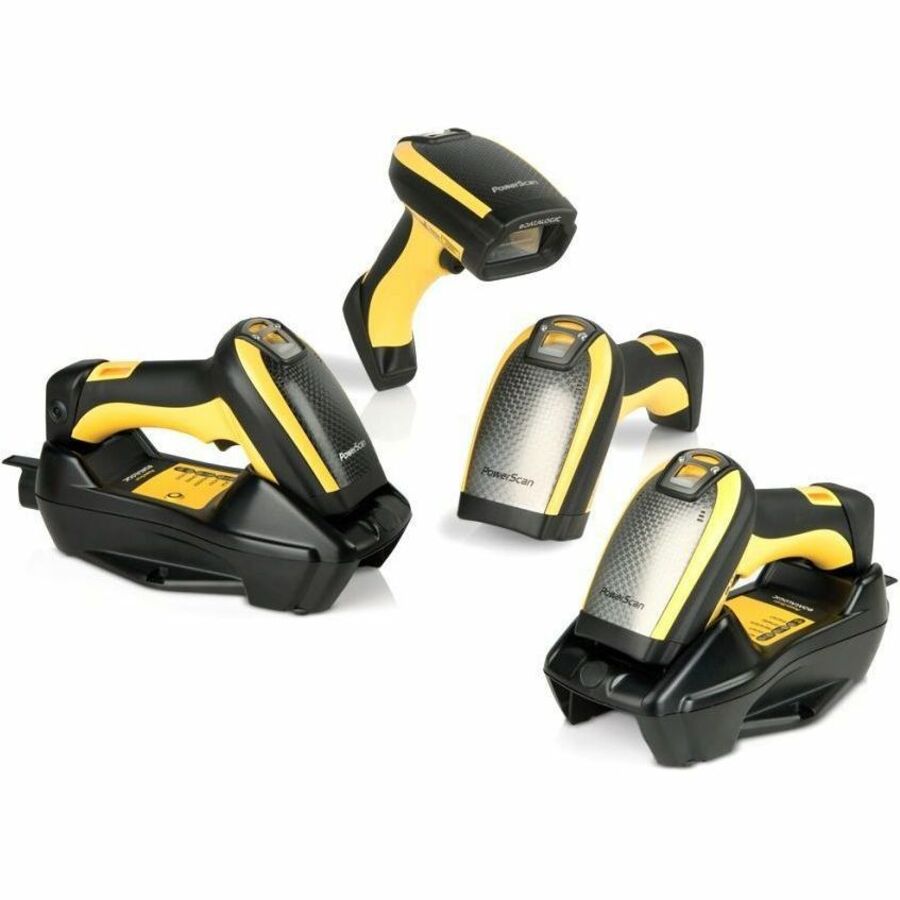

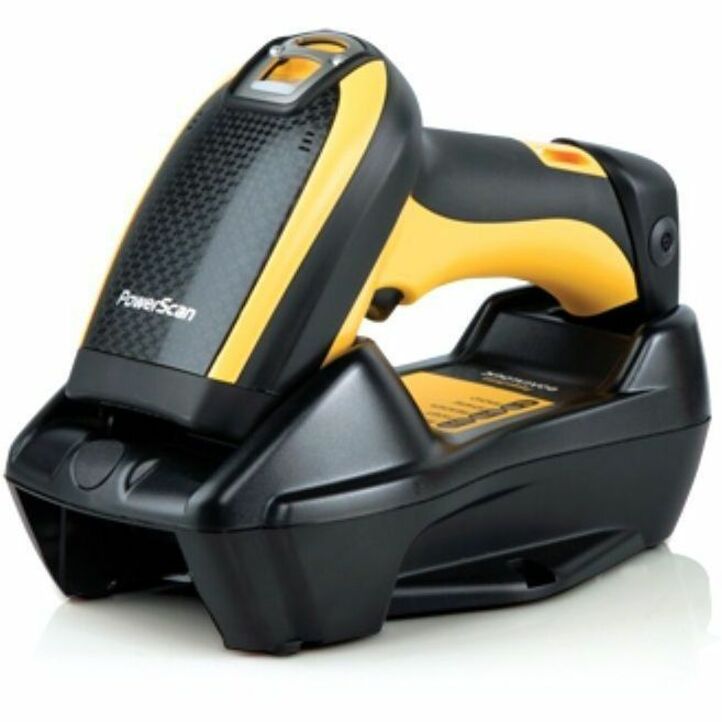

The PowerScan PM9000 series includes different models able to satisfy all customers' needs; the PM9501-AR is the 1D/2D Auto Range model with extra-long range capabilities. The PM9501-DAR is the intermediate model and includes a display and 4-key keypad. The ultimate PM9501-DKAR model features a display with a full 16-key keyboard. The PM9501-DKAR model significantly increases the sophistication of interaction with the host system and opens up new potential uses of the scanner, making it suitable for applications that would normally require a more expensive portable data terminal. The BC9180 base includes one model with two different Ethernet connections: Standard Ethernet and Industrial Ethernet protocols such as Ethernet IP and Modbus.
DATALOGIC'S STAR CORDLESS SYSTEM
Narrow band radio communications with Datalogic's STAR Cordless System 2.0 provides the key to increased productivity and flexibility in the workplace. It offers scalable solutions from simple point-to-point applications to networking capabilities combined with seamless roaming for complex installations.
GOOD-READ FEEDBACK AND SUPERIOR READING PERFORMANCE
The PM9501-AR readers feature Datalogic's exclusive 3 Green Lights (3GL?) for superior good-read feedback. The patented 'Green Spot' directly on the code and dual Good Read LEDs on the top and back of the cap add increased visibility at any angle. The PowerScan PM9501 Auto Range can read 1D/2D barcodes with an extended reading range. Its powerful autofocus system allows the scanner to read from a short distance of 15 cm / 6 in to a distance of more than 20 m / 65 ft because of a fast focus adjustment, allowing the operator to easily read a close up barcode and then focus at the top of a warehouse rack.
| Battery Information | |
|---|---|
| Battery Chemistry | Lithium Ion (Li-Ion) |
| Battery Capacity | 3350 mAh |
| Maximum Battery Recharge Time | 4.50 Hour |
| Environmental Conditions | |
| Operating Temperature | -4°F (-20°C) to 122°F (50°C) |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Humidity (Non-condensing) | 95% |
| General Information | |
| Manufacturer | Datalogic S.p.A |
| Manufacturer Part Number | PM9501-AR910RBK10 |
| Brand Name | Datalogic |
| Product Line | PowerScan |
| Product Model | PM9501 |
| Product Name | PowerScan PM9501 Barcode Scanner Kit |
| Product Type | Barcode Scanner Kit |
| Interfaces/Ports | |
| Host Interface | USB |
| Network & Communication | |
| Radio Frequency | Yes |
| Physical Characteristics | |
| Form Factor | Handheld |
| Rugged | Yes |
| Color Family | Dual Color |
| Product Color | Yellow, Black |
| Weight (Approximate) | 1.01 lb |
| Technical Information | |
| Connectivity Technology | Wireless |
| Scanning Capability | 1D, 2D |
| Barcode Symbology Supported | 1D / Linear codes: Auto discriminates all standard 1D codes including GS1 DataBar linear codes. 2D: Aztec Code China Han Xin Code Data Matrix MaxiCode Micro QR Code QR Code Postal Codes: Australian Post China Post IMB Japanese Post KIX Post Planet Code Portuguese Post Postnet Royal Mail Code (RM4SCC) Swedish Post Stacked Codes: EAN/JAN Composites GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional MacroPDF MicroPDF417 PDF417 UPC A/E Composites |
| Light Source | LED |
| Image Sensor Type | Imager |
| Scanner Range | Auto Range |
| Field of View (Horizontal) | 14° |
| Field of View (Vertical) | 11° |
| Reading Angle (Skew) | 60° |
| Reading Angle (Pitch) | 80° |
| Reading Angle (Roll) | 180° |
| Maximum Ambient Light | 300 lux |
| Drop Specification | Withstands 50 drops from 2.0 m / 6.5 ft to concrete |
| Minimum Print Contrast | 15% |
| Minimum Element Resolution (Code 39) | 10 mil |
| Maximum Element Resolution (Code 39) | 100 mil |
| Minimum Element Resolution (DataMatrix) | 10 mil |
| Maximum Element Resolution (DataMatrix) | 0.20" |
| Miscellaneous | |
| Ingress Protection (IP) Rating | IP65 |
| Application/Usage | Manufacturing, Asset Tracking, Warehouse, Logistics |
