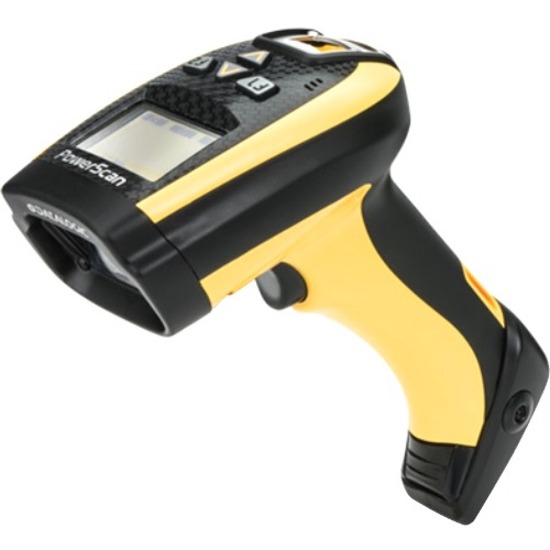

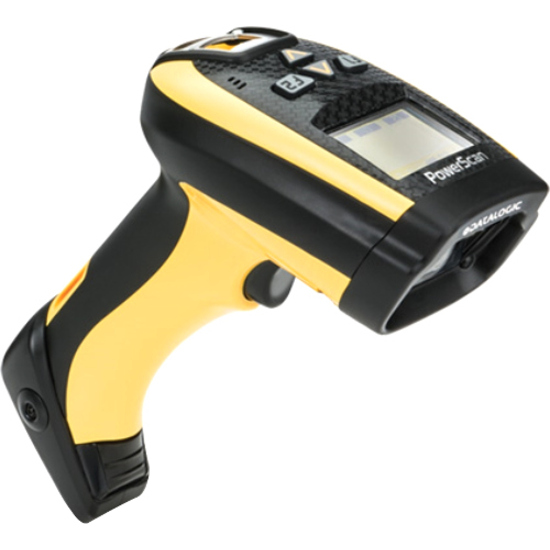

Datalogic PowerScan PM9501 Barcode Scanner Kit
Datalogic S.p.A

Datalogic PowerScan PM9501 Barcode Scanner Kit

Wireless Connectivity - 1D, 2D - Imager - Omni-directional - , Radio Frequency - Keyboard Wedge, Serial, USB, Ethernet - Yellow, Black - Stand Included - IP65 - USB - Ticketing, Manufacturing, Asset Tracking, Inventory, Warehouse, Logistics, Picking

SKU
PM9501-910RBK10
Category
Barcode Scanners

Request pricing

Confirmed with stock and TAA status before any payment.

Request a quote

Genuine Datalogic S.p.A through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
PM9501-910RBK10
Category
Barcode Scanners

Overview

Enhance your user experience

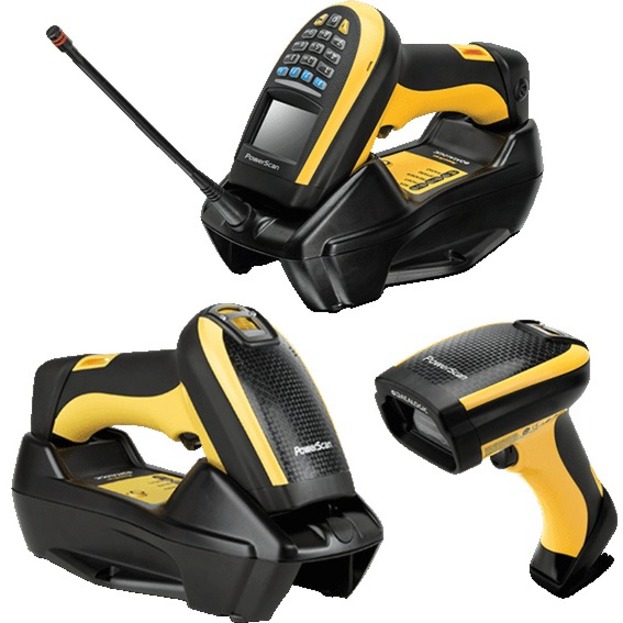

The range-topping PowerScan 9500 series of corded and cordless handheld scanners from Datalogic are designed and built for the most demanding applications and environments. These feature-rich 1D and 2D imagers offer rugged build quality for use in Manufacturing, Transportation & Logistics, Retail, and Healthcare. Outstanding robustness and excellent reading performance are the key reasons for the long-standing success of the PowerScan 9500 model variants, providing speed and reliability when managing goods and tracking parts or materials. The omnidirectional and long-range scanning capabilities let you read all types of codes from any angle, with perfect good-read feedback every time. The PowerScan DPM models include the latest optics and software from Datalogic, to make the reading of codes with DPM easier and more intuitive. There are enough connectivity and networking options to suit all your needs. Your job is simple: aim, trigger, decode.

Keep on working

The PowerScan 9500 series performance is unmatched in the handheld scanner sector. Each unit is built to last and the model is tested to an incredible 10 million trigger hits . You can work comfortably from shift to shift, with the full knowledge that the IP65 rating will keep you free from particulate contamination and water ingress, as well as the ability to withstand at least 50 drops onto concrete from a height of 2 m. This resilience ensures that you get the lowest possible total cost of ownership as your PowerScan continues to perform day in and day out. The scanner window, cradle contacts, and battery are all easily replaceable in the field so that you can keep on working with minimal disruption. The PowerScan 9500 range is the only scanner you will need.

Focus on technology

The PowerScan 9500 range is extensive enough to cover the most diverse applications. Whether you require a wired or cordless model, with or without physical keys , or require long distance code reading capability, there is a model to suit your needs. Datalogic has equipped the PowerScan 9500 series with 3GL ( Three Green Lights ) technology to ensure optimum good-read feedback. With the unique Green Spot visual feedback on the object you are scanning, you also have a direct visual green indicator feedback on the top and rear of the unit. All of this is accompanied with a loud beep when the operator is working in conditions where visibility is poor. The reading performance is further enhanced on models equipped with liquid lens technology for reading of combined standard, wide, and high-density codes.

Highlights

  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Wireless connectivity gives you the adaptability to transmit barcode data to your smart devices

Specifications

Application/UsageTicketing, Manufacturing, Asset Tracking, Inventory, Warehouse, Logistics, Picking
Barcode Symbology Supported1D : Autodiscriminates all standard 1D codes including GS1 DataBar? linear codes. 2D : Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code
Host InterfaceKeyboard Wedge, Serial, USB, Ethernet
Product TypeBarcode Scanner Kit
Display ScreenYes
Manufacturer Part NumberPM9501-910RBK10
Connectivity TechnologyWireless
Form FactorHandheld
ManufacturerDatalogic S.p.A
Product ModelPM9501
Product NamePowerScan PM9501 Barcode Scanner Kit
Product LinePowerScan
Product Series9500
Brand NameDatalogic
Image FormatsBMP, JPEG, TIFF
Scanner RangeStandard Range
Drop SpecificationCradle: Withstands 50 drops from 1.2 m / 3.9 ft onto a concrete surface All models: Withstands 50 drops from 2.0 m / 6.6 ft onto a concrete surface
Scan PatternOmni-directional
Image Sensor TypeImager
Radio FrequencyYes
Stand IncludedYes
Product ColorYellow, Black
Color FamilyDual Color
Ingress Protection (IP) RatingIP65
RuggedYes
Cable Type IncludedUSB
Scanning Capability1D, 2D
Reading Angle (Skew)40°
Reading Angle (Pitch)40°
Reading Angle (Roll)360°
Maximum Ambient Light100000 lux
Minimum Print Contrast15%
Minimum Element Resolution (DataMatrix)7.5 mil
Maximum Element Resolution (DataMatrix)10 mil
Maximum Element Resolution (PDF417)10 mil
