Genuine Datalogic S.p.A through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
MG1501-10211-0200
Category
Barcode Scanners
Overview
HIGH PERFORMANCE SCANNING IN THE PALM OF YOUR HAND
The Magellan 1500i omnidirectional presentation scanner is a versatile and stylish addition to any point of sale. With Datalogic's latest digital imaging technology, it seamlessly decodes both 1D and 2D bar codes on everything from printed product labels to mobile coupons, loyalty cards, tickets and boarding passes. The recessed, adaptive illumination optimizes light levels for both superior operator comfort and high performance sweep and presentation scanning. With the addition of optional Digimarc® Barcode decoding, the Magellan 1500i is the most capable scanner in its class.
A WIDE VARIETY OF USES

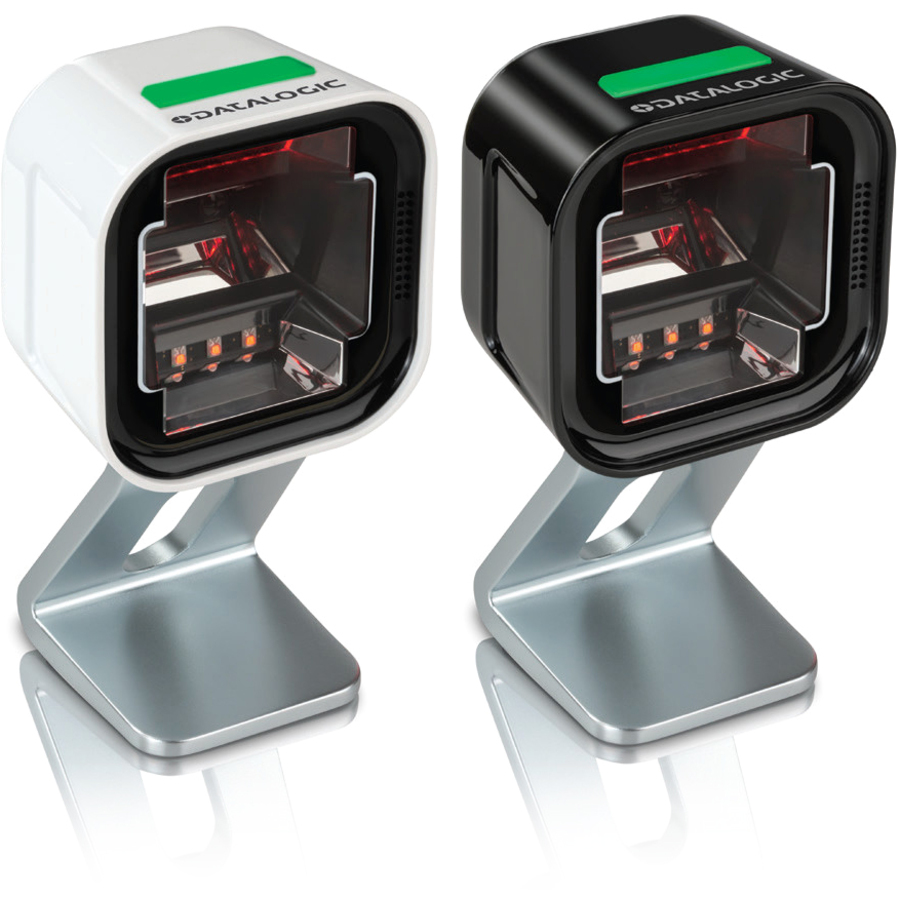

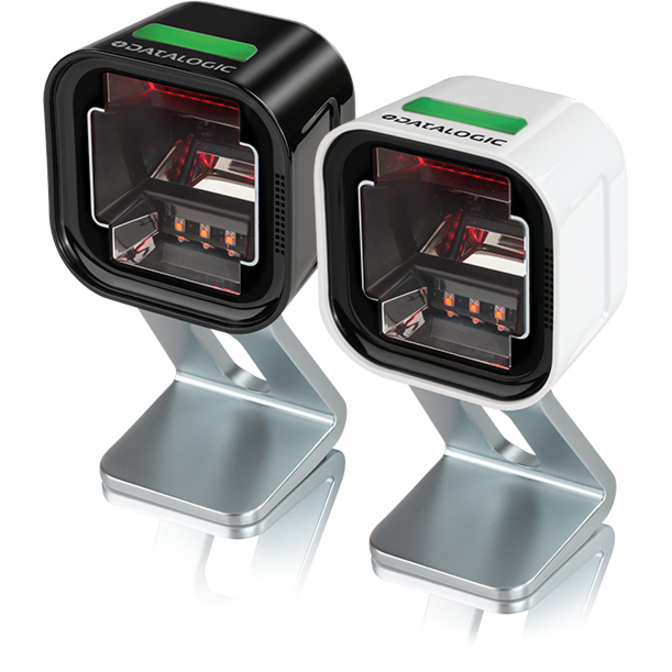

The available black and white enclosures complement a variety of point of sale systems and store formats, making the Magellan 1500i equally at home in a convenience store, pharmacy, post office or a high-end boutique. With the most compact footprint in its class, the Magellan 1500i is an ideal choice for space constrained applications. Additionally, intelligent host cable routing ensures that the scanner is both comfortable in the hand and can back right up to a wall or display for maximum space efficiency. A variety of mounting options allow you to optimize the scanner's location with a tall tilting riser, short stand, magnetic base and an L shaped mounting bracket.
ENTERPRISE FEATURES
Remote Management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added features included in every Magellan scanner.
Highlights
Incredible and responsive 2D scanning even on curved or translucent surfaces
Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
Specifications
General Information
Manufacturer
Datalogic S.p.A
Manufacturer Part Number
MG1501-10211-0200
Brand Name
Datalogic
Product Line
Magellan
Product Model
1500i
Product Name
Magellan 1500i Desktop Barcode Scanner
Packaged Quantity
1
Product Type
Barcode Scanner
Interfaces/Ports
Host Interface
USB, Serial
Physical Characteristics
Form Factor
Desktop
Color Family
Black
Product Color
Black
Height
4.1"
Width
5.5"
Length
8.1"
Technical Information
Connectivity Technology
Cable
Scanning Capability
1D, 2D
Barcode Symbology Supported
1D: Autodiscriminates all standard 1D codes including GS1 DataBar linear codes. 2D: Aztec Code Data Matrix MaxiCode QR Code Postal Codes: Australian Post British Post Canadian Post China Post IMB Japanese Post KIX Post Planet Code Portuguese Post Postnet Royal Mail Code (RM4SCC) Swedish Post Stacked Codes: GS1 DataBar Composites GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional Micro PDF417 PDF417 Digital Watermarks: Optional support for Digimarc® Barcodes/GS1 DW Code
Image Sensor Type
Imager
Scanning Distance
11.81"
Cable Type Included
USB
Reading Angle (Skew)
75°
Reading Angle (Pitch)
65°
Reading Angle (Roll)
360°
Maximum Ambient Light
86100 lux
Drop Specification
Withstands repeated drops from 1.2 m / 4.0 ft onto a concrete surface
