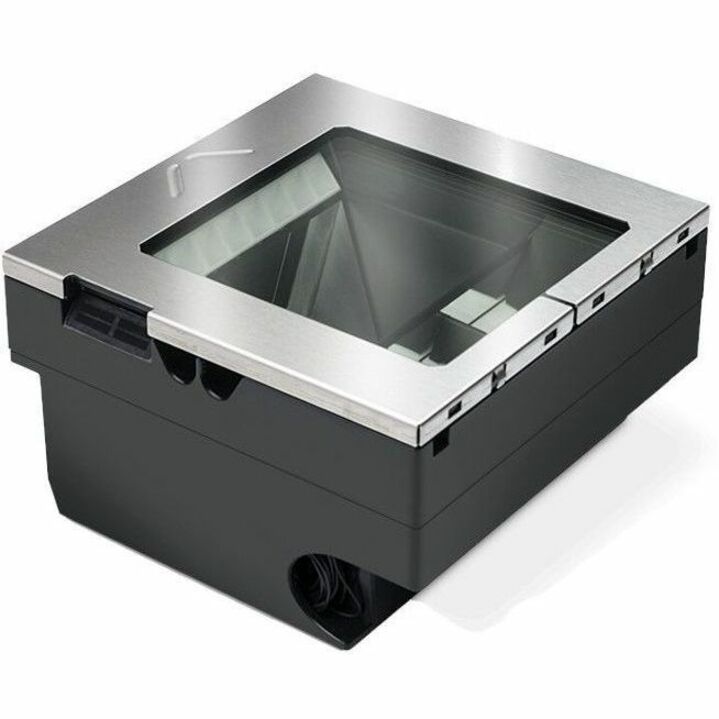

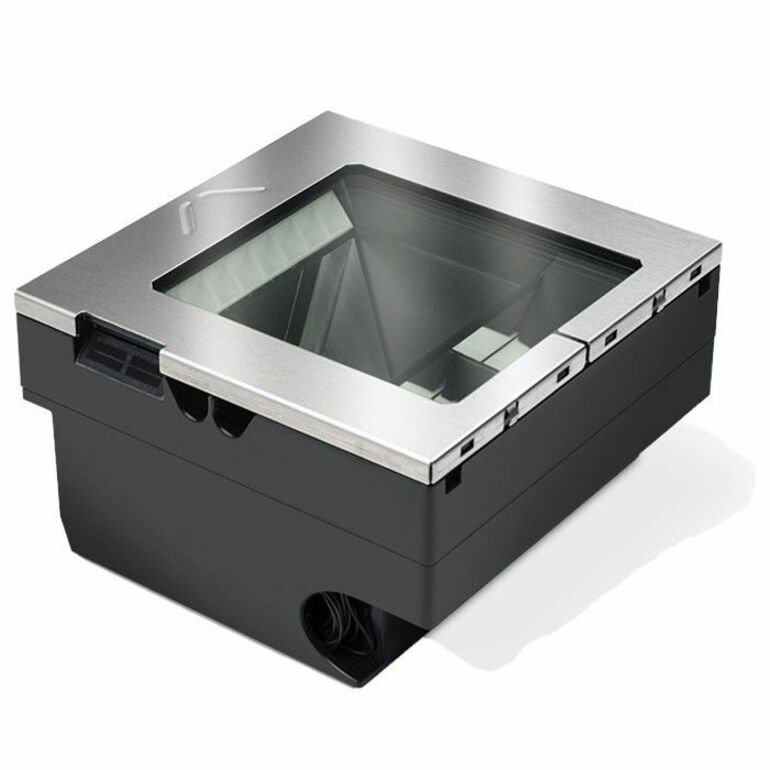

Datalogic MAGELLAN 3510HSi Barcode Scanner
Cable Connectivity - 1D, 2D - LED - Imager - Omni-directional - USB, Serial - IP52 - Retail
- SKU
- M3513-010210
- Category
- Barcode Scanners
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Datalogic S.p.A through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- M3513-010210
- Category
- Barcode Scanners
Overview
IN-COUNTER HIGH PERFORMANCE BAR CODE READER
The Magellan 3510HSi series of scanners continue the Datalogic tradition of high performance imaging for the point-of-sale. With the same cables, mounts and exterior plastics as the Magellan 3550HSi, the 3510HSi scanner is easy to integrate into existing installations. The new electronics platform allows the M3510HSi to power from a single 5V USB connection, providing outstanding performance and easy connection to any POS system.
With a large field-of-view and the capabilities of imaging, the 3510HSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.
ENHANCING THE CUSTOMER EXPERIENCE
The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
ENTERPRISE FEATURES
Remote management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director and Wavelink Avalanche. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
Highlights
- Reads all 1D barcodes with ease so you can accomplish all your tasks more efficiently
- Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
- LED aimer is a perfect choice for patient-facing applications
- Wired connectivity makes this scanner ideal for retail and desktop applications
Specifications
| Application/Usage | Retail |
|---|---|
| Barcode Symbology Supported | 1D: Autodiscriminates all standard 1D codes including GS1 DataBar linear codes 2D: Aztec Code Data Matrix (ECC200 only) QR Code Stacked Codes: GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional MicroPDF417 PDF417 Digital Watermarks: Optional support for Digimarc Barcodes/GS1 DW Code |
| Host Interface | USB, Serial |
| Product Type | Barcode Scanner |
| Manufacturer Part Number | M3513-010210 |
| Weight (Approximate) | 2.16 lb |
| Connectivity Technology | Cable |
| Durability | Water Resistant, Dust Resistant |
| Features | Beep, Notification LED, Checkpoint EAS, Diagnostic Reporting |
| Form Factor | In-counter |
| Length | 6" |
| Manufacturer | Datalogic S.p.A |
| Product Model | 3510HSi |
| Product Name | MAGELLAN 3510HSi Barcode Scanner |
| Product Line | Magellan |
| Brand Name | Datalogic |
| Light Source | LED |
| Image Formats | BMP, JPEG |
| Width | 6" |
| Scan Pattern | Omni-directional |
| Image Sensor Type | Imager |
| Illumination Type | LED |
| Storage Temperature | -40°F (-40°C) to 158°F (70°C) |
| Ingress Protection (IP) Rating | IP52 |
| Scanning Capability | 1D, 2D |
| Reading Angle (Skew) | 75° |
| Reading Angle (Pitch) | 65° |
| Reading Angle (Roll) | 360° |
| Maximum Operating Power Consumption | 3.30 W |
| Maximum Ambient Light | 86100 lux |
| Minimum Print Contrast | 25% |
| Air Electrostatic Discharge (+/-) | 25kV |
| Operating Temperature | 50°F (10°C) to 104°F (40°C) |
| Image Sensor Resolution | 1280 x 800 |
| Humidity (Non-condensing) | 5% to 95% |
