Overview

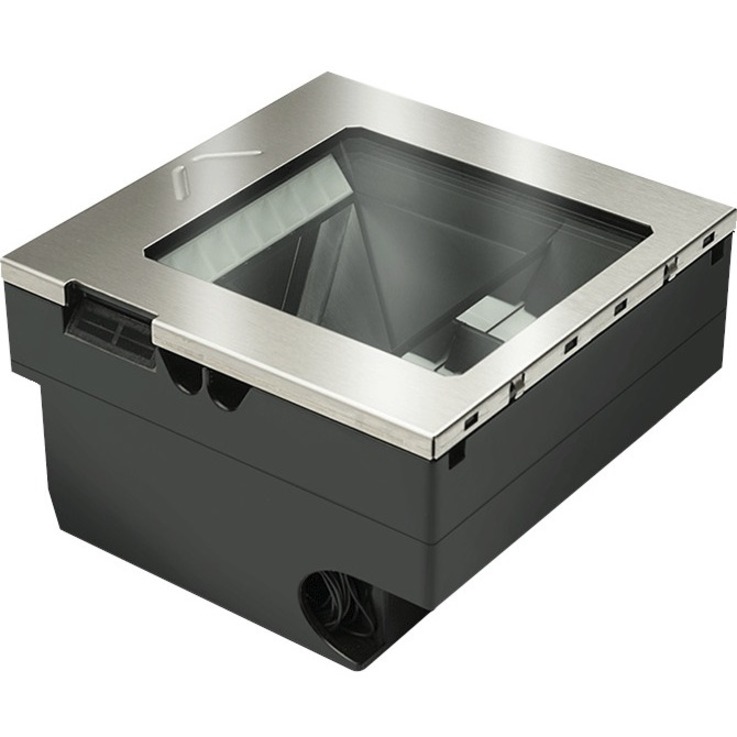

IN-COUNTER HIGH PERFORMANCE BAR CODE READER
The Magellan 3550HSi series of scanners continue the Datalogic tradition of high performance imaging for the high-volume point-of-sale. By duplicating the speed and large field-of-view of laser scanners and expanding the capabilities of imaging, the 3550HSi scanners provide outstanding performance on hard-to-read bar codes and seamless reading of a wide variety of bar codes. This Magellan scanner enables both high speed sweep and presentation scanning techniques ensuring maximum productivity and ergonomic ease, even with truncated (shortened), out-of-spec or poorly printed codes.
ENHANCING THE CUSTOMER EXPERIENCE
The optional Magellan Customer Service Scanner (CSS) enables retailers to easily engage their customers in mobile commerce programs, allowing them to scan bar codes from mobile phone screens or paper coupons while the cashier continues to scan regular items in parallel, resulting in a significant reduction in total transaction time.
ENTERPRISE FEATURES
Remote management is supported for OPOS, JavaPOS, Toshiba Remote Management with IBM Systems Director® and Wavelink® Avalanche®. Additional capabilities are available with the Value Added Features included in every Magellan scanner.
ENHANCING THE CUSTOMER EXPERIENCE
Highlights
Allows productive and precise reading of 1D barcodes
Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
Perfect for applications that require direct association with a workstation or a notebook
Specifications
General Information
Manufacturer
Datalogic S.p.A
Manufacturer Part Number
M3511-010210-00604
Brand Name
Datalogic
Product Line
Magellan
Product Series
3500HSi
Product Model
3510HSi
Product Name
Magellan 3510HSi
Product Type
Barcode Scanner Kit
Interfaces/Ports
Host Interface
USB, Serial
Physical Characteristics
Form Factor
In-counter
Width
6"
Depth
3.4"
Length
6"
Weight (Approximate)
2.16 lb
Power Description
Power Supply Included
Yes
Technical Information
Connectivity Technology
Cable
Scanning Capability
1D, 2D
Barcode Symbology Supported
1D : Autodiscriminates all standard 1D codes including GS1 DataBar linear codes 2D : Aztec Code; Data Matrix (ECC200 only); QR Code Stacked Codes: GS1 DataBar Composites GS1 DataBar Expanded Stacked GS1 DataBar Stacked GS1 DataBar Stacked Omnidirectional MicroPDF417 PDF417
Image Sensor Type
Imager
Scan Pattern
Linear, Omni-directional
Scanner Range
Standard Range
Cable Type Included
USB
Reading Angle (Skew)
75°
Reading Angle (Pitch)
65°
Reading Angle (Roll)
360°
Image Formats
JPEG, BMP
Maximum Ambient Light
86100 lux
Minimum Print Contrast
25%
Miscellaneous
Ingress Protection (IP) Rating
IP52
Application/Usage
Retail
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), China Restriction of Hazardous Substances (China RoHS)
