Wired/Wireless - 10 Port - 1000Base-F, 1000Base-T - Gigabit Ethernet - 1.86 Gbit/s Firewall Throughput - Wireless LAN IEEE 802.11ac/n - AES (128-bit) - 200 VPN - 10 x RJ-45 - 2 Total Expansion Slots - 50 Hz, 60 Hz - DIN Rail Mountable, Desktop, Wall Mountable, Rack-mountable
$4,210.52
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 27 and Dec 1, then process your delivery right after.
Genuine Check Point Software Technologies through authorized distribution — NDAA §889 screened before checkout.
Secure. Rugged. Simple.

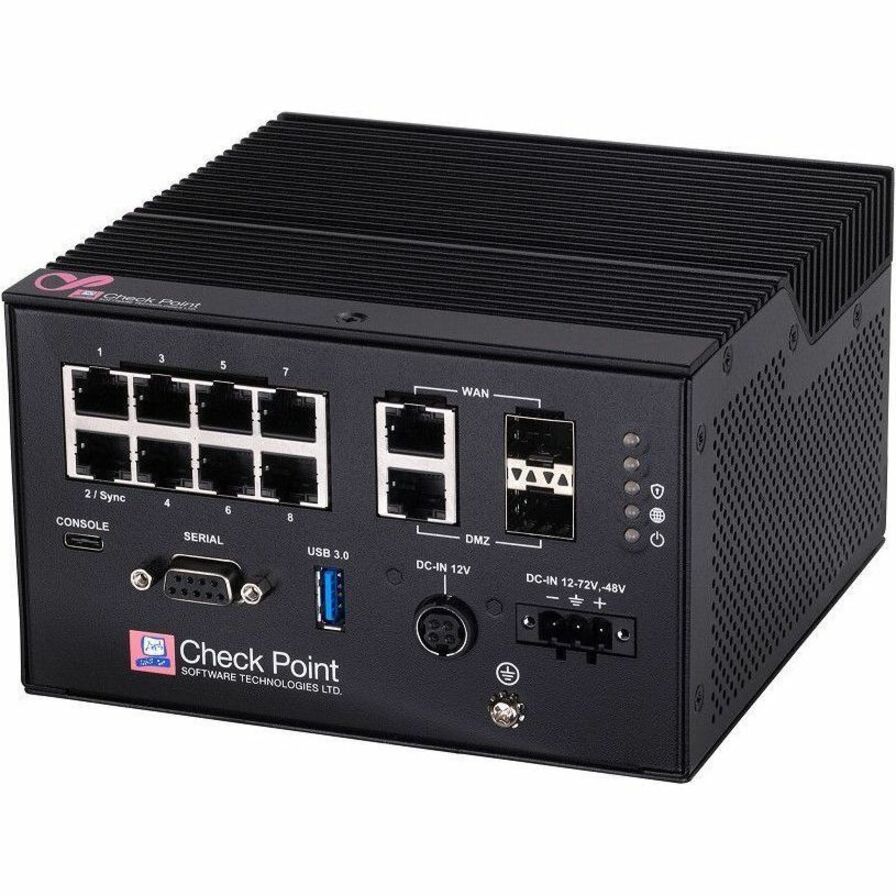

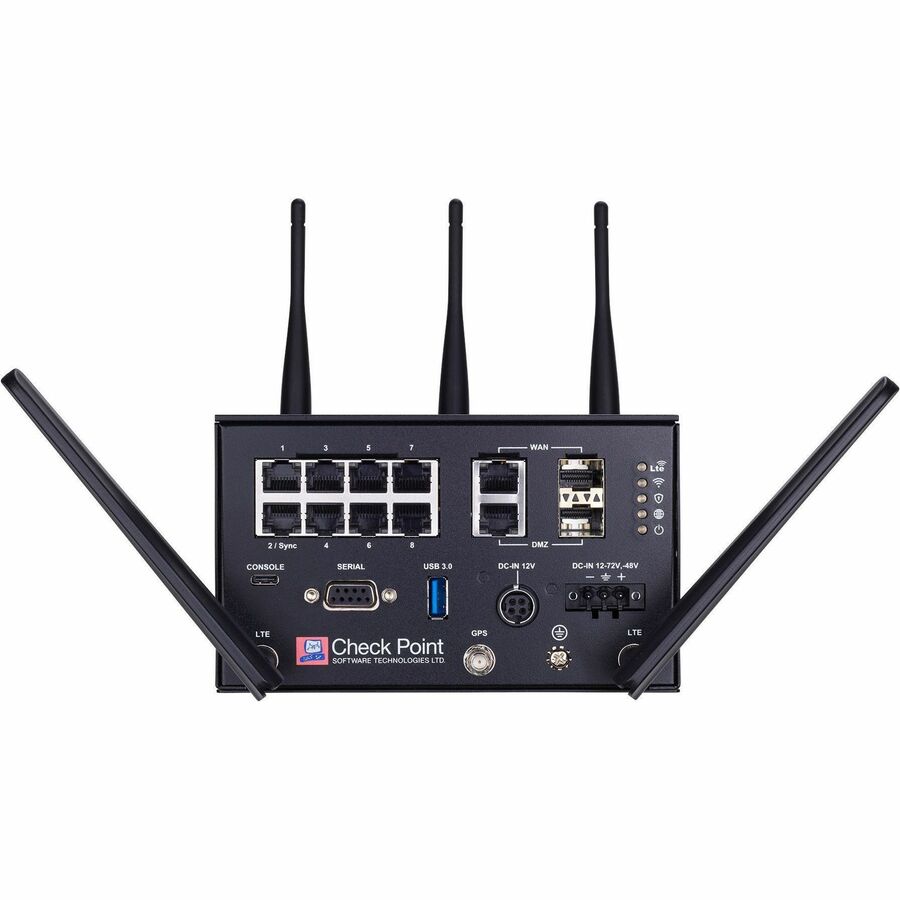

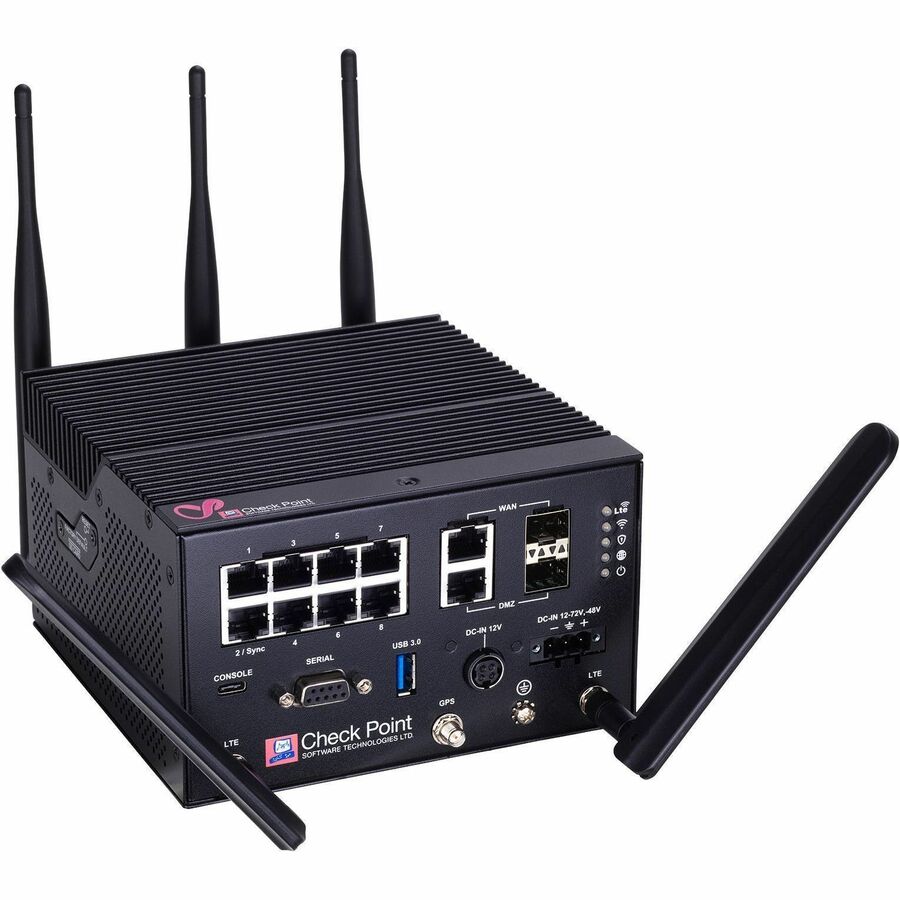

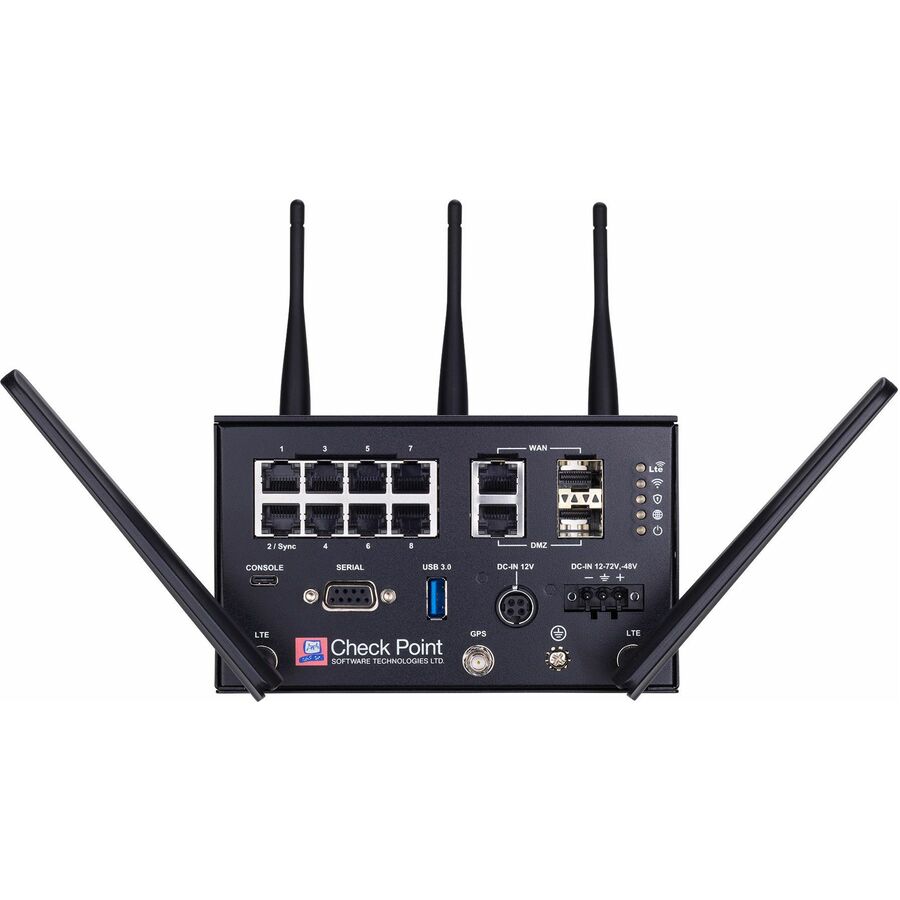

Check Point Quantum Rugged appliances ensure industrial sites, manufacturing floors and mobile fleets are connected and secure. The solid-state design of the 1570R operates in temperatures ranging from minus 40° C to 75° C, making it ideal for securing any industrial application - power and manufacturing plants, oil and gas facilities, maritime fleets, building management systems, and more. Connect your field devices to the 1570R via an 8 port LAN switch or Wi-Fi and in turn connect your 1570R to OT management networks via 1 GbE copper or fiber WAN port or a highly available dual SIM LTE modem. The Check Point NGFW in the 1570R ensures the connection is secure.
• Transportation
• Oil & Gas
• Manufacturing
• Energy
• Utilities
SECURE SCADA AND ICS ENVIRONMENTS
The Check Point Quantum Rugged 1570R Next Generation Firewall (NGFW) secures Critical Infrastructure and Industrial Control Systems (ICS) without impacting operations. Our NGFWs identify and secure over 70 standard and proprietary SCADA (Supervisory Control and Data Acquisition) and ICS protocols. This includes the most popular protocols used in Utilities and Energy sectors, Manufacturing sectors, Building Management Systems and IoT (Internet of Things) devices.
NETWORK RELIABILITY
The 1570R Next Generation Firewall feature set ensures your remote sites stay connected and secure. Deploy the 1570R in Layer 3 routed mode or in Layer 2 bridge mode. Set up site-to-site VPN and client-to-site VPNs to protect data in transit and restrict access to designated personnel. Finally the dynamic routing suite enables the 1570R to fit seamlessly into existing large scale networks.
RUGGED FORM FACTOR
The rugged solid-state form factor enables the 1570R to operate in a temperature range of -40C to +75C, making it ideal for deployment in harsh environments. The 1570R is certified for the industrial specifications IEEE 1613 and IEC 61850-3 for heat, vibration, and immunity to electromagnetic interference (EMI). In addition, the 1570R is certified for maritime operation per IEC-60945 and IACS E10 and complies with DNV-GL-CG-0339.
HIGHLY AVAILABLE HARDWARE
The small desktop form factor 1570R mounts on walls or on DIN rails from the back or bottom. Connecting redundant power supplies is supported, ensuring continuous operation in case one power source fails. For added redundancy, two 1570R firewalls can be deployed in a High Availability cluster. The dual SIM LTE modem ensures the 1570R stays connected to operational management networks.
SPOTLIGHT ON SECURITY | Advanced security, uncompromising performance
The Check Point 1570R is the rugged member of the 1500 Security Appliance family that delivers enterprise-grade security in a series of simple and affordable, all-in-one security gateways to protect branch office employees, networks and data from cybertheft. These security appliances include a comprehensive security suite and the latest R81 software for SMB appliances.
Comprehensive Protection
• Next Generation Firewall
• Site-to-Site VPN
• Remote Access VPN
• Application Control and Web Filtering
• IoT Device Recognition
• Intrusion Prevention (IPS)
• Antivirus
• Anti-Bot
• SandBlast Threat Emulation (sandboxing)
| General Information | |
|---|---|
| Manufacturer | Check Point Software Technologies, Ltd |
| Manufacturer Part Number | CPSB-SNBT-1570R-3Y |
| Brand Name | Check Point |
| Product Line | Quantum Rugged |
| Product Model | 1570R |
| Product Name | Quantum Rugged 1570R Network Security/Firewall Appliance |
| Product Type | Network Security/Firewall Appliance |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Number of SFP Slots | 2 |
| Interfaces/Ports | |
| Total Number of Ports | 10 |
| USB | Yes |
| Number of Network (RJ-45) Ports | 10 |
| Management & Protocols | |
| Manageable | Yes |
| Media & Performance | |
| VPN Throughput | 137.50 MB/s |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Network Standard | 1000Base-F, 1000Base-T |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable, Desktop, Wall Mountable, Rack-mountable |
| Height | 3.5" |
| Width | 5.9" |
| Depth | 5.9" |
| Weight (Approximate) | 3.97 lb |
| Power Description | |
| Frequency | 50 Hz, 60 Hz |
| Power Consumption | 25.10 W |
| Technical Information | |
| Firewall Protection Supported | Application Control, URL Filtering, Botnet Filtering, Antivirus, SandBlast Threat Emulation, Cloud Sandboxing, Intrusion Prevention, Web Content Filtering, IoT Security, Remote Access Authentication, Zero Day Event |
| Firewall Throughput | 1.86 Gbit/s |
| Encryption Standard | AES (128-bit) |
| Number of VPN Supported | 200 |
| Connectivity Technology | Wired/Wireless |
| Wireless Specifications | |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11ac/n |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE) |
