1 x USB 2.0 USB - 1 x 9-pin DB-9 RS-232 Serial Male - 100
SKU
Category
Connector Adapters
MSRP$6,689.10
$6,013.15
Save 10%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 6 and Nov 10, then process your delivery right after.
Genuine Brainboxes through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Connector Adapters
Country of origin
United Kingdom
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

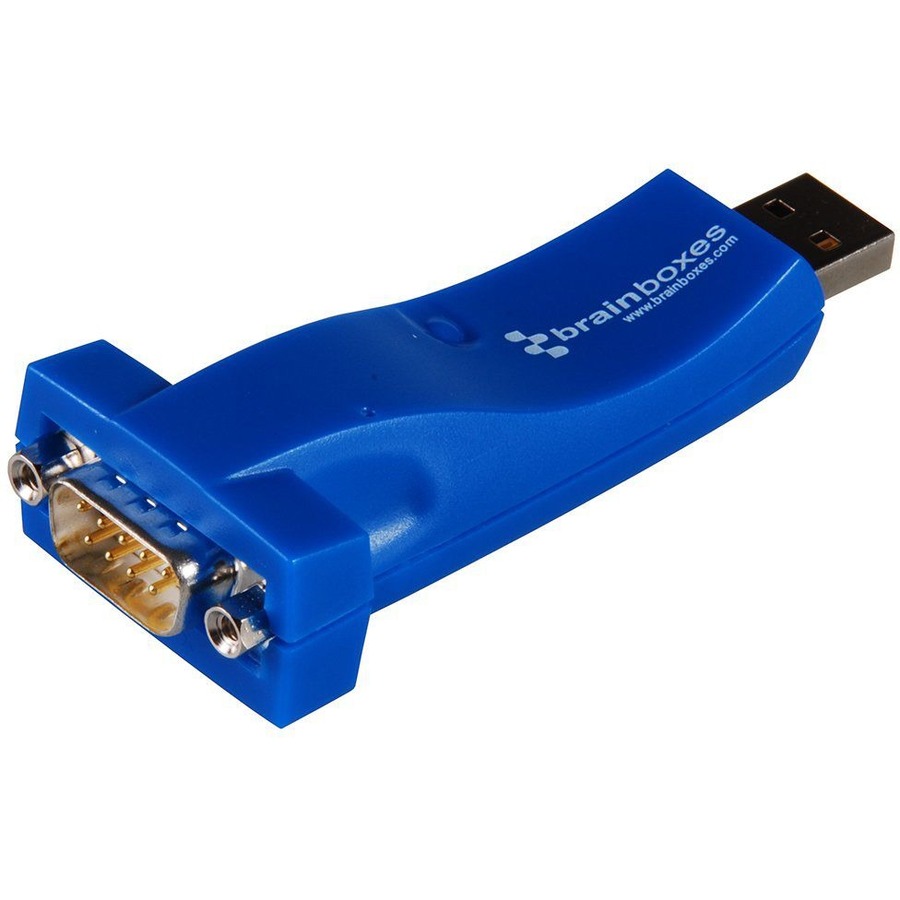

USB to Serial adapter providing one RS232 serial port. Data transfer rates up to 921,600 baud rates and the 128 byte deep transmit and 256 byte receive FIFOS, coupled with 1Mbit line drivers deliver uncompromising performance on your laptop/PC. Drivers for Windows 32 bit and 64 bit Drivers for Windows 32 bit and 64 bit Operating Systems including Windows 10, Windows 8, Windows 7, Server 2008, Vista, Server 2003 and Windows XP with additional drivers for Raspberry Pi, Mac OS X and Linux. Lifetime warranty and support.
Warranty
Limited Warranty: Lifetime
Highlights
1x RS232
USB 2.0
128 Byte TX and 256 Byte RX FIFOs
Up to 921,600 Baud
DB9 Connector - 9 Pin Male

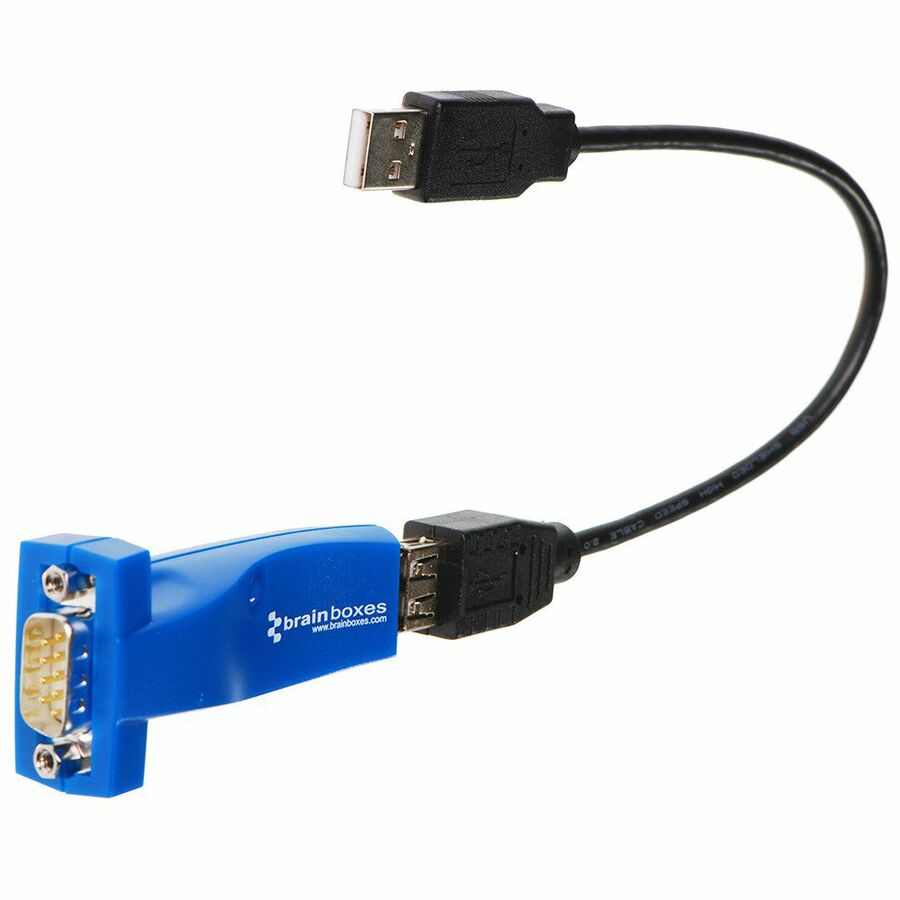

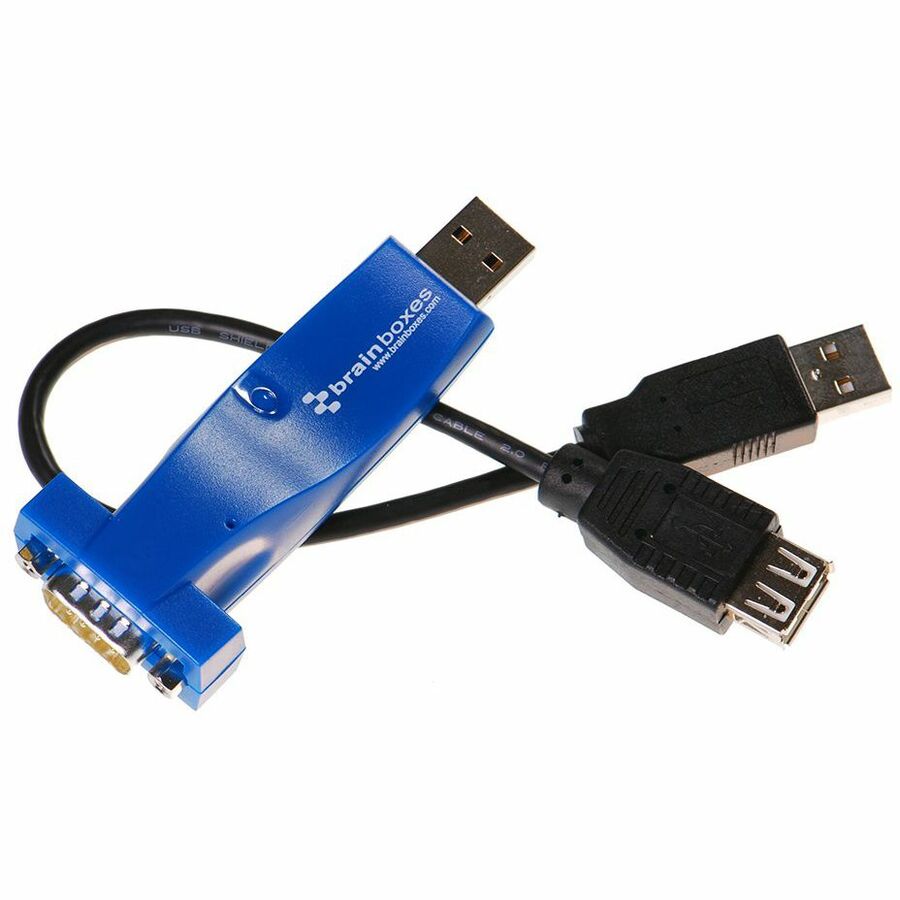

Includes 0.25mm USB Extender cable
Drivers for all popular operating systems
Sample Programs, Test & Terminal software
Lifetime Support
Lifetime Warranty (registration required)
Specifications
General Information
Manufacturer
Brainboxes Limited
Manufacturer Part Number
US-101-X100C
Brand Name
Brainboxes
Product Name
1 Port RS232 USB to Serial Adapter
Packaged Quantity
100
Product Type
Data Transfer Adapter
Physical Characteristics
Weight (Approximate)
0.81 oz
Technical Information
Adapter Type
Serial/USB
Connector Type on First End
USB 2.0
Connector on First End Details
1 x USB 2.0 USB
Connector Type on Second End
DB-9 RS-232 Serial - Male
Connector on Second End Details
1 x 9-pin DB-9 RS-232 Serial Male
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
1 Port RS232 USB to Serial Adapter
25cm USB Extender Cable
Country of Origin
United Kingdom
Environmentally Friendly
Yes
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
