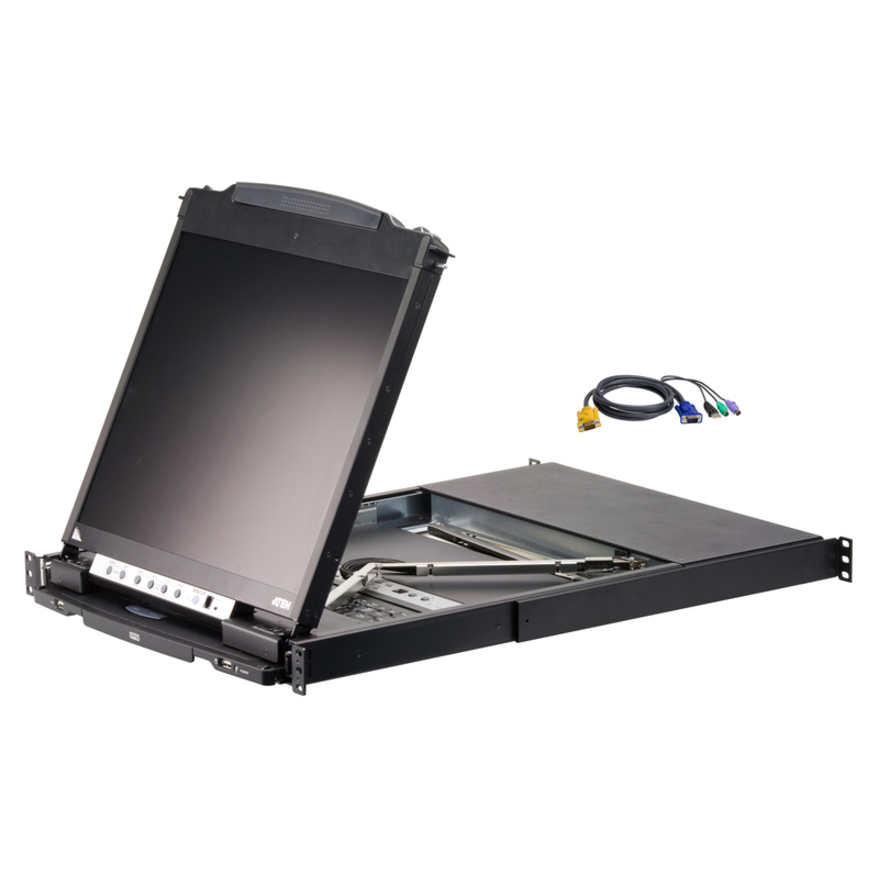

ATEN CL5816NCKIT Dual Rail Rackmount LCD-TAA Compliant
16 Computer(s) - 19" LCD - 1280 x 1024USB - Daisy Chain - Keyboard - TouchPad - 120 V AC, 230 V AC Input Voltage - PC, Mac, Sun - Metal, Plastic - TAA Compliant
- SKU
- CL5816NCKIT
- Category
- Rackmount LCDs
MSRP$2,538.00
$1,861.03
Save 27%Back ordered — ships when restocked.
Genuine ATEN Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- CL5816NCKIT
- Category
- Rackmount LCDs
Overview
The CL5816 Slideaway? Dual Rail LCD KVM Switch is a control unit that allows access to multiple computers from two PS/2 or USB KVM consoles. An extra console port is provided on the rear panel to manage the LCD KVM switch from an optional external consoles.
The CL5816 19" LED-backlit LCD monitor and keyboard/touch pad modules slide independently of each other. To maximize space in your data center, the keyboard/touch pad module slides back to "hide away" when not in use, while the thin profile LCD monitor rotates back - flush against the rack - allowing convenient monitoring of computer activity. Quickly and conveniently switch computer access with station and port selection pushbutton switches located on the keyboard module. Even when the keyboard module is in the retracted position you can still switch access with the Port Up/Port Down pushbuttons located on the monitor module.
The CL5808 supports both PS/2 and USB keyboards and mice for the connected computers, and the CL5816 supports USB peripheral devices to be used with the attached computers. A single CL5816 can control up to 16 computers. As many as 31 additional compatible KVM switches can be daisy chained together, so that up to 512 computers can all be controlled from a single keyboard, monitor, and mouse console
Highlights
- Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
- Integrated KVM console with 19" LED-backlit LCD monitor in a Dual Rail housing
- Space saving technology - up to two consoles (one bus) control up to 16 computers
- Daisy-chain up to 31 additional units*- control up to 512 computers from two consoles (one bus)
- Dual Interface - supports computers and console with PS/2 or USB keyboards and mice
- Supports USB peripherals for computers connected to the local station
- LCD module rotates up to 120 degrees for a more comfortable viewing angle
- Console Lock - enables the console drawer to remain securely locked away in position when not in use
- Multiplatform support - Windows, Linux, Mac, and Sun
- Supports multimedia USB keyboards for PC, Mac and Sun
Specifications
| Package Contents |
|
|---|---|
| Product Type | LCD Rack Console |
| Input Voltage | 120 V AC, 230 V AC |
| Manufacturer Part Number | CL5816NCKIT |
| Platform Supported | PC, Mac, Sun |
| Screen Resolution | 1280 x 1024 |
| Weight (Approximate) | 32.54 lb |
| Keyboard | Yes |
| Manufacturer | ATEN Technology, Inc |
| Product Model | CL5816NCKIT |
| Product Name | CL5816N with 16 USB/PS2 Combo KVM Cable |
| Pointing Device Type | TouchPad |
| Power Consumption | 27.20 W |
| Screen Size | 19" |
| Brand Name | ATEN |
| Input Voltage Range | 100-240V AC |
| Daisy Chain | Yes |
| Height | 1.7" |
| Width | 26.8" |
| Depth | 18.9" |
| Display Screen Type | LCD |
| USB | Yes |
| KVM Switch | Yes |
| Number of Computers Supported | 16 |
| TAA Compliant | Yes |
| Device Type | LCD Rack Console |
| Product Material | Metal, Plastic |
