Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
VEGA-6301E3-3EAE
Category
Video Processing/Capturing Modules
Overview

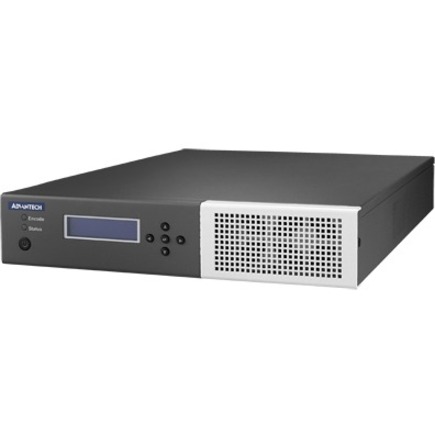

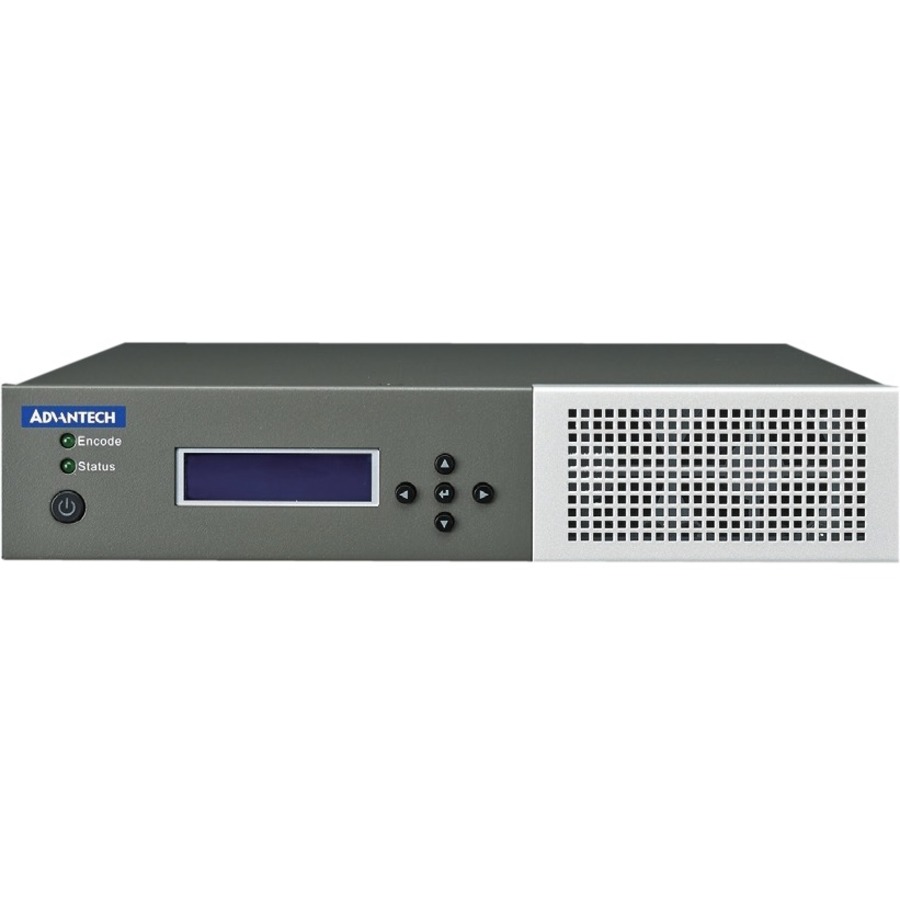

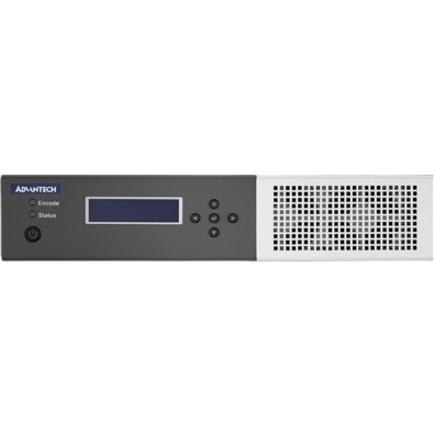

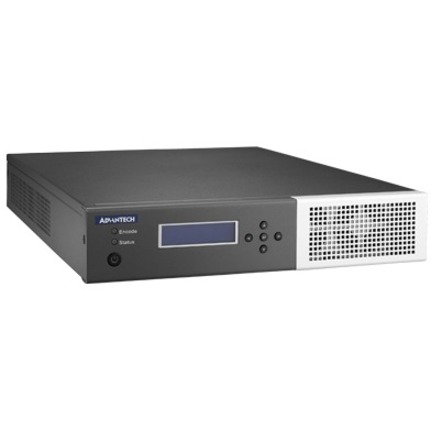

The VEGA-6301 application ready appliance is a small, low power video processing platform,cramming professional video acquisition and capture interfaces, optional Video over IP terminations, a real-time 4Kp60 10bit HEVC encoder, and a full capability Intel Core series processing host into a half rack-width, short depth enclosure. It allows users to capture and adapt live video at up to 4K/UHD resolution from SDI or HDMI feeds and then encode for streaming to content delivery or distribution networks by using the latest hardware HEVC compression technology. A software upgrade option can enable live Video over IP capture and playout, allowing users to support standards like SMPTE 2022-6, Sony IP Live Production System, and AIMS/VSF recommendations with the TICO mezzanine codec. Compressed video can be streamed over a redundant Gigabit Ethernet connection, or a USB connected wireless access dongle. The application development environment is the same Linux or Windows based SDK supported by the VEGA 3000 series PCI Express adapter range, allowing extra deployment scalability options.
Highlights
Compact Video Appliance with real-time HEVC 4Kp60 encoding capabilities
1U high & half rack mountable / standalone design allowseasy user mounting different combinations of appliance in a small space
Range of UHD-ready video input formats such as quad 3G-SDI, high speed 12G-SDI, andHDMI 2.0
UHD-ready Video over IP connections in addition to standard video connectivity
HEVC Encoder supports high quality 10bit 4:2:2 modes @ 4Kp60 or 4 x 1080p60
Low power consumption
Easy to use SDKs and remote web based configuration interface
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
VEGA-6301E3-3EAE
Brand Name
Advantech
Product Model
VEGA-6301E3-3EAE
Product Name
VEGA-6301E3-3EAE Video Encoder
Packaged Quantity
1
Product Type
Video Encoder
Interfaces/Ports
Host Interface
HDMI
USB
Yes
HDMI
Yes
Network (RJ-45)
Yes
SDI
Yes
Physical Characteristics
Form Factor
Rack-mountable, Standalone
Height
1.7"
Width
8.4"
Depth
11.4"
Technical Information
Functions
Video Encoding, Video Streaming, Video Compression, Audio Embedding
