SKU
TREK-570-00A0E
Category
Vehicle Mount Terminals
Overview

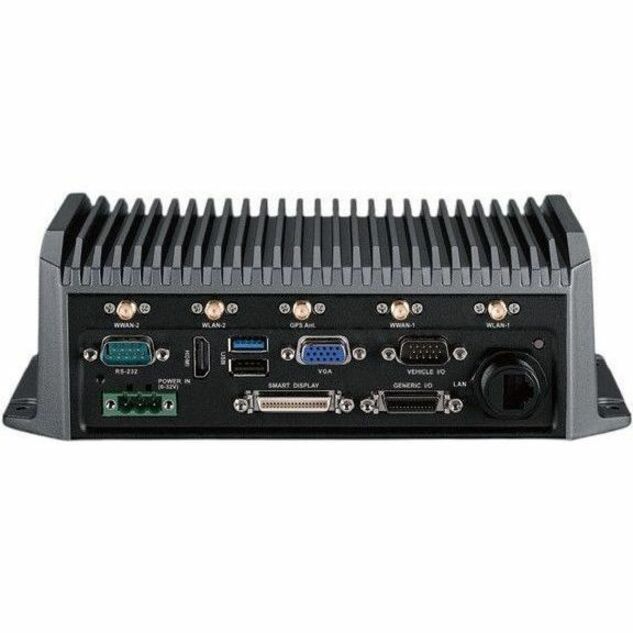

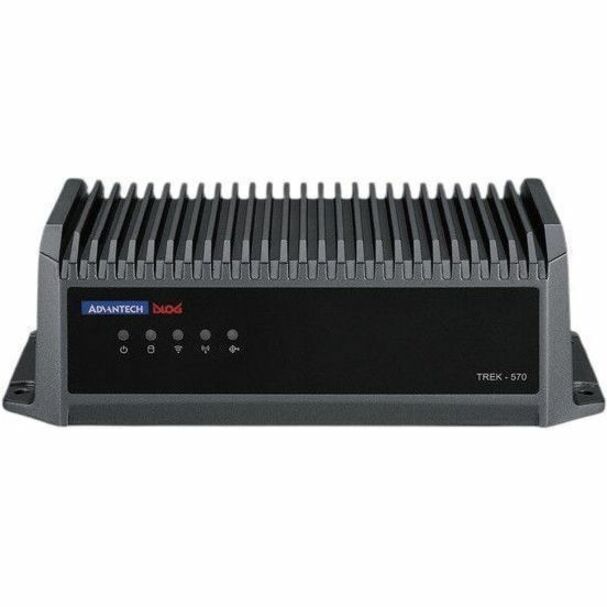

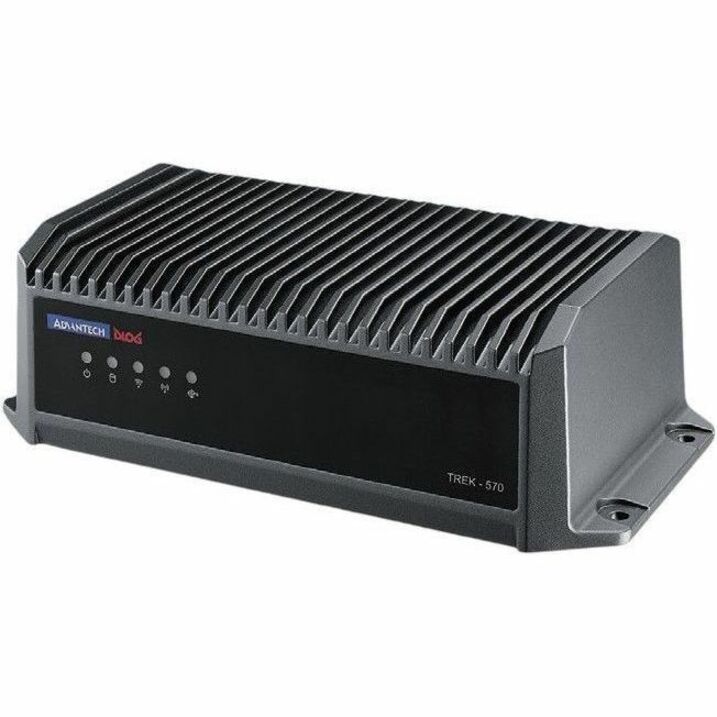

TREK-570 is a compact and economical in-vehicle computing box powered by an Intel® Atom E3826 SOC and can be paired with TREK-303/306 in-vehicle smart displays via a single-cable connection. Aimed at fleet management applications, TREK-570's wide operating temperature and MIL-STD-810G and 5M3 certification for shock vibration resistance enable it to withstand harsh environments. The inclusion of an intelligent vehicle power management (VPM 2.0) chip protects against transient voltage (ISO 7637-2/SAE J1455/ SAE J1113) and enables programmable functions (ignition on/off, delay on/off, and low battery monitoring). TREK-570 also features various I/O for integrating CAN bus devices and peripherals, such as a tire pressure monitoring system. The dual CAN bus ports support diverse protocols (J1939, OBD-II/ISO 15765) to facilitate vehicle diagnostics and driver behavior management. Built-in wireless communication technologies (WLAN, WWAN, Bluetooth) enable vehicle tracking and real-time data transmissions to a centralized control center. Furthermore, TREK-570 also supports dual independent displays/audio outputs for in-vehicle infotainment and digital signage applications.
Highlights
Intel® Atom E3826 system-on-chip (SOC) processor
Can be paired with TREK-303/306 in-vehicle smart display via a single-cable connection
Supports real-time rear view monitoring
Dual independent displays/audio outputs for in-vehicle infotainment and digital signage applications
Vehicle diagnostics interface with support for configurable CAN (J1939, OBD-II/ISO 15765) and J1708 (J1587) protocols
Built-in GNSS, WLAN, Bluetooth, and WWAN (with a dual SIM card slot) modules
Intelligent vehicle power management system for ignition on/off delay, wake-up event control, system health monitoring, and diagnostics functions
ƒ Wide operating temperature range (-30 ~ 70 °C/-22 ~ 158 °F)
ƒ Compliant with 12/24 V vehicle power (ISO 7637-2)
ƒ MIL-STD-810G and 5M3 certified for shock and vibration tolerance
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
TREK-570-00A0E
Brand Name
Advantech
Product Line
TREK
Product Name
Compact In-Vehicle Computing Box for Fleet Management
Product Type
Vehicle Mount Terminal
Interfaces/Ports
Network (RJ-45)
Yes
Serial
Yes
USB
Yes
HDMI
Yes
Memory
Standard Memory
2 GB
Memory Technology
DDR3L SDRAM
Network & Communication
Bluetooth
Yes
Bluetooth Standard
Bluetooth 4.0
Wireless LAN
Yes
Wireless LAN Standard
IEEE 802.11a/b/g/n
Physical Characteristics
Height
2.8"
Width
9.1"
Depth
4.6"
Weight (Approximate)
3.20 lb
Power Description
Power Source
DC
Processor & Chipset
Processor Manufacturer
Intel
Processor Model
E3826
Processor Core
Dual-core (2 Core)
Processor Type
Atom
Processor Speed
1.46 GHz
Software
Operating System
Windows Embedded Standard 7
Technical Information
Connectivity Technology
Wired
Scanning Capability
3D, 2D
Durability
Shock Resistant
Miscellaneous
Package Contents
Compact In-Vehicle Computing Box for Fleet Management
