Genuine AddOn through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
HCD00D20I004WDM40-AO
Category
Modules
Overview

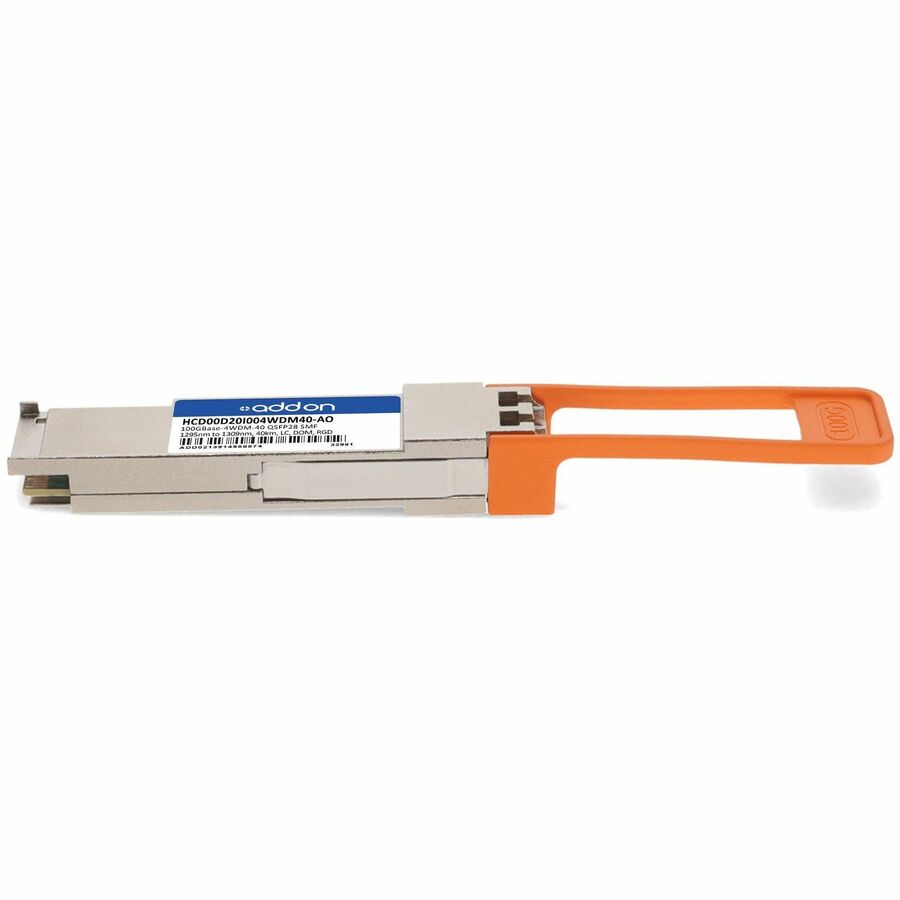

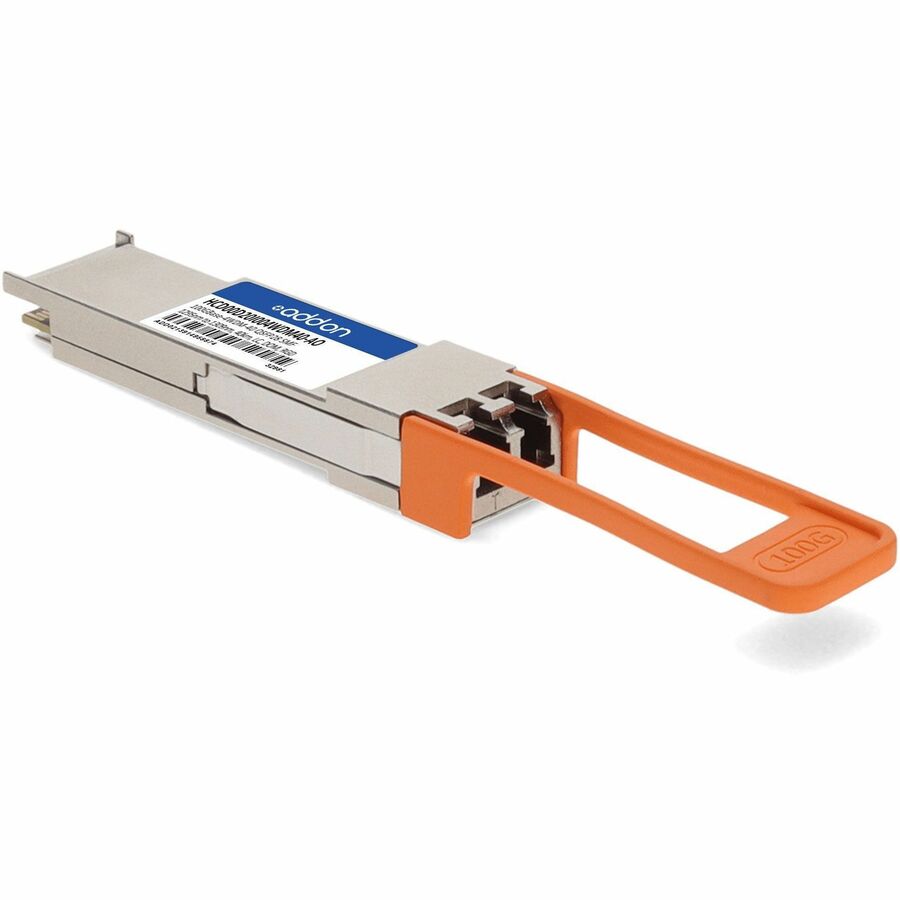

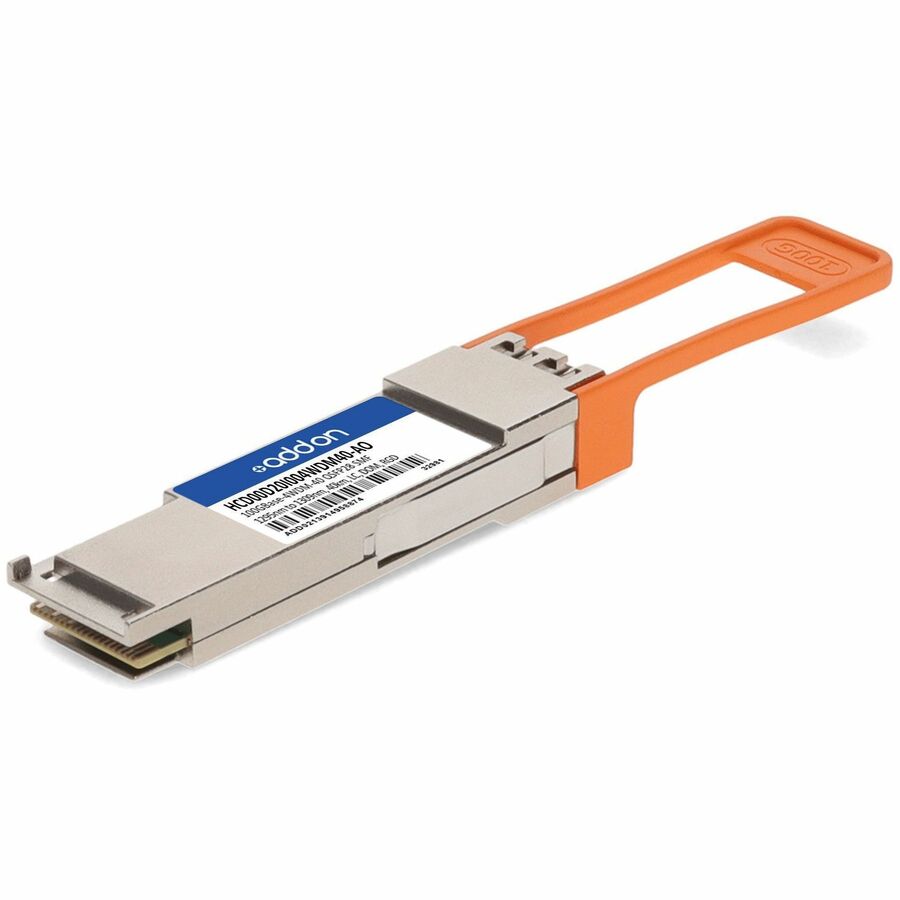

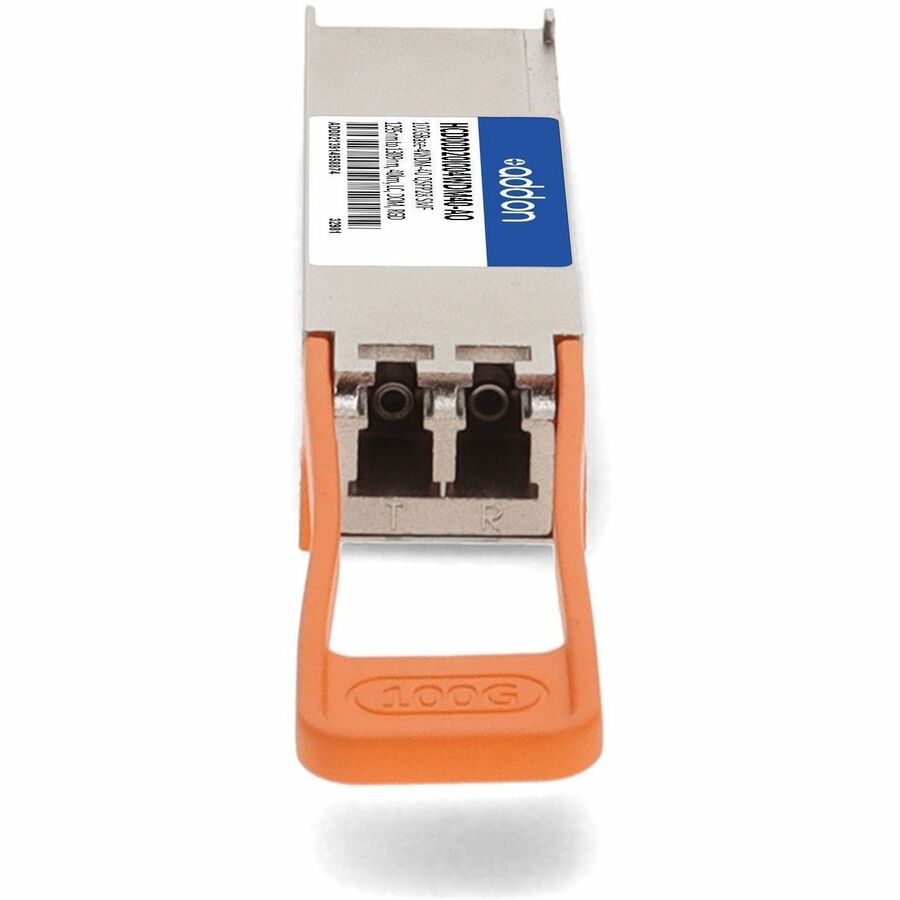

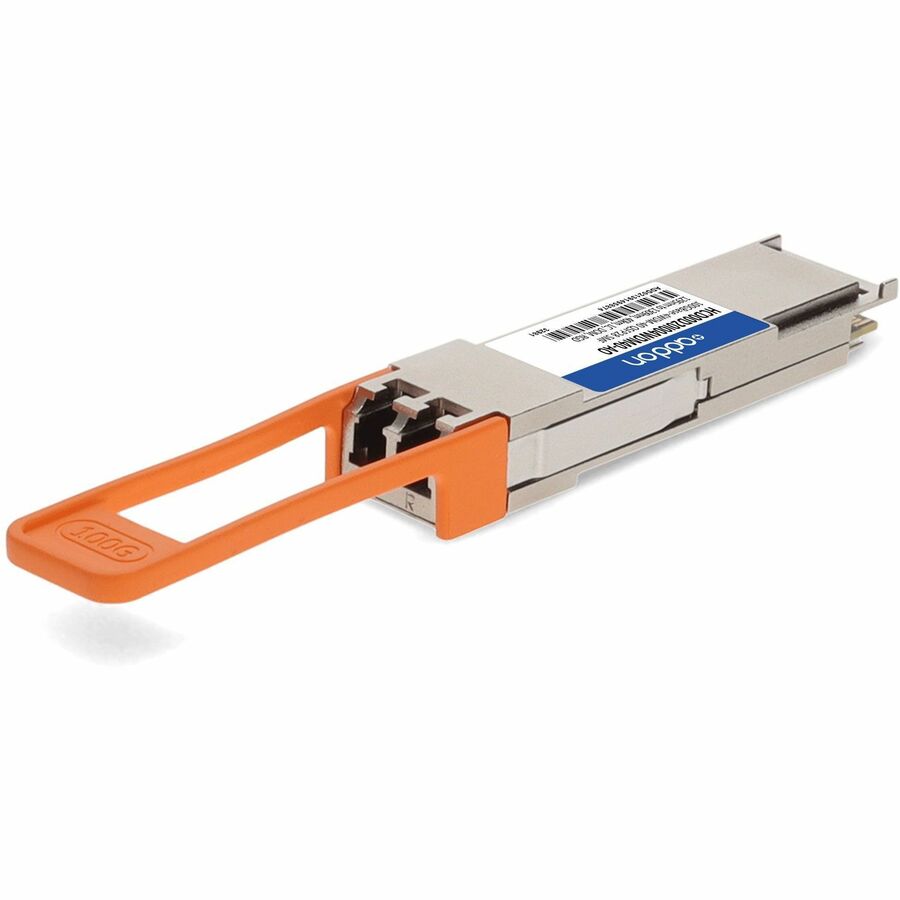

This Fujitsu® HCD00D20I0000-0-4WDM-40 compatible QSFP28 transceiver provides 100GBase-4WDM-40 throughput up to 40km over single-mode fiber (SMF) using a wavelength of 1295nm to 1309nm via an LC connector. It is capable of withstanding rugged environments and can operate at temperatures between -40 and 85C. Our transceiver is built to meet or exceed OEM specifications and is guaranteed to be 100% compatible with Fujitsu®. It has been programmed, uniquely serialized, and tested for data-traffic and application to ensure that it will initialize and perform identically. All of our transceivers comply with Multi-Source Agreement (MSA) standards to provide seamless network integration. Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
Highlights
QSFP28 MSA compliant
Supports 103Gbps
Single 3.3V Power Supply and Power dissipation < 4.8W
Up to 20km over SMF
Operating case temperature: -40°C to 85°C
4*25Gbps DFB-based LAN-WDM transmitter
PIN and TIA array on the receiver side
4x25G electrical interface
Duplex LC receptacles
I2C interface with integrated Digital Diagnostic Monitoring
Specifications
Application/Usage
Data Networking, Optical Network
Product Type
QSFP28
Compatibility
MSA Compliant
Manufacturer Part Number
HCD00D20I004WDM40-AO
Packaged Quantity
1
Limited Warranty
Lifetime
Form Factor
Hot-swappable
Manufacturer
AddOn
Product Name
Fujitsu QSFP28 Module
Network Technology
100GBase-4WDM-40
Brand Name
AddOn
Country of Origin
United States
Environmentally Friendly
Yes
Ethernet Technology
100 Gigabit Ethernet
Media Type Supported
Optical Fiber
Fiber Mode Supported
Single-mode
TAA Compliant
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
