Genuine AddOn through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
16094029004WDM40I-AO
Category
Modules
Overview

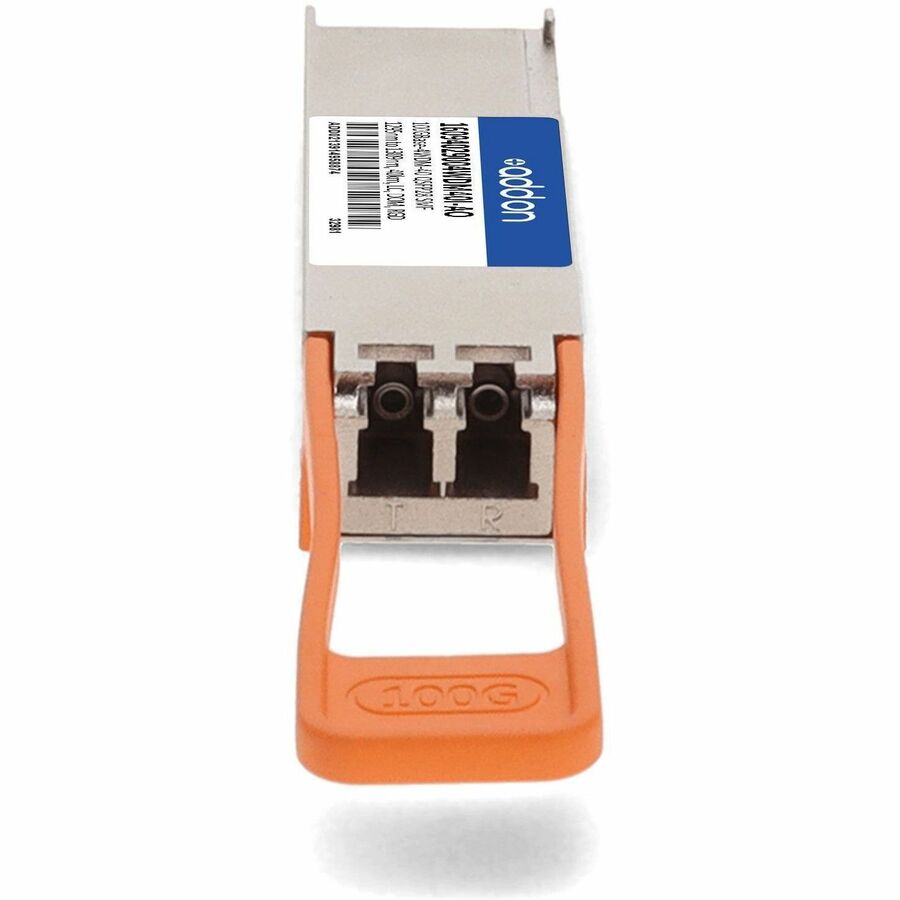

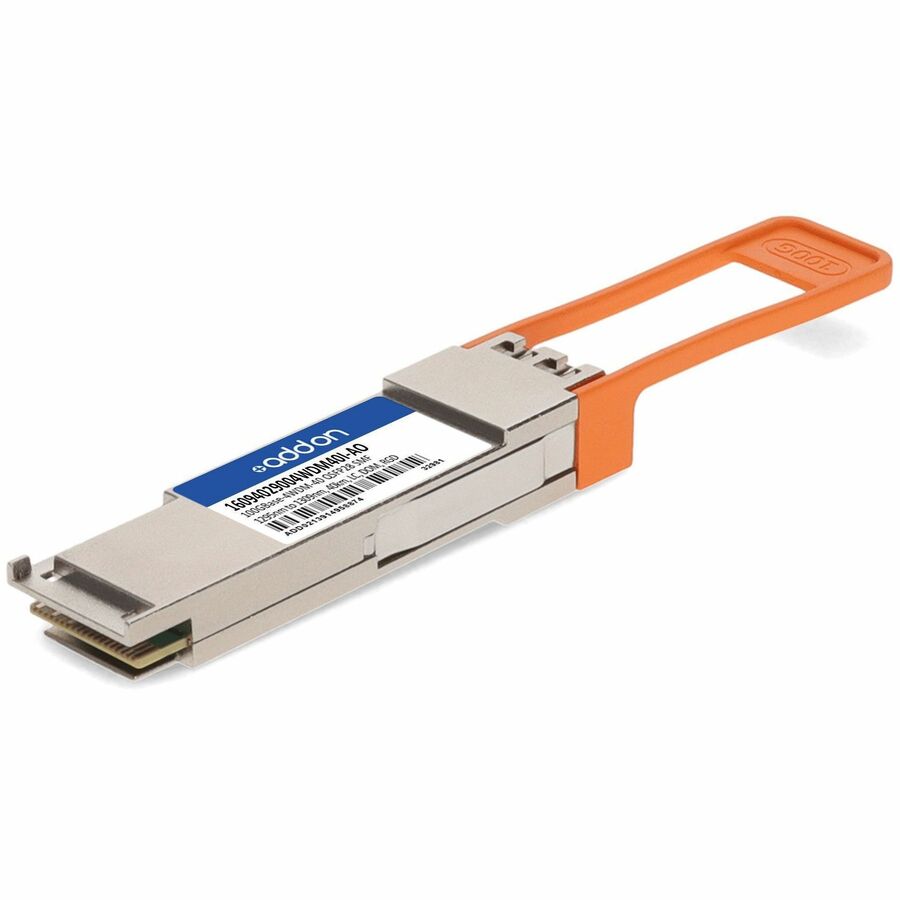

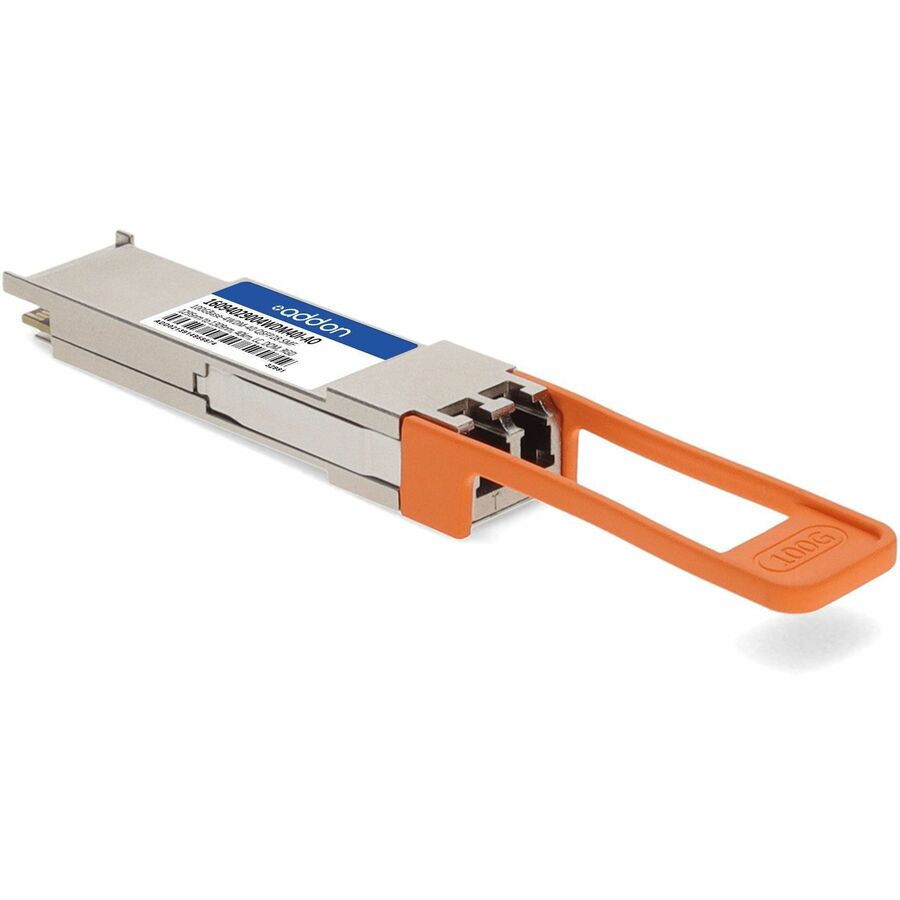

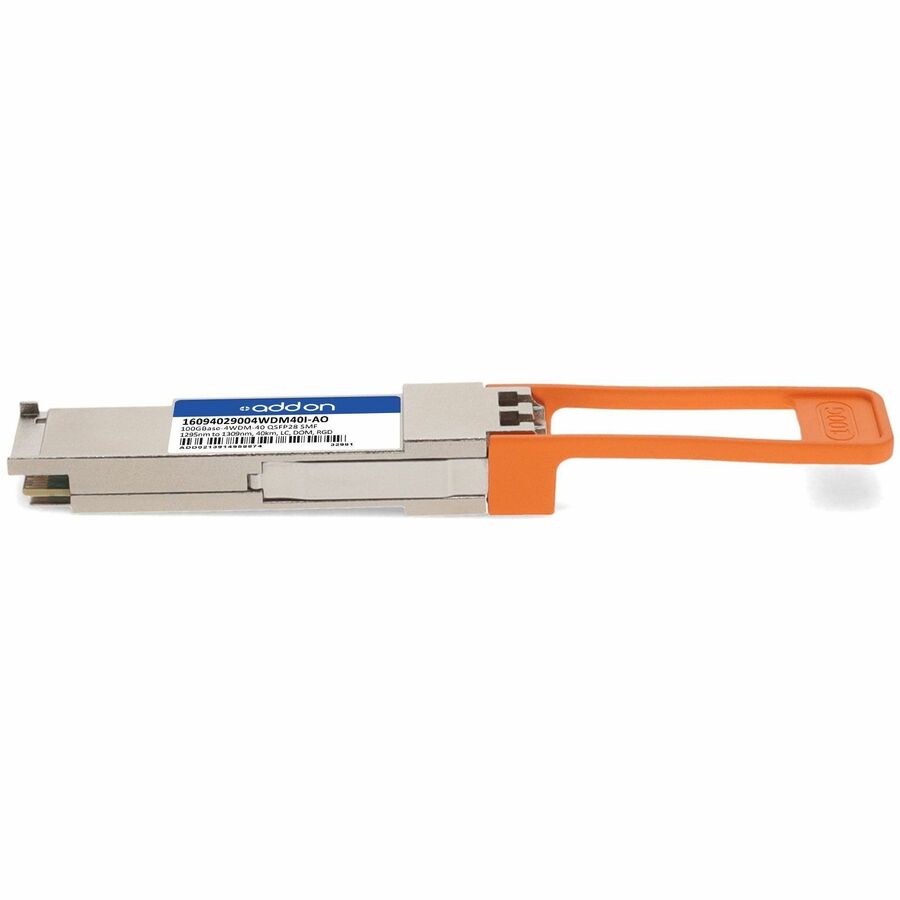

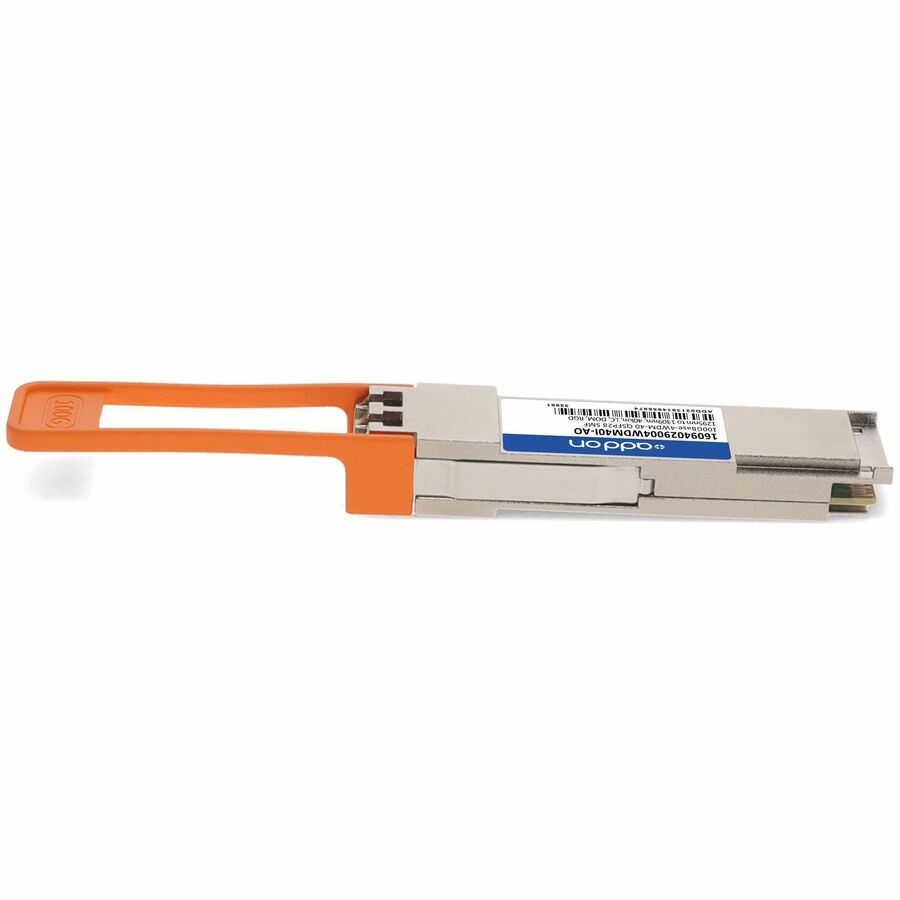

This Ciena 160-9402-900-4WDM-40-I compatible QSFP28 transceiver provides 100GBase-4WDM-40 throughput up to 40km over single-mode fiber (SMF) using a wavelength of 1295nm to 1309nm via an LC connector. It is capable of withstanding rugged environments and can operate at temperatures between -40 and 85C. Our transceiver is built to meet or exceed OEM specifications and is guaranteed to be 100% compatible with Ciena. It has been programmed, uniquely serialized, and tested for data-traffic and application to ensure that it will initialize and perform identically. All of our transceivers comply with Multi-Source Agreement (MSA) standards to provide seamless network integration. Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. This transceiver is Trade Agreements Act (TAA) compliant. We stand behind the quality of our products and proudly offer a limited lifetime warranty.
Highlights
QSFP28 offers enhanced dependability with maximum productivity
100GBase-4WDM-40 network technology for convenient, easy sharing of data and information with maximum feasibility
Provides high performance and flexible solution with 100 Gigabit Ethernet connectivity
Optical fiber cable compatible - Spans afar and provides speedy data transmission rates between servers and network components
With a single wavelength of light, the single mode fiber optic can carry data and transmit audio/video applications over miles of distance
Hot-swappable form factor for your convenience and simplicity of usage
QSFP28 with data networking application/usage for maximum dependability and convenience
Specifications
Application/Usage
Data Networking, Optical Network
Product Type
QSFP28
Manufacturer Part Number
16094029004WDM40I-AO
Maximum Distance Supported
40 km
Packaged Quantity
1
Interfaces/Ports Details
LC 100GBase-4WDM-40 Network
Limited Warranty
Lifetime
Weight (Approximate)
0.20 lb
Connector Type
LC
Features
Digital Optical Monitoring (DOM)
Form Factor
Hot-swappable
Manufacturer
AddOn
Product Name
Ciena QSFP28 Module
Network Technology
100GBase-4WDM-40
Brand Name
AddOn
Country of Origin
United States/United Kingdom
Height
0.4"
Width
0.8"
Depth
4.9"
Environmentally Friendly
Yes
Maximum Data Transfer Rate
100 Gbit/s
Ethernet Technology
100 Gigabit Ethernet
Media Type Supported
Optical Fiber
Fiber Mode Supported
Single-mode
TAA Compliant
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
