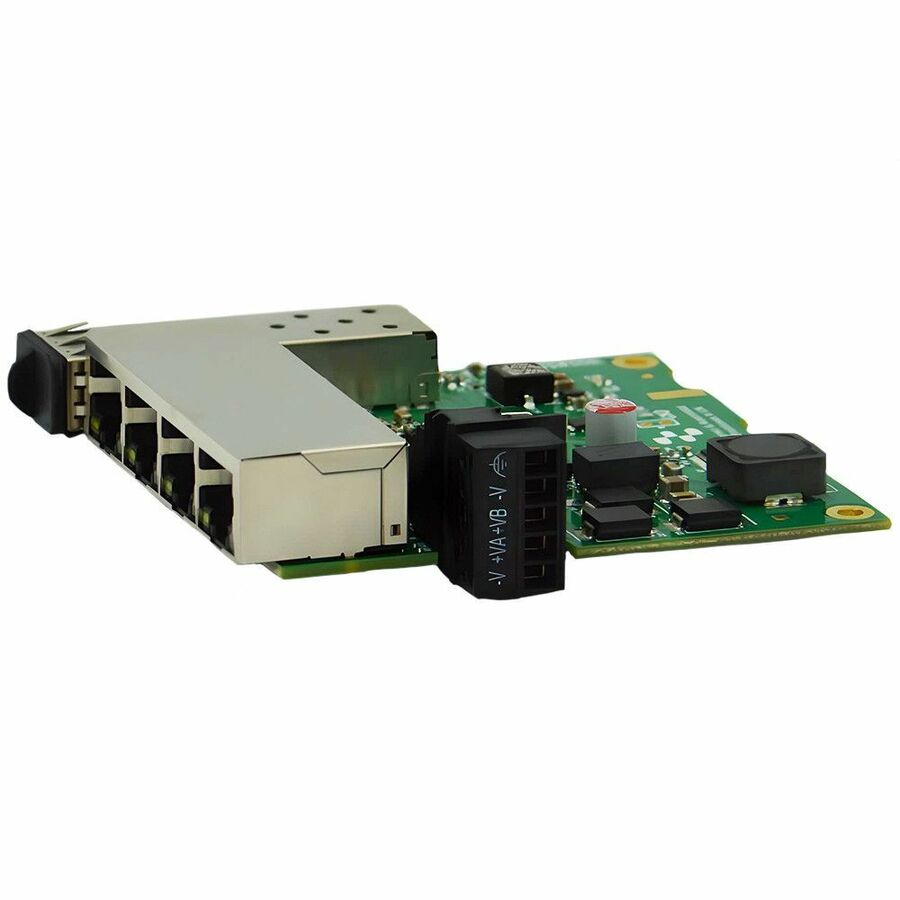

Brainboxes SW-184 Ethernet Switch
4 Ports - Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2 Layer Supported - 1 SFP Slots - 4.20 W Power Consumption - Twisted Pair, Optical Fiber - Lifetime Limited Warranty - TAA Compliant
- SKU
- SW-184
- Category
- Switches & Bridges
$80.82
Back ordered — ships when restocked.
Genuine Brainboxes through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- SW-184
- Category
- Switches & Bridges
Overview

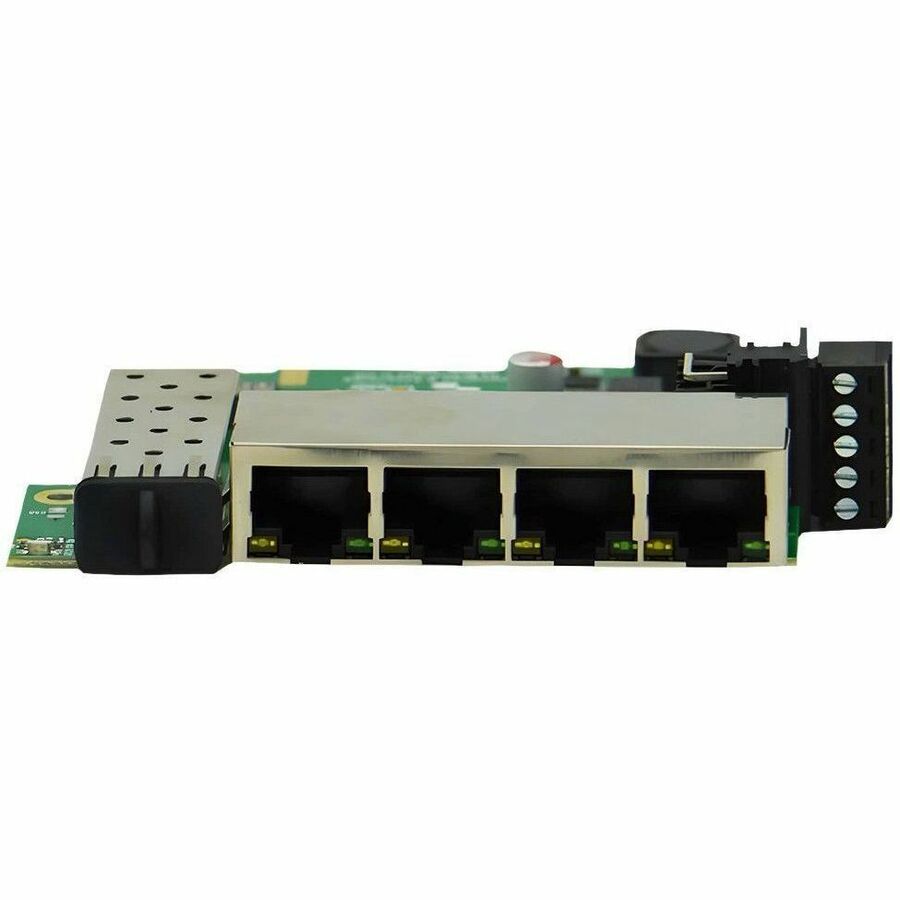

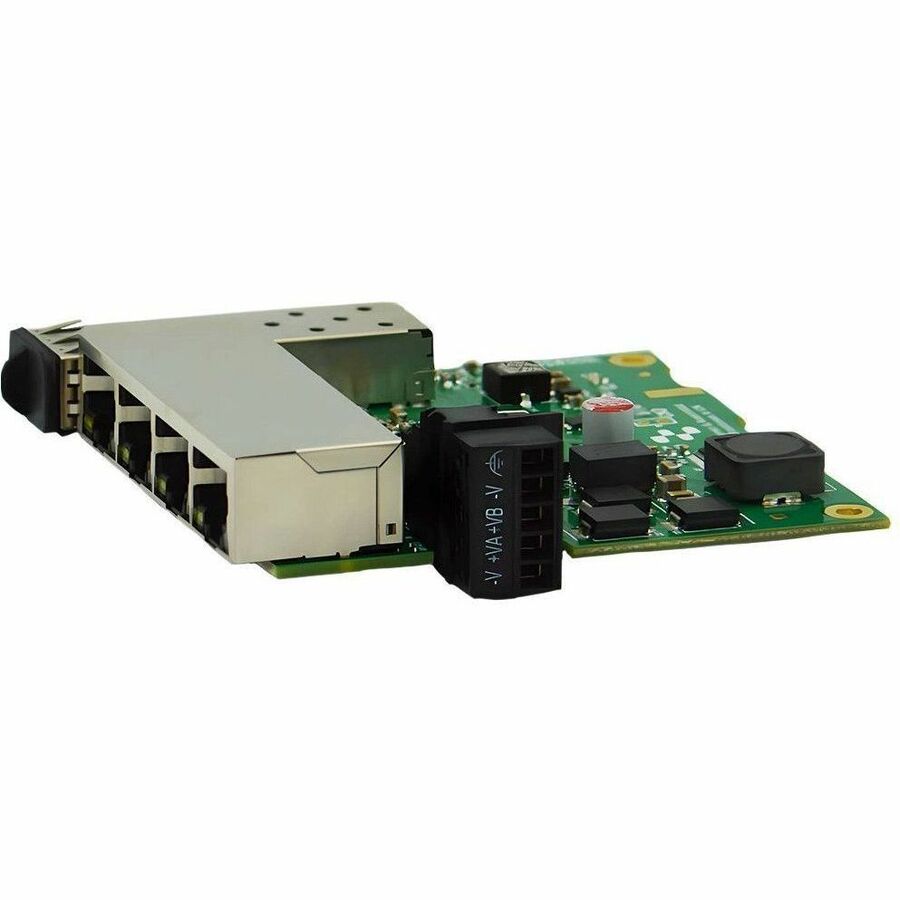

Industrial SFP Gigabit Ethernet Switch
• Fast, low cost, future-proof way to deploy long network segments
• Connect to wide variety of fibre optic and copper cable types
• High speed data connection over extended distances
• Reduce susceptibility to electromagnetic interference
• Embedded industrial design - operating temp -40ºC to +80ºC/-40ºF to +176ºF - works in extreme conditions
• SFP Port Power Overcurrent protection
• Smart LED indicators: real-time status information, quick visual monitoring |

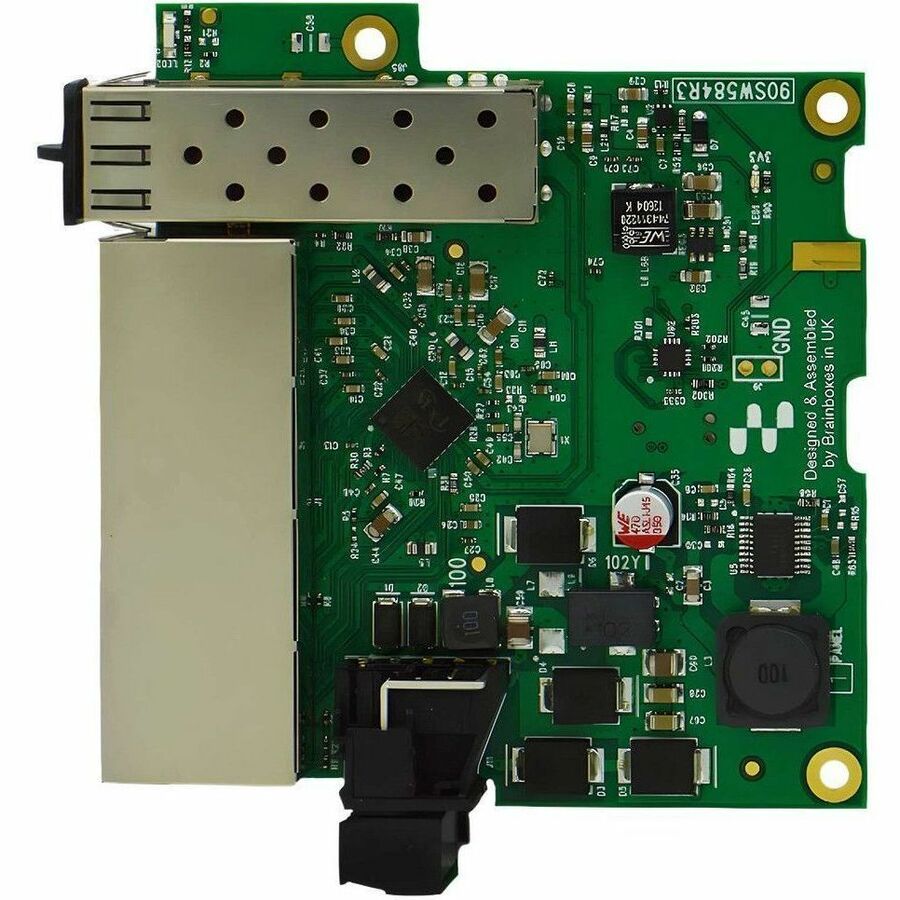

Embedded Industrial Gigabit SFP Ethernet switch.
Fast, low-cost, future-proof way to deploy long network segments. Connect to a wide variety of fibre optic and copper cable types for high-speed data connection over extended distances.

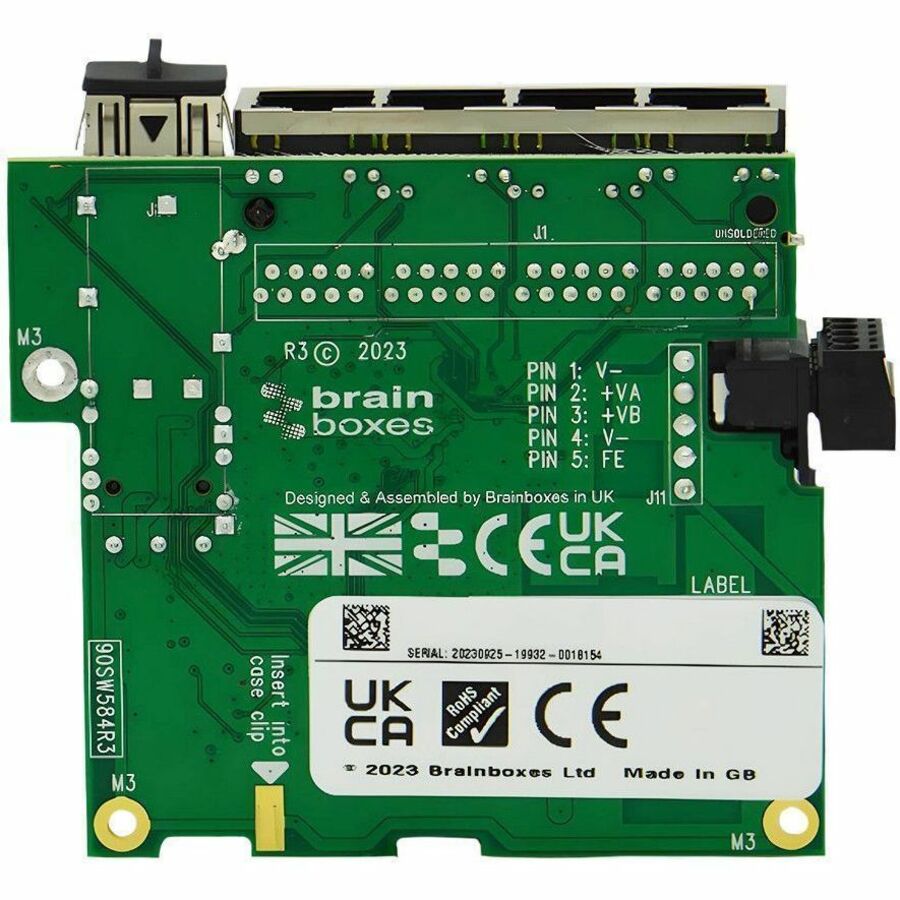

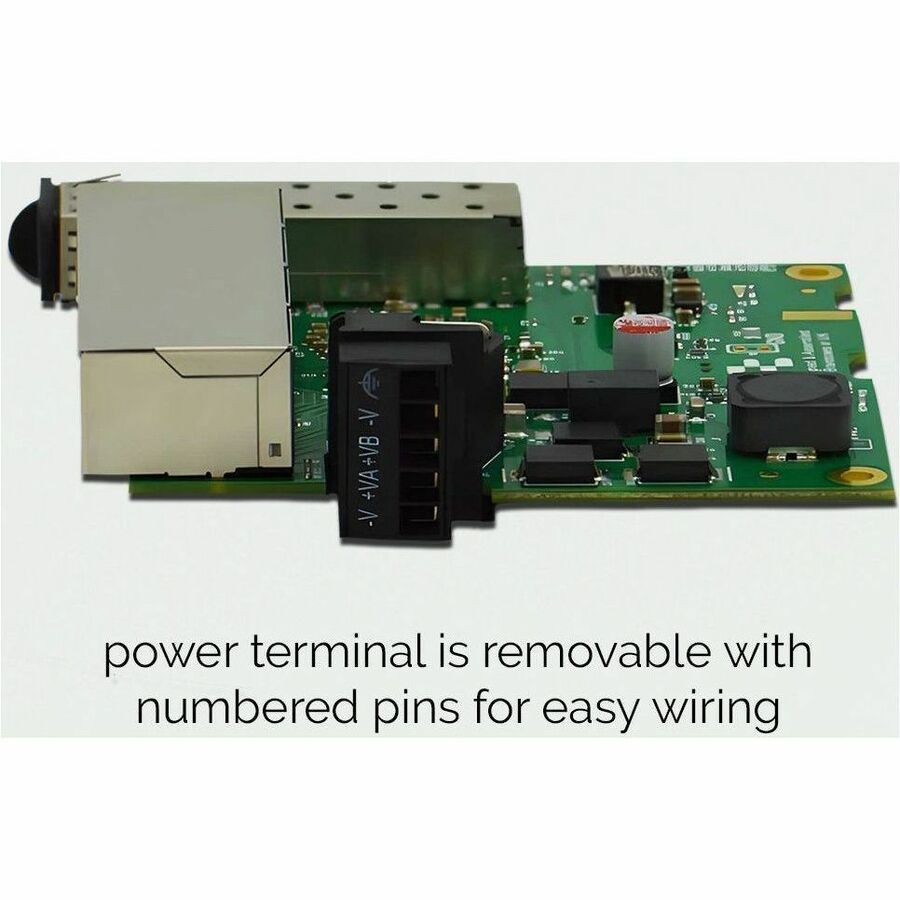

Galvanically Isolated Ethernet Ports. Automatic detection of data transmission speed: 10/100/1000 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
Highlights
- Effectively reduces downtime with improved network performance
- Terminal Block plug/connector type for convenient Ethernet Switch usage with added power supply dependability
- Quickly and easily set up a wired network with 4 networking ports
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- Gigabit Ethernet port for ultra-fast network speeds
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Specifications
| Product Type | Ethernet Switch |
|---|---|
| Input Voltage | 30 V DC, 5 V DC |
| Manufacturer Part Number | SW-184 |
| Limited Warranty | Lifetime |
| Layer Supported | 2 |
| Weight (Approximate) | 2.54 oz |
| Manufacturer | Brainboxes Limited |
| Product Model | SW-184 |
| Product Name | SW-184 Ethernet Switch |
| Network Technology | 10/100/1000Base-T, 1000Base-X |
| Power Consumption | 4.20 W |
| Brand Name | Brainboxes |
| Plug/Connector Type | Terminal Block |
| Expansion Slot Type | SFP |
| Country of Origin | Great Britain |
| Height | 0.8" |
| Width | 3.7" |
| Depth | 3.5" |
| Maximum Data Transfer Rate | 128 MB/s |
| Ethernet Technology | Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Number of SFP Slots | 1 |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Network Ports | 4 |
| Port/Expansion Slot Details | 4 x Gigabit Ethernet Network Port, 1 x Gigabit Ethernet Expansion Slot |
| Total Number of Expansion Slots | 1 |
| Redundant Power Supply Supported | Yes |
| TAA Compliant | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS) |
