Rail Transit Wayside Network Modernization: Scoping Signaling, Comms, and Security Together

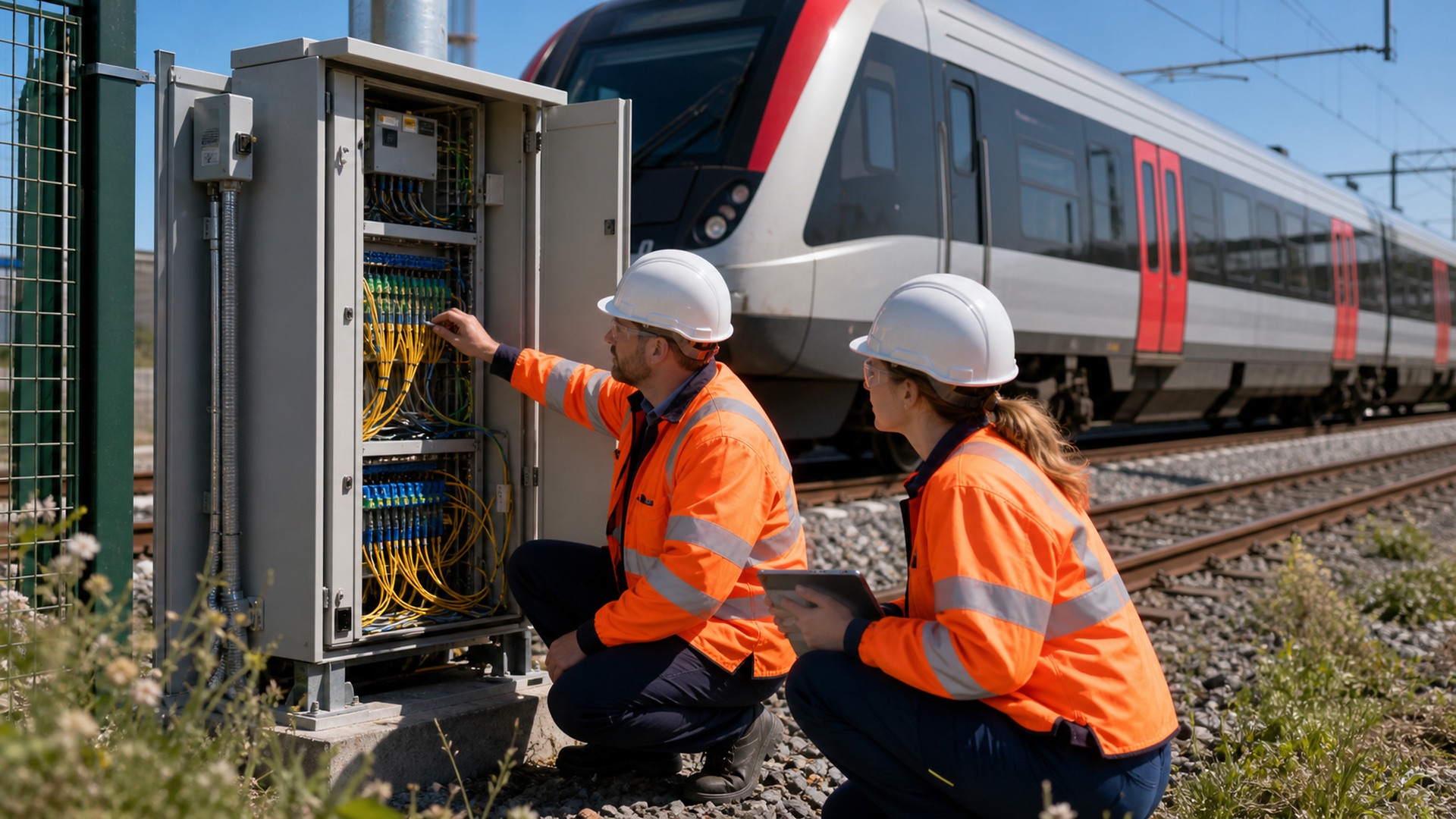

The wayside plant is everything between the central office or operations control center and the track. That includes signal bungalows and instrument huts, communication cabinets at grade crossings and interlockings, trackside cameras and intrusion sensors, and the transport layer connecting them back — typically fiber, with point-to-point or ring topology depending on territory. Modernization touches the transport (fiber plant, switches, media converters), the environmental hardening of each enclosure (power, cooling, cabinet security), and the endpoint devices that ride on top of that transport.

Signaling communication — the data that carries interlocking status, track circuit or axle-counter state, and cab signal or PTC/ATC messages — is the most schedule-sensitive layer. It typically runs on infrastructure the signal system vendor controls or certifies, with its own bandwidth, latency, and redundancy requirements set by the signaling standard in use. A network refresh that changes the transport under a certified signaling system usually triggers a re-validation cycle with that vendor, which is why signaling scope gets planned and sequenced separately even when it shares conduit and cabinets with everything else.

Operations communications — dispatcher voice, radio backhaul, PA/CCTV control links, SCADA for traction power and facilities — rides the same wayside fiber but with more flexibility in vendor and protocol. Physical security — camera feeds from station platforms and yard perimeters, access control at equipment huts, intrusion and tamper alarms on cabinets themselves — is frequently the layer added last and budgeted separately, even though every hut being opened for a network swap is also a hut that needs a hardened door contact and a camera that actually covers the door.

Most agencies can't refresh an entire line's wayside plant in one capital cycle, and shouldn't try — the possession windows alone force a multi-year rollout. The workable pattern is to scope the full corridor once (conduit, cabinet inventory, power audit, fiber route) and then phase deployment by segment, so each segment's hut visit installs transport, comms, and security together even though different segments get funded and built in different fiscal years.

Signaling transport typically drives the sequencing, since it has the hardest safety-certification dependencies and the least flexibility in vendor coordination. Comms and security equipment can usually be pulled forward or pushed back within a segment without re-triggering signaling re-validation, which gives a program manager room to align procurement with budget cycles rather than forcing every layer onto the signaling vendor's timeline.

Standardizing the physical layer across segments — a common cabinet spec, a common fiber count and connector standard, a common power and grounding scheme — pays off most in a multi-year program, because it lets later-phase segments reuse the design, spares pool, and vendor relationships from earlier phases instead of re-engineering the hut from scratch each year. It also keeps installer training, cabinet documentation, and acceptance testing consistent from one phase to the next.
