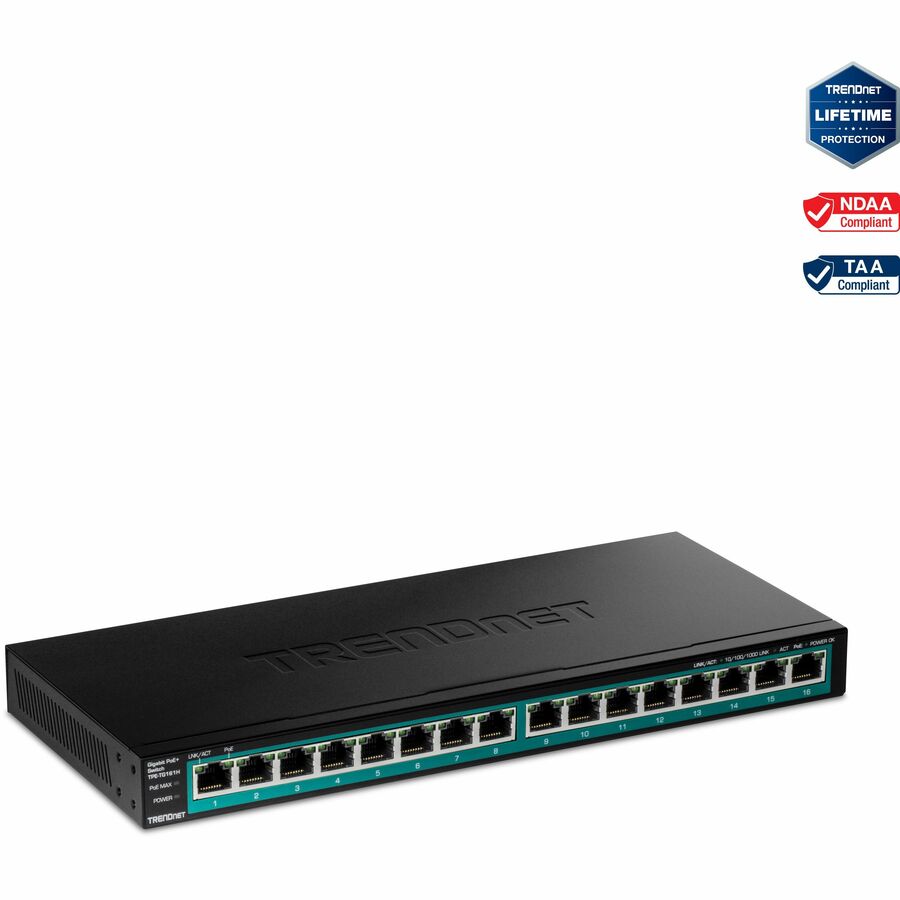

TRENDnet 16-Port Gigabit PoE+ Switch, 16 x Gigabit PoE+ Ports, 120W PoE Budget, Up to 30W Per Port, 1U 19" Rackmount Brackets Included, Fanless, Lifetime Protection, Black, TPE-TG161H
TRENDnet

TRENDnet 16-Port Gigabit PoE+ Switch, 16 x Gigabit PoE+ Ports, 120W PoE Budget, Up to 30W Per Port, 1U 19" Rackmount Brackets Included, Fanless, Lifetime Protection, Black, TPE-TG161H

16 Ports - Gigabit Ethernet - 10/100/1000Base-T - 2 Layer Supported - 12.80 W Power Consumption - 120 W PoE Budget - Twisted Pair - PoE Ports - 1U - Rack-mountable, Wall Mountable - Lifetime Limited Warranty - TAA Compliant

SKU
TPE-TG161H
Category
Switches & Bridges

$196.08

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine TRENDnet through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
TPE-TG161H
Category
Switches & Bridges

Overview

Installers and integrators can save on equipment costs and reduce installation time with TRENDnet's Unmanaged Gigabit PoE+ Switches. These gigabit PoE+ switches deliver up to 30W per port of PoE power, and data over your existing Ethernet cables. With PoE technology, users only need one set of cables to deliver both power and data. The new fanless design reduces unnecessary energy consumption and eliminates disruptive operating noise. Easily connect and network your PoE and PoE+ devices, such as high-power wireless access points, PTZ and other advanced IP cameras, VoIP phone systems, IPTV decoders, and access controls, to reliable TRENDnet's gigabit PoE+ switches.

DEVICE INTERFACE: 16 x Gigabit PoE+ Ports; LED Indicators

POE+ POWER & SWITCHING CAPACITY: The Gigabit PoE+ switch is equipped with 32Gbps switching capacity, and a 120W

PoE power budget that supplies 16 Power over Ethernet devices with 30W per port PoE+ power.

GIGABIT PORTS: Equipped with high-speed gigabit ports and a full switching capacity, this fanless PoE+ switch is well-suited

for the most demanding networking applications

FANLESS DESIGN: The fanless PoE+ switch design lowers unnecessary energy consumption and eliminates disruptive

operating noise

HOUSING DESIGN: With a sturdy metal housing and included rackmount brackets, this 16 Port PoE+ switch is well-suited for

wall mount or 19" 1U rack installations.

TRENDnet LIFETIME PROTECTION: The TPE-TG161H Gigabit PoE+ Switch comes with Lifetime TRENDnet Manufacturer Protection.

NDAA / TAA compliant (U.S. and Canada only)

More from the Manufacturer

Highlights

  • 16 x Gigabit PoE+ ports
  • 120W PoE power budget
  • 32Gbps switching capacity
  • Fanless design eliminates operating noise
  • IEEE 802.3af/at compliant
  • Reduces equipment cost by delivering data and power over existing network cables
  • 1U 19" rack mountable with brackets included

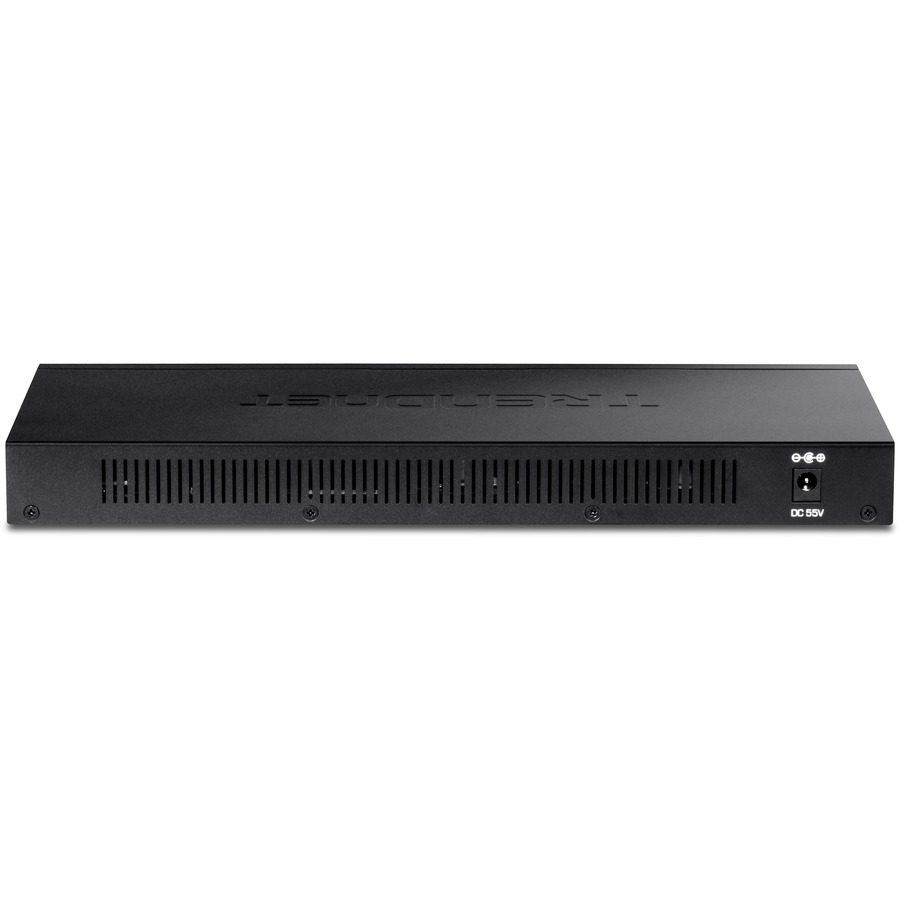

  • External power supply
  • NDAA / TAA compliant (U.S. and Canada only)
  • Lifetime Warranty

Specifications

Package Contents
  • 16-Port Gigabit PoE+ Switch
  • Quick Installation Guide

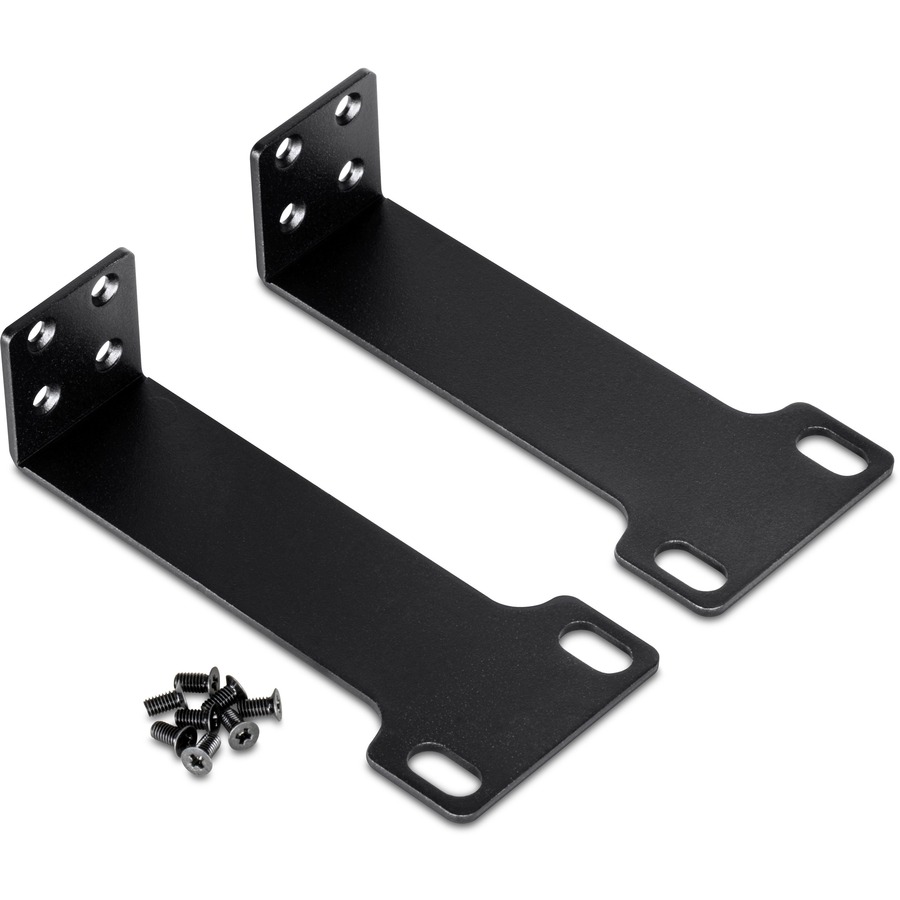

  • Rack Mount Kit

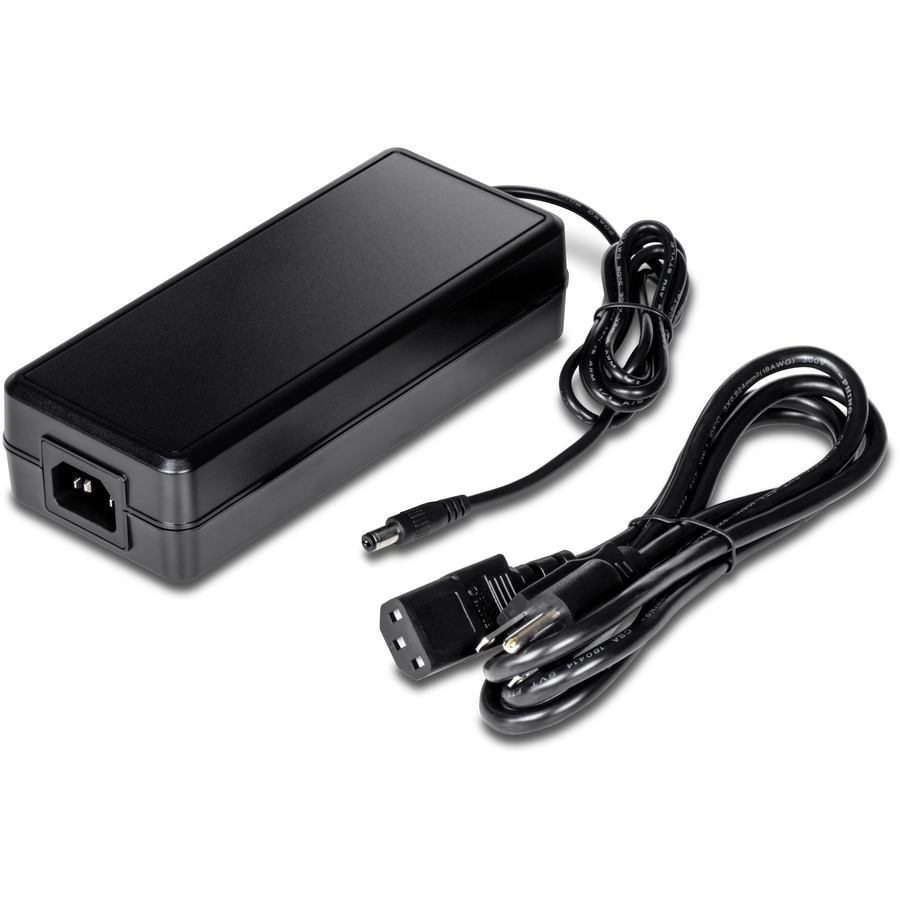

  • Power Brick (55V, 2.55A)
  • Power Cord (1.5m / 4.9 ft.)
Product TypeEthernet Switch
Manufacturer Part NumberTPE-TG161H
Packaged Quantity5
Power SourcePower Supply
Limited WarrantyLifetime
Layer Supported2
Weight (Approximate)26.35 lb
Form FactorRack-mountable, Wall Mountable
ManufacturerTRENDnet
Product Name16-Port Gigabit PoE+ Switch
Network Technology10/100/1000Base-T
Power Consumption12.80 W
Brand NameTRENDnet
Country of OriginTaiwan
Height13"
Width13.8"
Depth13.4"
ManageableNo
Compatible Rack Unit1U
Ethernet TechnologyGigabit Ethernet
Network (RJ-45)Yes
Media Type SupportedTwisted Pair
Total Number of Network Ports16
PoE (RJ-45) PortYes
Port/Expansion Slot Details16 x Gigabit Ethernet PoE+
TAA CompliantYes
PoE Budget120 W
Networking StandardsIEEE 802.3af, IEEE 802.3at, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab
