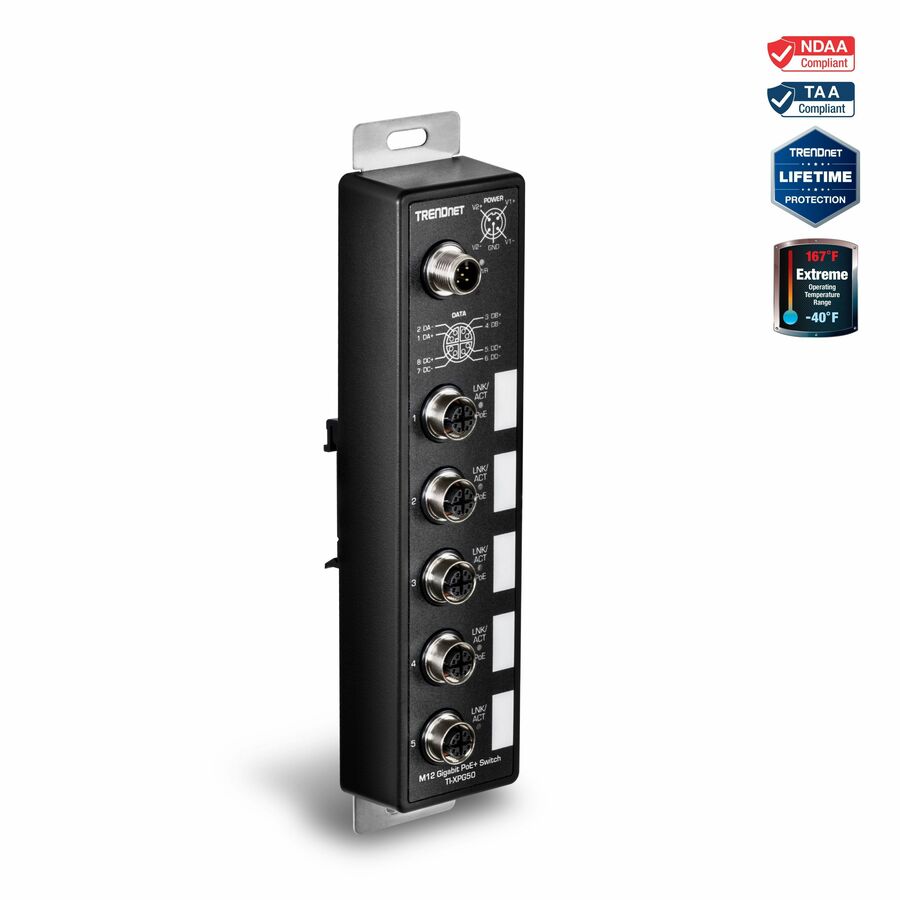

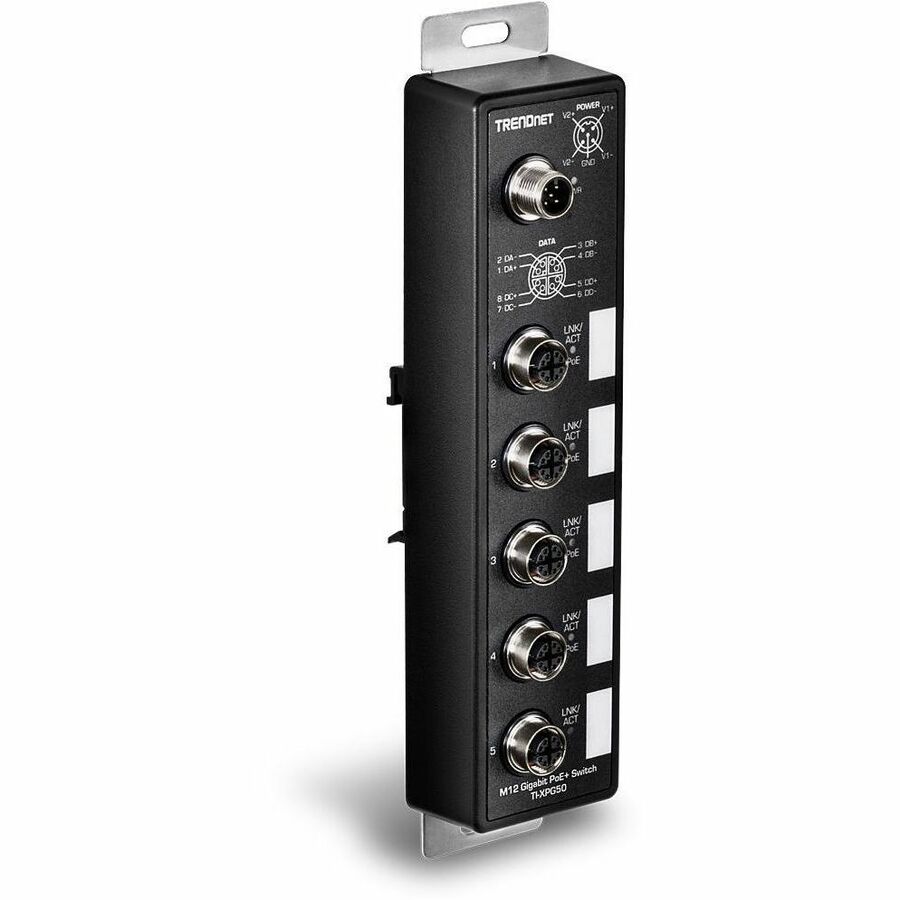

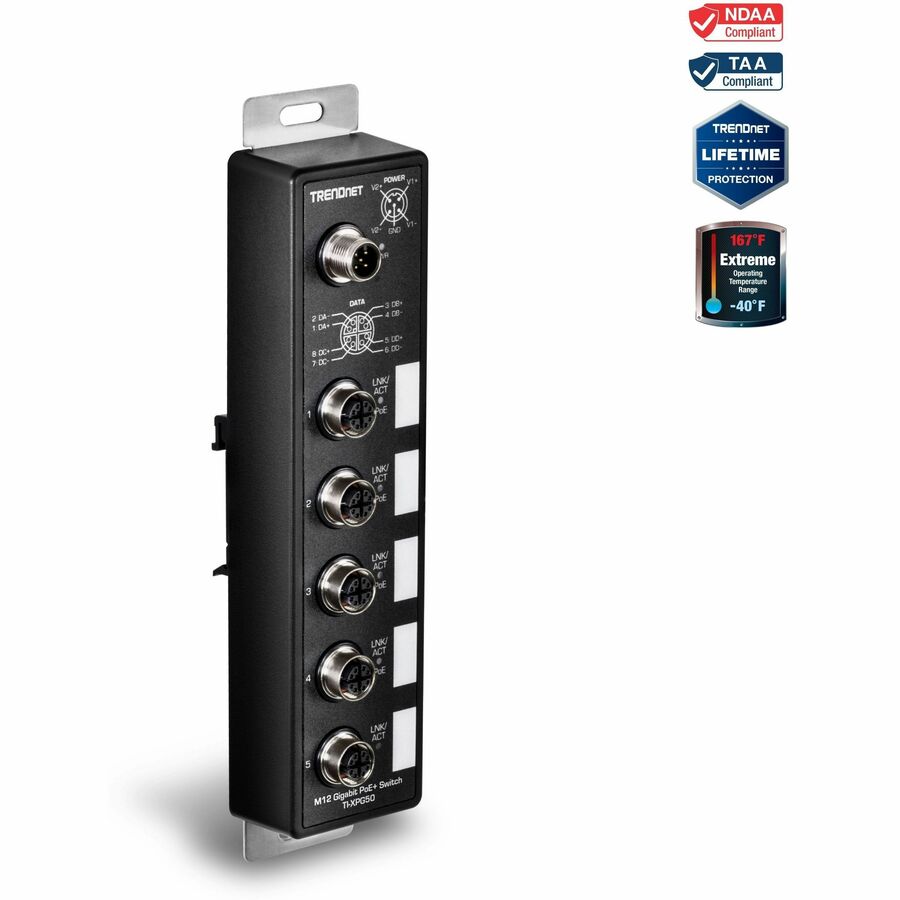

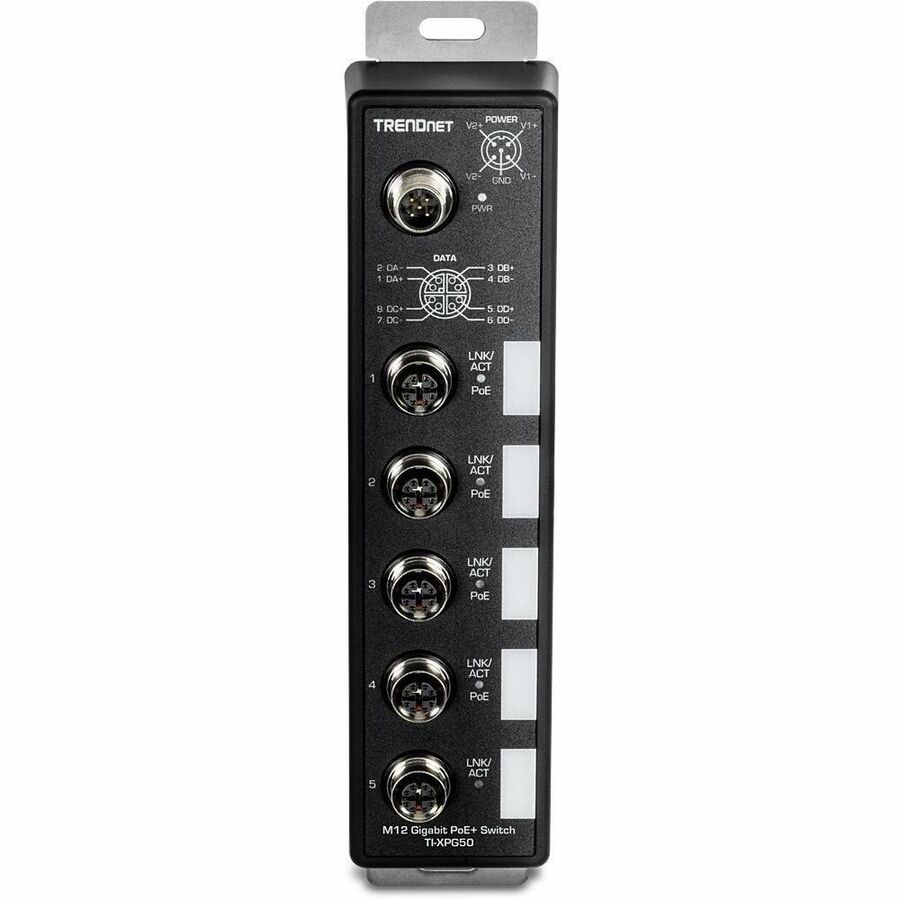

TRENDnet 5-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch

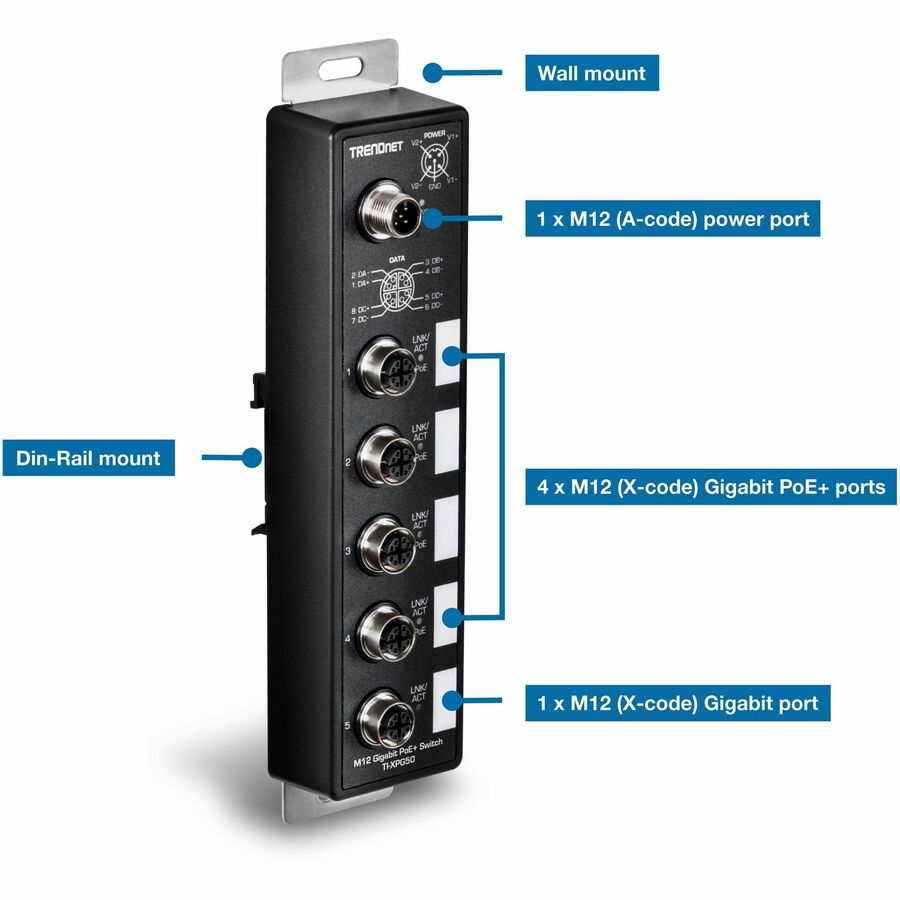

• DEVICE INTERFACE: 4 x M12 (X-code) Gigabit PoE+ ports; 1 x M12 (X-code) Gigabit port; 1 x M12 (A-code) power port; LED

indicators; Wall Mount; Din Rail Mount; Grounding Point

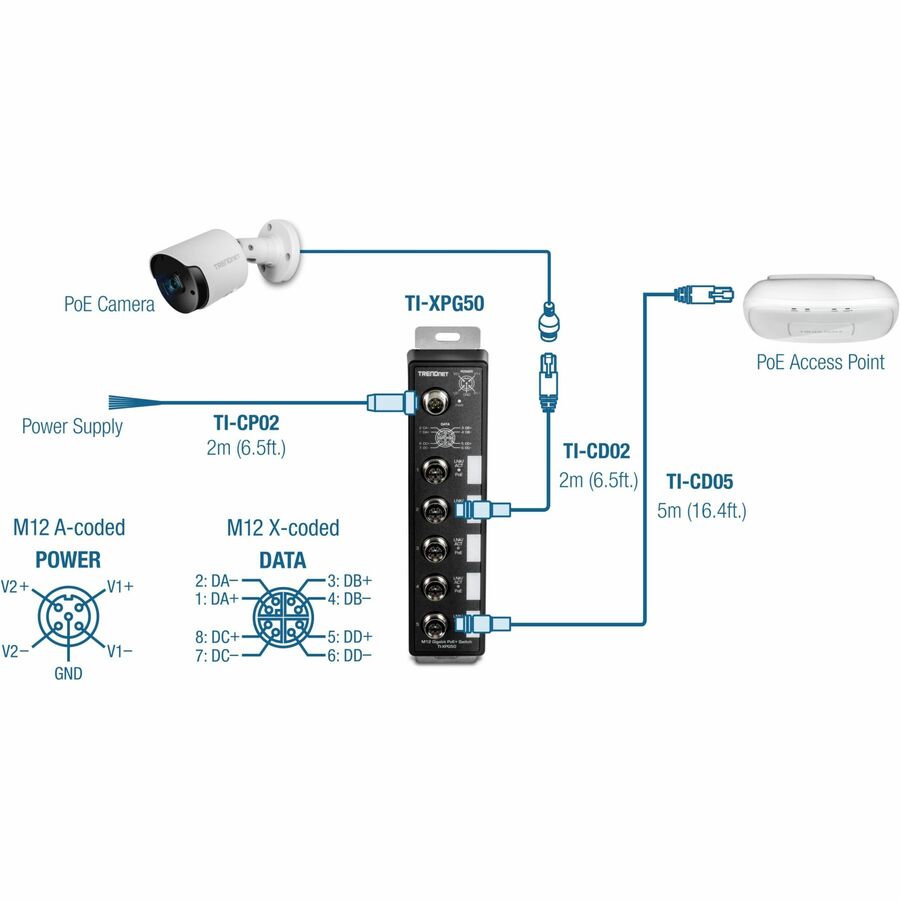

• POWER SUPPLY & CABLES SOLD SEPARATELY: M12 cables sold separately (models: TI-CD02 / TI-CD05 / TI-CP02); Power

supply sold separately (models: TI-S15052)

• POE POWER BUDGET: Four M12 gigabit PoE+ ports deliver up to 30W of PoE+ power per port with total power budget of

120W@56V DC

• SWITCHING CAPACITY: The 5 port TI-XPG50 has a 10Gbps switching capacity

• EN50155 COMPLIANT: This M12 switch supports an input voltage range from 48 - 56V DC with M12 interfaces for moving bus,

train, and other rolling stock applications.

• INDUSTRIAL DESIGN: Equipped with an IP67 rated metal enclosure, the M12 switch is designed to withstand a high degree of

vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial environments.

• DIN-RAIL & WALL MOUNT KIT: This gigabit PoE+ switch comes with an integrated DIN-Rail mount and wall mounting hardware.

• SHOCK AND VIBRATION RESISTANT: Designed to withstand a high degree of vibration and shock. Rated for shock (EN

60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6)

• TRENDnet LIFETIME PROTECTION: The TI-XPG50 M12 Switch comes with Lifetime TRENDnet Manufacturer Protection. TRENDnet's 5-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch, model TI-XPG50, has four M12 gigabit PoE+ ports and one M12 gigabit port with a total PoE budget of up to 120W. This M12 Ethernet switch is equipped with an IP67 outdoor rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° - 75° C (-40° - 167° F) for industrial EN50155 applications. The M12 Ethernet switch is designed and tested for mobile bus, train, other transportation and telecom applications.

EN50155 Compliant

This M12 Ethernet switch supports an input voltage range from 48 - 56V DC, with M12 interfaces for moving bus, train, and other rolling stock applications.

Industrial Design

Equipped with an IP67 rated metal enclosure, the M12 switch is designed to withstand vibration and shock, with a wide operating temperature range of -40° - 75° C (-40° - 167° F).

Power over Ethernet (PoE+)

Four M12 gigabit PoE+ ports deliver up to 30W of PoE+ power per port with a total power budget of 120W@56V DC.
