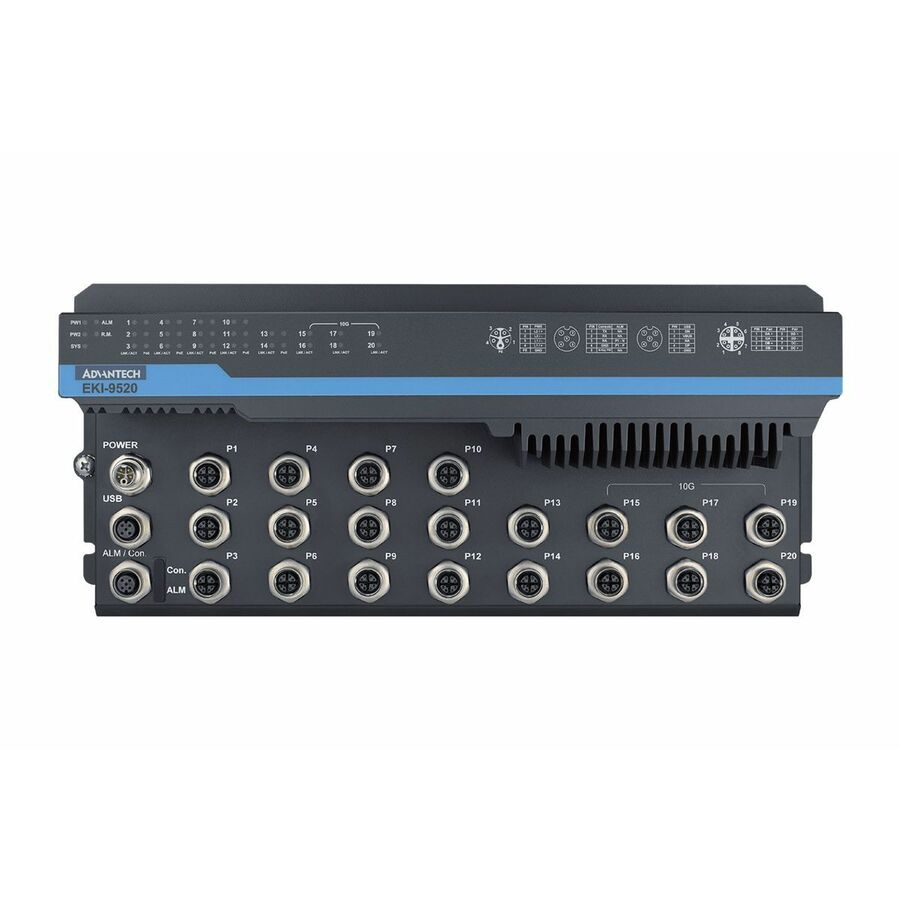

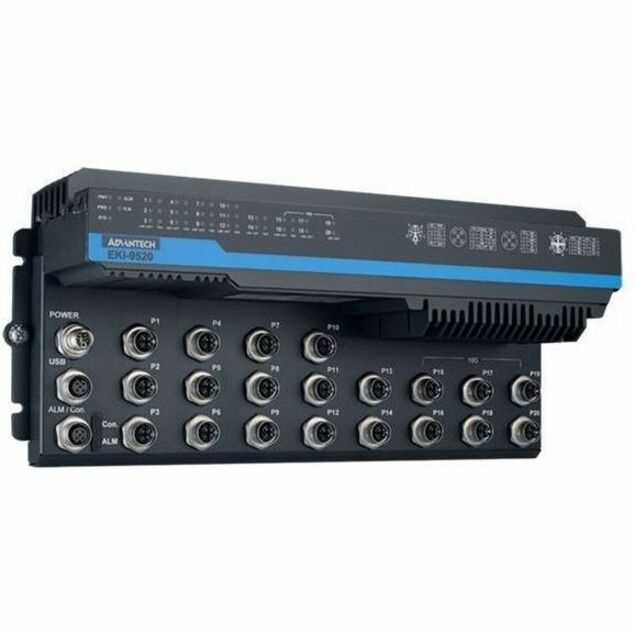

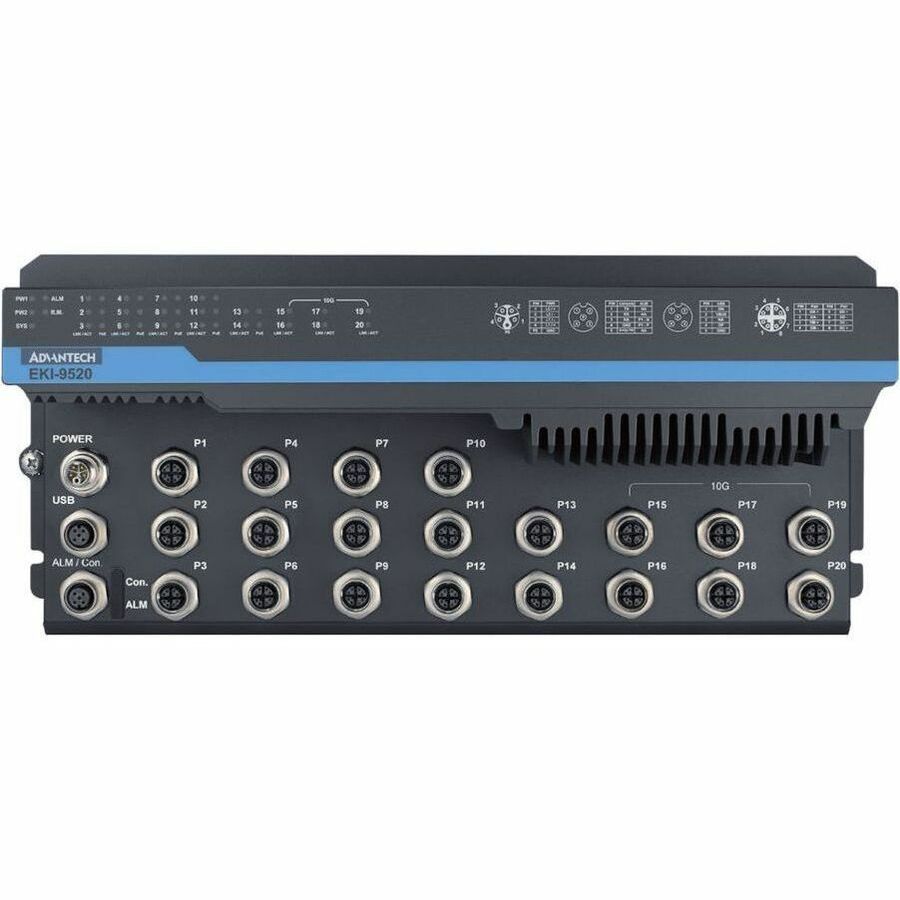

Advantech EKI-9520H-6XPW-A Ethernet Switch
Manageable - Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet - 10/100/1000Base-T, 2.5GBase-T, 5GBase-T, 10GBase-T - 2 Layer Supported - 50 W Power Consumption - 100 W PoE Budget - PoE Ports - Wall Mountable, Enclosure
- SKU
- EKI-9520H-6XPW-A
- Category
- Switches & Bridges
MSRP$6,725.27
$5,303.87
Save 21%Back ordered — ships when restocked.
Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- EKI-9520H-6XPW-A
- Category
- Switches & Bridges
Overview
Advantech's EKI-9520H Ethernet switch is engineered with a ruggedized design and superior EMC performance, making it ideal for rolling stock, wayside control, and other railroad applications. Tailored to meet the demands of modern transportation systems, this next-generation EN50155 Ethernet switch enhances both new and existing trains. With 6 x 10Gbps uplink speeds, it efficiently handles large volumes of data traffic, while its 2.5/5G and multigigabit ports support cutting-edge Wi-Fi 6 technology. The EKI-9520H offers users a versatile solution for a wide range of applications, helping to build advanced and reliable transportation services.
Highlights
- 14 x 1G and 6 x 10G ports for high speed application.
- Up to 14 x IEEE802.3af/at PoE ports
- M12 connector with ruggedized metal housing
- DHCP relay and DHCP option 82 for flexible host configuration
- Provides M12-USB Dongle for quick configuration and backup
- Special mechanism design to save cabling space
- Wide operating power input rage: 16.8~137.5VDC
Specifications
| Product Type | Ethernet Switch |
|---|---|
| Input Voltage | 24 V DC, 28 V DC, 36 V DC, 48 V DC, 72 V DC, 96 V DC, 110 V DC, 16.8 V DC, 137.5 V DC |
| Manufacturer Part Number | EKI-9520H-6XPW-A |
| Power Source | DC |
| Layer Supported | 2 |
| Weight (Approximate) | 17.64 lb |
| Features | IP20, Strict Priority Queuing (SPQ), Broadcast Storm Control, DHCP Snooping, Access Control List, DHCP Relay, Support Dual Image |
| Form Factor | Wall Mountable, Enclosure |
| Manufacturer | Advantech Co., Ltd |
| Product Model | EKI-9520H-6XPW-A |
| Product Name | EKI-9520H-6XPW-A Ethernet Switch |
| Network Technology | 10/100/1000Base-T, 2.5GBase-T, 5GBase-T, 10GBase-T |
| Power Consumption | 50 W |
| Brand Name | Advantech |
| Height | 5.9" |
| Width | 13.8" |
| Depth | 3.8" |
| Manageable | Yes |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Ethernet Technology | Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet |
| PoE (RJ-45) Port | Yes |
| Port/Expansion Slot Details | 14 x M12 5Pin X-Coded 10/100/1000Base-T Gigabit Ethernet PoE Port, 6 x M12 5Pin X-Coded 2.5/5/10 Base-T Gigabit Ethernet PoE Port |
| PoE Budget | 100 W |
| Networking Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3ad, IEEE 802.1Q, IEEE 802.1v, IEEE 802.1ad, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1p, IEEE 802.1x, IEEE 802.1ag, IEEE 802.3ah |
| Product Material | Metal, Aluminum |
