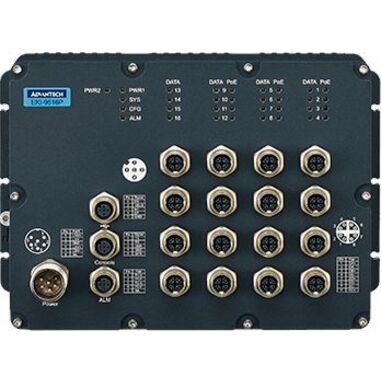

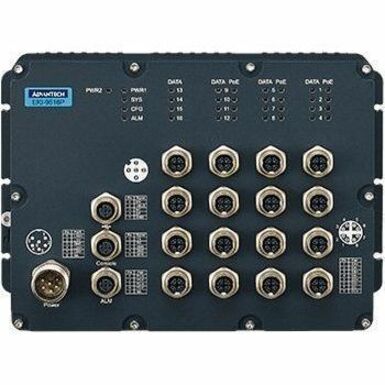

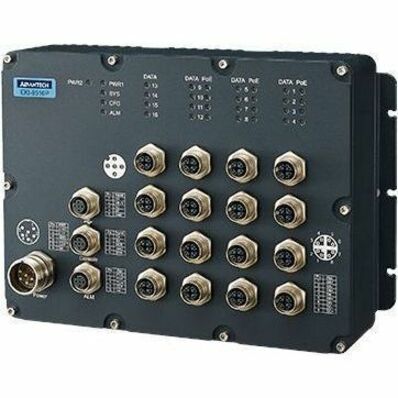

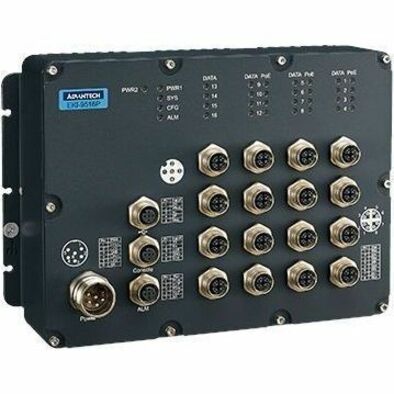

Advantech EKI-9516P-HV Ethernet Switch
Advantech

Advantech EKI-9516P-HV Ethernet Switch

Manageable - Ethernet, Fast Ethernet - 10/100Base-T - 2 Layer Supported - 26.40 W Power Consumption - PoE Ports - Wall Mountable, DIN Rail Mountable, Enclosure - 5 Year Limited Warranty

SKU
EKI-9516-P0IDH10E
Category
Switches & Bridges

MSRP$3,517.44

$2,781.55

Save 21%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
EKI-9516-P0IDH10E
Category
Switches & Bridges

Overview

EKI-9512D M12 Managed Ethernet Switch is designed for railway applications, including rolling stock. EKI-9512D switch uses M12 connectors to ensure tight, robust connections, and to guarantee reliable operation against environmental disturbances, such as vibration and shock. EKI-9512D provides 12 Fast Ethernet M12 ports. In addition, EKI-9512D provides a wide power input range of 24/36/48/72/96/110 VDC; the dual, isolated power input increases the reliability of your communications system. The -40 to 70° C operating temperature and IP67-rated waterproof enclosure allow deployment in harsh environments. EKI-9512D is compliant with the essential sections of the European railway standard EN 50155, EN50121-3-2 covering operating temperature, power input voltage, surge, ESD, and vibration, making the switches suitable for a variety of industrial applications.

Highlights

  • Complies with EN50155
  • All 10/100 Mbps connections support dual ring protection and non-blocking traffic forwarding
  • X-Ring Pro supports rapid and predictable convergence
  • Provides M12 connector with IP67 protection
  • Supports wide operating temperatures from -40 ~ 70°C
  • Wide Range Power Input (24/36/48/72/96/110 VDC)

Specifications

Product TypeEthernet Switch
Input Voltage72 V DC, 96 V DC, 110 V DC, 36 V DC, 48 V DC, 24 V DC
Manufacturer Part NumberEKI-9516-P0IDH10E
Power SourceDC
Limited Warranty5 Year
Layer Supported2
Weight (Approximate)7.72 lb
FeaturesIP67, Broadcast Storm Control, Strict Priority Queuing (SPQ), Remote Monitoring (RMON), DHCP Relay, Dynamic ACL, Support Dual Image
Form FactorWall Mountable, DIN Rail Mountable, Enclosure
ManufacturerAdvantech Co., Ltd
Product ModelEKI-9516P-HV
Product NameEKI-9516P-HV Ethernet Switch
Network Technology10/100Base-T
Power Consumption26.40 W
Product SeriesEKI-9516
Brand NameAdvantech
Height2.5"
Width10"
Depth6.9"
ManageableYes
Maximum Data Transfer Rate12.50 MB/s
Ethernet TechnologyEthernet, Fast Ethernet
PoE (RJ-45) PortYes
Port/Expansion Slot Details12 x M12 D-Code 10/100BaseT PoE Ethernet Network Port, 4 x M12 D-Code 10/100BaseT Ethernet Network Port
Networking StandardsIEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1x
Product MaterialAluminum
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
