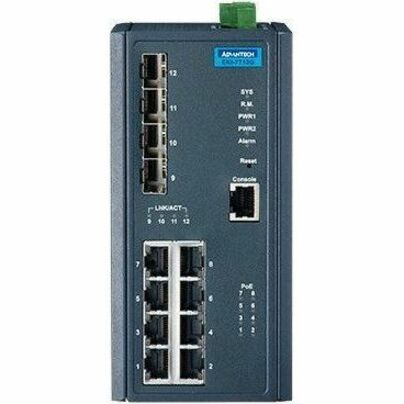

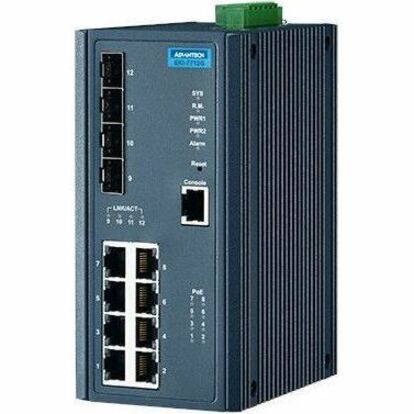

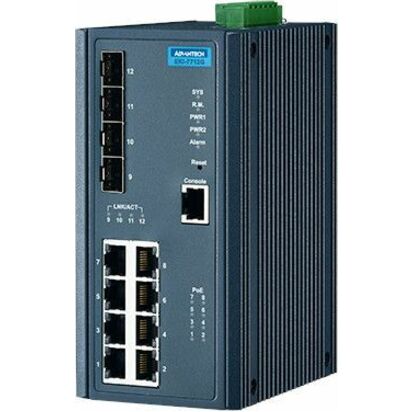

Advantech EKI-7712G-4FPI Ethernet Switch
Advantech

Advantech EKI-7712G-4FPI Ethernet Switch

8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-X - 2 Layer Supported - 4 SFP Slots - 12.10 W Power Consumption - 240 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - Wall Mountable, DIN Rail Mountable - 5 Year Limited Warranty

SKU
EKI-7712G-4FPI-AU
Category
Switches & Bridges

MSRP$1,474.49

$1,174.12

Save 20%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
EKI-7712G-4FPI-AU
Category
Switches & Bridges

Overview

EKI-7712G-4FP/4FPI supports 8 Gigabit IEEE 802.3 af/at PoE ports and 4 SFP (mini-GBIC) ports. They can provide up to 30 watts per port to fulfill high power consumption PD (Power Device). Besides, it is embedded with Advantech IXM function, this can benefit users for fast deployment and can dramatically save engineers time and costs. The EKI-7712G series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, the EKI-7712G series is equipped with X-Ring Pro which can achieve ultra high speed recovery time of less than 20 ms to ensure network stability. The switch also features a wide -40° to 75°C operating temperature (EKI-7712G-4FPI) and NEMA TS2 rating, making the switch an ideal solution for use in traffic applications and have successfully passed the EN50121-4 European railway standard requirements of emission and immunity for railway platforms and trackside deployment.

Highlights

  • 8 x IEEE 802.3 af/at PoE Gigabit ports + 4 SFP ports
  • SFP socket for Easy and Flexible Fiber Expansion
  • Redundancy: X-Ring Pro (ultra high-speed recovery time
  • IXM function enables fast deployment
  • Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
  • Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
  • NEMA TS2 for Traffic Control
  • EN50121-4 approval for Railway trackside deployment
  • -40 ~ 75°C wide-range operating temperature (EKI-7712G-4FPI)
  • Dual 48 VDC power input and 1 relay output

Specifications

Product TypeEthernet Switch
Input Voltage48 V DC
Manufacturer Part NumberEKI-7712G-4FPI-AU
Packaged Quantity1
Power SourcePower Supply
Limited Warranty5 Year
Layer Supported2
Weight (Approximate)2.43 lb
FeaturesIP30
Form FactorWall Mountable, DIN Rail Mountable
ManufacturerAdvantech Co., Ltd
Product ModelEKI-7712G-4FPI
Product NameEKI-7712G-4FPI Ethernet Switch
Network Technology10/100/1000Base-TX, 1000Base-X
Package TypeBulk
Power Consumption12.10 W
Product SeriesEKI-7712G
Brand NameAdvantech
Plug/Connector TypeTerminal Block
Expansion Slot TypeSFP
Country of OriginTaiwan
Height2.9"
Width6"
Depth4.1"
ManageableYes
Maximum Data Transfer Rate125 MB/s
Ethernet TechnologyGigabit Ethernet
Network (RJ-45)Yes
Number of SFP Slots4
Media Type SupportedTwisted Pair, Optical Fiber
Total Number of Network Ports8
PoE (RJ-45) PortYes
Port/Expansion Slot Details8 x 10/100/1000BASE-T Gigabit Ethernet PoE RJ-45 Network Port, 4 x Gigabit Ethernet SFP Expansion Slot, 1 x RS-232 Console Port
Total Number of Expansion Slots4
Redundant Power Supply SupportedYes
PoE Budget240 W
Networking StandardsIEEE 802.1p, IEEE 802.3ad, IEEE 802.1x, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3at, IEEE 802.3af, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ab
Product MaterialMetal
Environmental ComplianceRestriction of Hazardous Substances (RoHS) 3, Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
