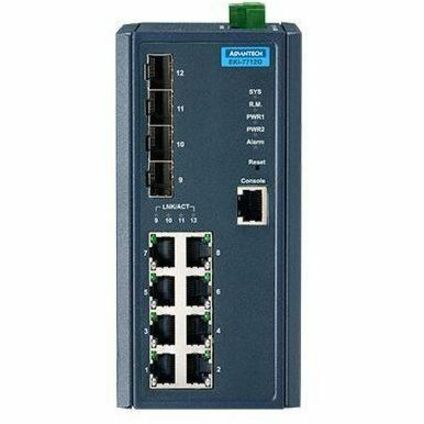

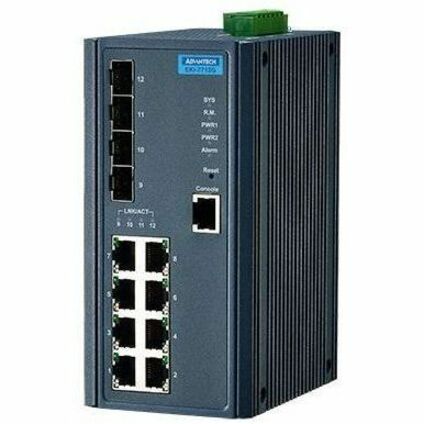

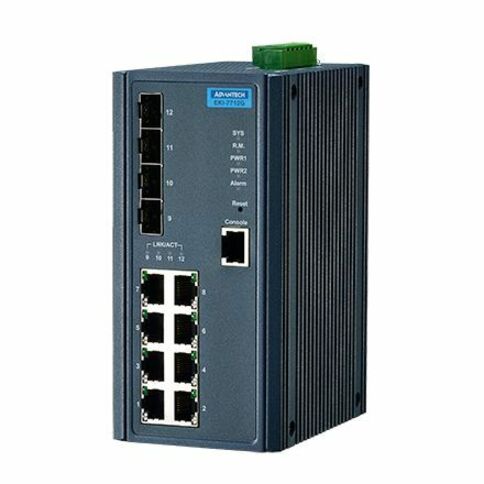

Advantech EKI-7712G-4FI Ethernet Switch
Advantech

Advantech EKI-7712G-4FI Ethernet Switch

8 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-TX, 10/100/1000Base-T, 1000Base-SX/LX, 1000Base-LHX, 1000Base-ZX - 2 Layer Supported - 4 SFP Slots - 12.10 W Power Consumption - Twisted Pair, Optical Fiber - Enclosure, DIN Rail Mountable, Wall Mountable - 5 Year Limited Warranty

SKU
EKI-7712G-4FI-AU
Category
Switches & Bridges

MSRP$1,249.92

$994.37

Save 20%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
EKI-7712G-4FI-AU
Category
Switches & Bridges

Overview

The EKI-7712G-4F and EKI-7712G-4FI provide users with abundant port options for connecting to a range of different device types with 8 Gigabit ports and 4 SFP (mini-GBIC) ports. These units are embedded with Advantech's IXM function, which can benefit users with fast deployment and can save considerably on engineering time and costs. The EKI-7712G series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, the series are equipped with X-Ring Pro, which can achieve ultra-highspeed recovery times of <20 ms, thus ensuring network stability. The EKI-7712G-4FI also features a wide operating temperature of -40 to 75°C and NEMA TS2 rating, making it ideal for use in traffic applications. Both the EKI-7712G-4F and EKI-7712G-4FI comply with EN50121-4 European railway standard requirements for emissions and railway platform and trackside deployment.

Highlights

  • 8 x Gigabit Ethernet ports + 4 x SFP ports
  • Redundancy: X-Ring Pro (ultra-high-speed recovery time, <20 ms), RSTP/STP (802.1w/1D)
  • IXM function for fast deployment
  • Security Pack with 802.1X, ACL, RADIUS, TACACS+, MAB Authentication, SNMPv3, HTTPS, SSH, and SFTP
  • Management: SNMP v1/v2c/v3, WEB, Telnet, standard MIB, private MIB
  • Supports NMS for easy and visualized to monitor and manage network remotely
  • Dual 12 ~ 48 VDC power input and 1 x relay output

Specifications

Product TypeEthernet Switch
Input Voltage12 V DC, 48 V DC
Manufacturer Part NumberEKI-7712G-4FI-AU
Power SourceDC
Limited Warranty5 Year
Layer Supported2
FeaturesBroadcast Storm Control, Strict Priority Queuing (SPQ), Access Control List, DHCP Relay, Remote Monitoring (RMON), Support Dual Image, IP40
Form FactorEnclosure, DIN Rail Mountable, Wall Mountable
ManufacturerAdvantech Co., Ltd
Product ModelEKI-7712G-4FI
Product NameEKI-7712G-4FI Ethernet Switch
Network Technology10/100/1000Base-TX, 10/100/1000Base-T, 1000Base-SX/LX, 1000Base-LHX, 1000Base-ZX
Power Consumption12.10 W
Product SeriesEKI-7712G
Brand NameAdvantech
Plug/Connector TypeTerminal Block
Expansion Slot TypeSFP (mini-GBIC)
Height6"
Width2.9"
Depth4.1"
ManageableYes
Maximum Data Transfer Rate128 MB/s
Ethernet TechnologyGigabit Ethernet
Network (RJ-45)Yes
Number of SFP Slots4
Media Type SupportedTwisted Pair, Optical Fiber
Total Number of Network Ports8
Port/Expansion Slot Details8 x 10/100/1000BASE-T/TX Gigabit Ethernet RJ-45 Network Port, 4 x Gigabit Ethernet SFP (mini-GBIC) Expansion Slot
Total Number of Expansion Slots4
Redundant Power Supply SupportedYes
Networking StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1w, IEEE 802.1D, IEEE 802.1x, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1p, IEEE 802.3ad
Product MaterialMetal
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
