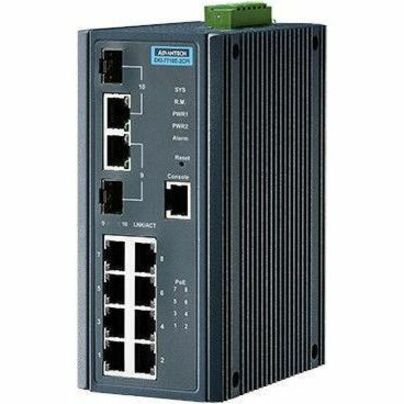

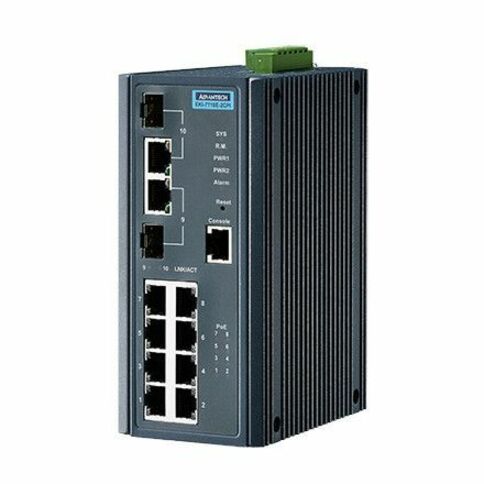

Advantech EKI-7710E-2CPI Ethernet Switch
10 Ports - Manageable - Fast Ethernet, Gigabit Ethernet - 10/100Base-TX, 1000Base-X, 1000Base-T - 2 Layer Supported - Modular - 2 SFP Slots - 12.10 W Power Consumption - Twisted Pair, Optical Fiber - PoE Ports - DIN Rail Mountable, Wall Mountable - 5 Year Limited Warranty
- SKU
- EKI-7710E-2CPI-AU
- Category
- Switches & Bridges
MSRP$1,096.08
$873.44
Save 20%Back ordered — ships when restocked.
Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- EKI-7710E-2CPI-AU
- Category
- Switches & Bridges
Overview
The EKI-7710E-2CP/2CPI support 8 PoE ports and 2 Gigabit combo ports. They can provide up to 30 W per port for high-power-consumption powered devices. They also features Advantech's IXM function, which can benefit users with fast deployment and can save considerably on engineering time and cost. The series also support NMS to help IT managers with networking maintenance and failure prevention. Finally, they are equipped with X-Ring Pro, which can achieve ultra-high-speed recovery times of <20 ms, thus ensuring network stability.
Highlights
- 8 x IEEE 802.3 af/at PoE Fast Ethernet ports + 2 x Gigabit Copper/SFP combo ports
- SFP socket for Easy and Flexible Fiber Expansion
- Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time
- IXM function enables fast deployment
- Security: 802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption), RADIUS
- Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB, Private MIB
- -40 ~ 75°C wide-range operating temperature (EKI-7710E-2CPI)
- Dual 24~48 V DC power input and 1 relay output
Specifications
| Product Type | Ethernet Switch |
|---|---|
| Input Voltage | 24 V DC, 48 V DC |
| Manufacturer Part Number | EKI-7710E-2CPI-AU |
| Power Source | DC |
| Limited Warranty | 5 Year |
| Layer Supported | 2 |
| Weight (Approximate) | 2.65 lb |
| Form Factor | DIN Rail Mountable, Wall Mountable |
| Manufacturer | Advantech Co., Ltd |
| Product Model | EKI-7710E-2CPI |
| Product Name | EKI-7710E-2CPI Ethernet Switch |
| Network Technology | 10/100Base-TX, 1000Base-X, 1000Base-T |
| Power Consumption | 12.10 W |
| Brand Name | Advantech |
| Plug/Connector Type | Terminal Block (6 Wire) |
| Expansion Slot Type | SFP (mini-GBIC) |
| Country of Origin | Taiwan |
| Height | 6" |
| Width | 2.9" |
| Depth | 4.1" |
| Manageable | Yes |
| Environmentally Friendly | Yes |
| Ethernet Technology | Fast Ethernet, Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Number of SFP Slots | 2 |
| Modular | Yes |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Total Number of Network Ports | 10 |
| Shared SFP Slot | Yes |
| PoE (RJ-45) Port | Yes |
| Port/Expansion Slot Details | 8 x Fast Ethernet PoE+, 2 x Gigabit Ethernet TP/SFP Combo |
| Total Number of Expansion Slots | 2 |
| Networking Standards | IEEE 802.1p, IEEE 802.3ad, IEEE 802.1x, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.3af, IEEE 802.3at |
| Product Material | Metal |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Taiwan Restriction of Hazardous Substances (Taiwan RoHS) |
