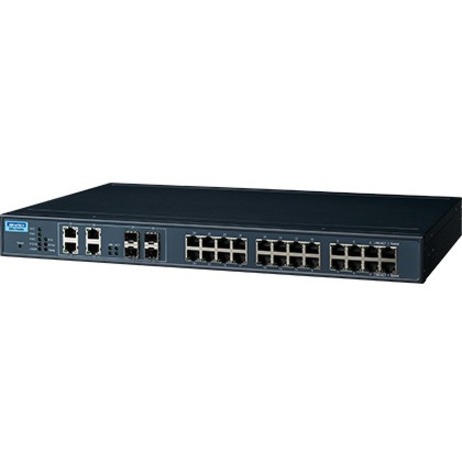

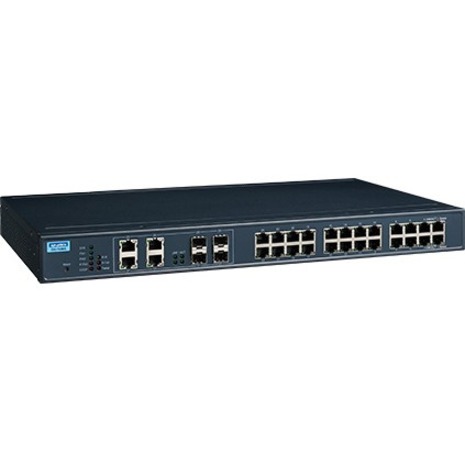

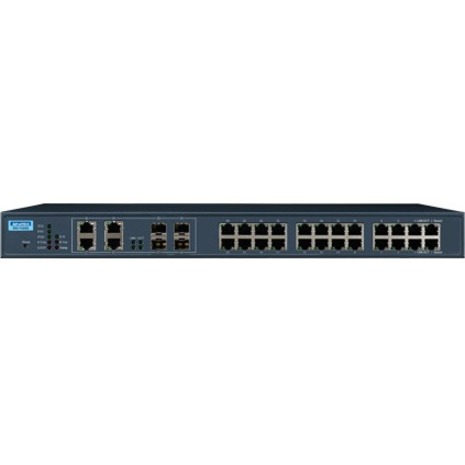

B+B SmartWorx 24G+4G Combo Port L2 Managed PoE Switch
Advantech

B+B SmartWorx 24G+4G Combo Port L2 Managed PoE Switch

24 Ports - Manageable - Gigabit Ethernet - 10/100/1000Base-TX, 1000Base-X - 2 Layer Supported - Modular - 4 SFP Slots - 20 W Power Consumption - 30 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Rack-mountable - 5 Year Limited Warranty

SKU
EKI-7428G-4CPI-AU
Category
Switches & Bridges

MSRP$1,691.10

$1,345.49

Save 20%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
EKI-7428G-4CPI-AU
Category
Switches & Bridges

Overview

The EKI-7428G is an industrial-class layer 2 full managed switch including 24 Gigabit ports and 4 Gigabit combo ports. It is designed for rack-mount installation, and can be deployed in demanding industrial environments. It is suitable for edge to core industrial networks. It integrates Layer 2 switching software, which is optimized for scale and performance, delivering wire speed across all ports up to 56 Gbps for layer 2 traffic forwarding. In addition, the PoE design provides up to 30 watts per port to fulfill high power consumption device, moreover, it supports high reliability with -40 ~ 70°C operating temperatures, and dual 48 VDC input power design ensure vital network capabilities with minimum downtime. It is also embedded with Advantech IXM, which benefits users by giving them fast deployment and can dramatically save engineer's time and costs.

Highlights

  • 24 x IEEE 802.3 af/at PoE Gigabit ports + 4 x Gigabit Copper/SFP combo ports, provide up to 30Watts per port
  • SFP socket for Easy and Flexible Fiber Expansion
  • Management: SNMP v1/v2c/v3, WEB, Telnet, Standard MIB
  • IXM function enables fast deployment
  • Security:802.1x (Port-Based, MD5/TLS/TTLS/PEAP Encryption),HTTPS,SSH and SNMPv3
  • Redundancy: Gigabit X-Ring Pro (ultra high-speed recovery time < 20 ms), RSTP/STP (802.1w/1D),MSTP
  • 48VDC power input (46-57 VDC for POE af , 53 -57 VDC is recommended for at) and 2 relay output
  • -40 ~ 70°C wide-range operating temperature
  • Support Security Pack to against internal and external cyber threats

Specifications

Product TypeEthernet Switch
Input Voltage48 V DC
Manufacturer Part NumberEKI-7428G-4CPI-AU
Power SourceDC
Limited Warranty5 Year
Layer Supported2
Weight (Approximate)2.43 lb
Form FactorRack-mountable
ManufacturerAdvantech Co., Ltd
Product ModelEKI-7428G-4CPI
Product Name24G+4G Combo Port L2 Managed PoE Switch
Network Technology10/100/1000Base-TX, 1000Base-X
Power Consumption20 W
Brand NameB+B SmartWorx
Expansion Slot TypeSFP (mini-GBIC)
Height1.7"
Width17.2"
Depth10.2"
ManageableYes
Environmentally FriendlyYes
Compatible Rack Unit1U
Ethernet TechnologyGigabit Ethernet
Network (RJ-45)Yes
Number of SFP Slots4
ModularYes
Media Type SupportedTwisted Pair, Optical Fiber
Total Number of Network Ports24
Shared SFP SlotYes
PoE (RJ-45) PortYes
Port/Expansion Slot Details24 x Gigabit Ethernet PoE, 4 x Gigabit Ethernet TP/SFP Combo
Total Number of Expansion Slots4.0
PoE Budget30 W
Networking StandardsIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1D, IEEE 802.1w, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ab, IEEE 802.3at
Product MaterialMetal
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
